Week 8 - Challenge 1 - Base Bracket Design

AIM:- Base Bracket Design:_

OBJECTIVE:-

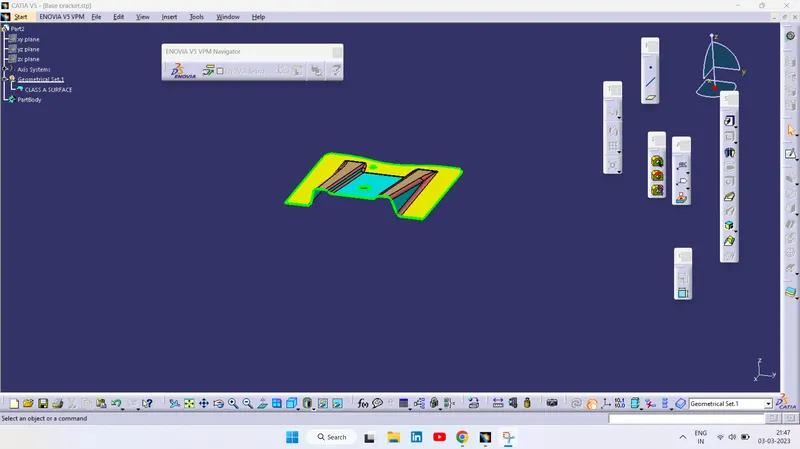

Create the Base Bracket Plastic component through the given Class-A surface.

To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

The thickness of the Plastic Part - is 2.5 mm

NOTE:

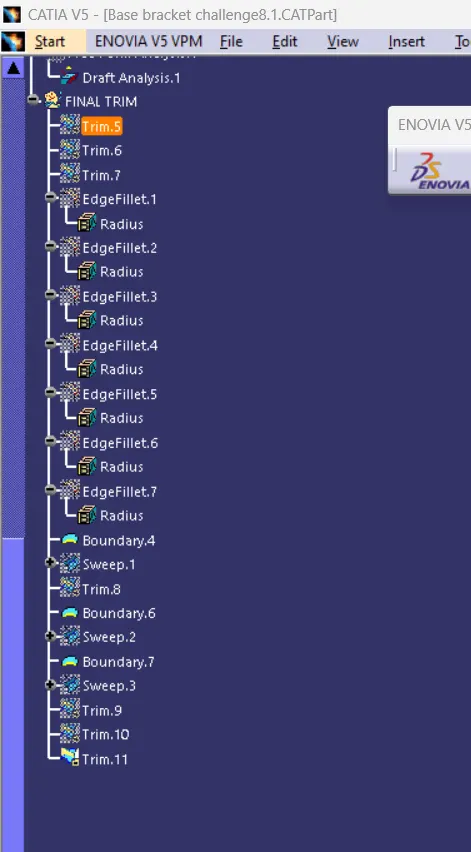

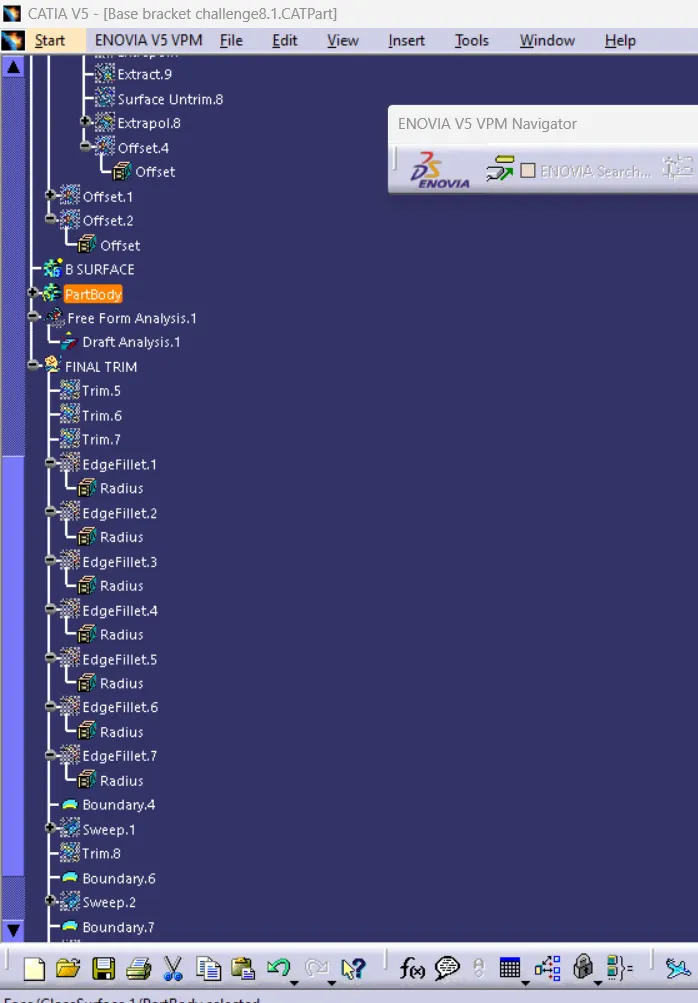

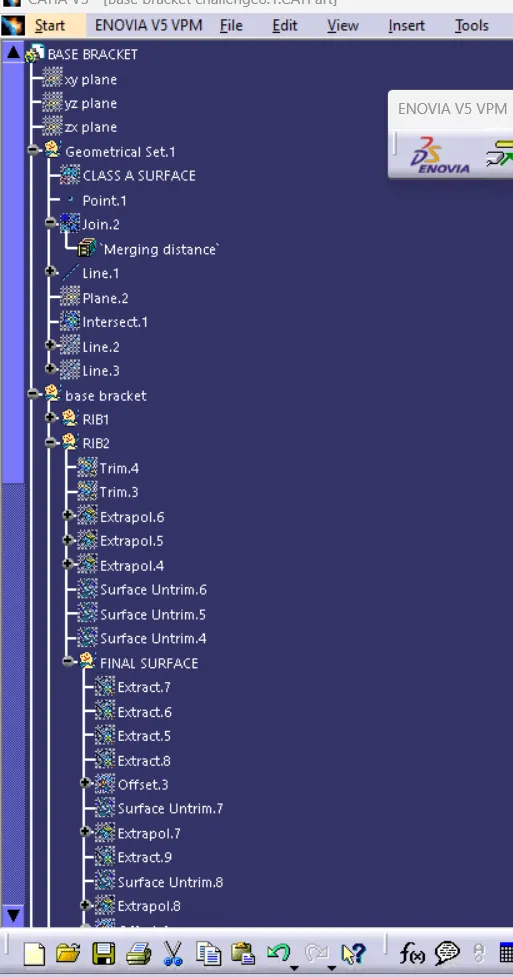

Tree Structure

Ensure Proper Tree Structure

Geometrical sets should have a proper name based on the sketches present inside of it

All the sketches should be created under the Geometrical set

Use the Close Surface feature to make a solid body from the surface.

Publications: Use the publication option and publish the below

Tooling Axis

Class A, B, and C surface
