Week 8-3D Tetra Meshing Challenge

AIM

------------------------------------------------------------------------------------------------------------------------------------------

Creating TETRAMESH for 3 different models

OBJECTIVE

------------------------------------------------------------------------------------------------------------------------------------------

1. TETRAMESH through 2-D shell elements.

Element size: Min 2 units

Max 7 units

Target 5 units

Tet collapse 0.15

2. TETRAMESH by quick tetra mesh.

Target elements 3 units

Tet collapse 0.15

3. TETRAMESH by quick tetra mesh.

Target elements size 4 units

Tet collapse 0.15

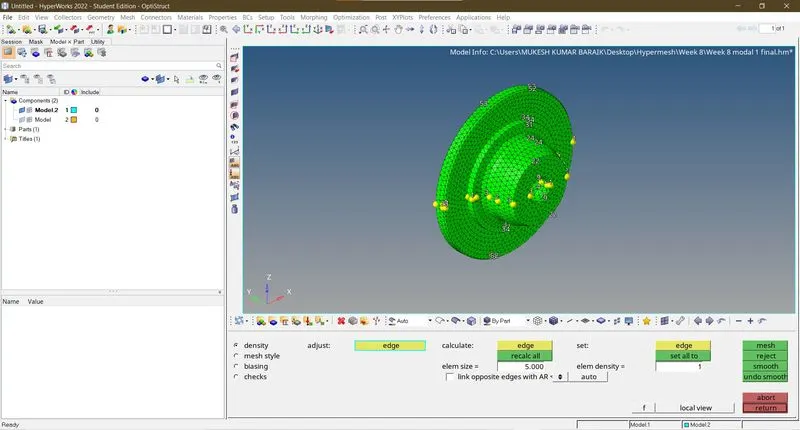

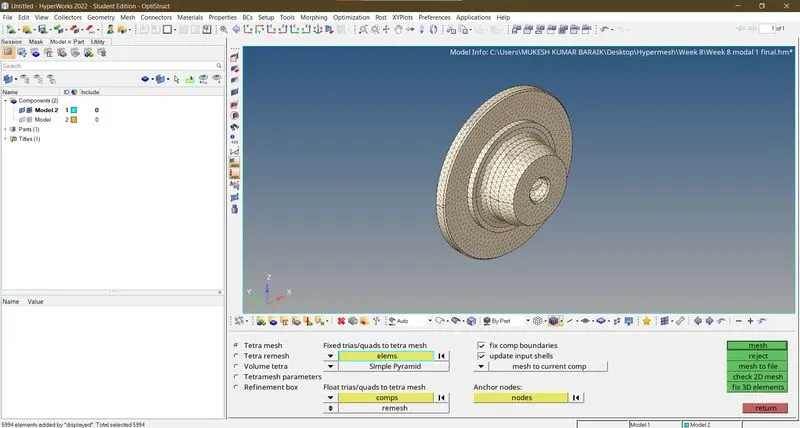

1 2D to 3D elements

--------------------------------------------------------------------------------------------------------------------------------

In this model first 2D elements are created.

Through those 2D elements 3D elements are created.

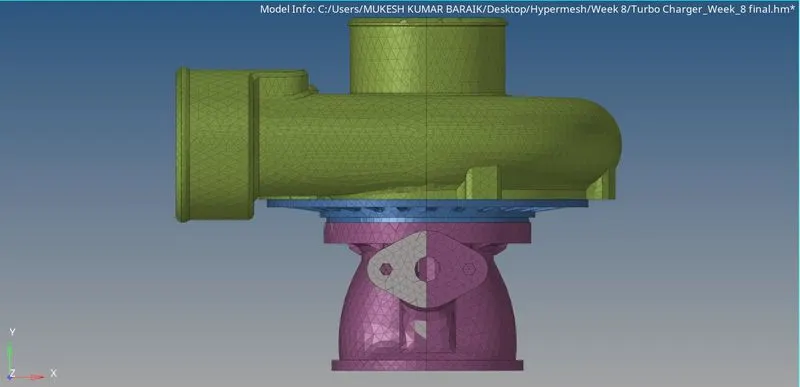

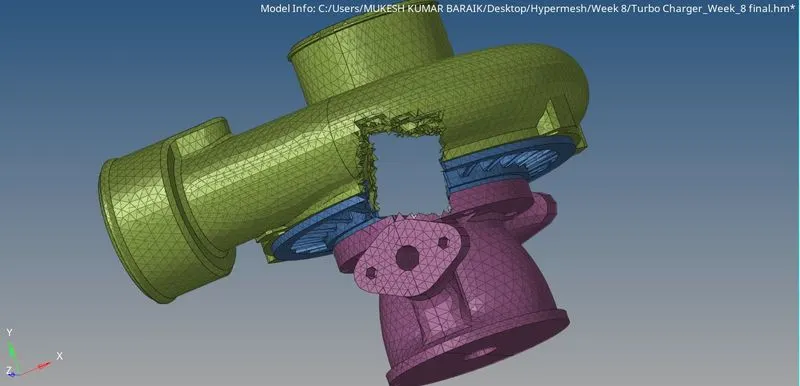

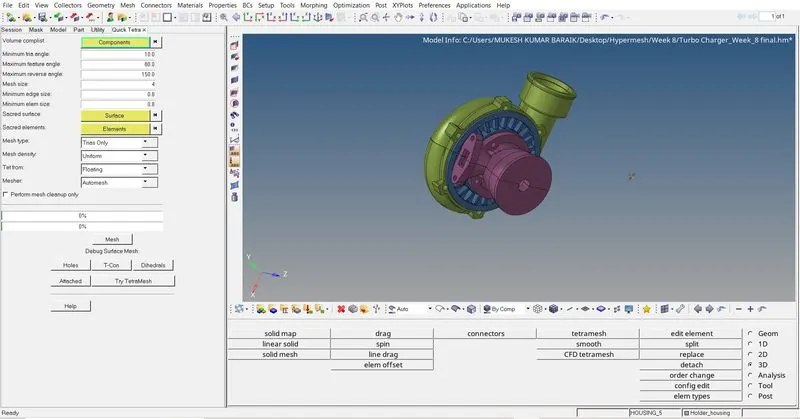

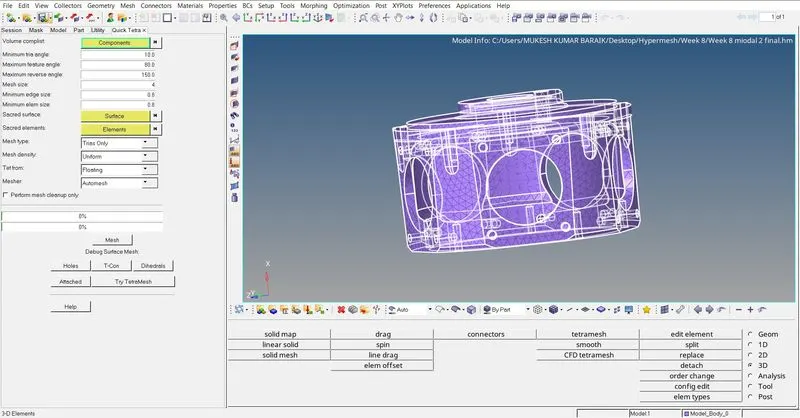

2 QUICK TETRA MESH

--------------------------------------------------------------------------------------------------------------------------------

In this process quick tetra mesh is generated. In this process direct 3D elements created.

3 QUICK TETRAMESH

--------------------------------------------------------------------------------------------------------------------------------

Here direct 3D elements is created.

CONCLUSION

------------------------------------------------------------------------------------------------------------------------------------------

Hence three models 3D elements are created.
