Week 8-3D Tetra Meshing Challenge

AIM :

1. Create a Teramesh for Housing component with the following quality criteria.

1) TetraMesh Generation Method: 2D to 3D Conversion

Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units

Tet collapse: 0.15

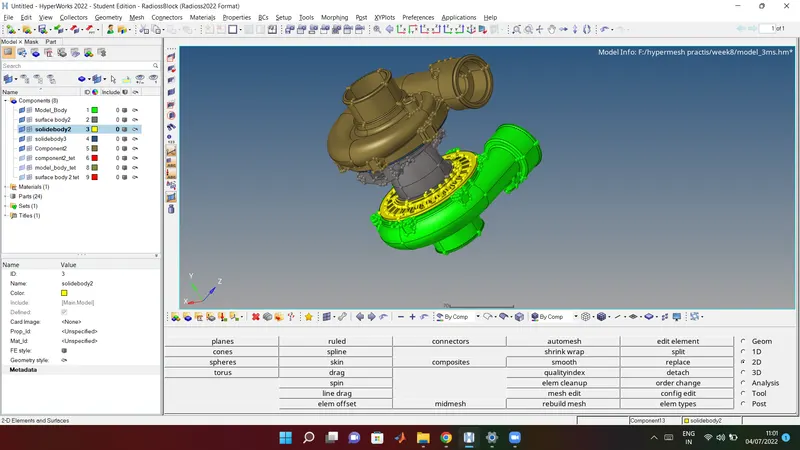

model image one :

proces to do conversion from 2D to 3D

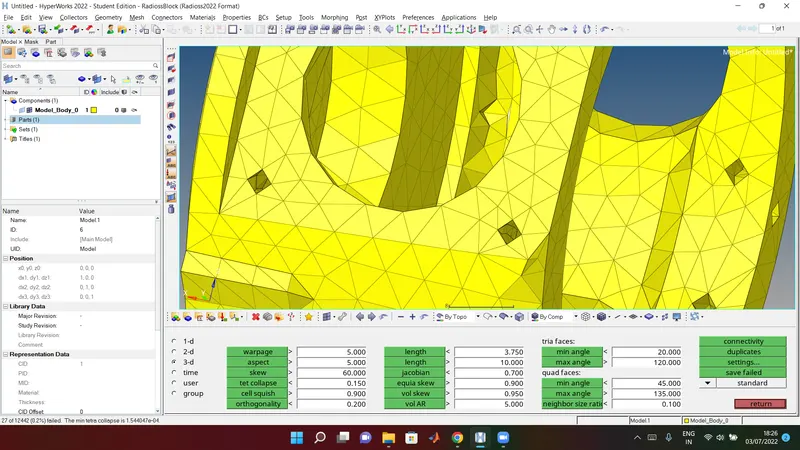

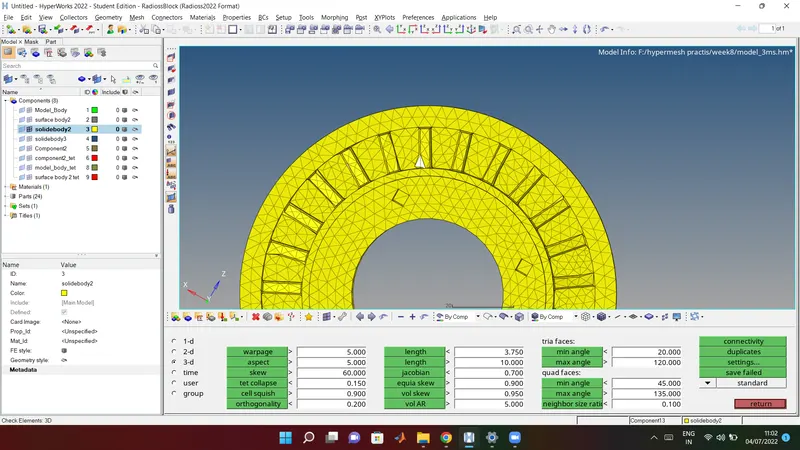

check tet collaps

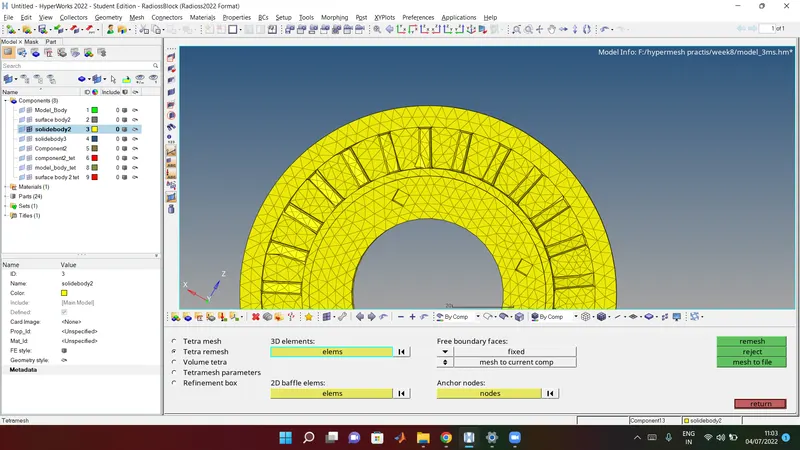

for removing tet collapse:

first check the elemen size remash the tetra element

through distance option increase the length of elemnet or height of the element

Result

Hence the tetra mesh is done

2) TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh

Target Element size: 3 Units.

Tet Collapse: 0.15

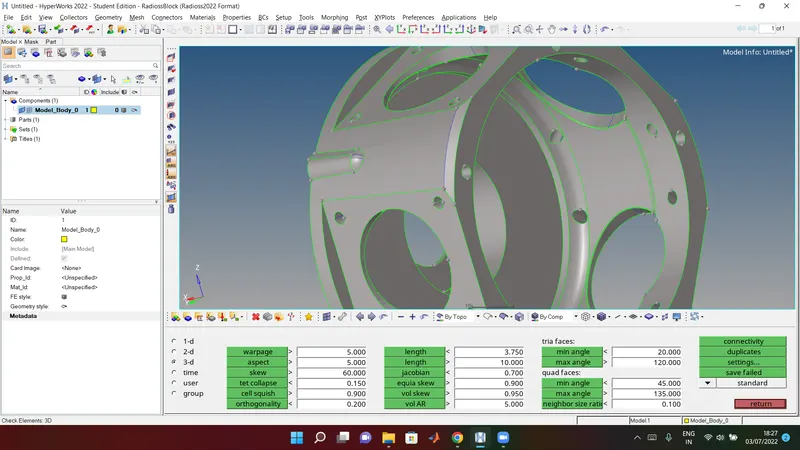

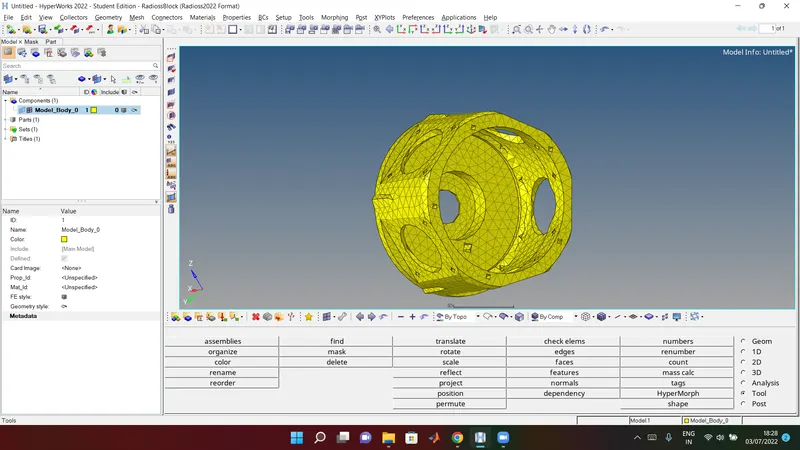

model image two :

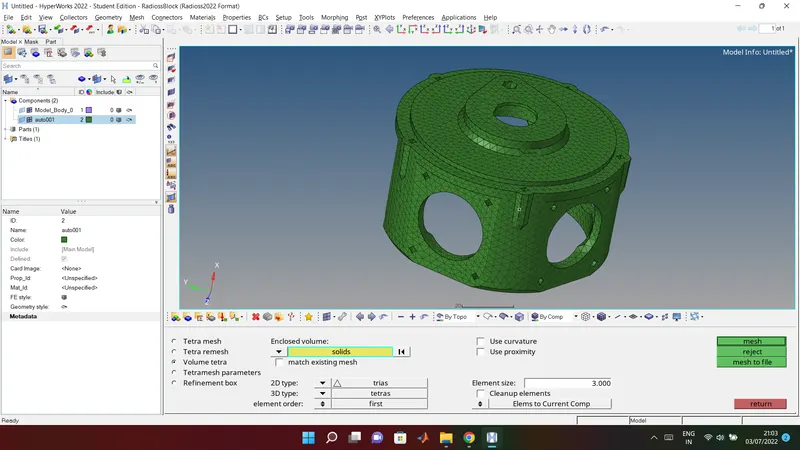

proces to do Quick tetra mesh

Result

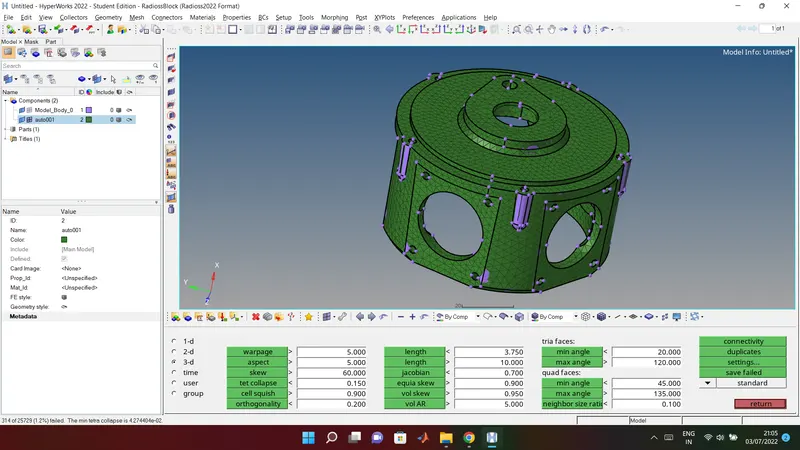

Errors: 1.2%fail

3) TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh

Target Element size: 4 Units.

Tet Collapse: 0.15

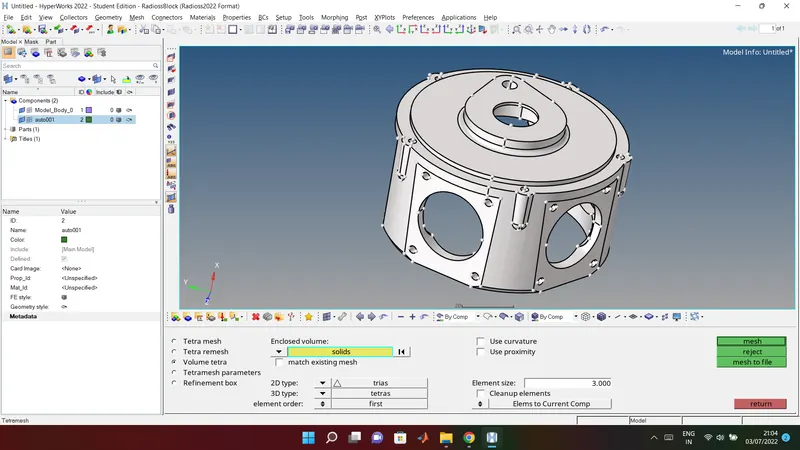

model image three:

proces to do conversion Quick Tetra Mesh/ Volume Tetra Mesh

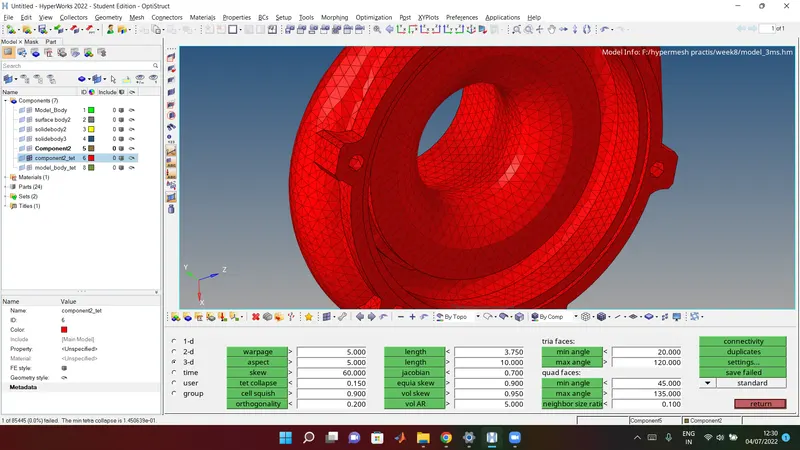

check tet collaps

Result

Conclusion:-
In this challenge, we learn about how to mesh the 3D model by using 2D to 3D method in first model.
In the second model, we learn the volume tetra mesh method.
And in the last model, we mesh the model by using Quick tetra mesh method.

I have attached .hm model with this callange attachment by model name

model one

model two

model three
