Week 8-3D Tetra Meshing Challenge
OBJECTIVE:
- Create a Teramesh for Housing component with the following quality criteria.
TetraMesh Generation Method: 2D to 3D Conversion
Elements sizes: Min- 2 Units, Target- 5 Units, Max- 7 Units
Tet collapse: 0.15
- For the given model, Create a 3D Tetramesh with the following quality criteria.
TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh
Target Element size: 3 Units.
Tet Collapse: 0.15

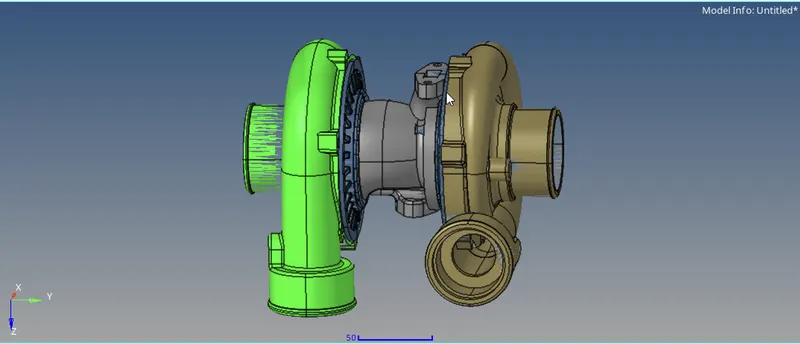

- For the given assembly model, Create a 3D Tetramesh with the following quality criteria.
TetraMesh Generation Method: Quick Tetra Mesh/ Volume Tetra Mesh
Target Element size: 4 Units.
Tet Collapse: 0.15
PROCEDURE:
MODEL1:

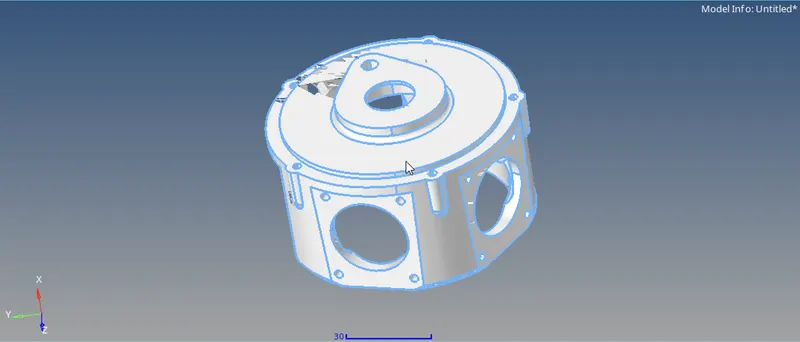

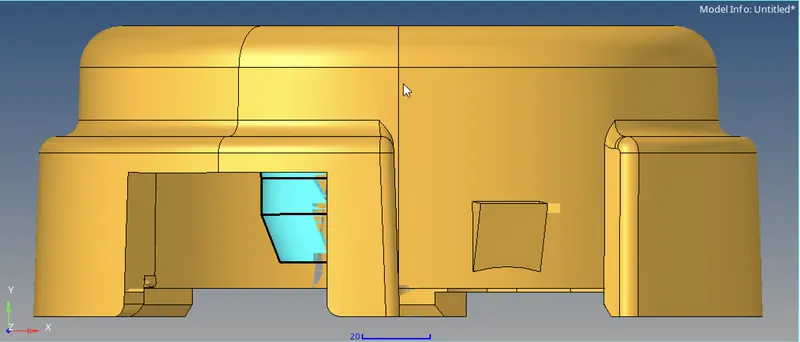

1.Import the given component using FILE-IMPORT option.

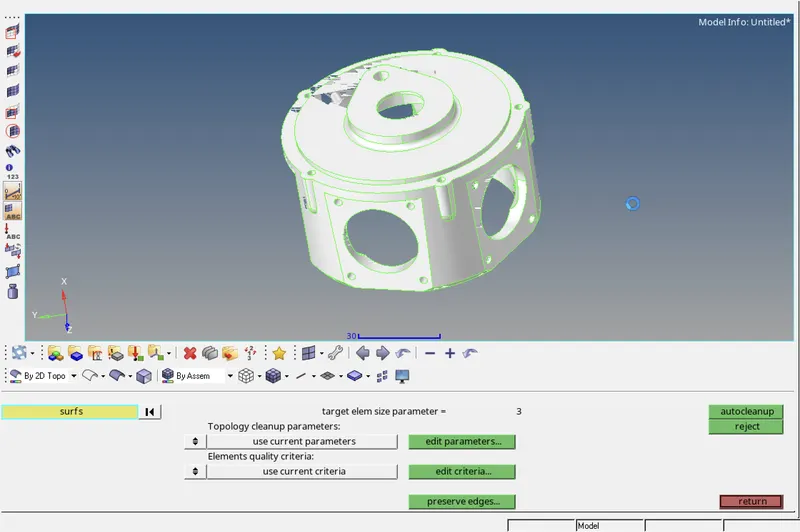

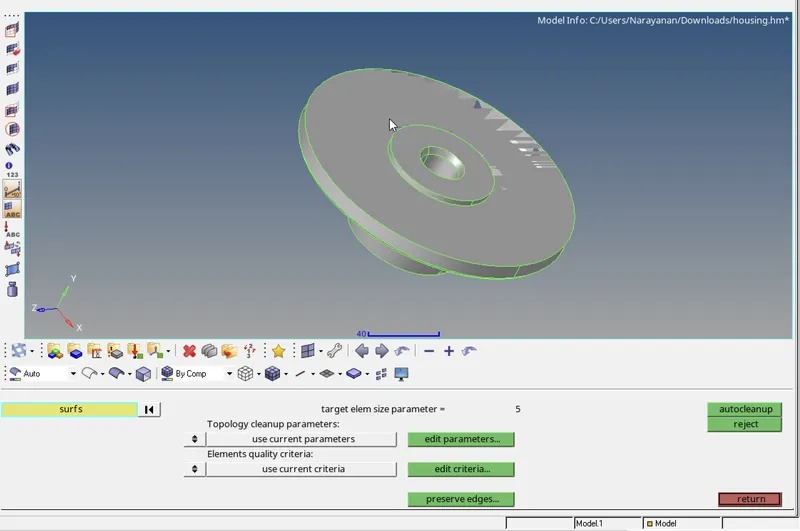

2.Then clean the surface of the given component using GEOM-AUTOCLEANUP

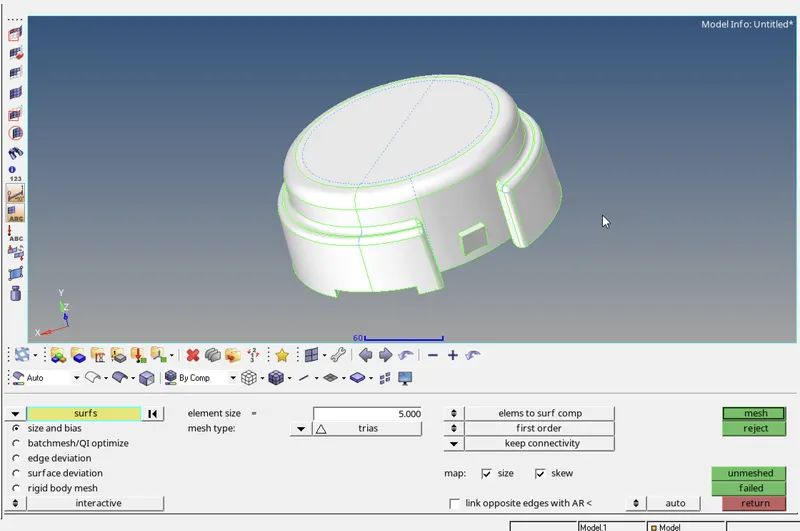

3.Then goto 2D-AUTOMESH and mesh the given component in trias only and element size as 5

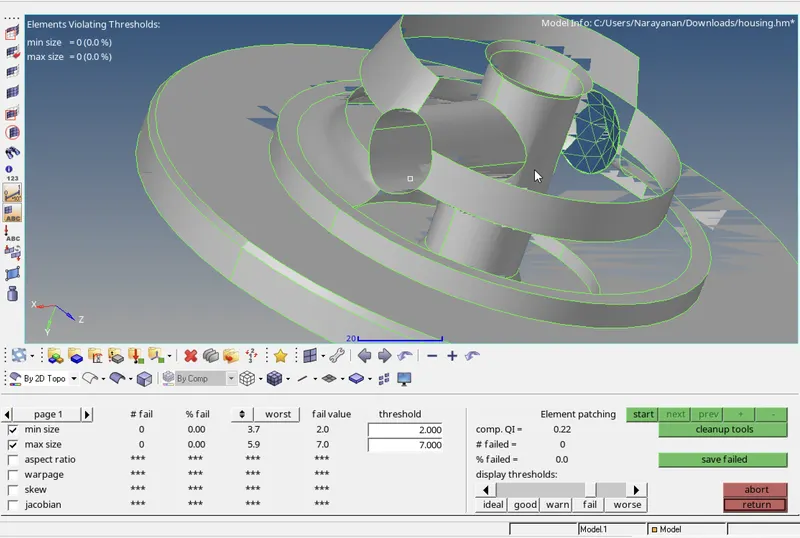

4. After complete the mesh check for quality criteria as given value
5.Then remesh the defect area to obtain the quality criteria

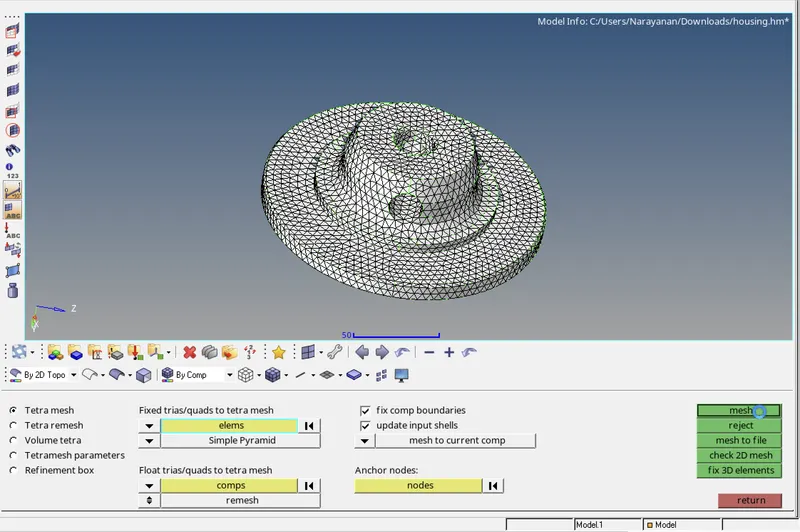

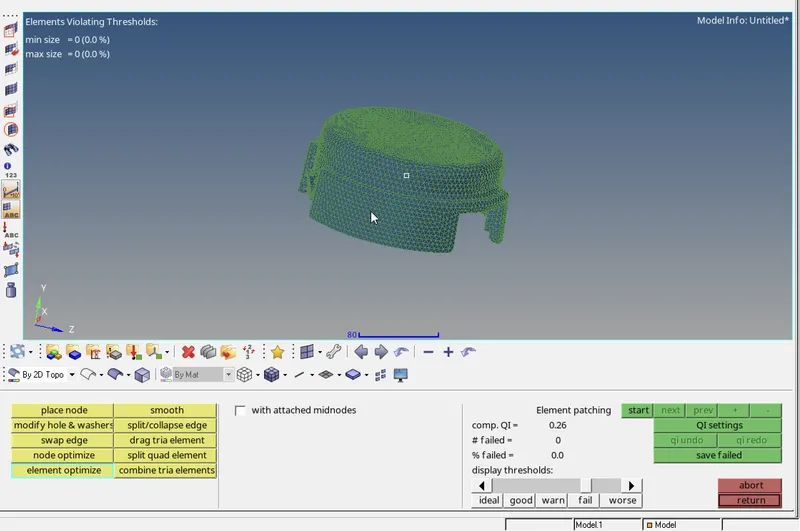

6.After that goto 3D-TETRAMESH mesh with tria to make tetra mesh

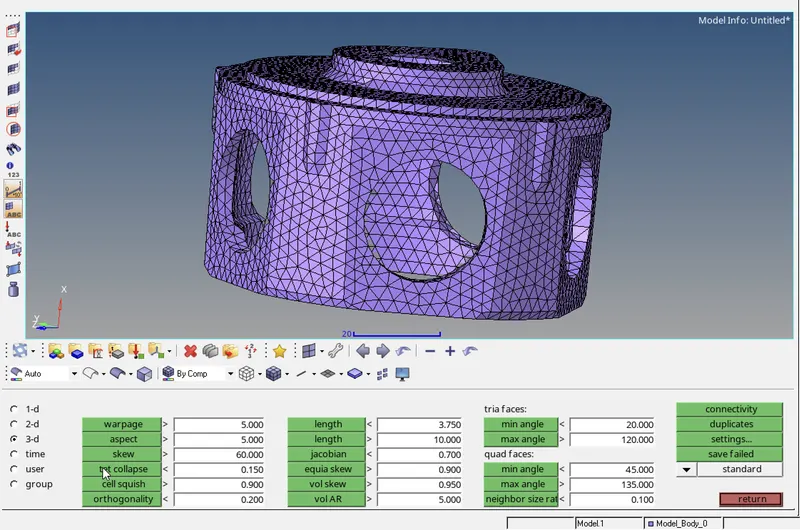

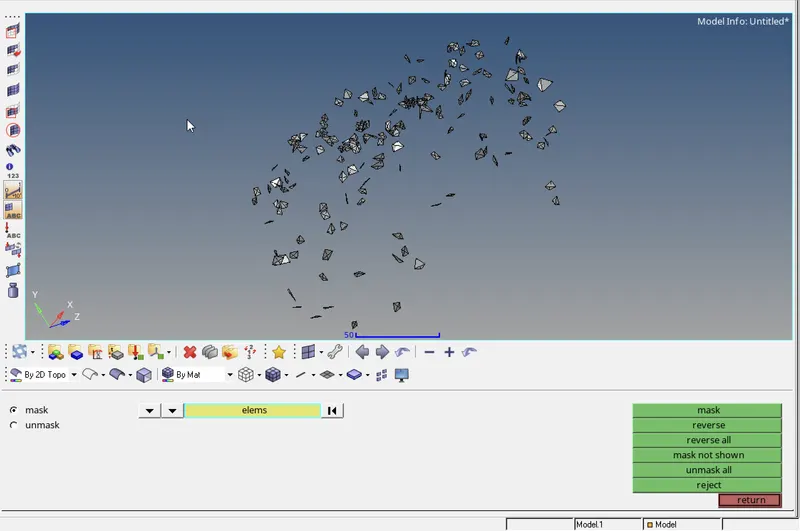

7.After creating 3D mesh check for TET COLLAPSE value as above .15 unit

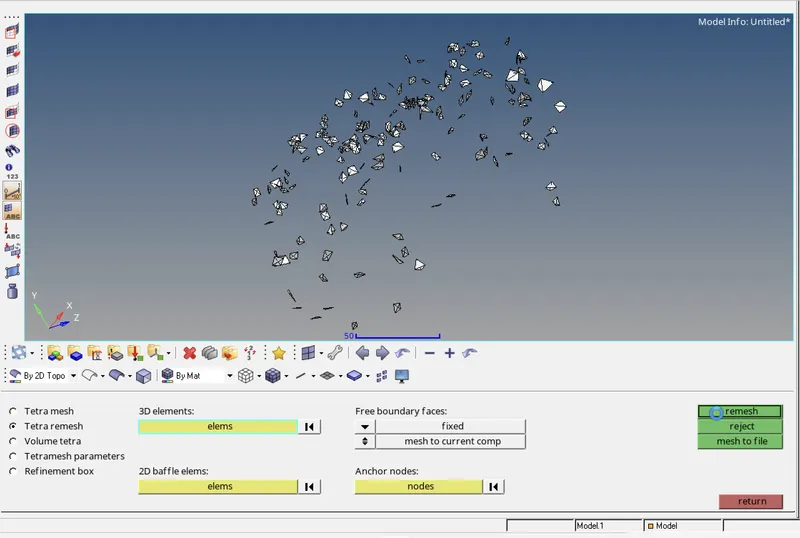

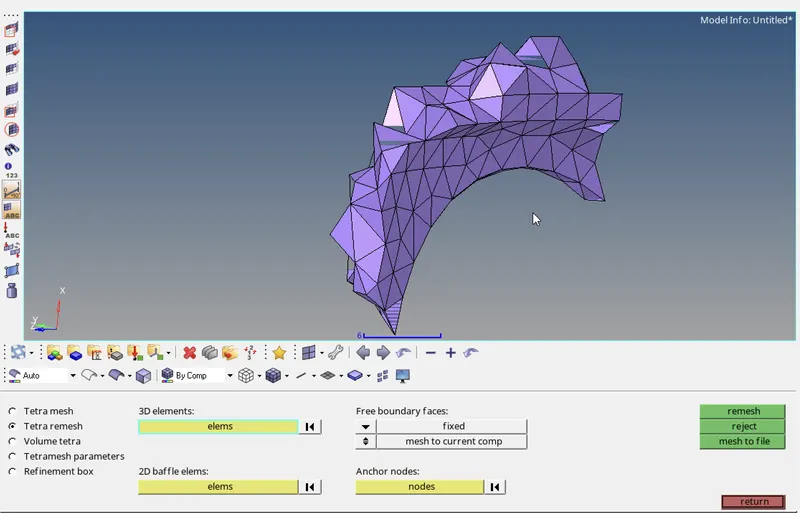

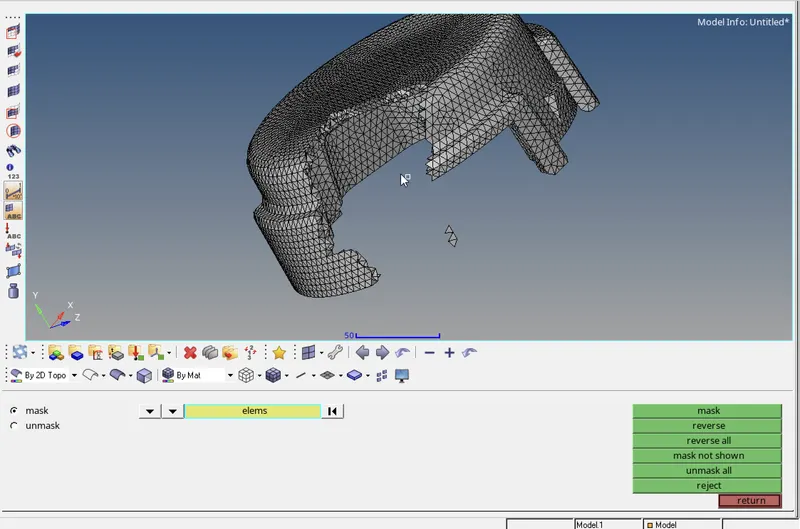

8.If mesh fail then goto 3D-tetramesh-tetraremesh then set the quality criteria value and remesh
MODEL:2
1.Import the given component using FILE-IMPORT option.

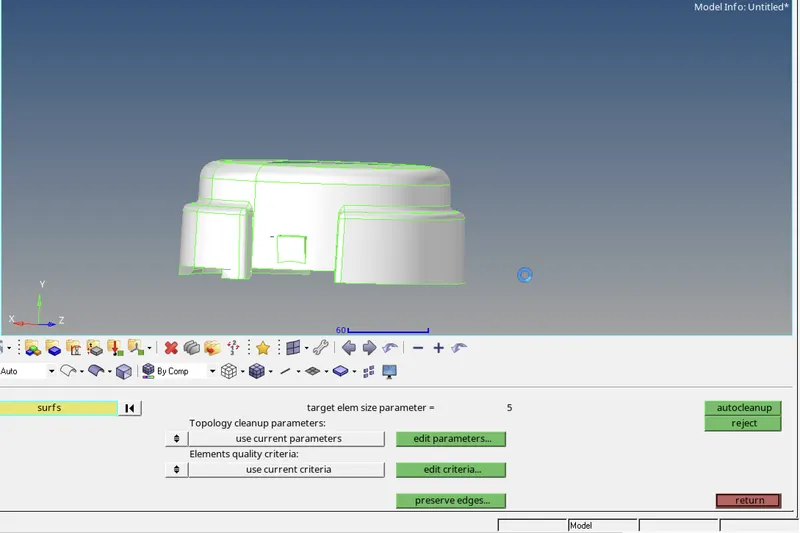

2.Then clean the surface of the given component using GEOM-AUTOCLEANUP
3.After that goto 3D-TETRAMESH-VOLUME TETRA MESH mesh the given component

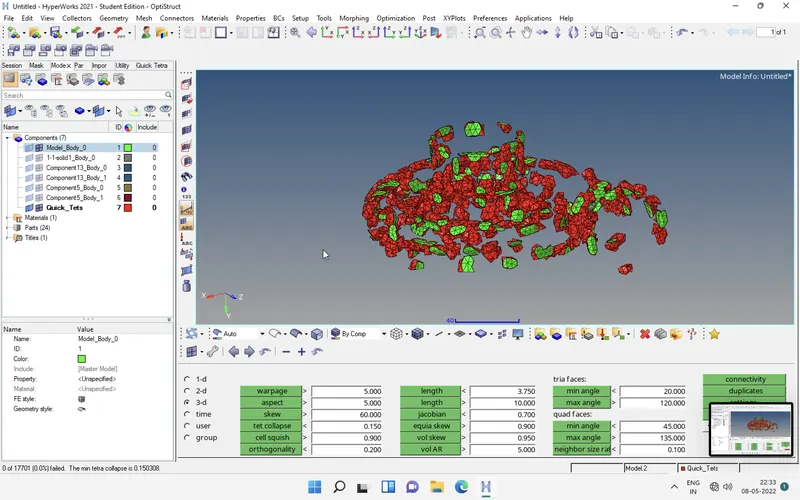

4.After the mesh check for tetcollapse value
5.If mesh fail then goto 3D-tetramesh-tetraremesh then set the quality criteria value and remesh
6.Finally we get tetramesh for the given component
MODEL 3:
1.Import the given component using FILE-IMPORT option.
2.Then clean the surface of the given component using GEOM-AUTOCLEANUP

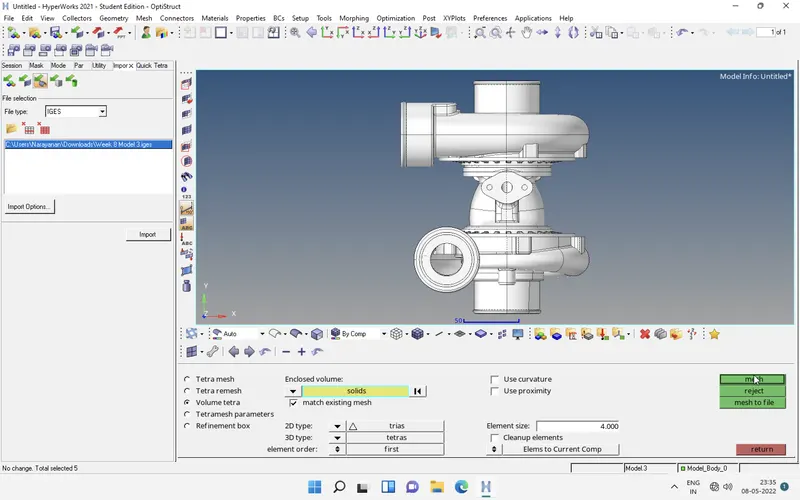

3.After that goto 3D-TETRAMESH-VOLUME TETRA MESH mesh the given component
4.After the mesh check for tetcollapse value
5.If mesh fail then goto 3D-tetramesh-tetraremesh then set the quality criteria value and remesh
6.Finally we get tetramesh for the given component
RESULT

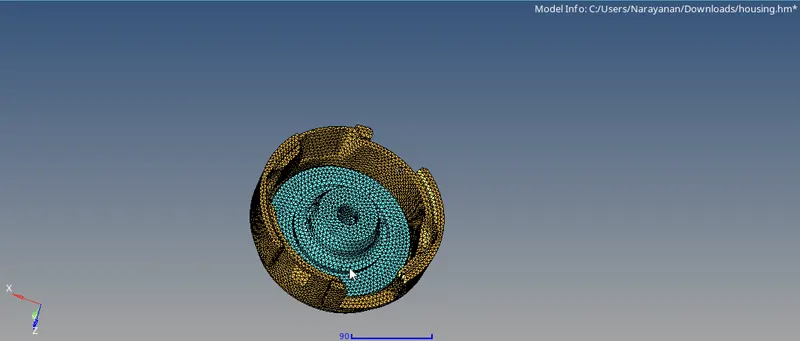

MODEL 1:

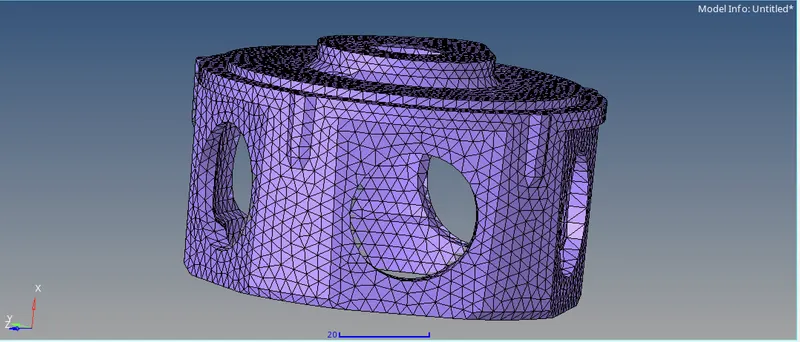

MODEL 2:

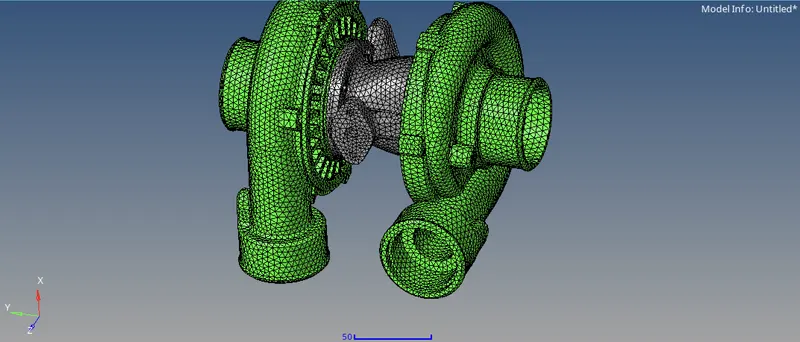

MODEL 3:
