Week 8-3D Tetra Meshing Challenge

Aim : To perform tetramesh of given models .

Objective :To perform tetramesh from 2D to 3D Conversion or by Quick Tetra Mesh/ Volume Tetra Mesh under give mesh parameters.

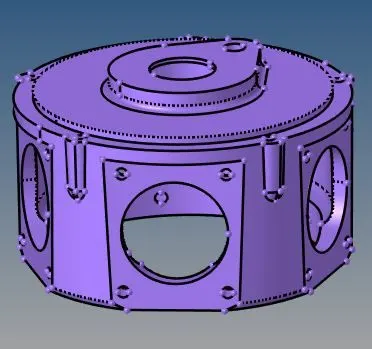

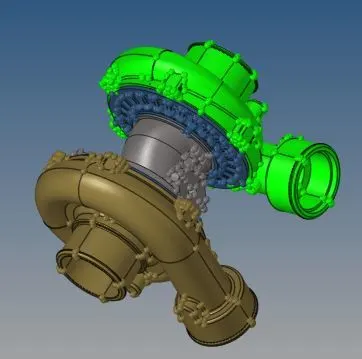

* Given models are shown below;

* Importing the geometry ;

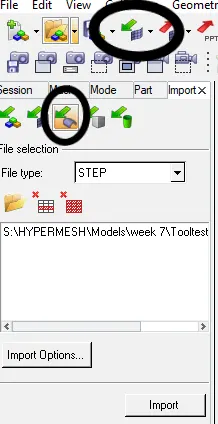

* clicking to task bar and to import geomerty ,selecting the model according to file type as shown below ;

* In first geometry, they asking to mesh the model and to convert 2D to 3D tetramesh

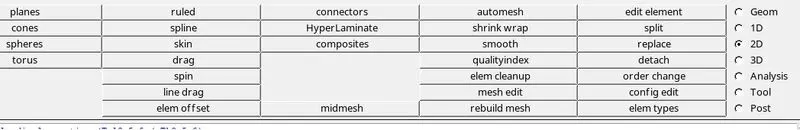

* so clicking to 2D then to automesh as shown below ;

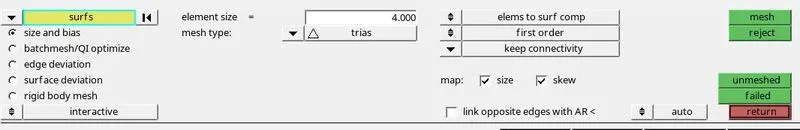

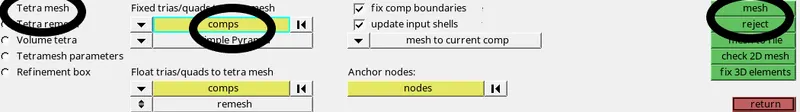

* After above step select the surface and click to mesh by giving the target elment as shown below ;

* By meshing the geometry ,checking the mesh error and clearing the errors are shown below;

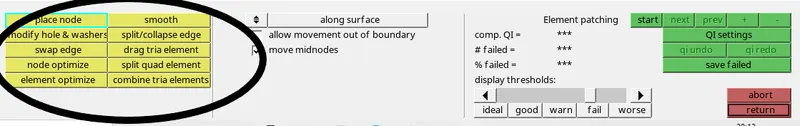

* The shown above options are used to correct the mesh

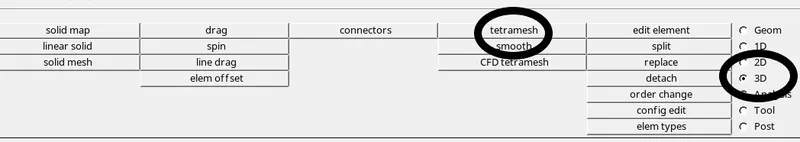

*click 3D and to tetramesh,further more keeping it into tetramesh and compound click to mesh as shown below ;

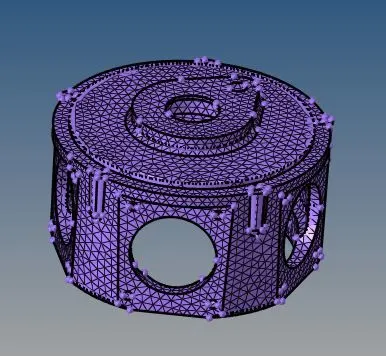

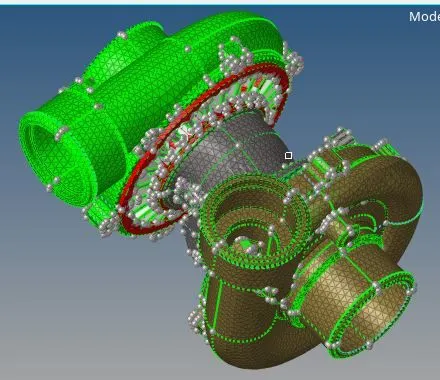

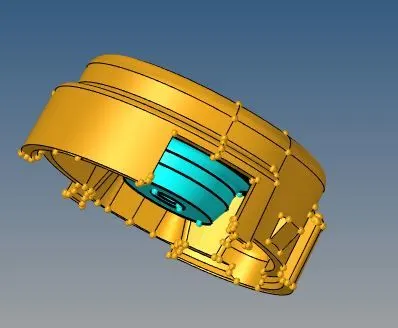

* Below models are the tetramesh geometries.

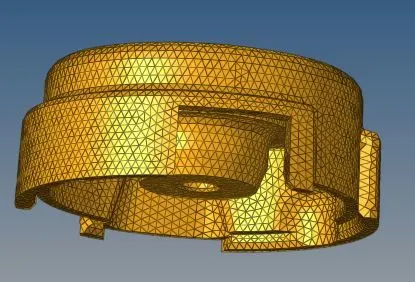

* The models after the mesh correction are shown below ;

* The above shown tetra volume mesh can done in similar option

* Conclusion : The given model can be done both quick mesh and 2D-3D tetramesh with given qaulity parameters.
