Week 8:- 3D Finishing Challenge 2

Automotive BIW Fixture Design

Assignment

By Ravi Ahuja

After Assignment 7 I started finishing the products and fixtures by color coding and placing every object at a nominal distance.

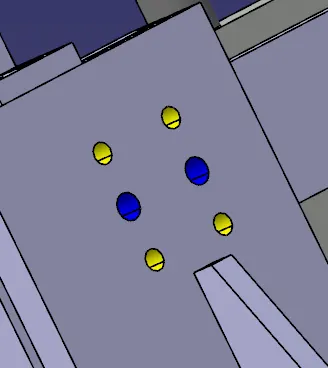

For dowel holes I gave yellow color

For threaded holes I gave blue color

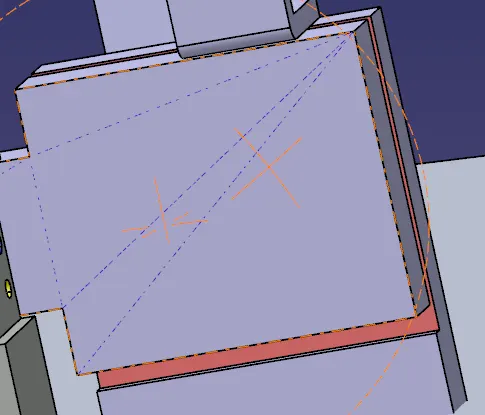

For Machined surfaces I ave Pink Color

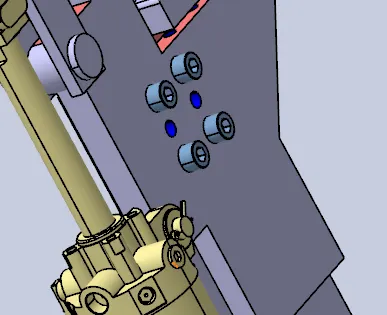

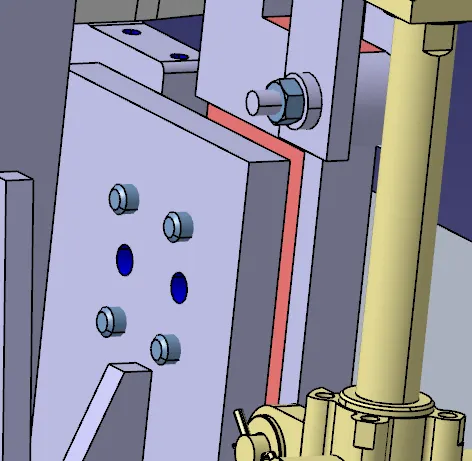

I made all the necessary holes if required at any part or surface so they can connect easily with each other and then imported bolts and nuts from the library to show their attachment and orientation.

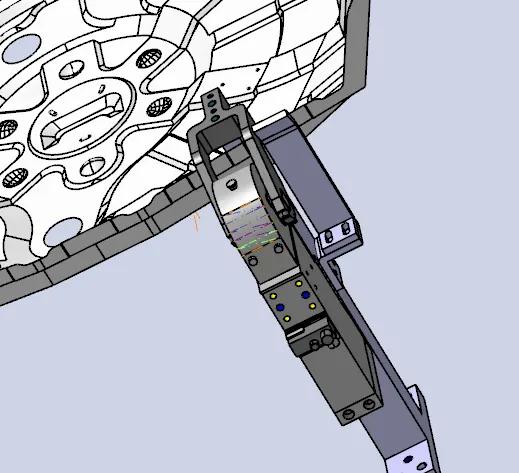

Then I proceeded to making the brackets and rough locators for each fixture in thei product file only.

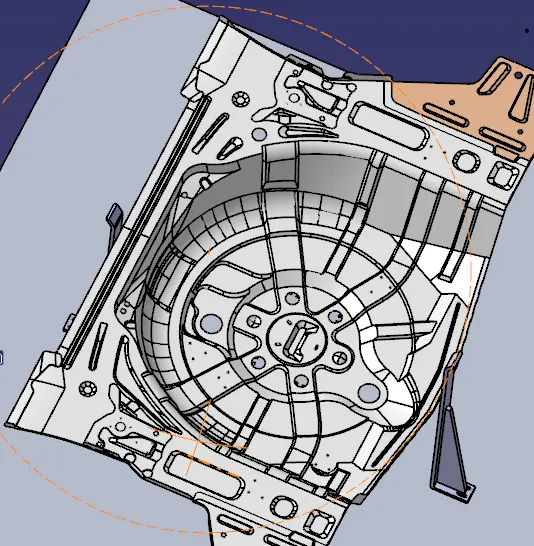

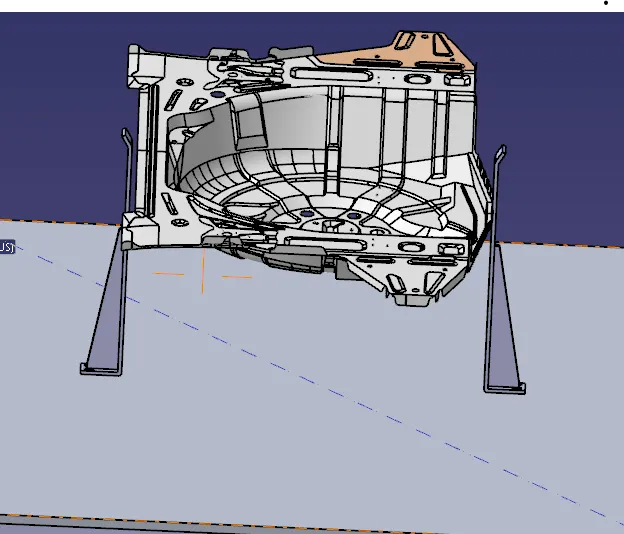

For the Panel I made the rough locators in miscellaneous product.
