Week 8:- 3D Finishing Challenge 2
Aim
1. Design all the otgher remaining unit required for this fixture assembly
2.perform 3d finishing and create Rough locator for the Assembly design created for the challenge on week
Design Something remaining /needed unit for fixture assembly

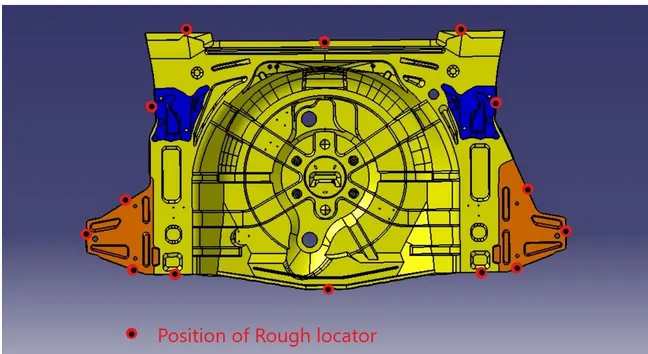

ROUGH LOCATORS
1.A Rough locator is a part design to guide the panel, to locator the car panel according. A rough locator can be of standard part or markpart
2.Rough locator are also work as poka -yoke is a japaness concept used for mistake profing
3D Finishing
1. Name of the part
2.Structuring of Design tree
3.Holes concentricity
4.Nomanality
5.Machining Surface
6.Mylar Spliting
7.Gaps Checking
8.Bottom of part
9.make changes if any clash

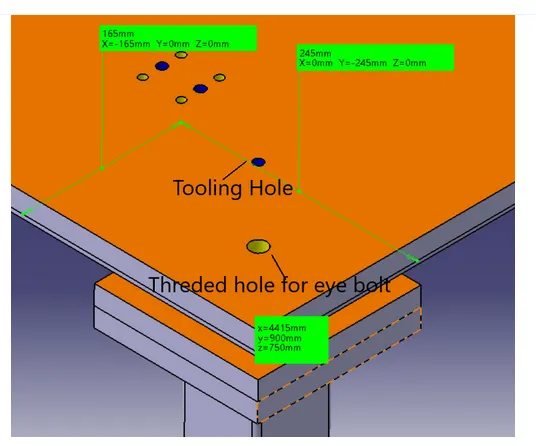

10.Tooling holes
11.Fastners
1.Fixture Assembly

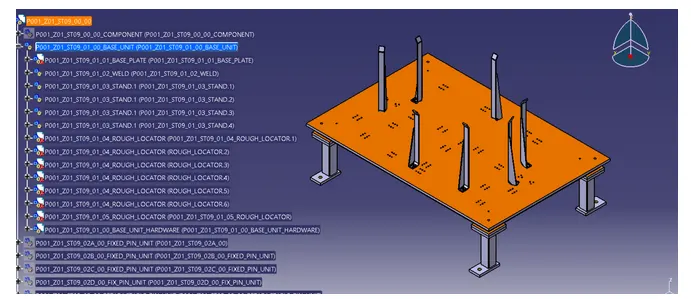

name of design Tree is done and Structuring design tree in way that is sample to identify the units .some units are used multiple time those are easy to indentify by the name

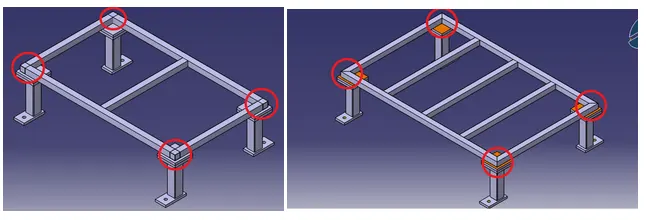

2.Base unit
Naming of part and structuring design of tree
3.Fixed pin unit
1.Hole are making to the Nominal and concentric to each other
2.Proper butting of two part is done
3.Rough locator and Fastners are implemented
4.color coding is done as per the standard
5.Structuring design tree renaming of part is done

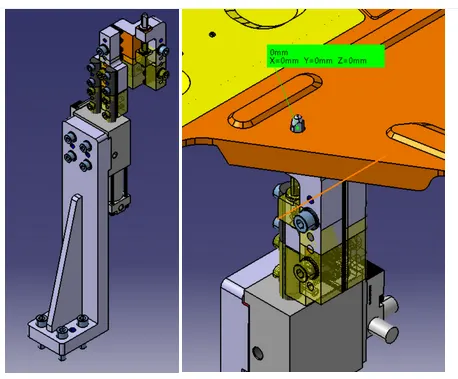

6.Below are the some images 3d finishing done on fixed pin unit
4. Retractable pin unit
1.Hole are making to the nominal and concentric to each other
2.open position of retractable pin show in color
3.Proper butting of two part is done
4.Structuring design tree renaming of part is done
5.Below are the some images after 3d Finishing done fixed pin unit
5. Swivel clamp unit
1.Holes is make to the nominal and concentric to each other
2.Proper butting of two parts is done
3.Rough Locator and faster are implemented
4.Structuring design tree renaming of part is done
6. Power Clamp unit
1.Hole are making to the nominal and concentric to each other
2.open position of retractable pin show in color
3.Proper butting of two part is done
4.Structuring design tree renaming of part is done
5.Mylar Spliting is done
7. Rest unit
1.Hole are making to the Nominal and concentric to each other
2.Proper butting of two part is done
3.Rough locator and Fastners are implemented
4.color coding is done as per the standard
5.Structuring design tree renaming of part is done
6.Below are the some images 3d finishing done on fixed pin unit
