Week 8:- 3D Finishing Challenge 2

AIM:-

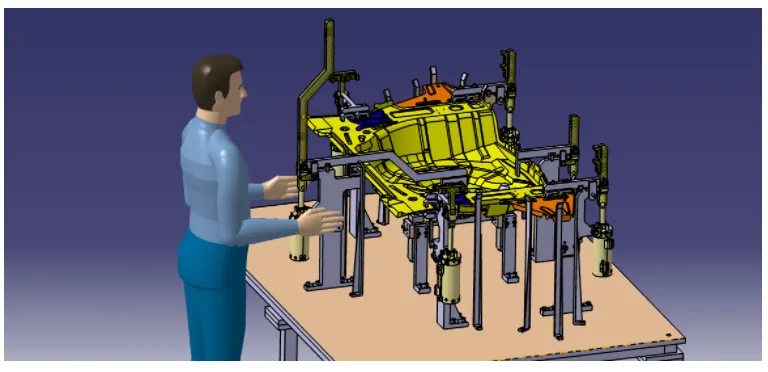

Perform 3D finish for all units of Assembly design.
Create Rough locators for Assembly.

3D FINISH:-

The 3D finish is the process where design is completely finishing & to be ready for final simulation & 2D detailing
In 3D finishing we perform and ensure the following points:
1. Hole concentricity & hole sizes- All parts Hole concentricity is checked & confirmed while finishing the parts.
2. Machining Area- The machining area in every part is defined & the machining area is highlighted by using orange colour.
3. Nominality- All units dimensions are maintained nominal to facilitate easy assembly of the unit.
4. Holes colouring standard - Color Code standard used in the 3D finishing
• Violet - Simple Hole
• Yellow - Threaded Hole
o Cream - Machined area
- Dowel pin Hole
5. Fasteners implementation - Fasteners are implemented in all unit as per the requirement & load on the part.
6. Avoiding clash between different part- Proper gap is maintained between parts to avoid the clash.
7. Mylar splitting as per panel profile - Mylar splitting are confirmed while finishing the design.
8. Proper renaming of parts/assemblies as per standard-proper renaming of parts & assemblies are done while finishing the design
hence we can identify each & every part easily with a unique identification.

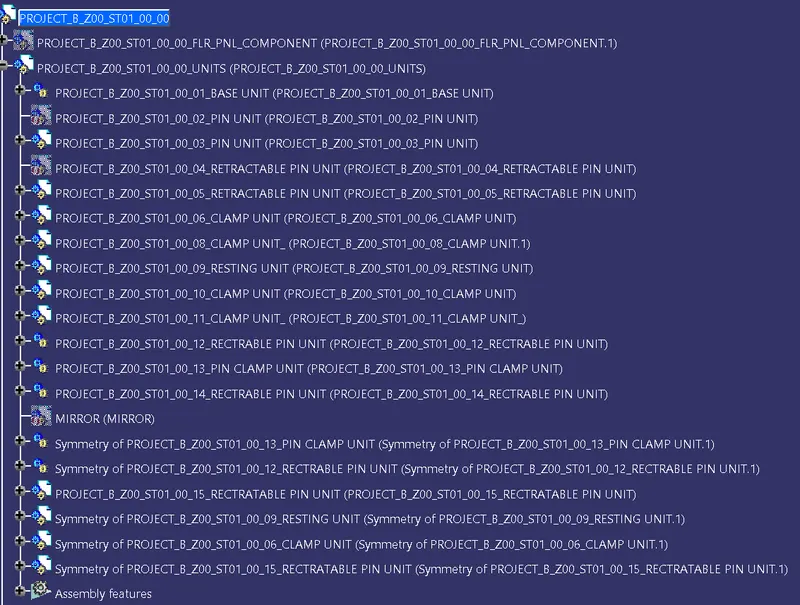

1.RENAMING AND STRUCTURE OF DESIGN TREE:-

Renaming of design tree is done and structure of design in way that to identifing the each unit od design.
