Week 8:- 3D Finishing Challenge 2

3D finish is the process where design is being completely finish & to be ready for final simulation & 2D detailing

Following points are taken into consideration while finishing the design:-

• Hole concentricity & hole sizes- All parts Hole concentricity is checked & confirmed while finishing the parts.
• Machining Area- The machining area in every part is defined & the machining area is highlighted by using orange color.
• Nominality- All units dimensions are maintained nominal to facilitate easy assembly of the unit.
• Holes colouring standard- Color Code standard used in the 3D finishing
  1. Cyan - Simple Hole
  2. Yellow - Threaded Hole
  3. Orange - Machined area
  4. Blue - Dowel pin Hole

• Fasteners implementation- Fasteners are implimented in all unit as per the requirement & load on the part.
• Avoiding clash between different part- Proper gap is maintained between parts to avoid the clash.
• Mylar splitting as per panel profile- Mylar splitting are confirmed while finishing the design.
• Proper renaming of parts/assemblies as per standard-proper renaming of parts & assemblies are done while finishing the design hence we can identify each & every part easily with unique identification.

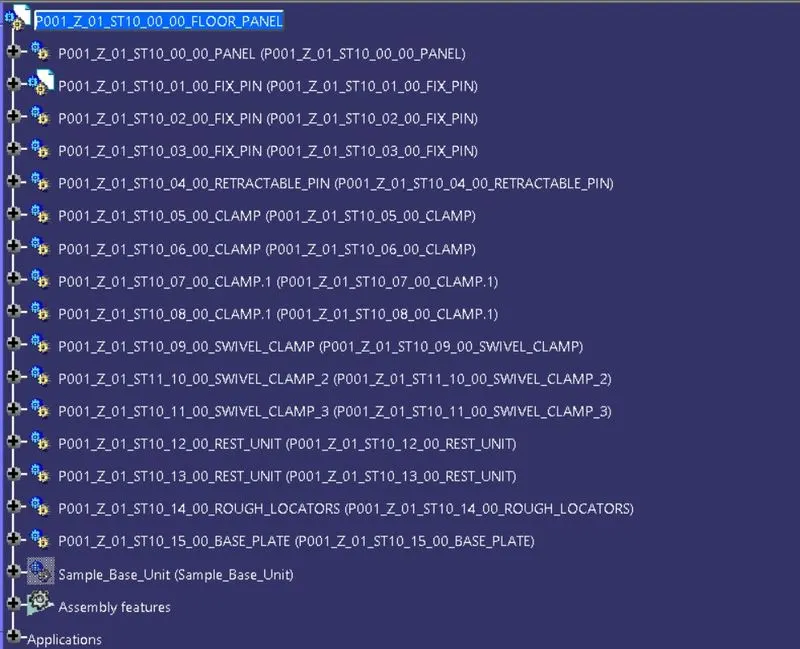

DESIGN TREE STRUCTURE

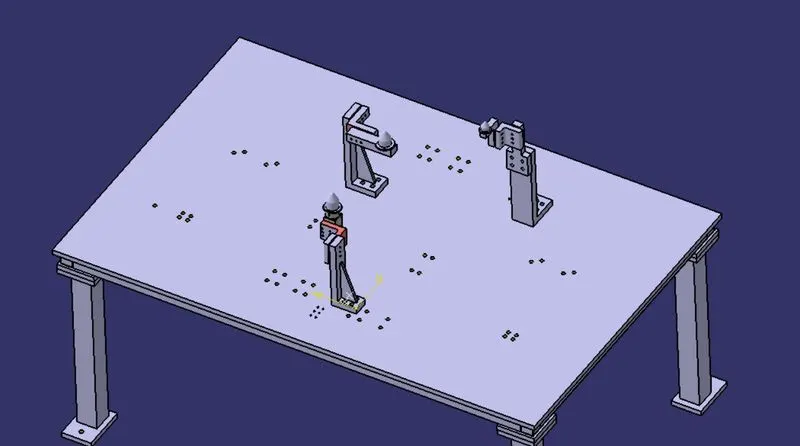

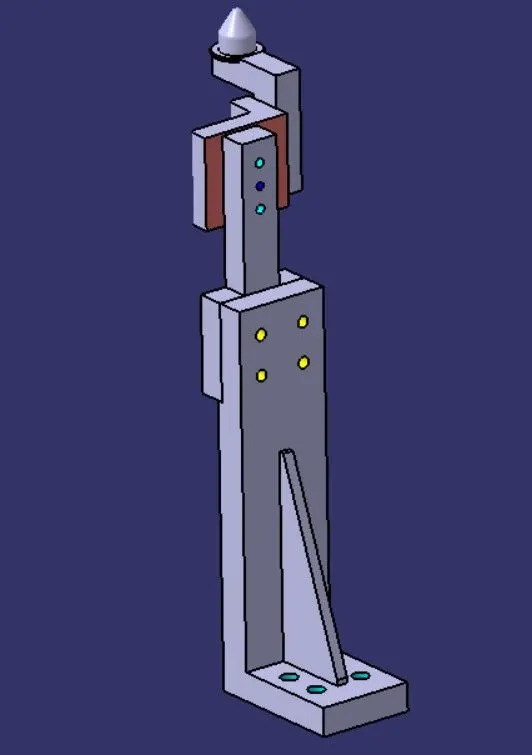

PIN UNIT

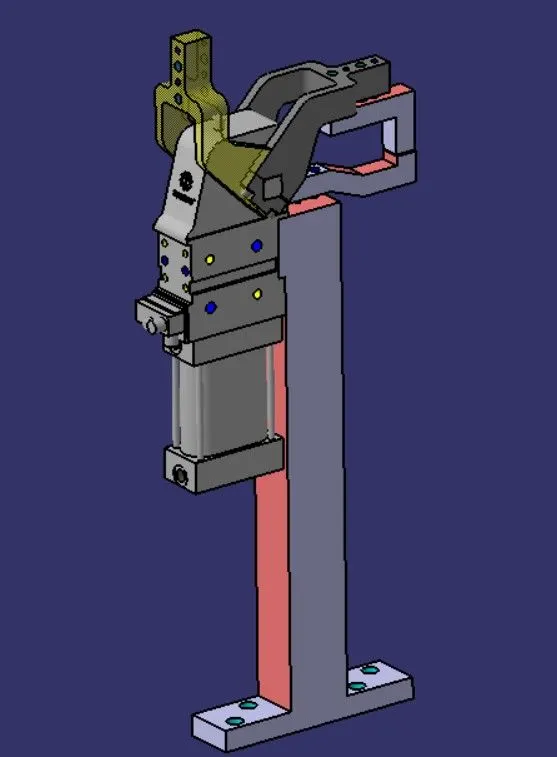

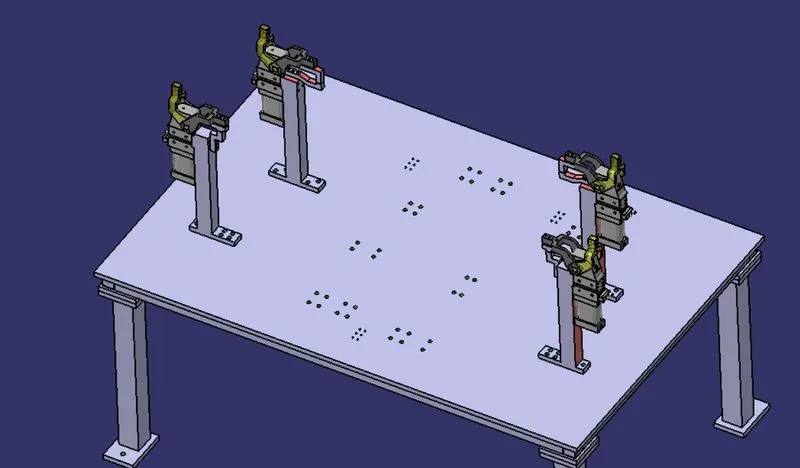

CLAMP UNITS

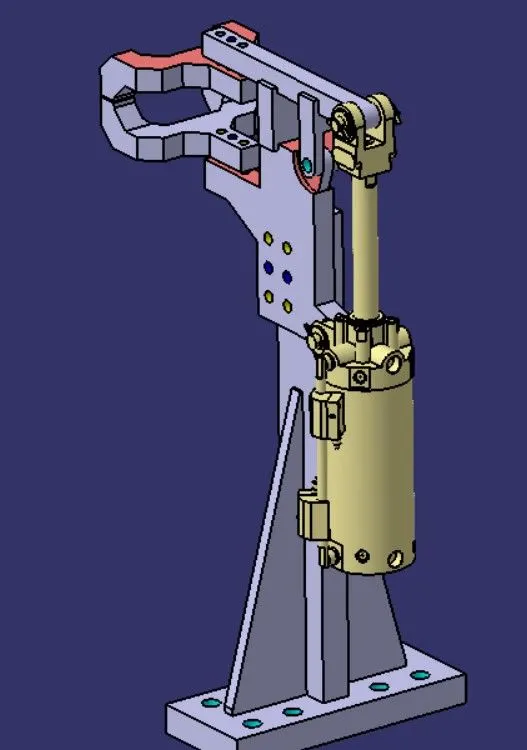

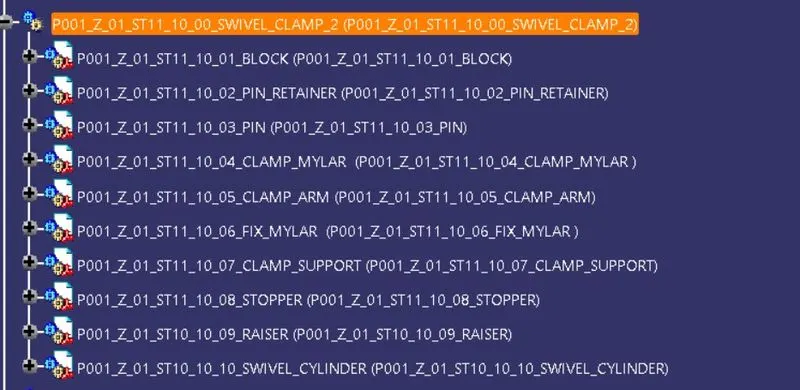

SWIVEL CLAMP UNITS

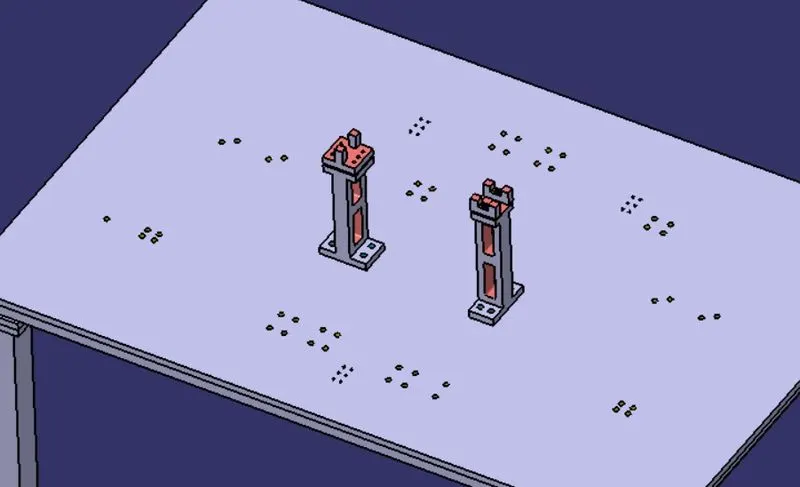

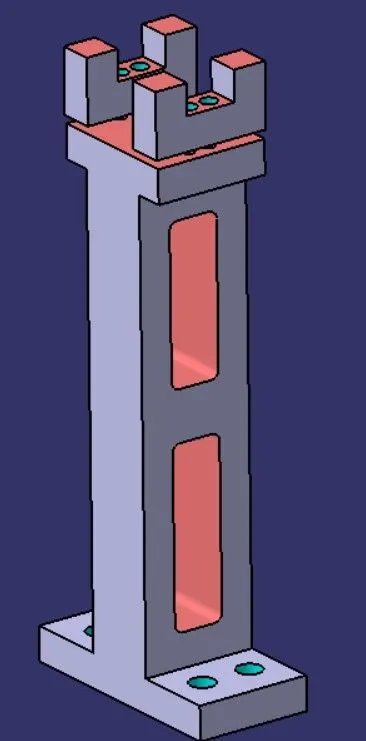

REST UNITS

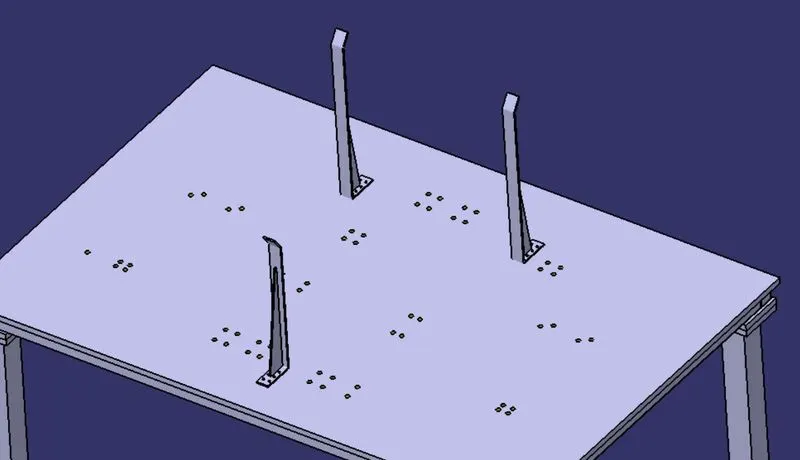

ROUGH LOCATORS

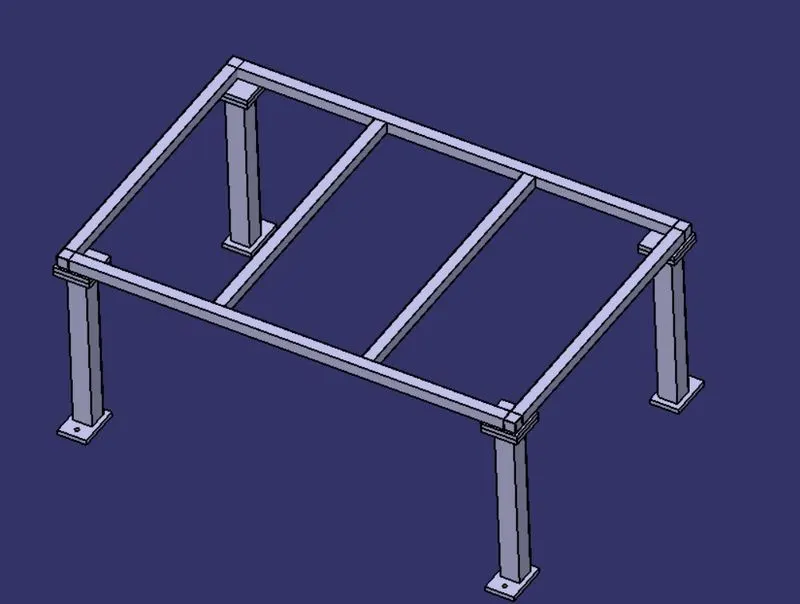

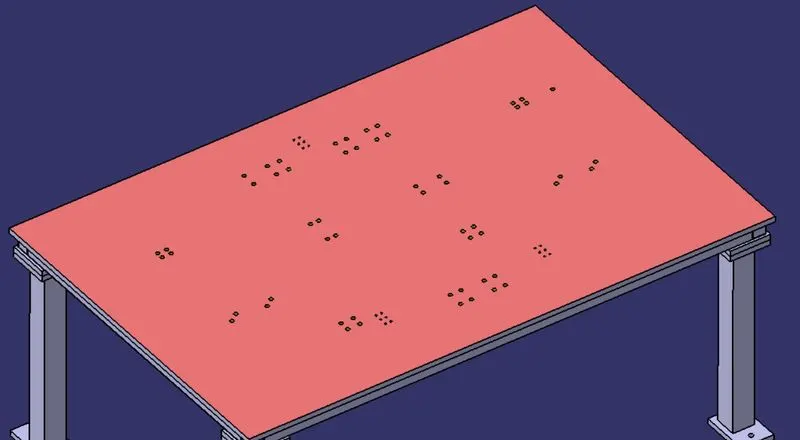

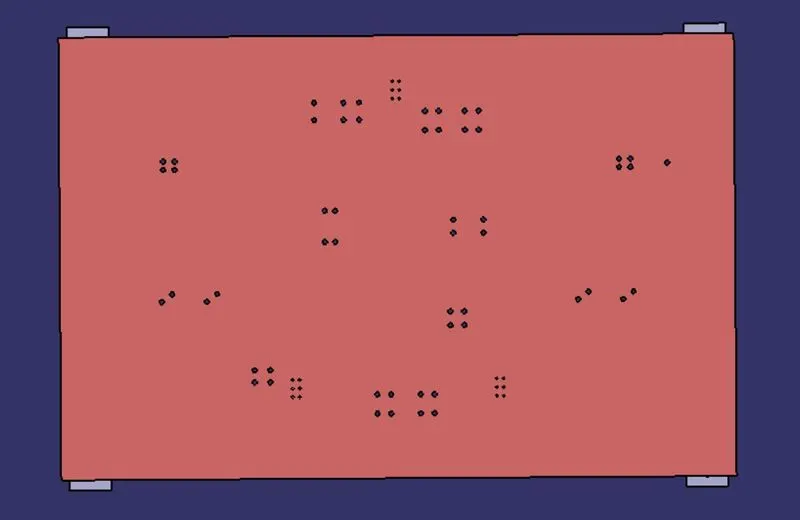

BASE UNIT

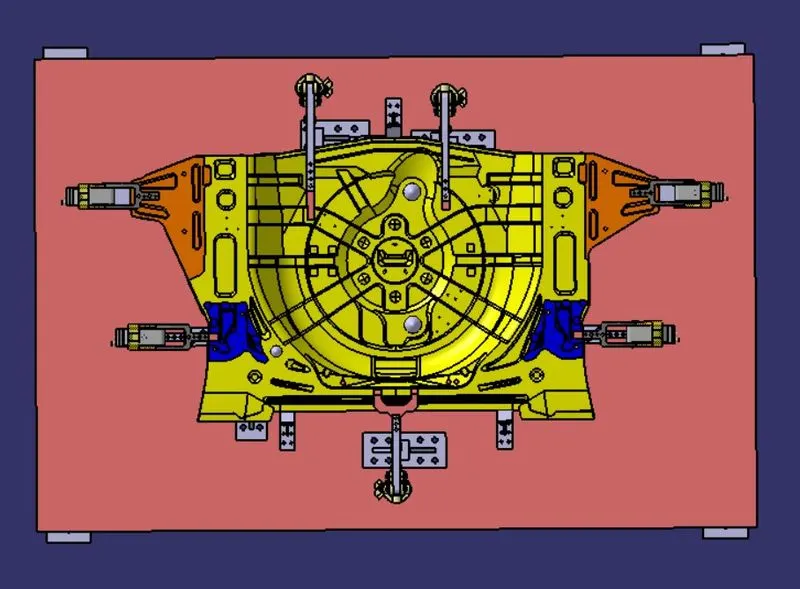

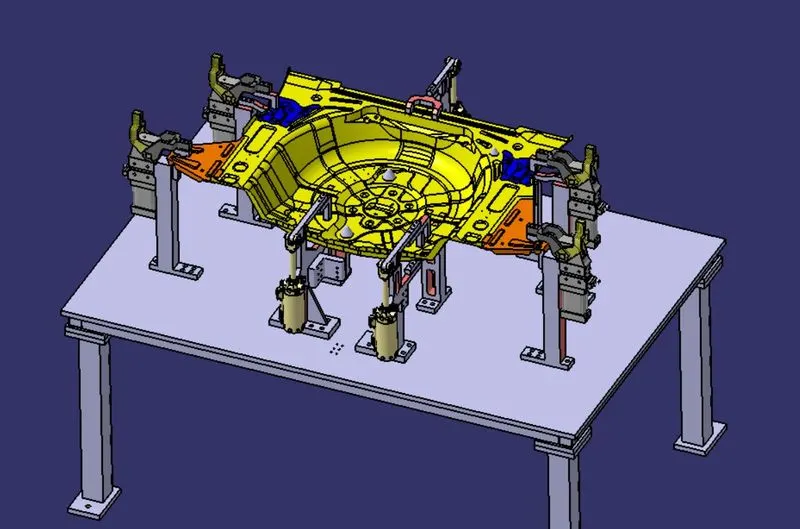

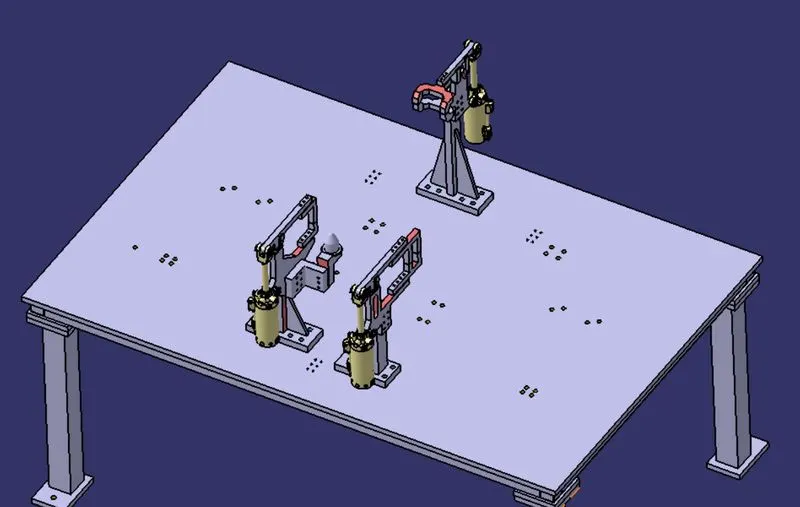

ASSEMBLY UNIT
