Week 7- Meshing of Backdoor Challenge

Objecive:

To create and generating midsurface and geometry clean up on the given component and generating mesh on the given component with low tria concentration and proper mesh flow and given the model should pass all the given quality parameters and submit the compleated model

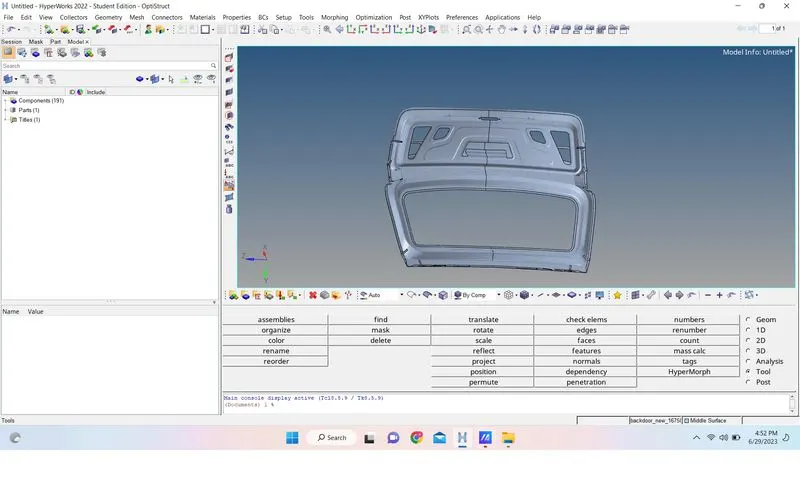

cad model images :

Procedure :

• Open the given model
• To clear the unneccesary lines
• To create the midsurface of the given component
• Next to use the geometry clean up the uneven surface
• Next find & fix the uneven free edge lines
• To put the all the given quality parameters and finish the task of the given components.

Result :

To finish the all task of the given components (midsurface , geometry cleanup , mesh , check the given quality parametrs

Final model :
