Project 1-Meshing of Rear Wheel Holder challenge

Objective :

     To generate the midsurface and geometry clean up on the given component and mesh on the given component with low tria concentration and proper mesh flow and given model should pass all the given quality parametrs.

cad model images :

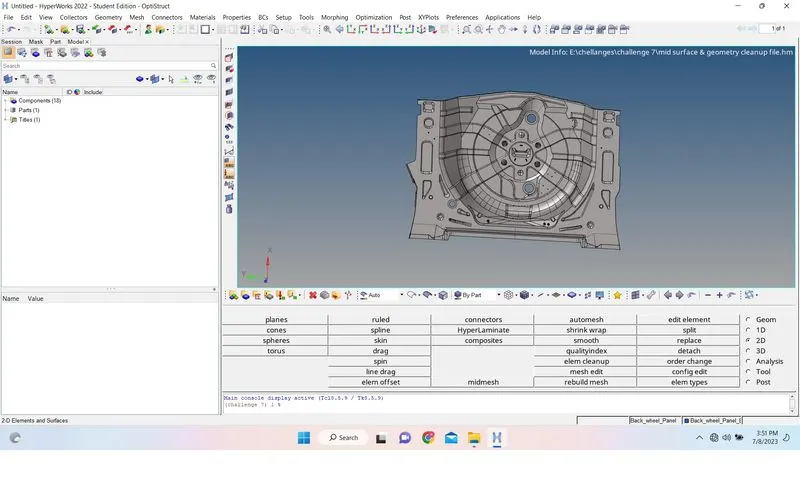

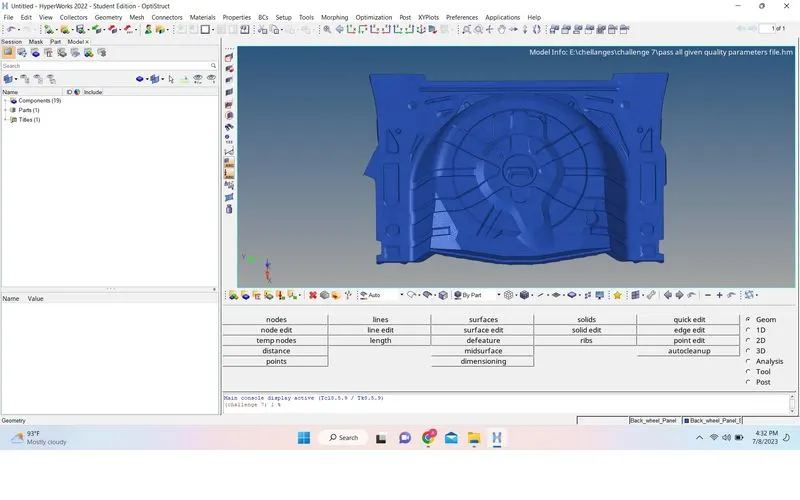

  Mid surface and geometry clean up model

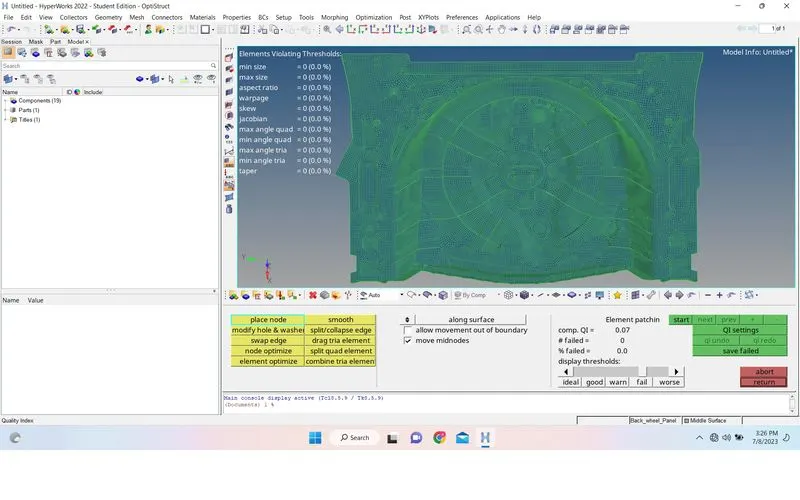

proper mesh with low tria concentration :

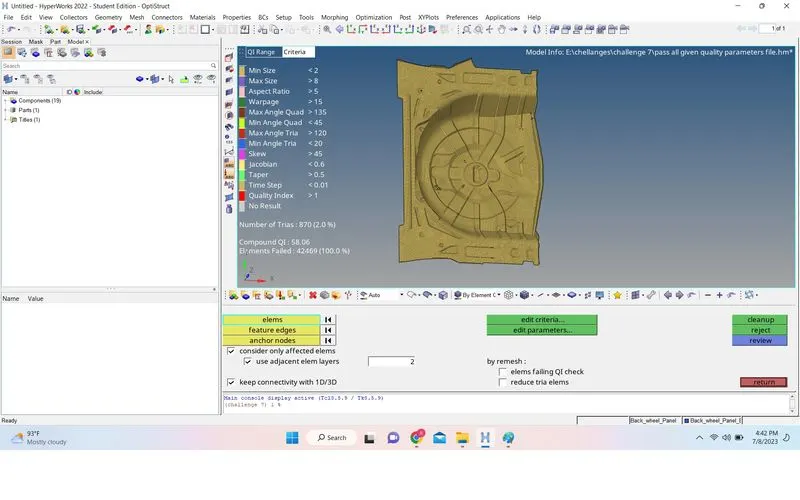

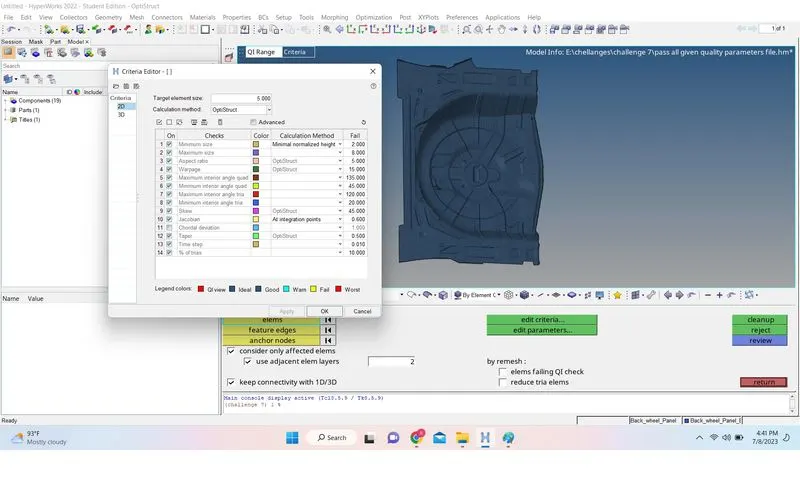

should pass all the given parameters :



Procedure :

• first to import the given model
• next before i create the mid surface to find and clear the unnecessary surface and free edge lines
• next i select the quick edit option to create the free edge lines to toggle edge option
• next i create the mid surface
• next i select the geometry clean up option to the given model
• next i after the geometry clean up option to select the mesh option to the given component
• next i was correct to the proper mesh of the given component
• and low concentration of tria elemments of the given component
• next i check to pass the all given quality parameters.

Result :

     finaly i compleated a all the task of the given component.

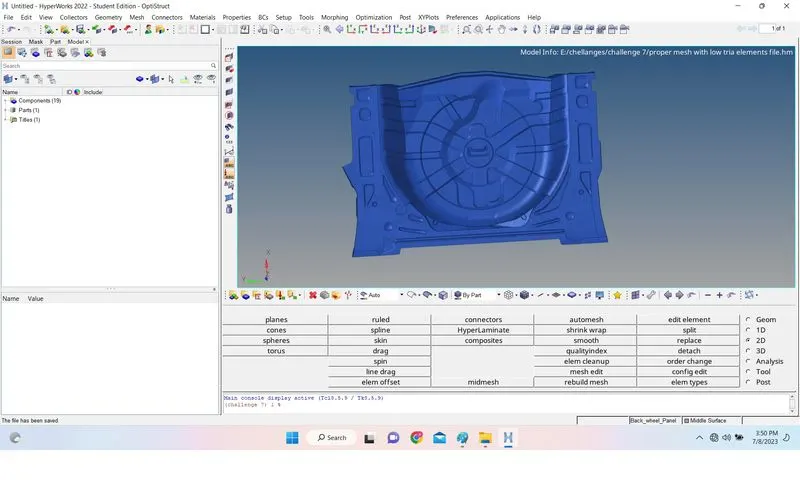

Final model image :
