Week 6-3D Tetra Meshing Challenge
Objective :
To create 3d mesh in the procedure of 2d to 3d converts and directs 3d elements create and check the quality criteria in 3d elements
Cad model images :
Given All models are passed the quality criteria and tet collapse
Procedure :
- First to import the model
- next i check the minimum lenght of the surface
- find the minimum surface and delete
- because the minimum lenght surface are going to failure for minimum lenght of the elements

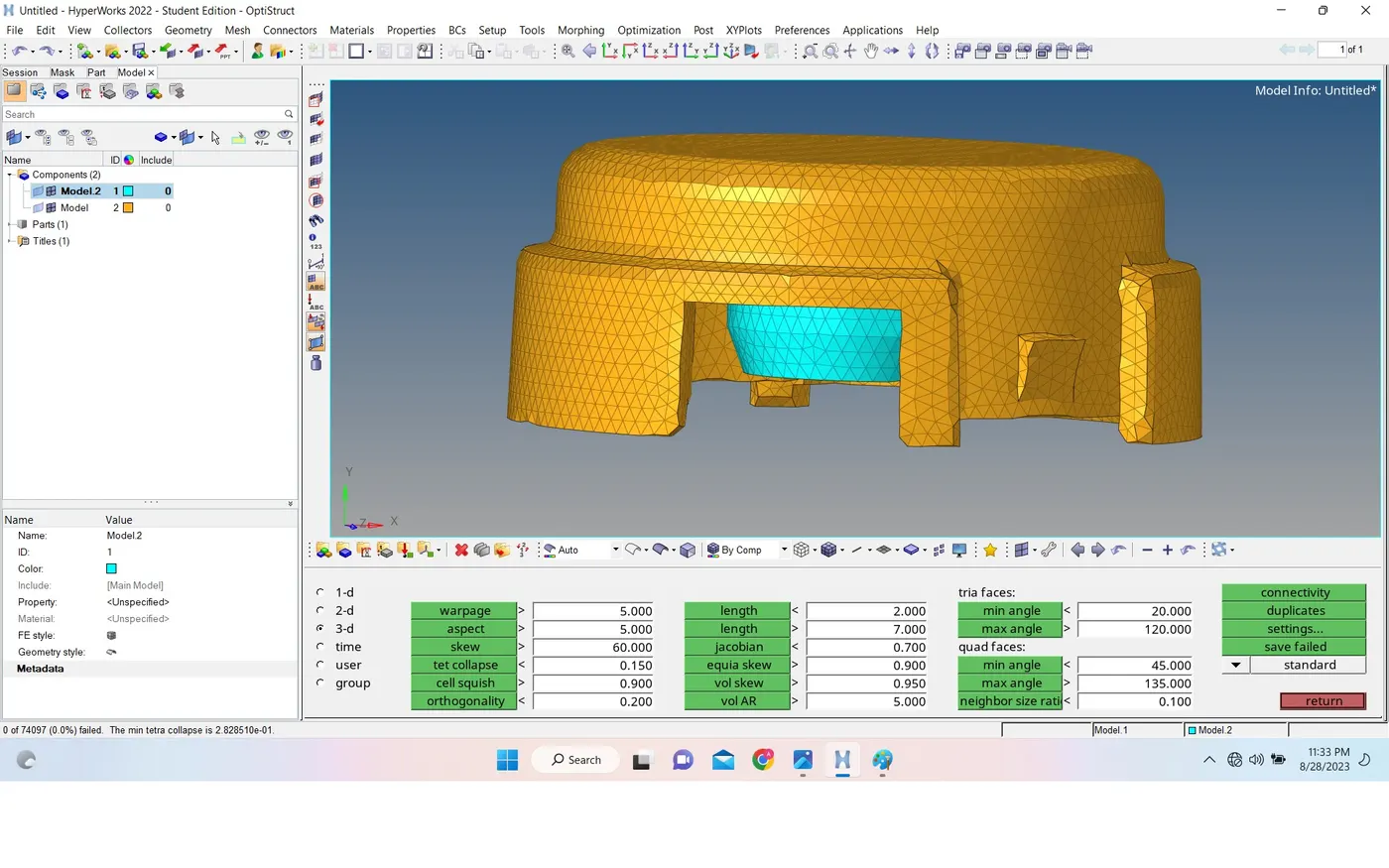

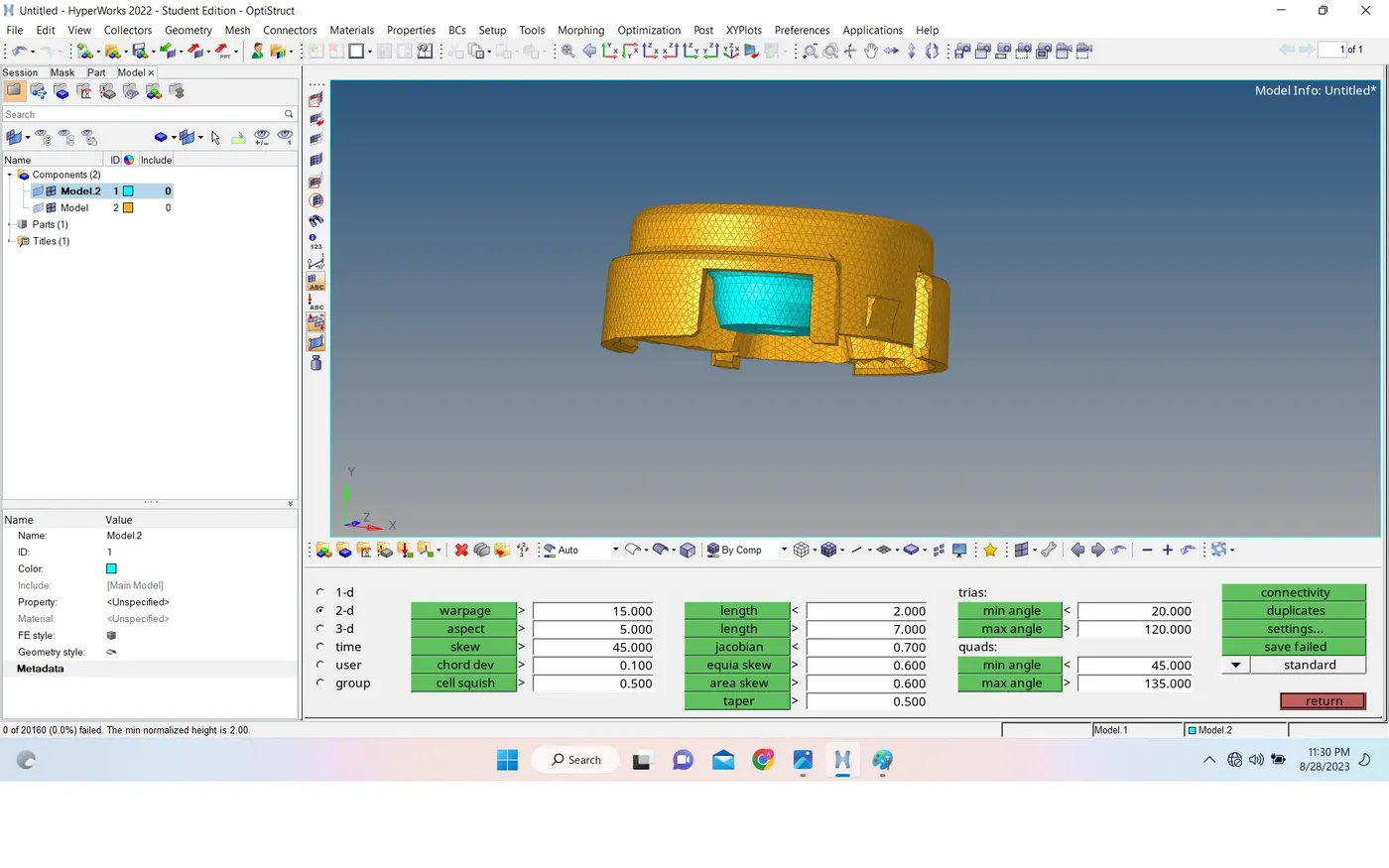

- next i create 2D mesh for model 1 and check the 2d quality criteria minimum and maximum lenght of the elements

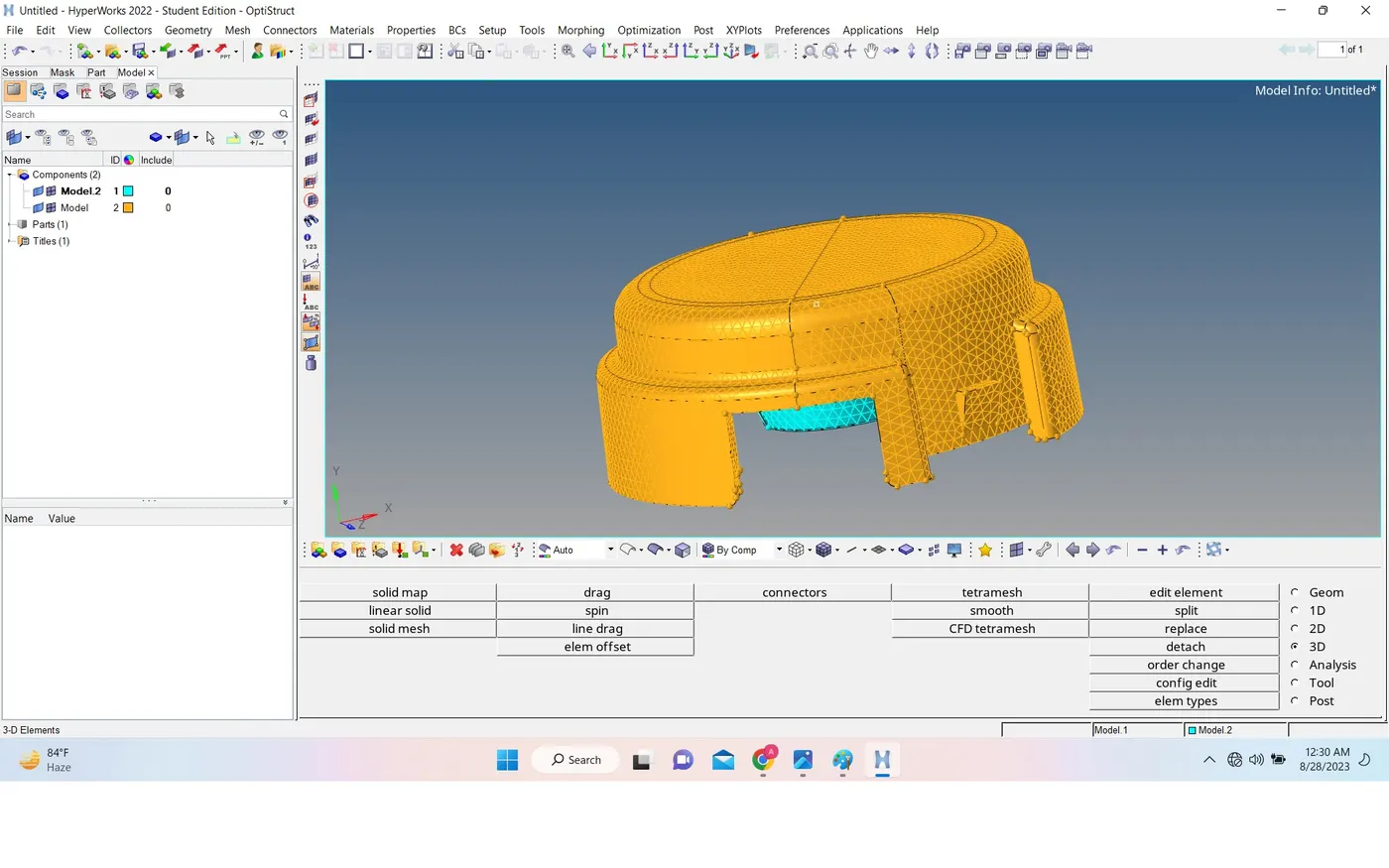

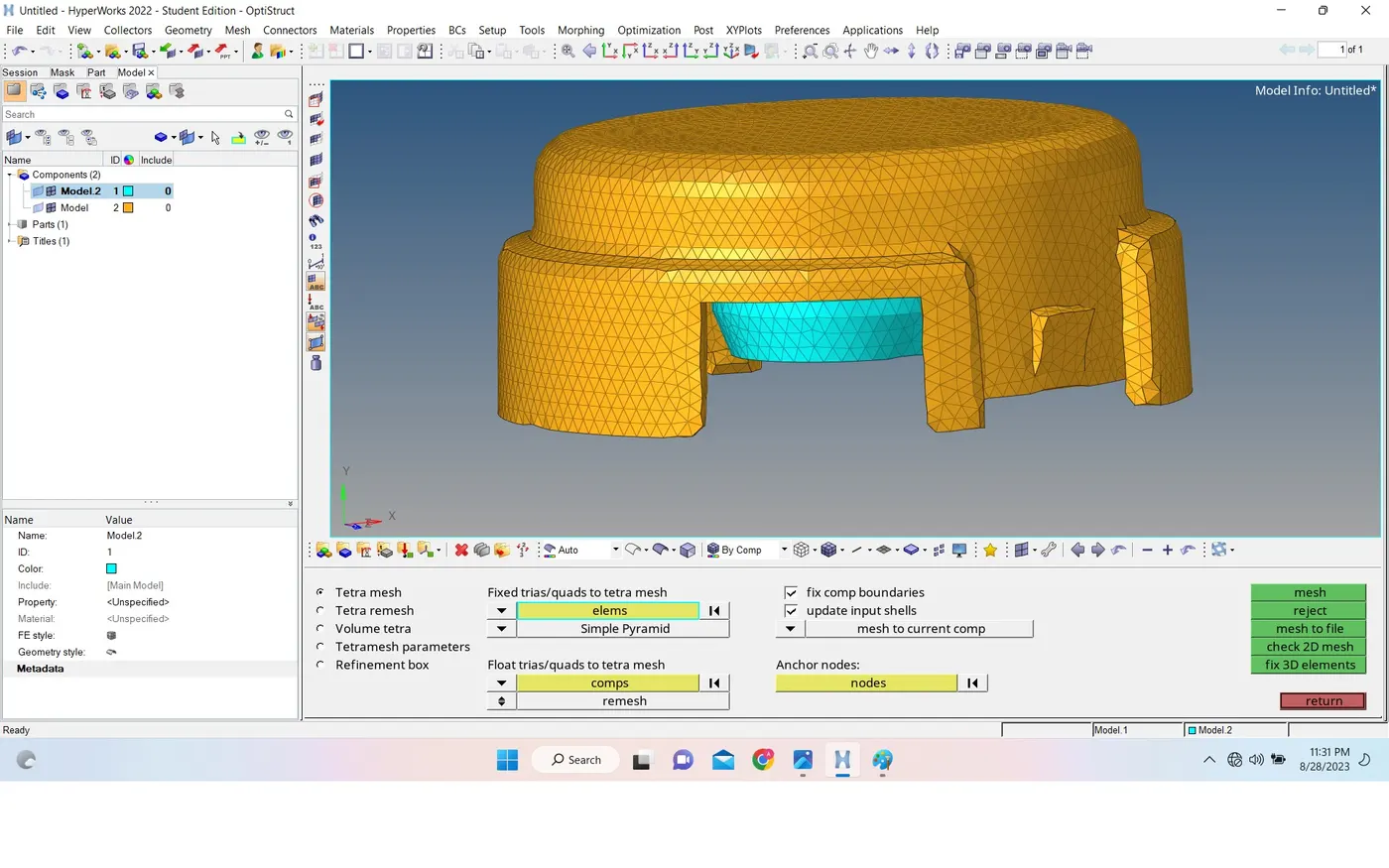

- next i converts the elements 2d to 3d mesh and 3d elements

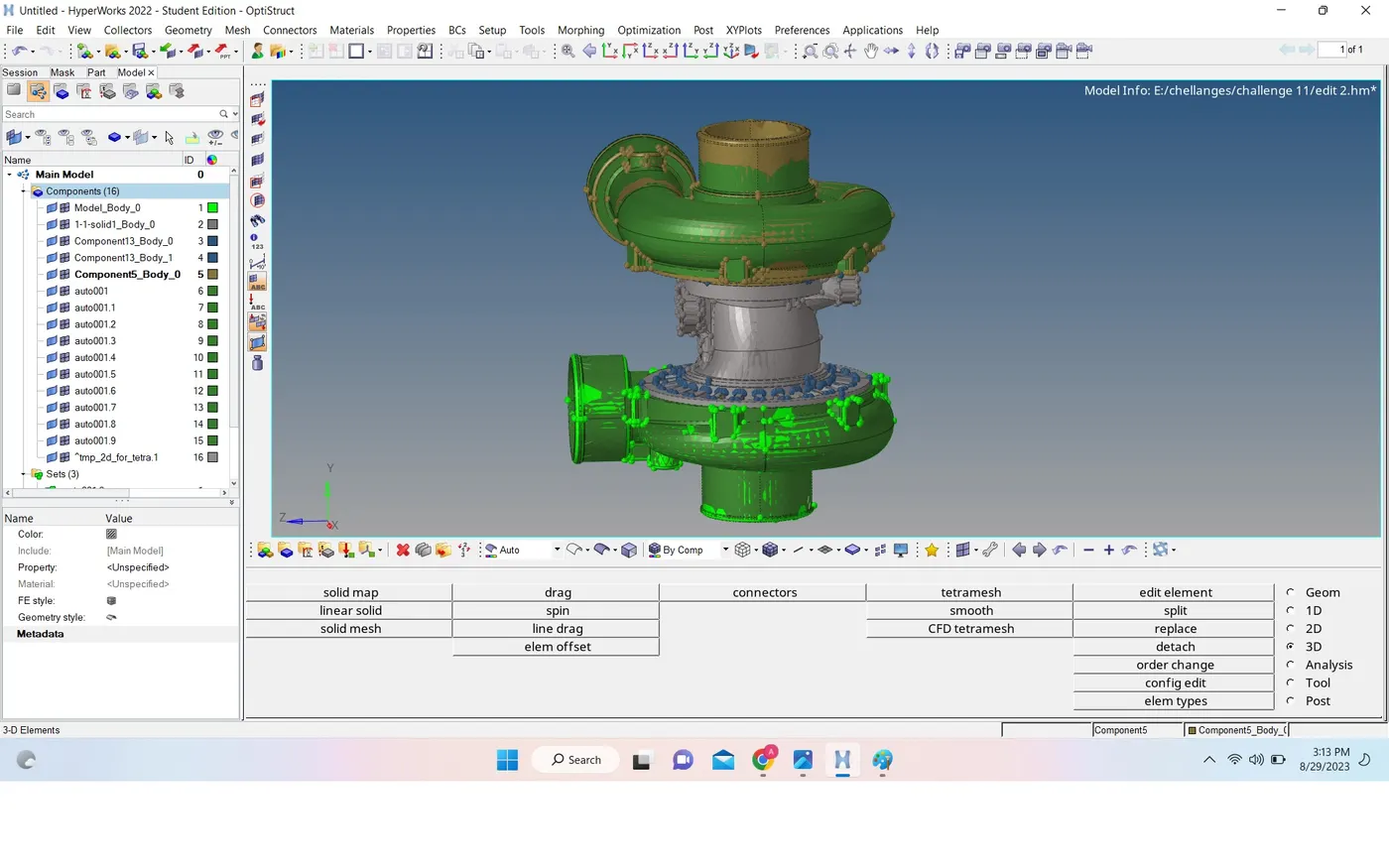

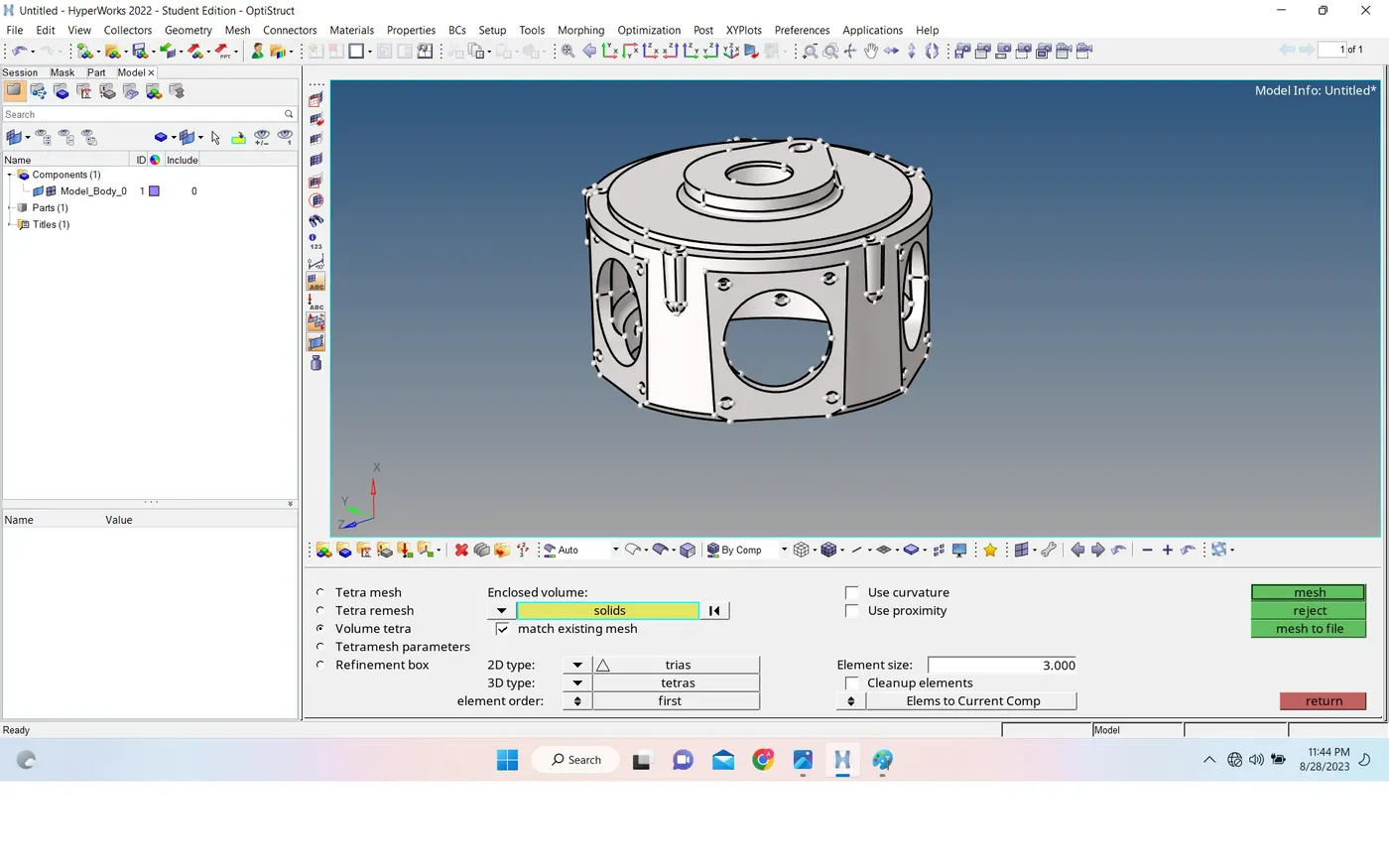

- next i import the another 2 and 3 models and directly create the 3d mesh of these components

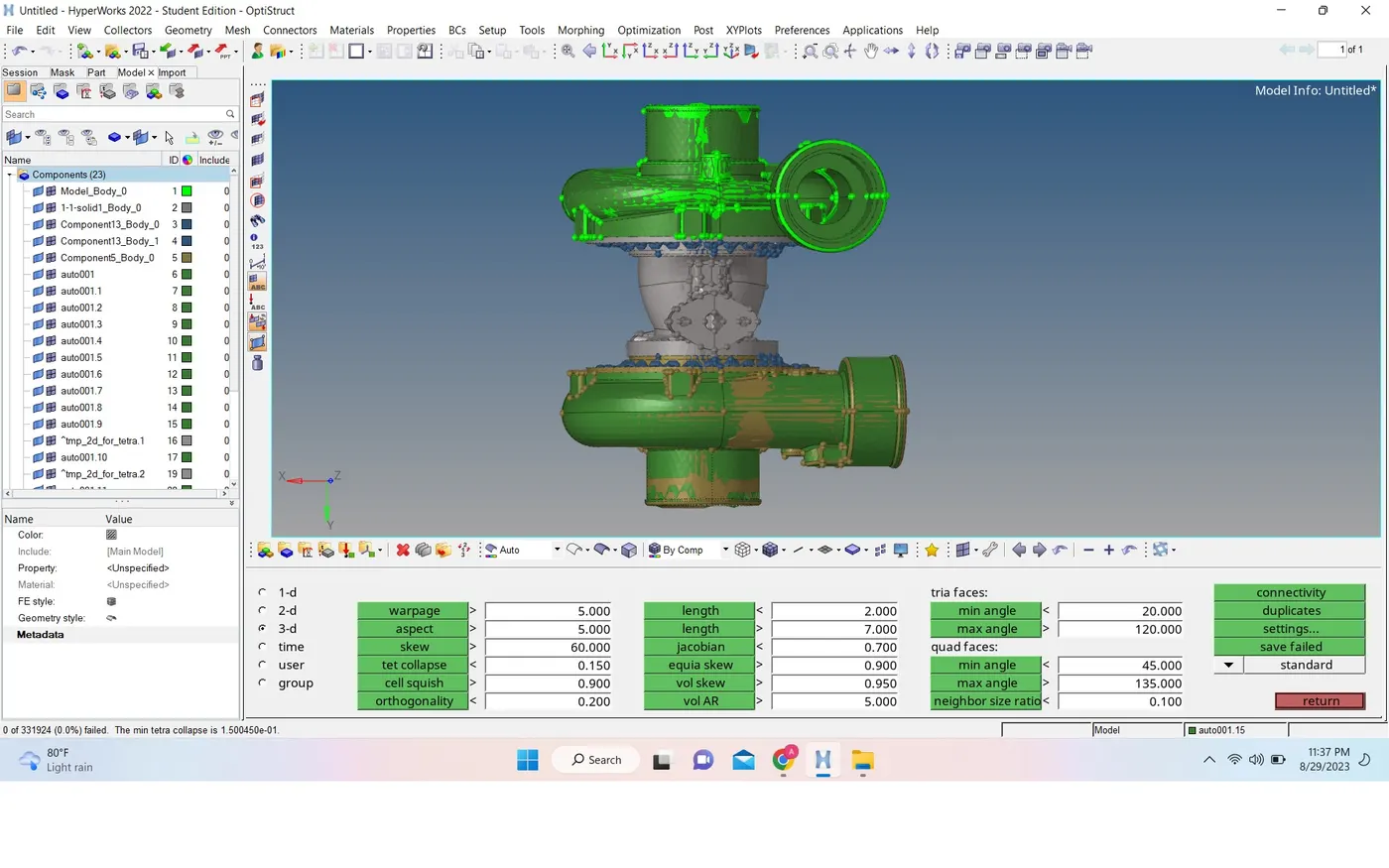

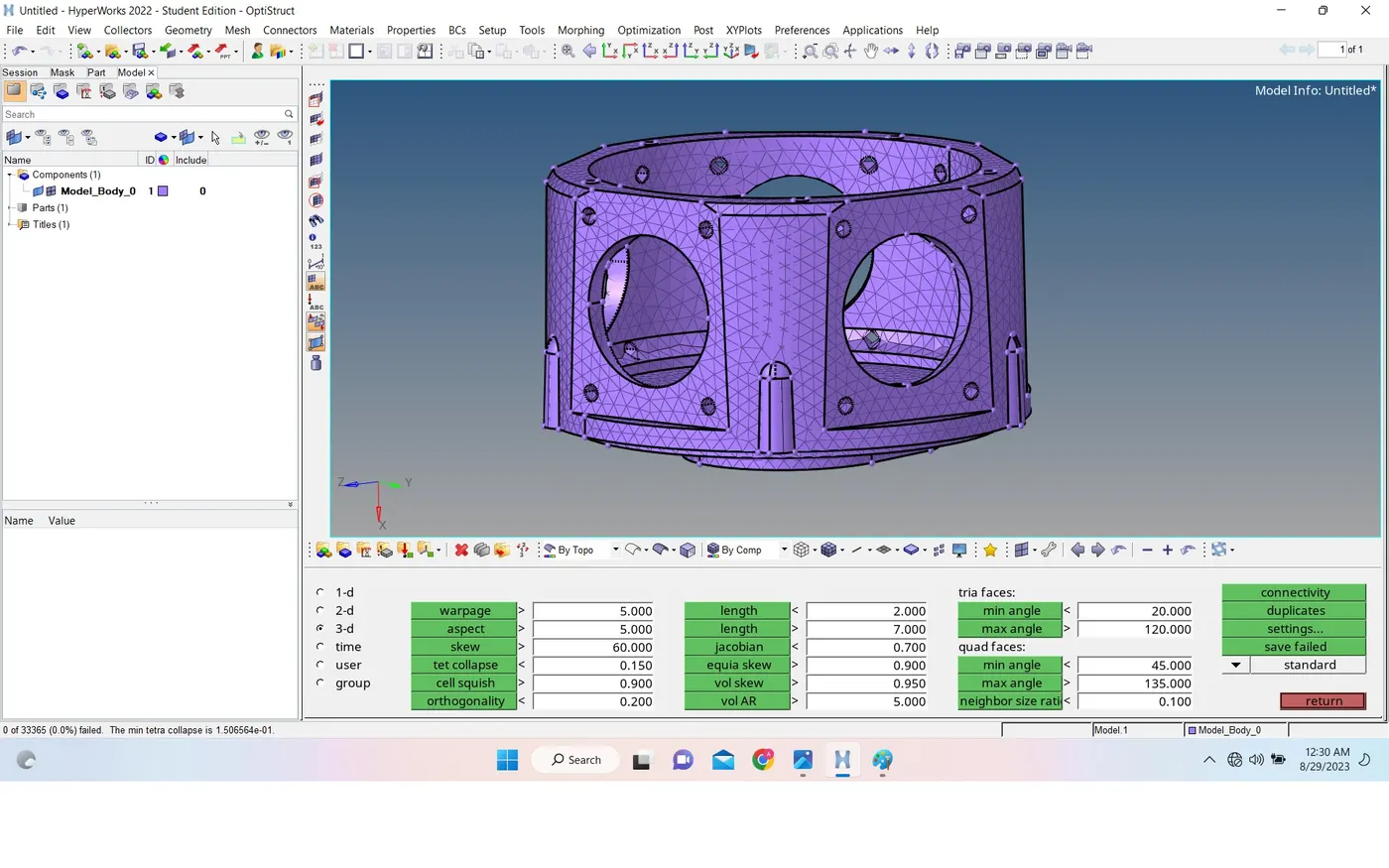

- next i chech the quality criteria
- finally i check and solve the all failure elements of the components
- finally successfully passed all quality criteria.
Results :
I completed all the task of the given components and submit the models
Final model images :
Model 1 :
Model 2 :
Model 3 :
