Week 7- Meshing of Backdoor Challenge

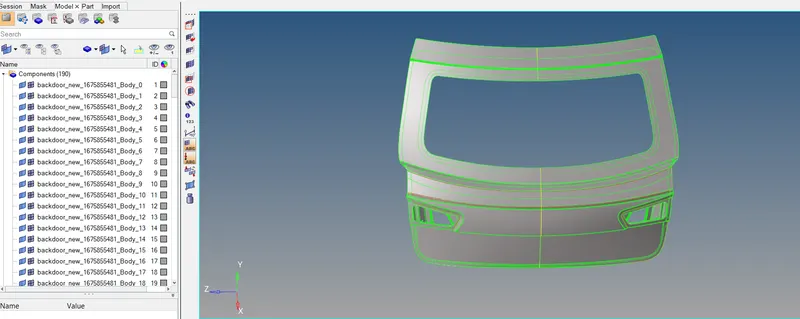

1.) Import the file in geometry.

2.) It consists of 2 panels i.e Inner & outer clubbed together.both the panels are of different thickness.hence they are separated using organize command in tool menu.

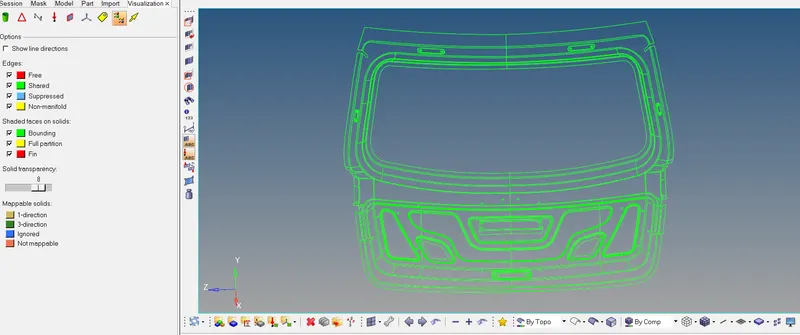

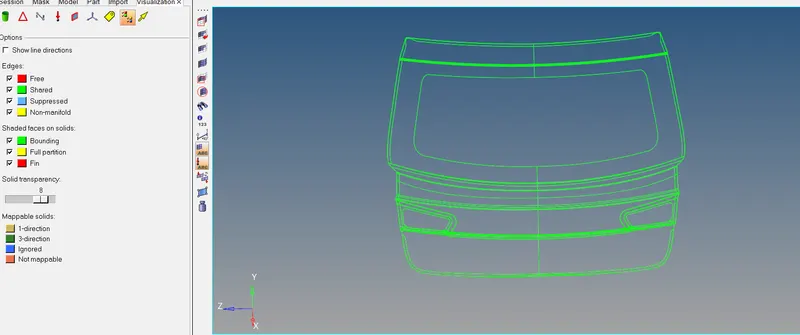

3.) topology cleanup is done using release point and toggle.

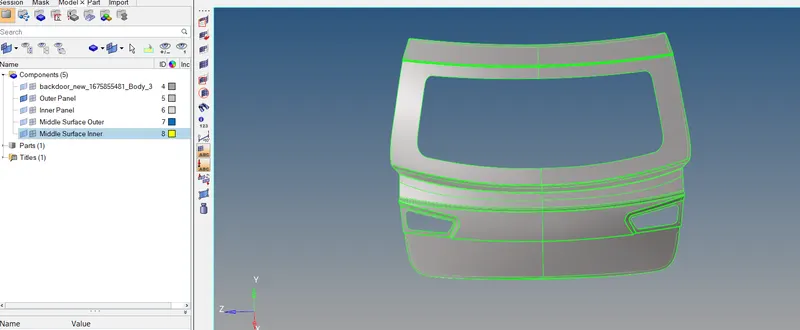

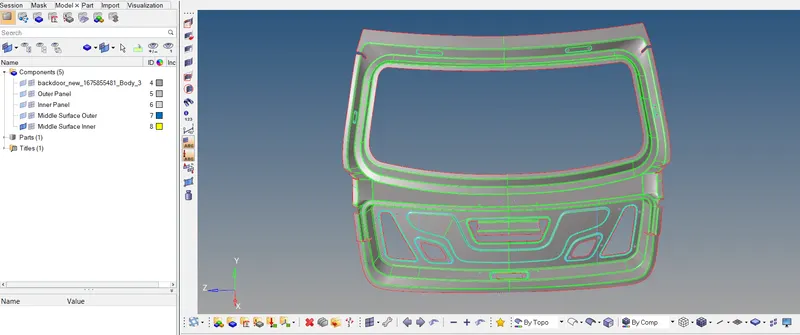

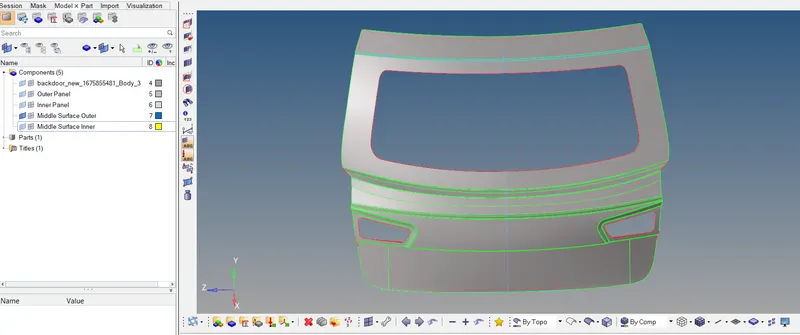

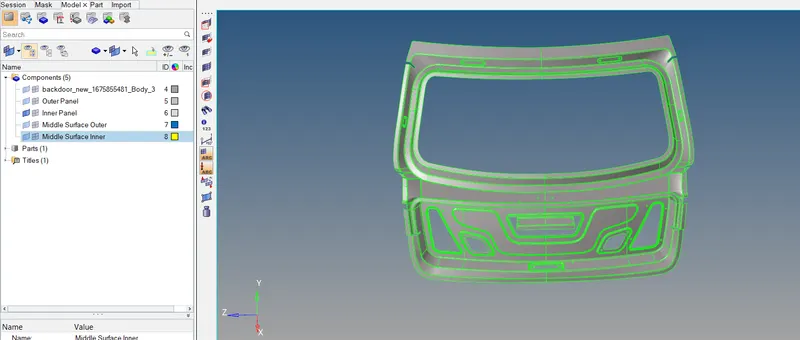

4.)middle surface is extracted for both the panels separately.

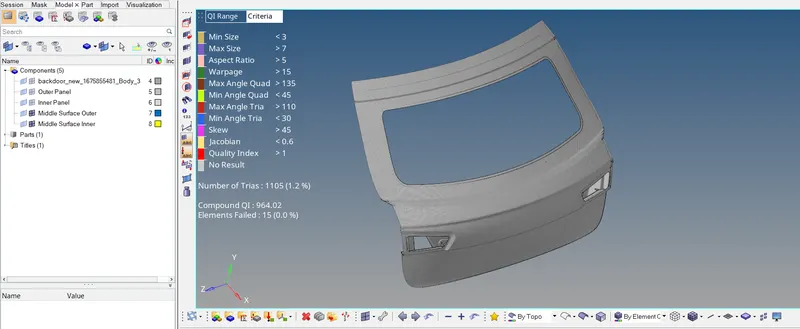

5.)The surface is mesh according to given data.
