Week 7-Long Piston With Cam
Objective: By changing Frictional coefficient 0.1 and 0.2 And Frictionless coefficient, we observed Streeses, Directional deformation and Elastric Strain on the Cam and Pistion.
Results:
1. Frictional coefficient 0.2

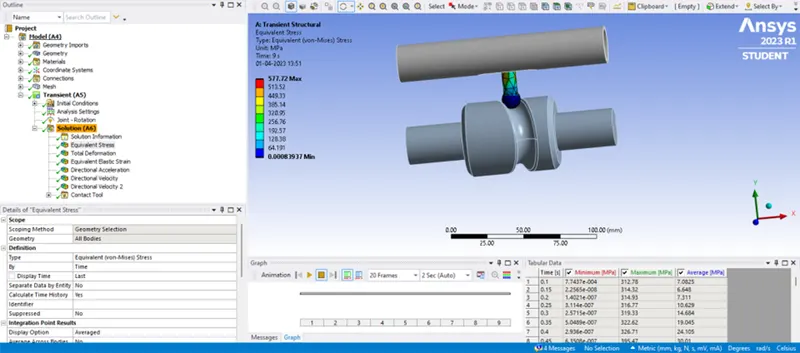

a. Equivalent stresses:

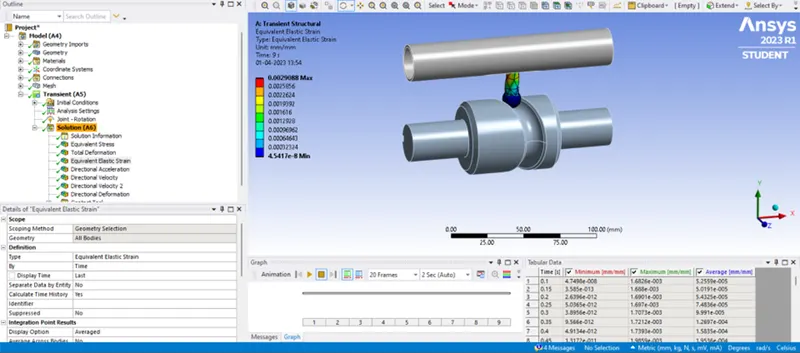

b. Elastic Strain:

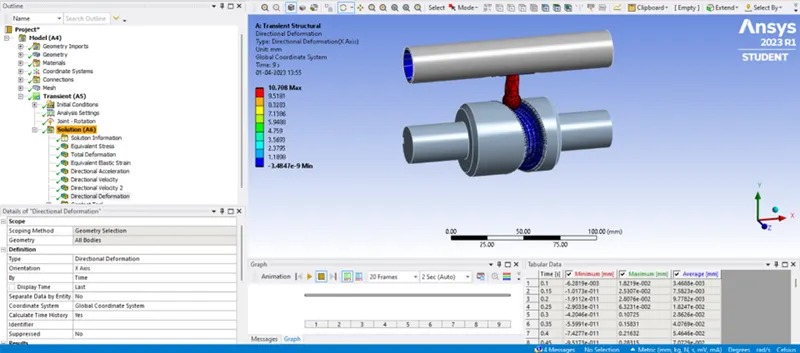

c. Directional Deformation:
2. Frictional coefficient 0.1

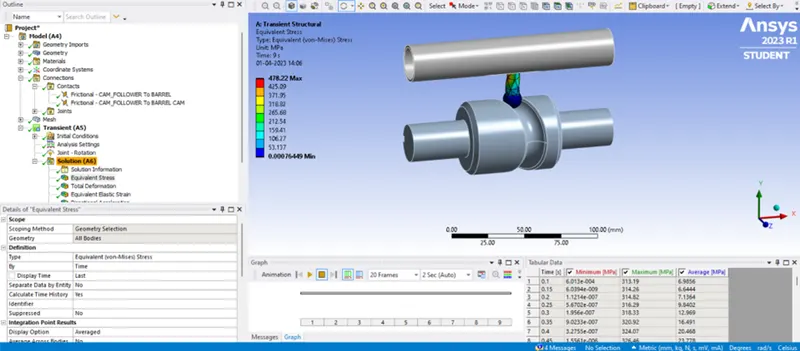

a.Equivalent stresses:

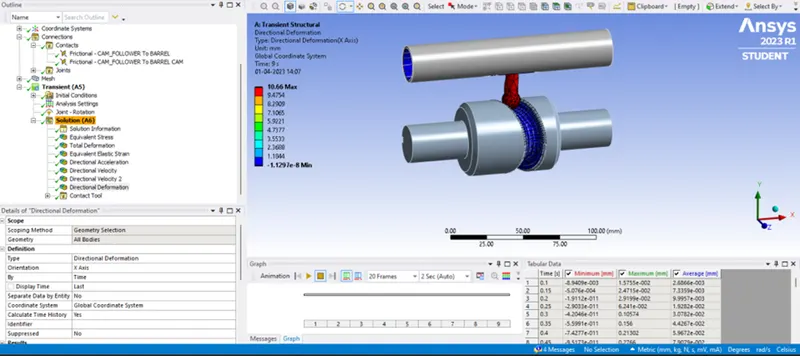

b.Directional Deformation:

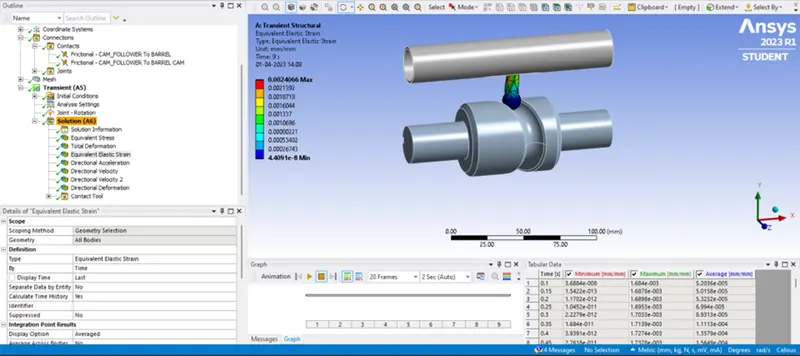

c.Elastic Strain:
3. Frictionless 0.2:

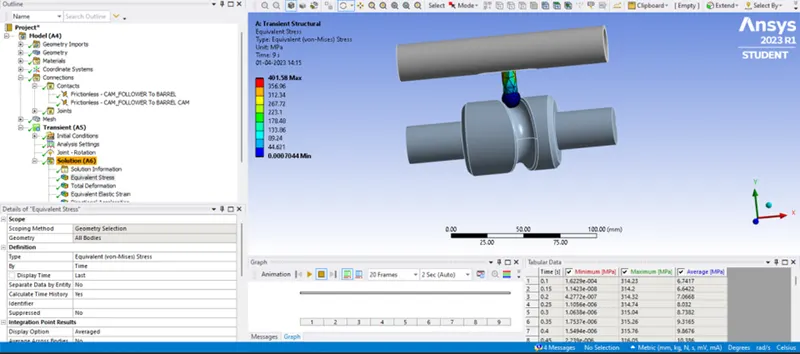

a.Stresses:

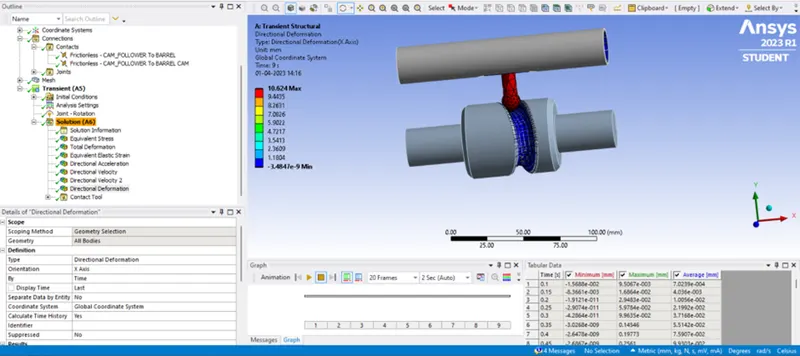

b.Directional Deformation:
c.Elastic Strain:
Results:
| # | Result Parameter | Fricational coefficient 0.1 | Fricational coefficient 0.2 | Frictionless coefficient |
| 1 | Equivalent Stresses | 478.22 Mpa | 577.7 Mpa | 401 Mpa |
| 2 | Directional Deformation | 10.66 mm | 10.7 mm | 10.6 mm |
| 3 | Equivalent Elastic Strain | 0.002 mm | 0.002 mm | 0.002mm |
