Week 7 Challenge - Assembly Workbench

1.QUICK RETURN MECHANISM

Initailly each body create seperate file as per given dimension in drawing like below mention image ,

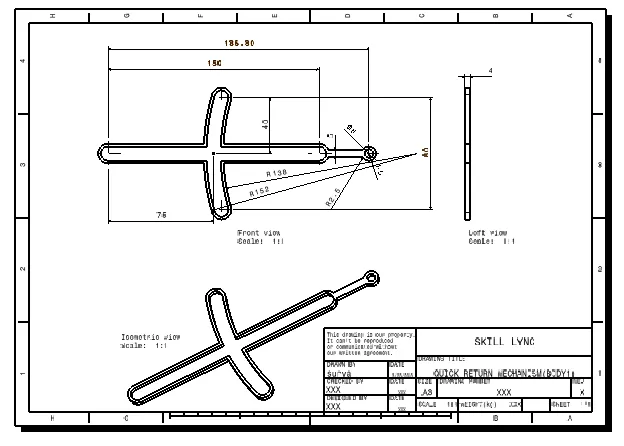

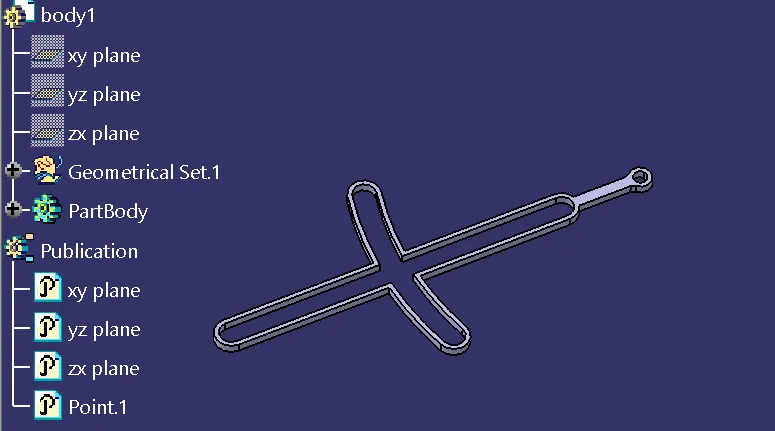

body1

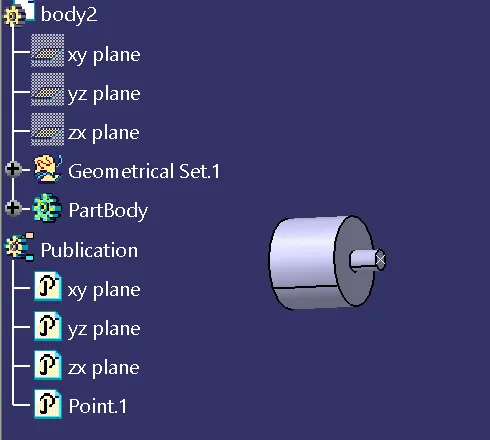

body2

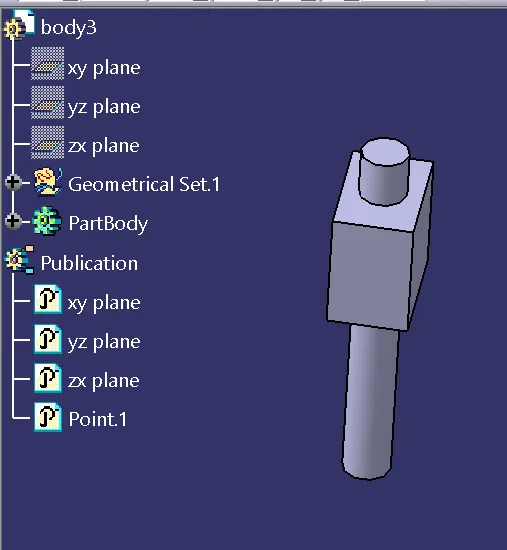

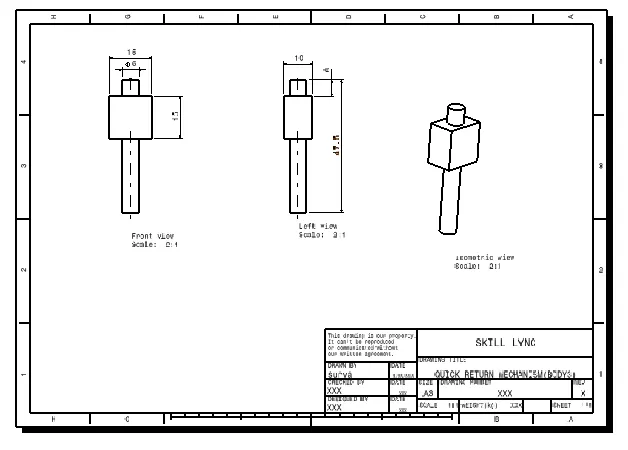

body3

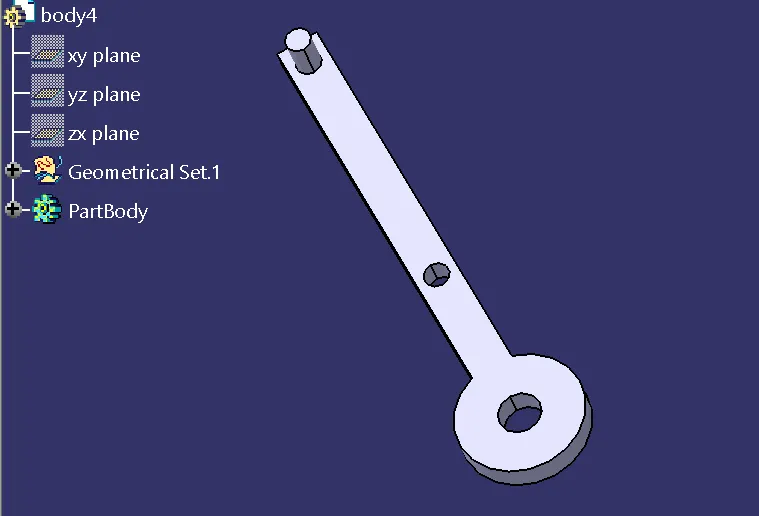

body4

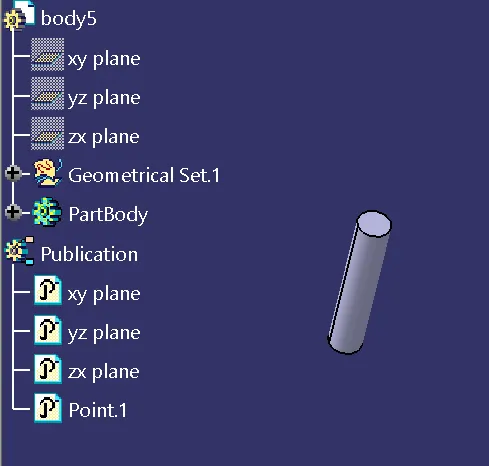

body5

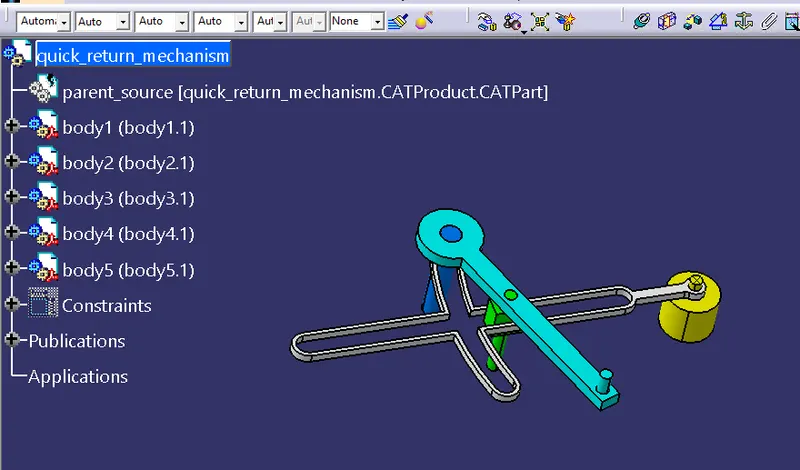

finally each body create to assembly with respective constraint,

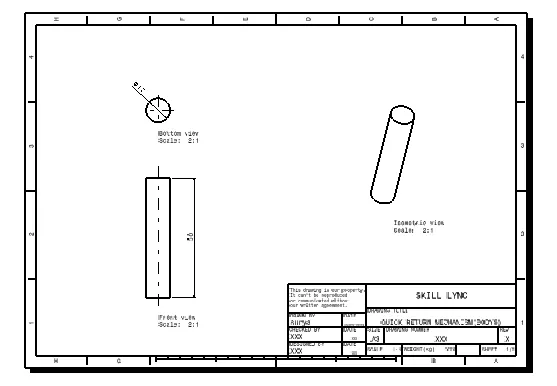

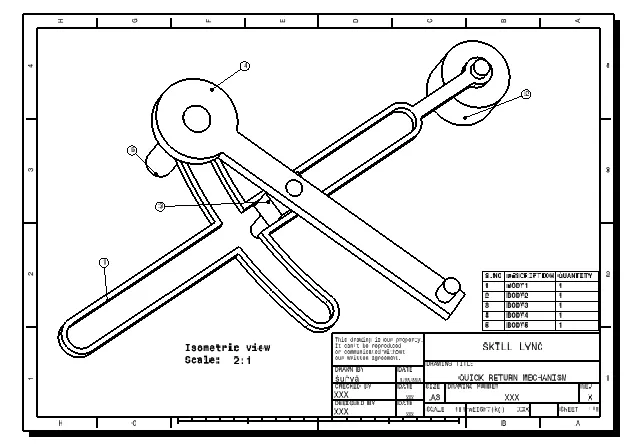

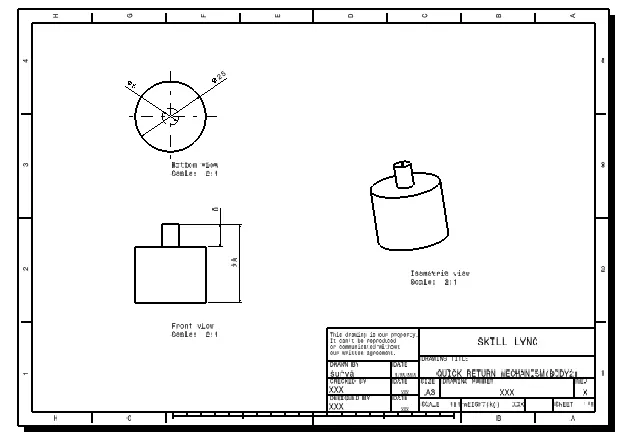

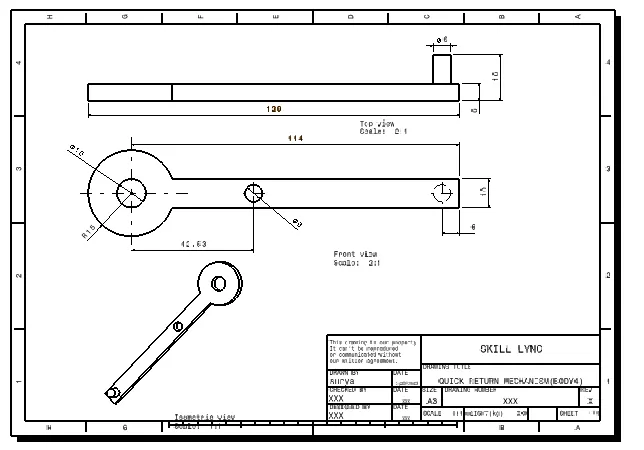

as per manufacture purpose create 2d drawing,

2.CV JOINT

Initailly each body create seperate file as per given dimension in drawing like below mention image ,

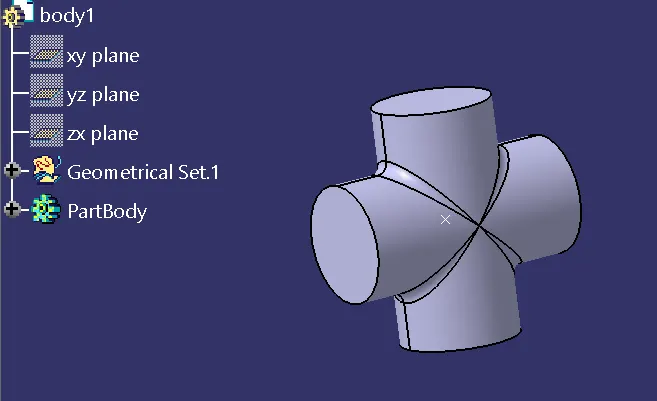

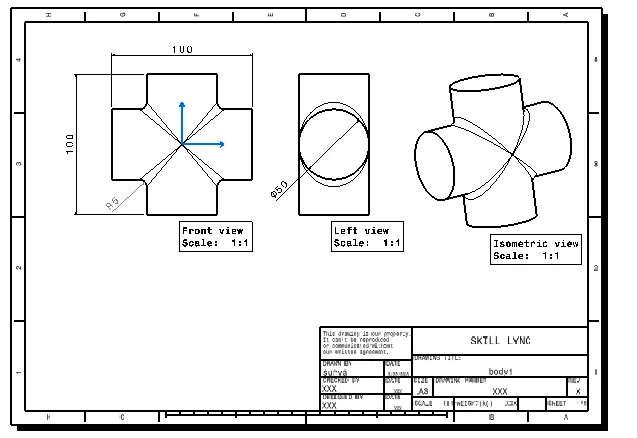

body1

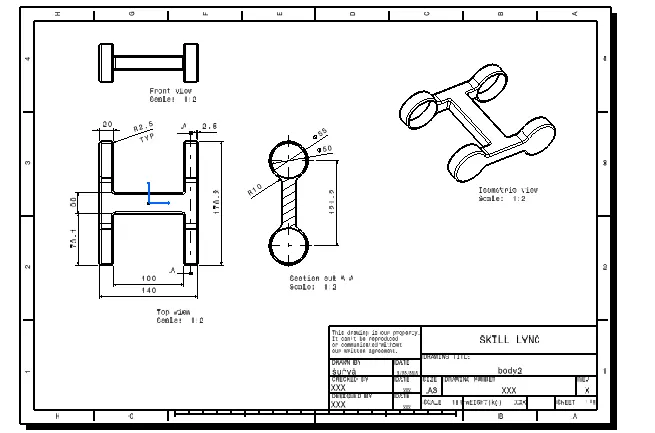

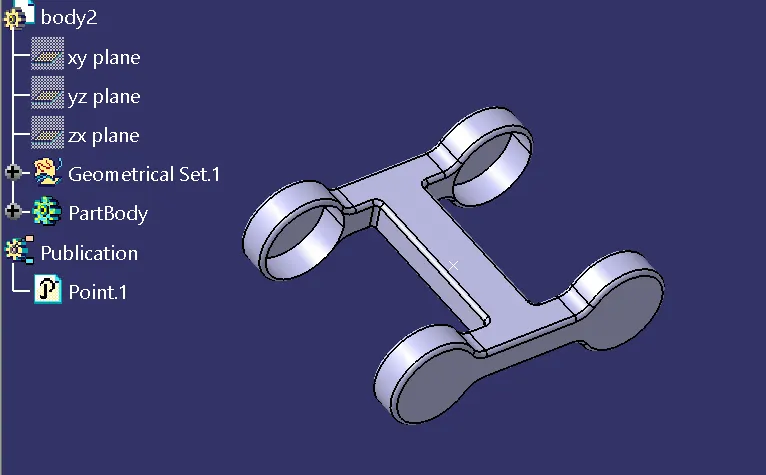

body2

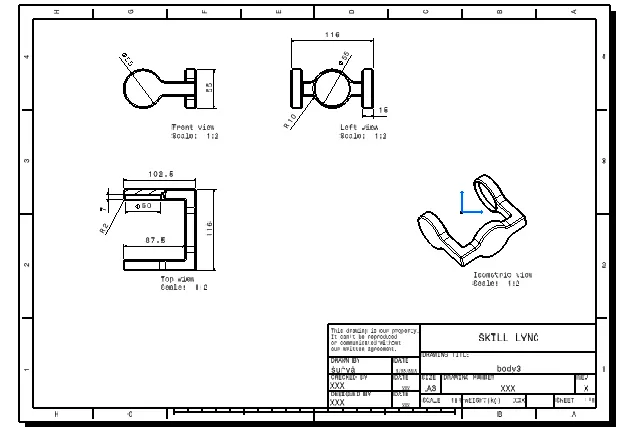

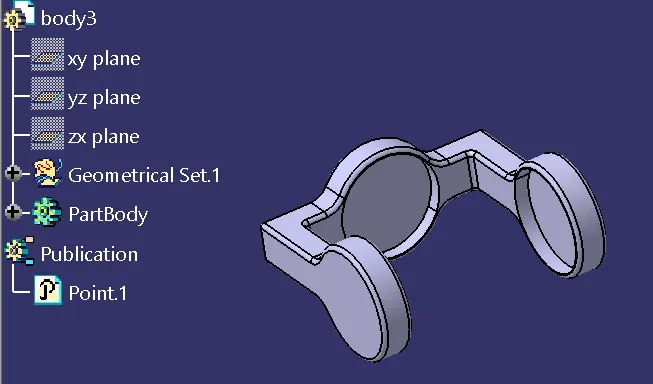

body3

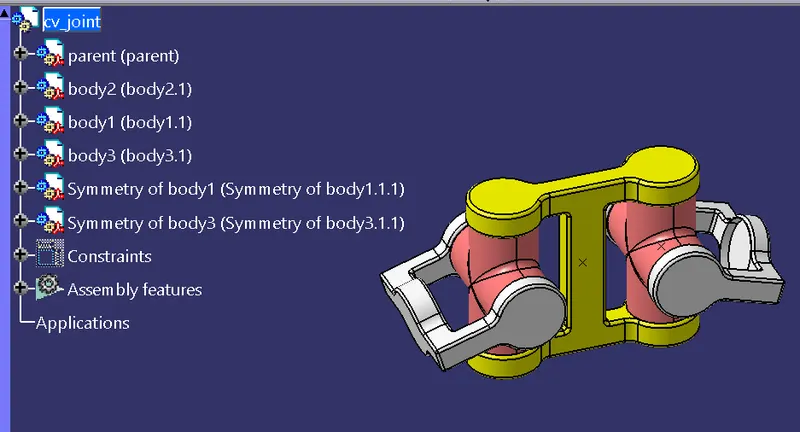

finally each body create to assembly with respective constraint,

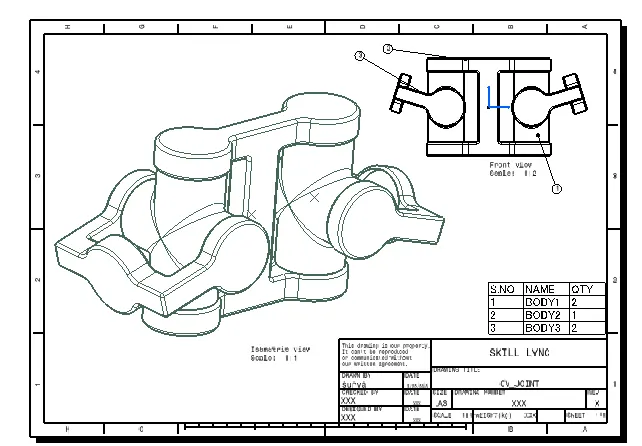

as per manufacture purpose create 2d drawing,
