Week 7 Challenge - Assembly Workbench

DRAWING 1 - QUICK RETURN MECHANISM

1. THE OPEN THE ASSEMBLY SECTION
2. SELECT THE PRODUCT STRUCTURE TOOL IN PART
3. CREAT THE PART BODY SEQUENCLY
4. ALSO COMPLETE ALL PART AGAIN DOUBLE CLICK ON THE PRODUCT AND THEN WE GO TO ASSEMBLY SECTION
5. SET ON ORIGIN AXIS THEN ALSO SET 1ST BODY SET TOWARD THE ORIGIN AXIX

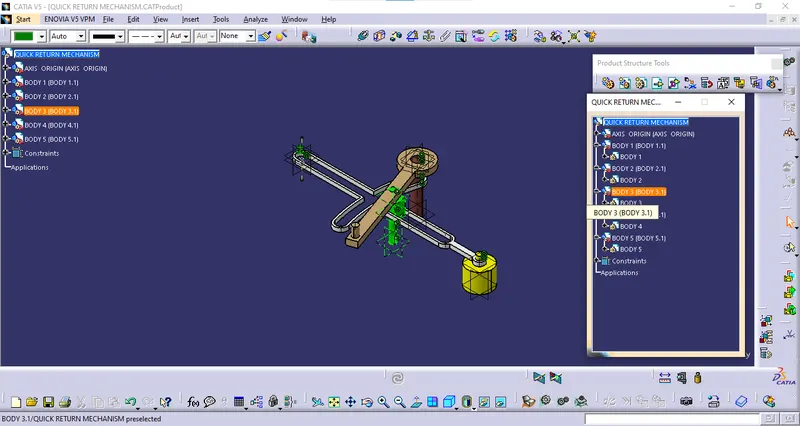

6. ANOTHER BODY SET CONSTRAINT PROPERLY ALONG THE FUNCTION PURPOSE

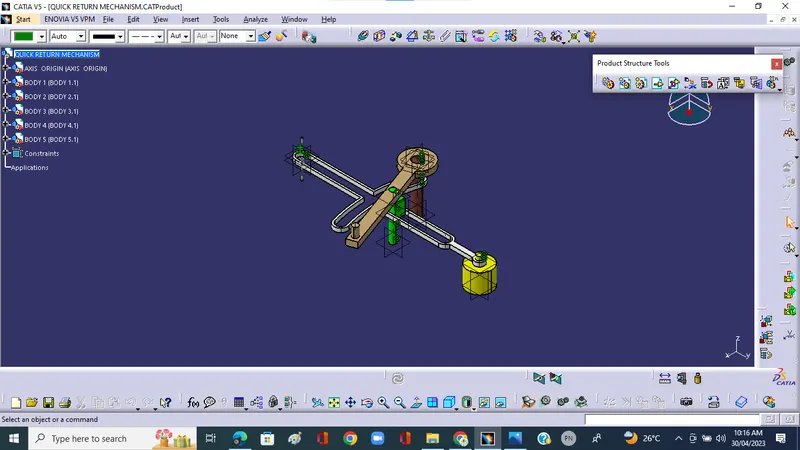

7. THE ASSEMBLY DONE OF THE QUICK RETURN MECHANISM

DRAWING 2 - CV JOINT

1. THE OPEN THE ASSEMBLY SECTION
2. SELECT THE PRODUCT STRUCTURE TOOL IN PART
3. CREAT THE PART BODY SEQUENCLY
4. ALSO COMPLETE ALL PART AGAIN DOUBLE CLICK ON THE PRODUCT AND THEN WE GO TO ASSEMBLY SECTION
5. SET ON ORIGIN AXIS THEN ALSO SET 1ST BODY SET TOWARD THE ORIGIN AXIX

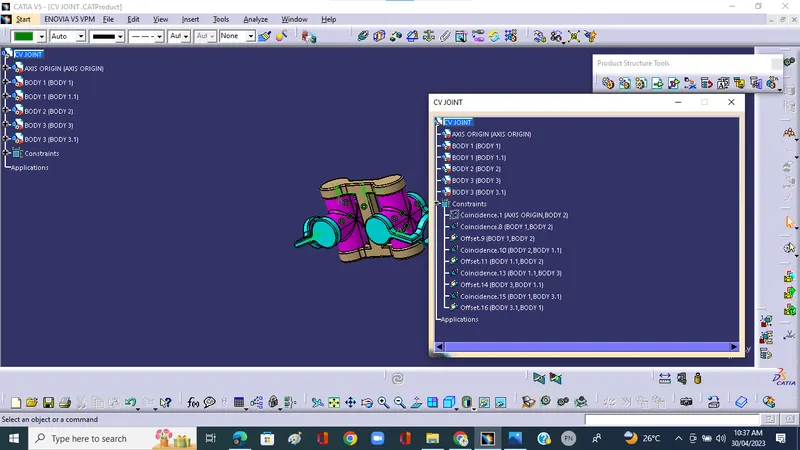

6. ANOTHER BODY SET CONSTRAINT PROPERLY ALONG THE FUNCTION PURPOSE

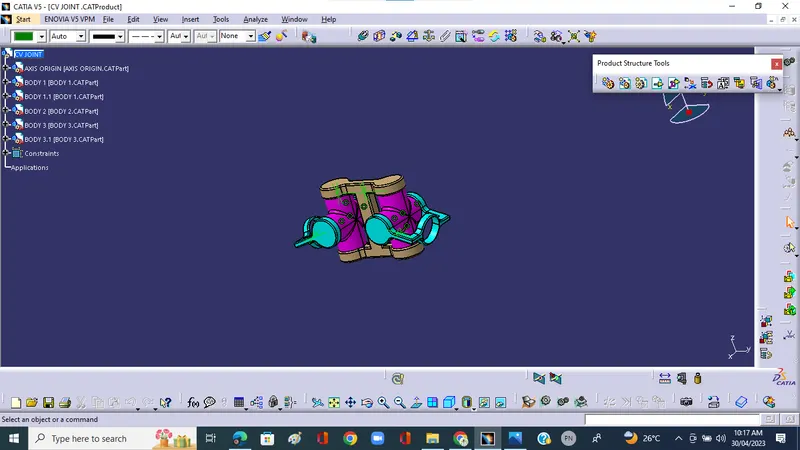

7. THE ASSEMBLY DONE OF THE CV JOINT
