Week 7 Challenge - Assembly Workbench

DRAWING 1 - QUICK RETURN MECHANISM :

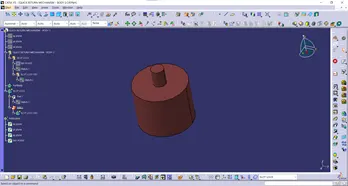

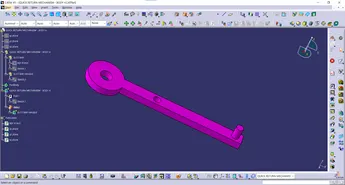

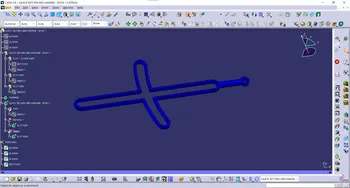

BODY 1 BODY 2 BODY 3

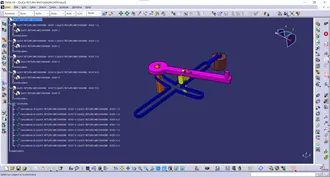

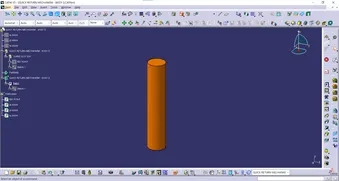

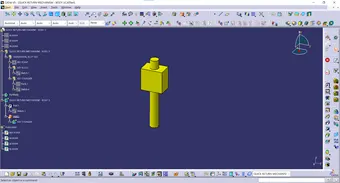

BODY 4 BODY 5 ASSEMBLY DESIGN

PROCEDURE : In this design assignment all the parts of QUICK RETURN ASSEMBLY are created using Boolean Operation. In the assembly design steps –

• BODY – 1 is coincidence with BODY – 2 by axis & surface.
• BODY – 3 is coincidence with BODY – 4 by axis.
• BODY – 4 is coincidence with BODY – 1 by axis in curve slot.
• BODY – 3 is coincidence with BODY – 1 by side surface in straight slot.
• BODY – 4 is coincidence with BODY – 3 by surface.
• BODY – 5 is coincidence with BODY – 4 by axis.
• BODY – 3 is coincidence with BODY – 4 by surface.

DRAWING 2 - CV JOINT :

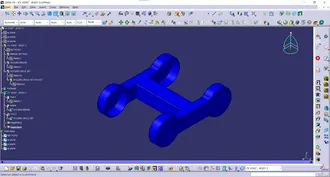

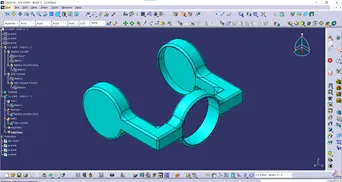

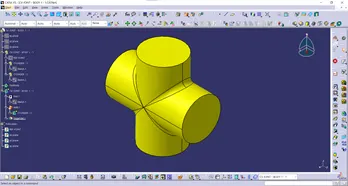

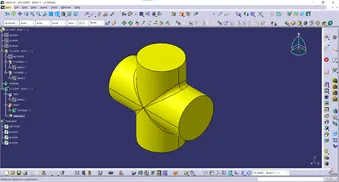

CV JOINT - BODY 1 - 1 CV JOINT - BODY 1 - 2 CV JOINT - BODY 2

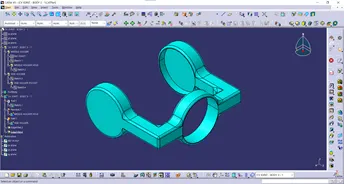

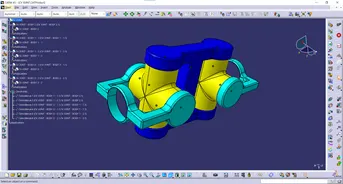

CV JOINT - BODY 3 - 1 CV JOINT - BODY 3 - 2 ASSEMBLY DESIGN

PROCEDURE : In this design assignment all the parts of CV JOINT are created using Boolean Operation. In the assembly design steps –

• BODY – 1 – 1 is coincidence with BODY – 2 by axis.
• BODY – 1 – 2 is coincidence with BODY – 2 by axis.
• BODY – 3 – 1 is coincidence with BODY – 1 – 1 by axis.
• BODY – 3 – 1 is coincidence with BODY – 1 – 1 by inside surface.
• BODY – 3 – 2 is coincidence with BODY – 1 – 2 by axis.
• BODY – 3 – 2 is coincidence with BODY – 1 – 2 by inside surface.
