Week 7 Challenge - Assembly Workbench

Model -1

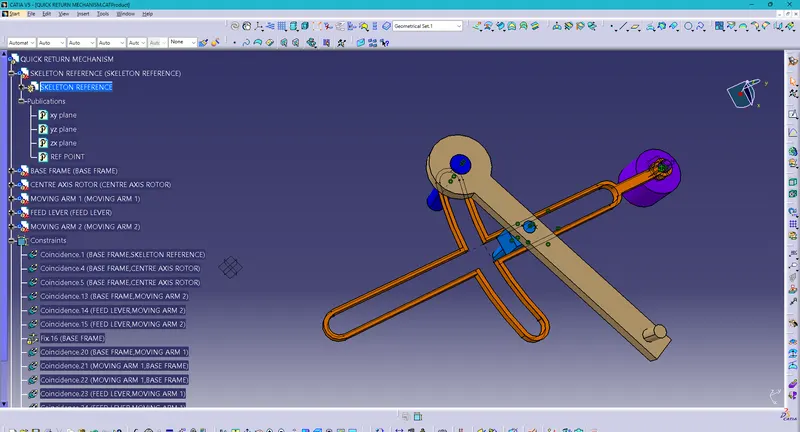

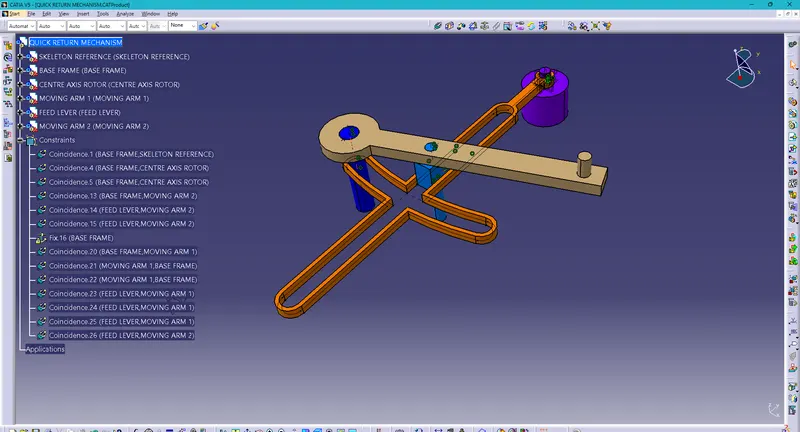

This is the complete assembled part

this is skelton reference for part origin or reference support

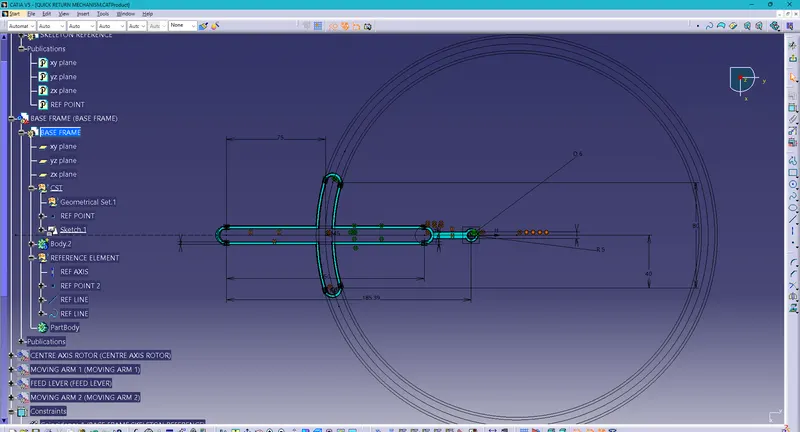

This is the base frame on which whole parts are assembled

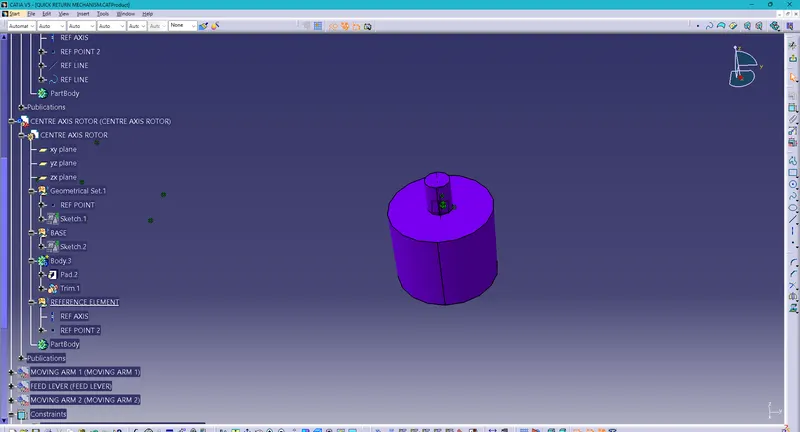

This is the part on which frame is rotated, this part is padded and trimmed and then constrained is given to its axis and top surface with base frame

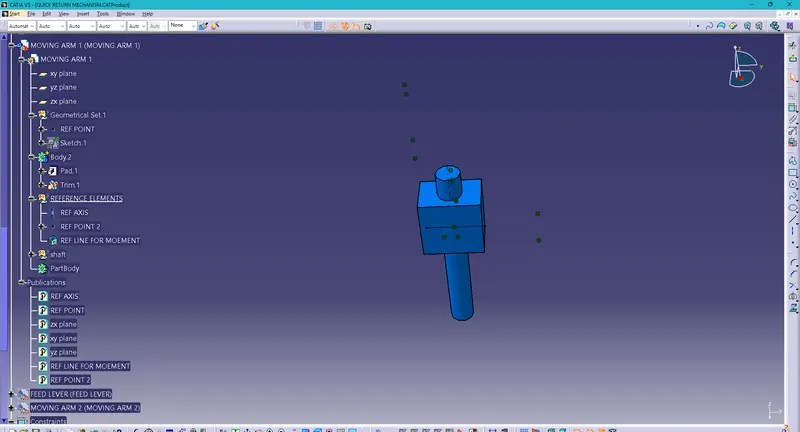

This is the moving arm 1 which is connected with feed lever and move in base frame . First it is padded and then trimmed, constrained is given to its axis and top face with base frame reference

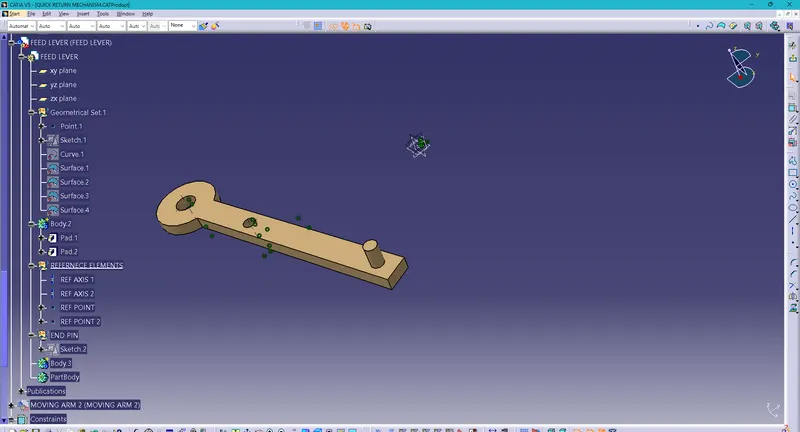

This is FEED LEVER . The tree sturcture and refernece elements are shown and then constrained with base frame

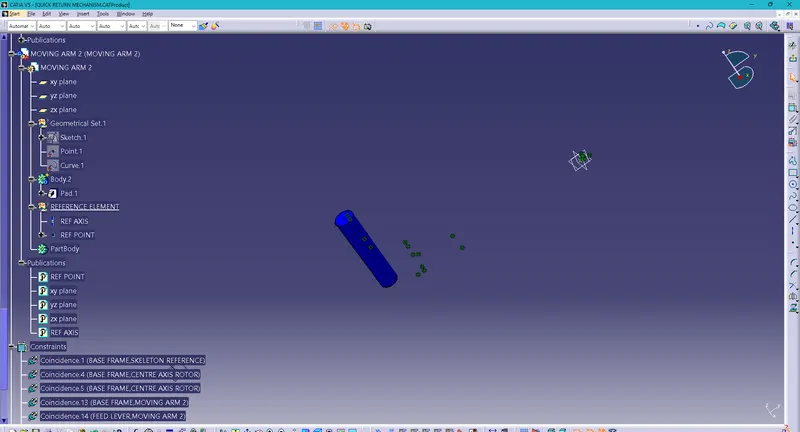

This is moving arm 2 which is connected with feed lever at another point . The tree strtucture and reference elements are shown in pic and then constraints are given to these references with respect to base frame references

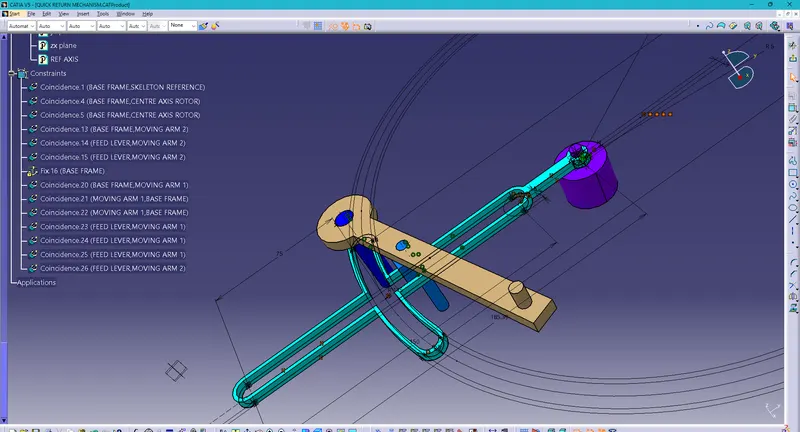

These are all the constraints which are used to assemble all the parts

PART-2 -CV JOINT

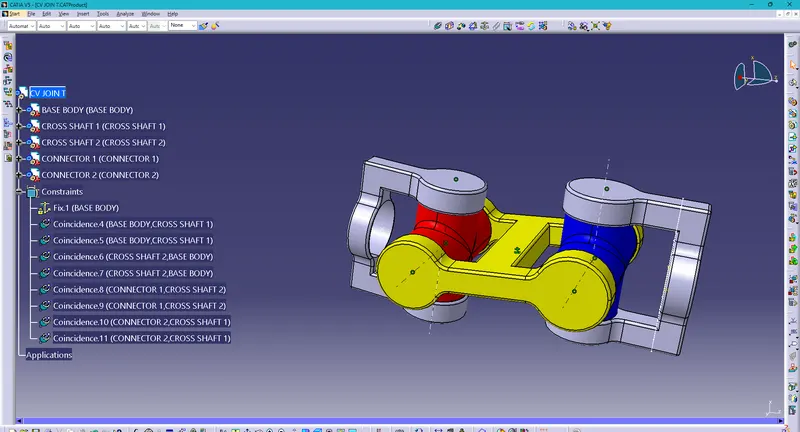

This is the final assembled part

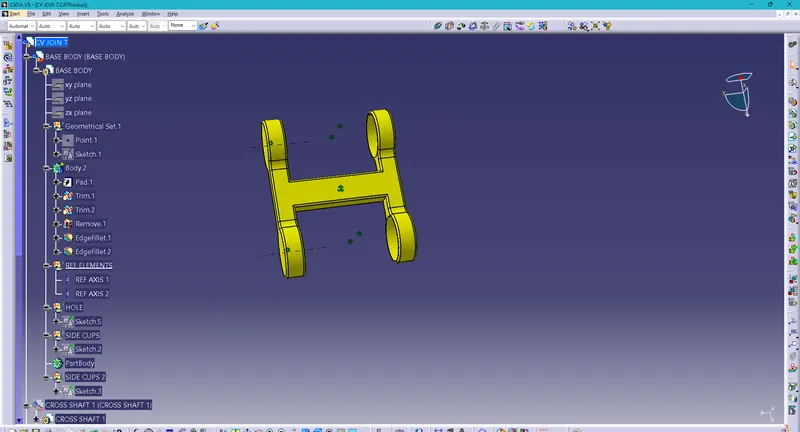

first the base body is designed as per given drawing , then the constraints are given to the body to fix it

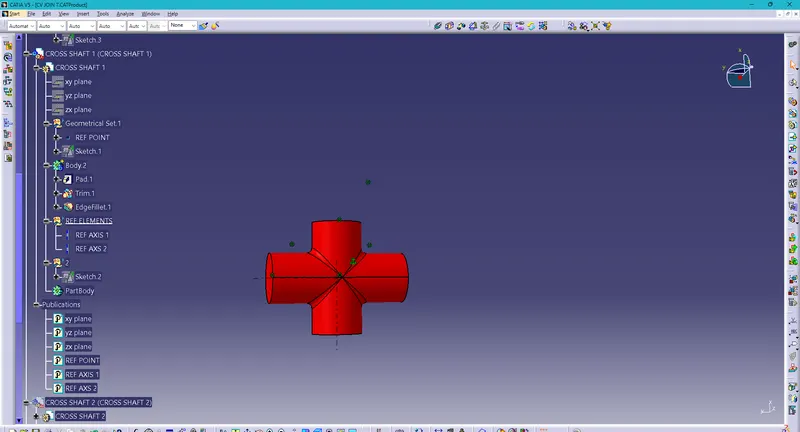

This is the first cross shaft . Designed and given reference axis and points. Constraints are given to part with base part reference

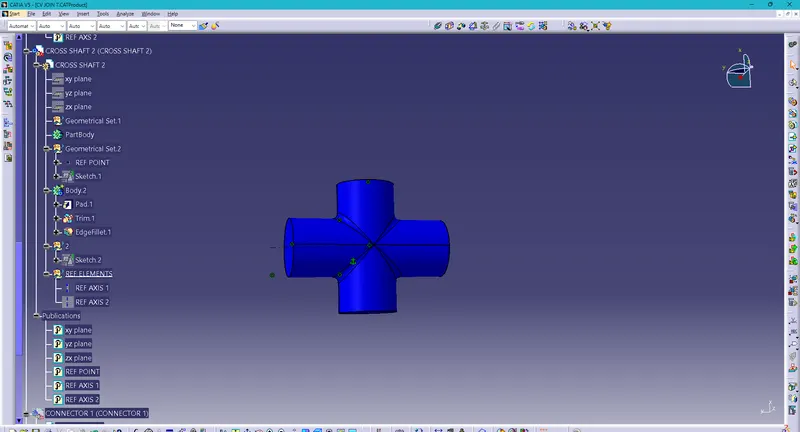

This is the second cross shaft . Designed and given reference axis and points. Constraints are given to part with base part reference

the tree stucture is shown in images

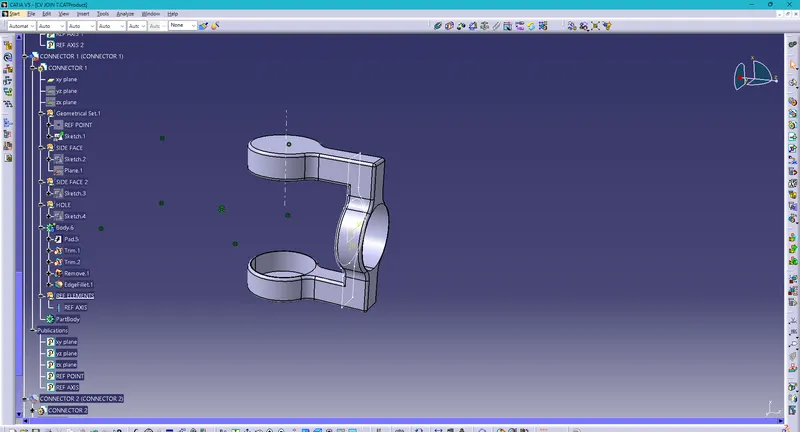

This is the connector 1 tree sturcture is shown in image , designed as per given drawing and then given constraints to its reference elements with base body

all the constraints are shown in image that are given to alll parts
