Week 7:- Base Unit Design Challenges 1

1. What is base unit? What are the typical parts of the base unit?

Ans:

The base unit is part in which all the other fixture parts are mounted like the clamp unit, rest unir , pin unit and also the necessary parts like phneumatic, trunking channel, valve box and others will be mounted on to the base unit.

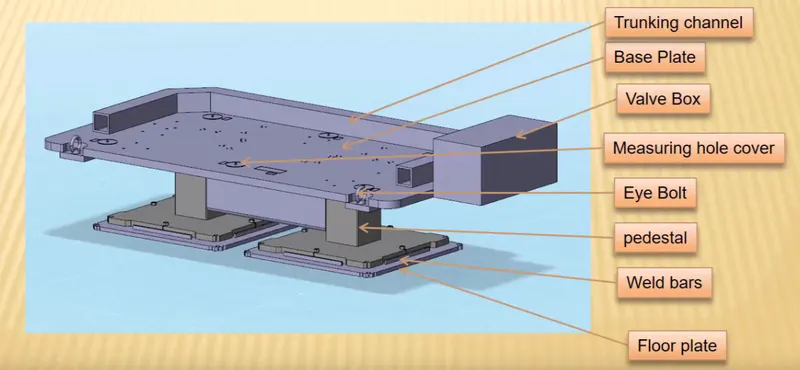

Some of the parts of base unit are:

1. Trunking channel
2. Base plate
3. Valve box
4. Measuring hole cover
5. Eye bolt
6. Pesdestal
7. Weld bars
8. Floor plate

2. What are the points need to account while designing a Base unit?

Ans:

Fundamentals of Base plate Design:

• A base plate size should cover all the units with its outer periphery including opening.
• A base plate is preferred to be designed with respect to BCS coordinates.
• A base plate should be drilled with datum holes / measuring holes in line with a pitch of 1000mm in general.
• Number of datum holes is depend on the size of the base plate.
• Datum holes should be drilled at nominal values of coordinates, and in terms of 50 and100. (In general) Ex: X=100,Y-600,Z=25
• Datum holes should be drilled with Dia 100mm away from other units.
• Datum holes should be covered with cover plates.

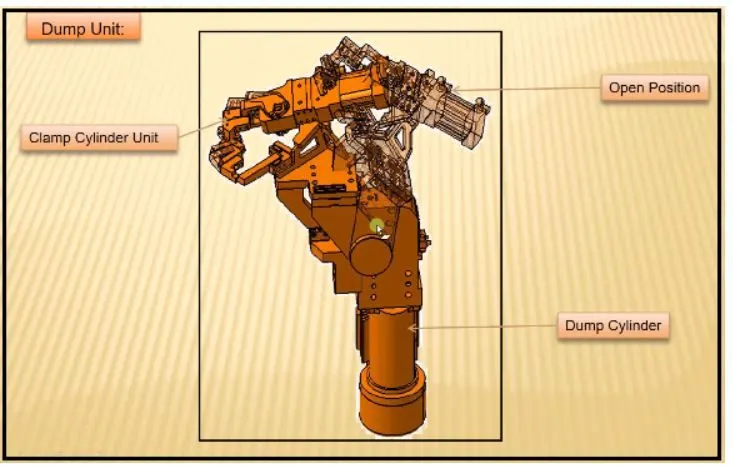

3. What ia a Dump unit?

Ans:

A dump unit is used when there are geometrical constraints while placing a panel. The dump unit is found in a complex fixture It consists of a dump cylinder to perform clamping and unclamping operation.

Functions of Dump units:

• To ensure proper resting of the panel to be welded and its motion is restricted.

• To ensure there is no rotation in the panel and to fix it either by pins or magnets.

• To ensure there is enough clamping force in the cylinder so that it doesn't move while welding. • The dump Unit Should have the correct shimming for adjustment of the panel.

4. What are the points you need to consider while designing a Dump unit?

Ans:

The resting location of the panel being welded is checked in accordance with the designed mylars, pins, and clamps. This will be done by the assembly being dumped onto the panel to operate. It is important because it is the essential reason for creating a dump unit.

• Mass Consideration

The assembly being dumped should have as little weight as possible without compromising the strength. Lesser weight means less force is required to push and pull the assembly.

• Time of opening and Closing

The time of opening and closing of the clamp should be less. This basically depends on the capacity of the cylinder and the weight of the assembly being dumped. More time will result in an increase in the cycle time leading to more idle time

• Cylinder validation

Cylinder Validation is an important aspect of the dump unit or any clamp unit design because the cylinder should be able to push the load for the operation and then pull it back after the operation is complete. The center of gravity of the unit and the distance between the cylinder centerline and end effectors.

• Open Condition

We also need to check the open condition after the cylinder validation because the panel should not fowl with the unit while removed.

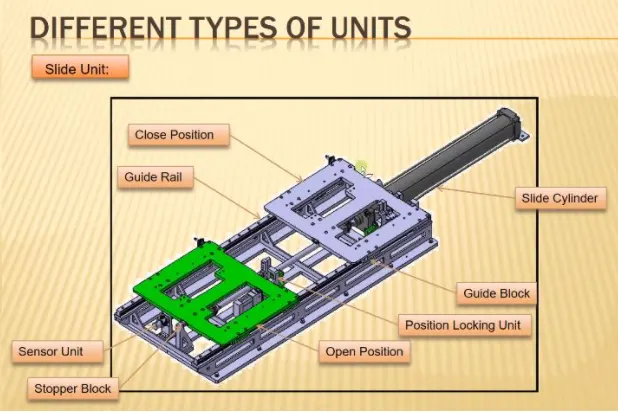

5. What is a Slide unit?

Ans:

• Sliding units are used in a fixture when there are a lot of space constraints, where usage of different units is very difficult in order to design the assembly.

• The sliding unit consists of a sliding cylinder to which a panel is attached

• The panel moves on the guide rails provided and this motion is due to the reciprocating motion of the cylinder

• The position locking units are used to lock the position of the panels on the guide rails

• Sensor units are used to detect the position of the sliding plate, whether it has reached the desired position or not.

A stopper block is used to control the motion of the sliding plate.

6. What are the points you need to consider while designing a Slide unit?

Ans:

The points that are needed to be considered while designing the slide unit are:

1. Weight carrying Capacity

There are different kinds of guide rail available in the market. They are selected by calculating the weight of our assembly.

2. Push and pull forces

It is important to check the pushing and pulling forces in order to slide the whole assembly

3. Locking Mechanism

The Locking mechanism ensures that the slide does not move while it is in an open or retract position. If the slide moves while welding it whil can damage the panels.

4. Stopper blocks

Stopper bocks are used to stop the slide and to restrict further sliding.

5. Sensor Unit

A sensor unit is used to sense whether the car panel is placed in the fixture or not. The sensors will send the signals to PLC systems and so the next process will be executed by this signal.

6. Stroke

We need to select the stroke length based on the requirement we want and the area we need to be clear

7. Open Position

We need to check the slide unit whether there is fowling with the gun or another unit nearby.
