Week-6 : Turbocharger Modelling

A turbocharger is a forced induction device and it increases the IC engine power out put by forcing extra compressed air in to the combustion chamber.This results ultimately increases the effeciency of the engine.

1)Fixed Turbocharger

2) Waste gate Turbochager

3)Variable geometry Turbine

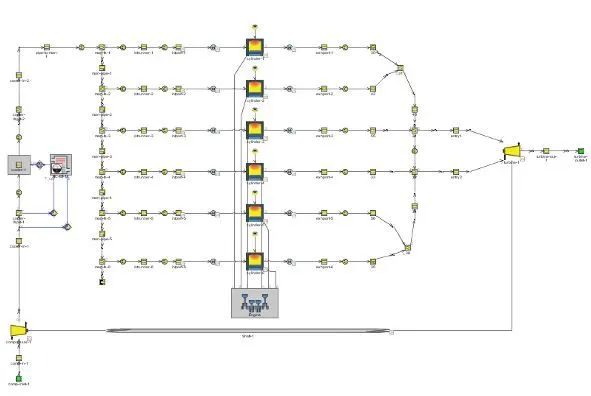

Fixed Turbochrger Model

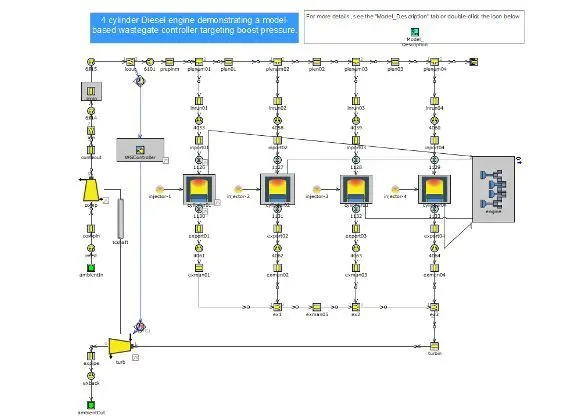

Waste Gate Turbocharger Model

Variable Geometry Turbine

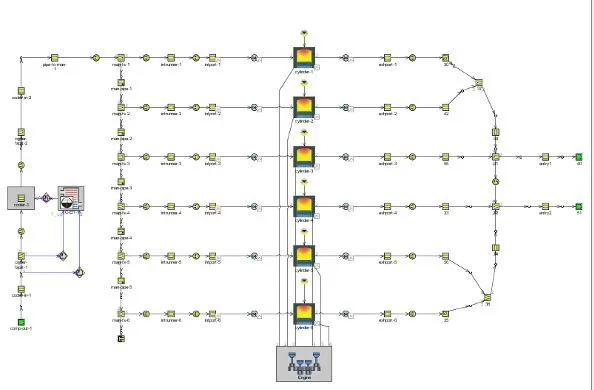

Engine Model with out Turbocharger

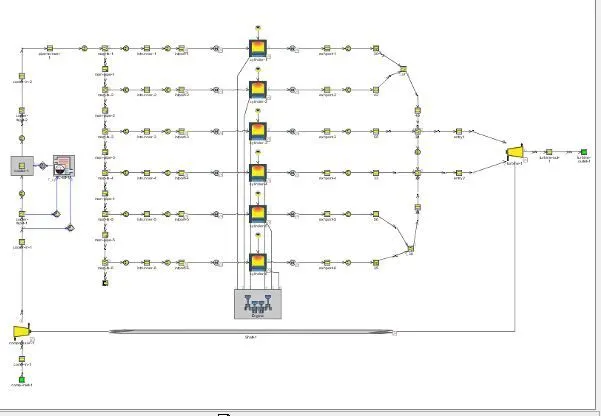

Engine with Turbocharger

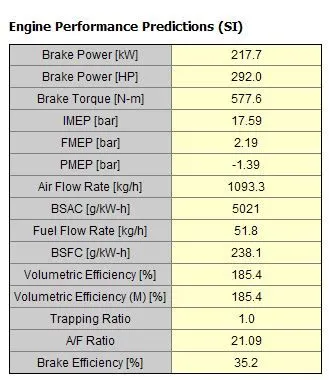

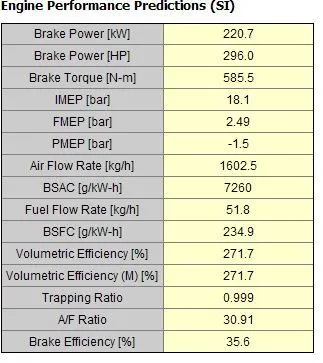

By comparing both the models Engine with turbocharger model shows more brake power and Torque than the Engine with out turbocharger

Tutorial 7

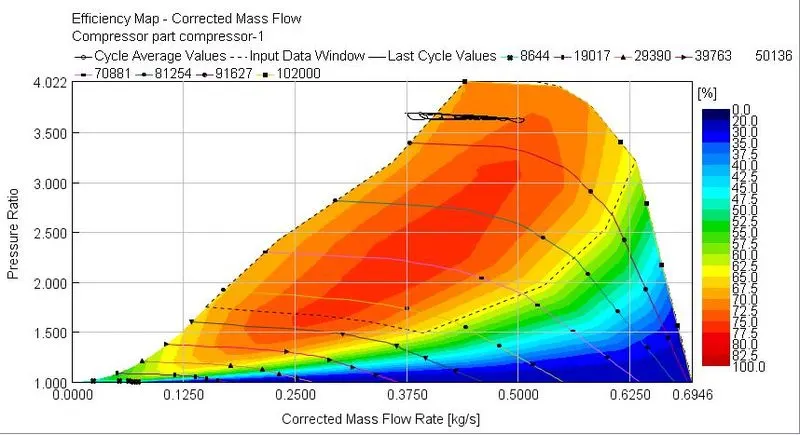

Compressor map and

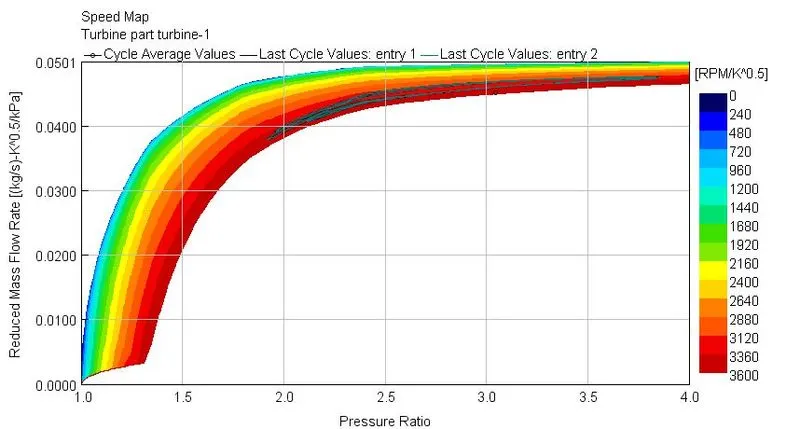

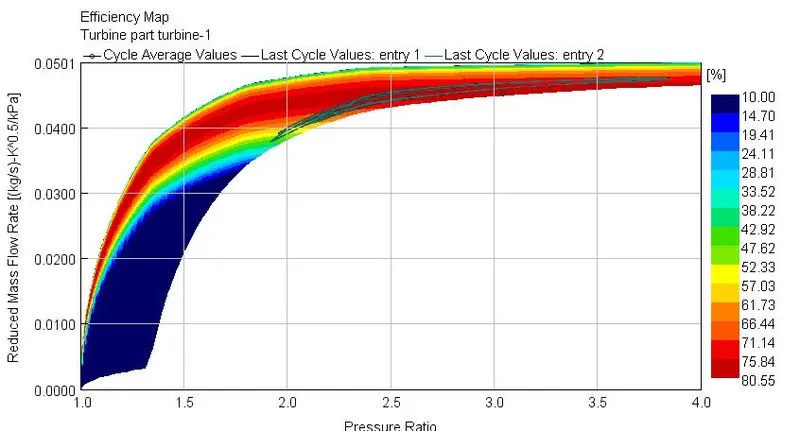

Turbine Map

Q4) In which application Variable geometry turbine is benificial?

* Higher air-fuel ratio and higher torque at low engine speed

* Improved vehicles acceleration

* Increases TExhaust temperature for after treatment system mangement

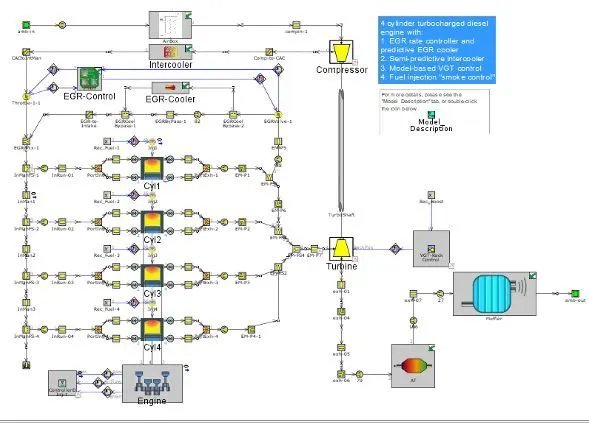

Diesel VGT EGR

• The engine is a four cylinder four stroke diesel engine
• Inter cooler is present in the model to reduce the temperature of compressed air
• The exhaust gas recirculation system is present to decrease the temperature of cylinder by mixing with the incoming air
