Week 6-Meshing of Hood Challenge

Aim :

The aim is to take midsurface and mesh the given hood.

Objective:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

Initially import the model in hypermesh optistruct,

then take a geometry cleanup autocleanup,

and extraxt the midsurface of each parts seperately and save it,

Then add the washer split at the required areas and do the mesh with 5 as size ,

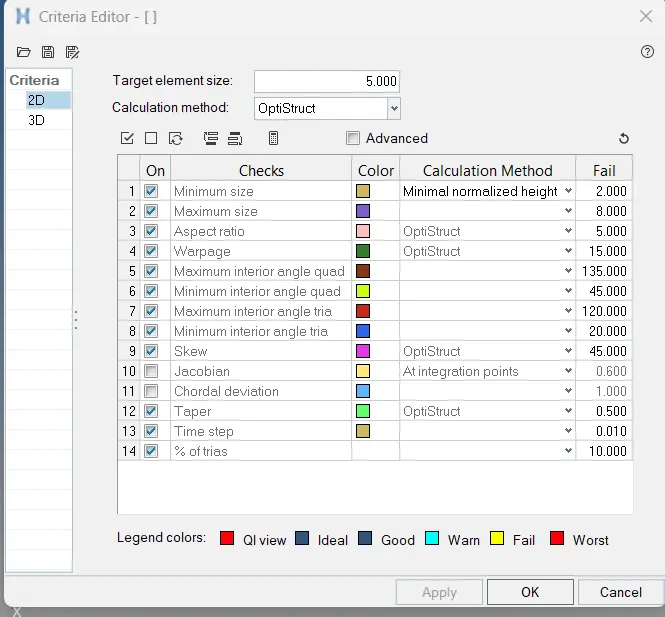

Before that add the criteria setting in the preferences,

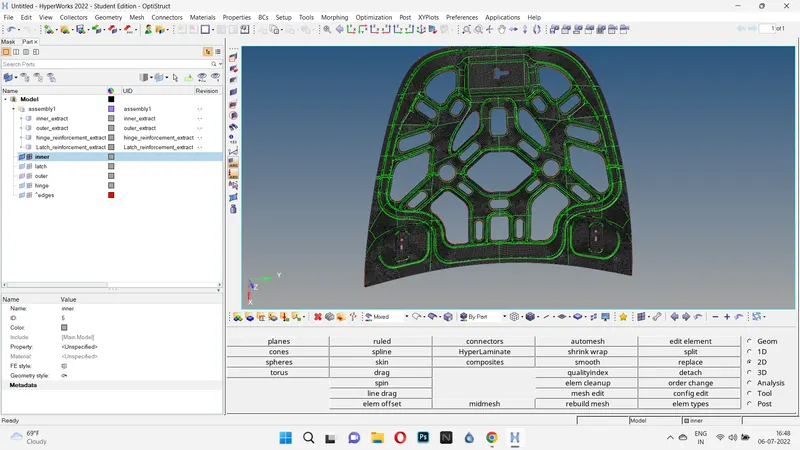

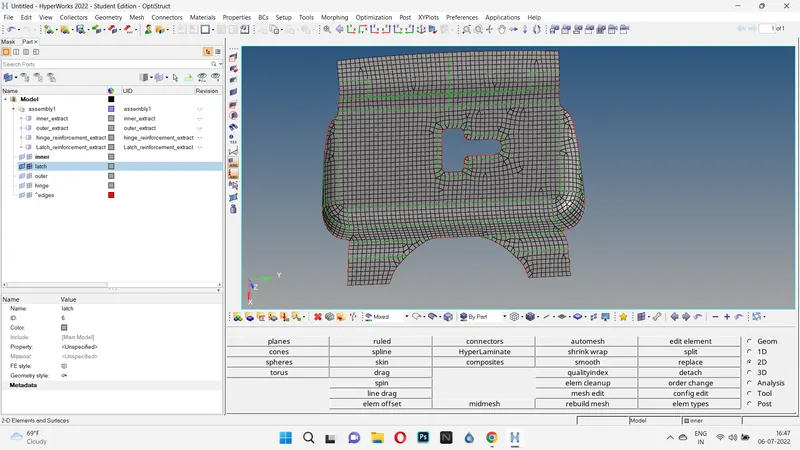

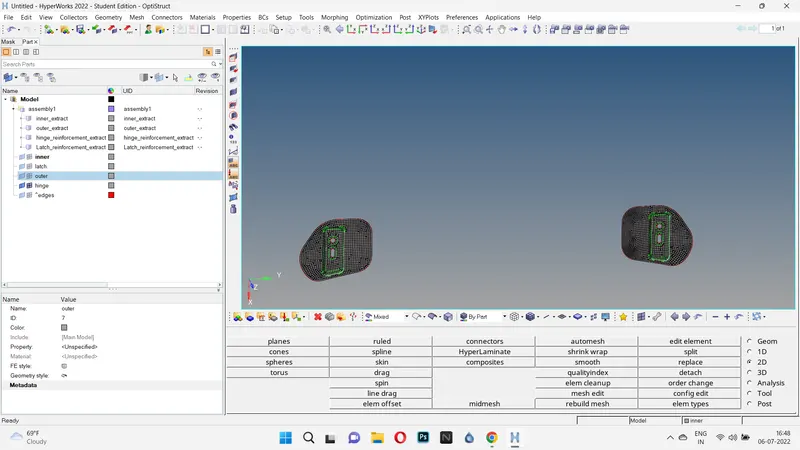

Now go to 2d and click the auto mesh and mesh it with the mixed at 5 and,

Generate the mesh, and check for the criteria,

Result:

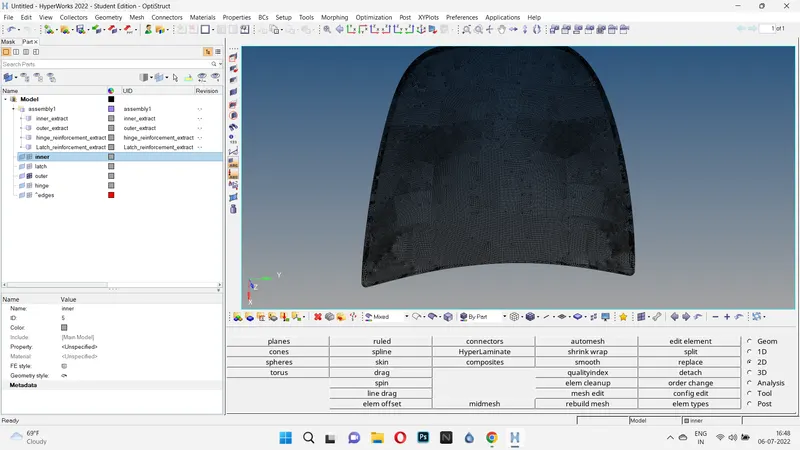

Therefore the hood hasbeen meshed and the model hasbeen attached in the asset.
