AIM:

To extract mid-surface and generate mesh on hood using hyper mesh .

GIVEN MODEL:

PROCEDURE:

STEPS INVOLVED:

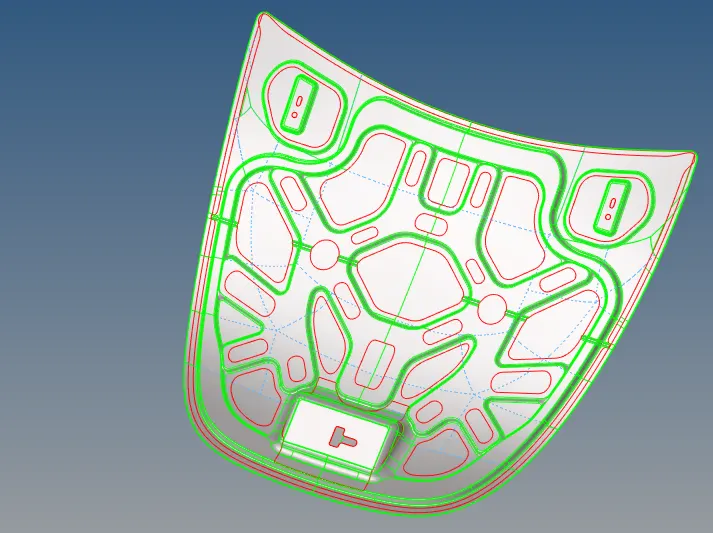

1. Importing geometry and cleanup.
2. Extracting mid-surface and assigning properties.
3. Meshing the surface with in the given quality criteria.

QUALITY CRITERIA:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

CONCLUSION:

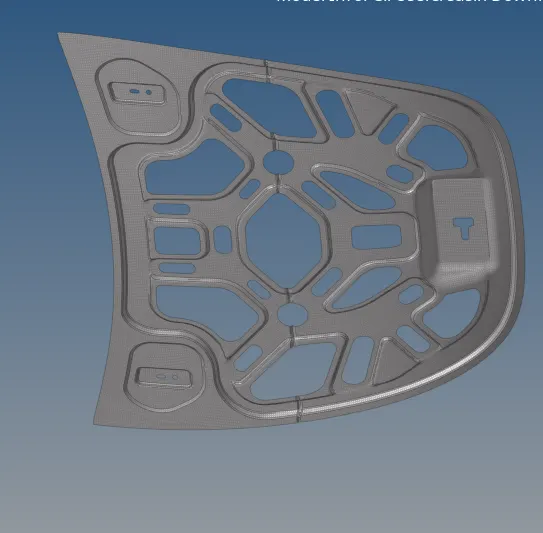

For the given hood inner extract panel mid-surface is extracted and mesh is generated with in the given quality criteria.
