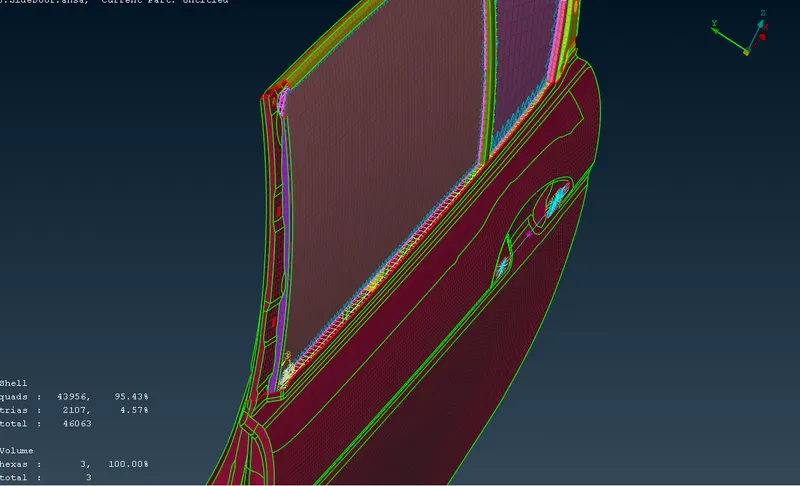

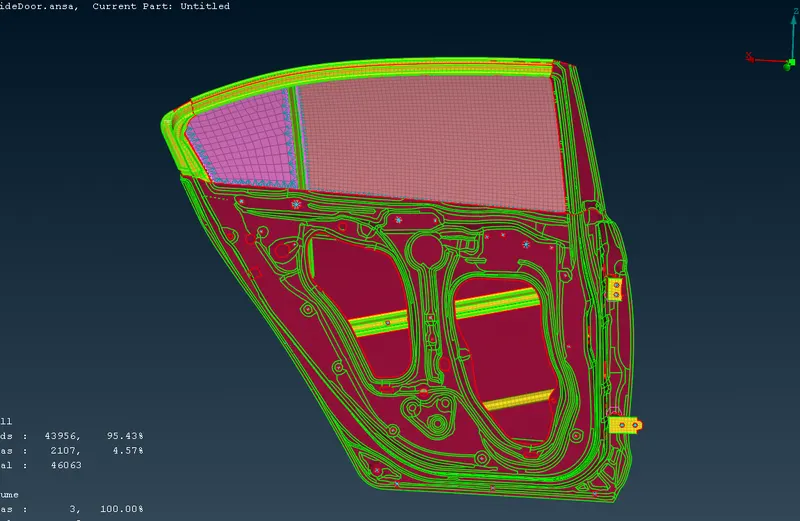

Week 6 - Creating connection for Rear door
AIM:- IN THIS WEEK 6 CHALLENGE CONNECTION FOR THE SIDE DOOR HAS TO BE DEPLOYED, THIS WILL INCLUDE VARIOUS TYPE OF CONNECTION AND NEW LEARNINGS.
PROCEDURES:-
THERE ARE VARIOUS TYPE OF CONNECTION IN ANSA DEPENDING UPON THE USER INTERACTION CONNECTION HAS TOBE DEPLOYED MOST COMMON CONNETIONS USED IN THIS MODEL ARE AS BELOW
- RBE2 CONNECTION
- RBE3 CONNECTIONS
- BOLT CONNECTION
- SEAM WELD CONNECTIONS
- SPOT WELD CONNECTION
AS MENTION ABOVE CONNECTION THERE ARE SUB FE REPRESENTATION FOR THOSE CONNECTION FOR EG RBE3-HEX-RBE3, RBE3-CBUSH-RBE3, OVERLAP SHELL JOINT, Y JOINT SHELL.

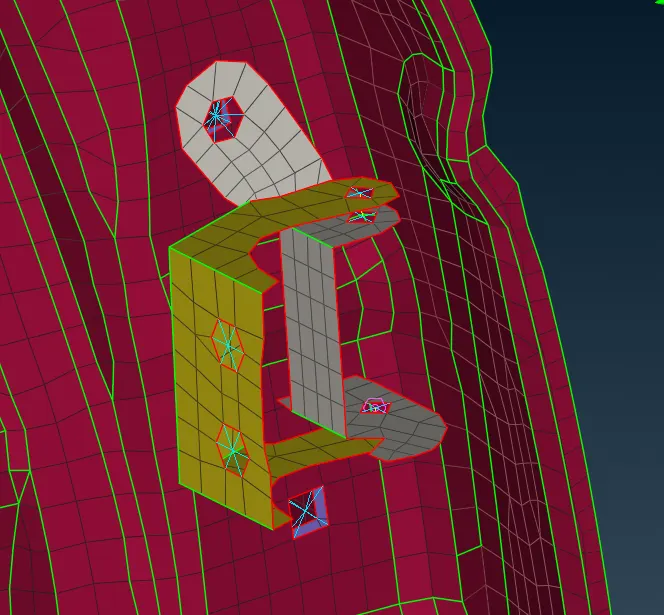

SO THE PROCEDURE FOR RBE2 CONNECTION IS SIMPLE SELECTING THE SLAVE NODES AND MASTER NODE CONNECTION CAN BE EASILY FORM.
IN RBE2 2 NODE CONNECTION IS USE TO REPRESENT THE BOLT STEM THIS IS USE WHEN WE WANT SOME DOF TOBE ALLOWED TO DEFORM DURING THE SIMULATION.
FOR PROVIDING THE RBE3 CONNECTION WORK SAME AS THE RBE2 BUT HERE THE SLAVE NODES BECOME MASTER NODE AND VICE VERSA
MAJOR DIFFERENCE B/W THIS TWO ELEMENT IS THAT RBE3 DISTRIBUTE THE LOAD ACCORDING TO THE DISTANCE FROM THE NODES WHILE RBE2 DISTRIBUTE THE LOAD EVENLY.
WHILE OTHER CONNECTION CAN BE DEPLOY BY CREATING THE CURVES AND THE POINTS THEN CONVERTING THEM IN TO THE DESIRE WELD CONNECTION TO FOR JOINT.

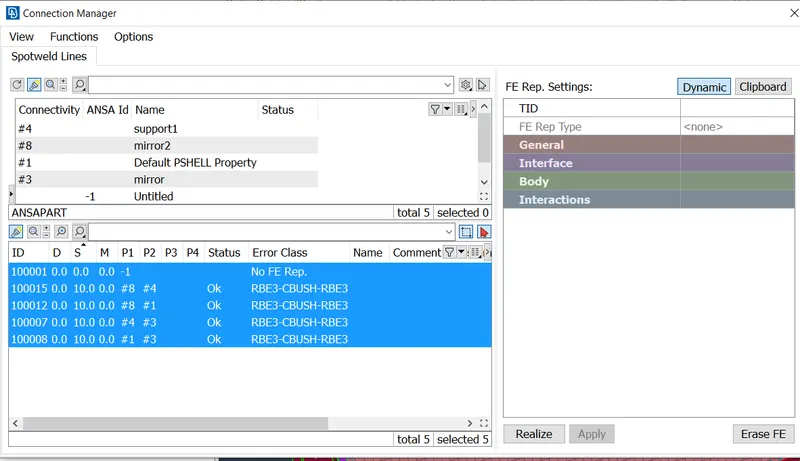

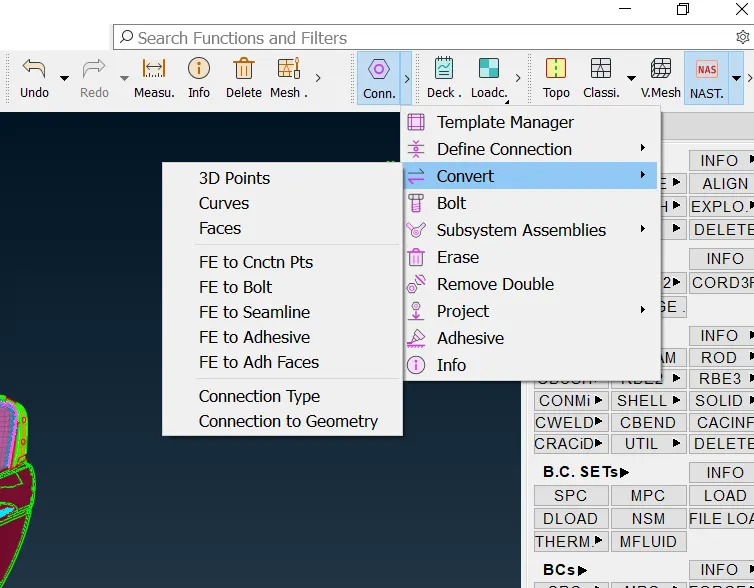

FOR CREATING SEAM WELD JOINT WE HAVE TO CREATE THE CURVE AND THEN THIS CURVE IS CONVERTED INTO THE SEAM LINE THROUGH CONVERT COMMAND THEN BY USING THE CONNECTION MANAGER WE CAN SELECT THE PART OR PID THAT HAS TOBE CONNECTED HERE WE CAN ALSO SELECT THE DIFFERENT FE REPRESENTATION.
SAME PROCESS CAN BE FOLLOWED FOR THE SPOT WEL AND BOLT CONNECTION.
CONCLUSION:-
IN THIS WEEK CHALLENGE LEARNED ABOUT THE VARIOUS CONNECTION AND THERE IMPORTANCE IN THE SIMULATION PART. VARIOUS CONNECTION HAS THERE ITS OWN IMPORTANCE AND ALSO NEEDED EXPERIENCE TO APPLY PROPER CONNECTION AT PROPER PLACE IN OREDER TO GET THE AN ACCURATE RESULTS.
