Week-6 Challenge: EV Drivetrain

Offline Batch

1. Which types of power converter circuits are employed in electric and hybrid electric vehicle?

Answer:

Power Electronic Converters: -

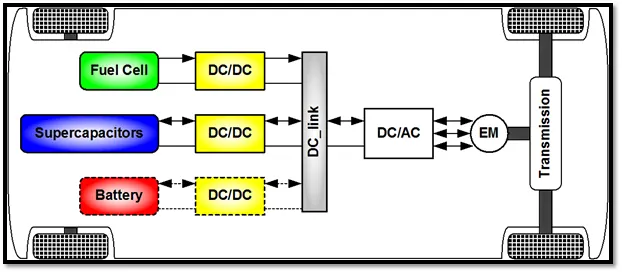

In Electric and Hybrid Electric Vehicles (EV/HEV), the power electronic converters are considered as the key elements that interface their power sources to the drivetrain of the EVs. In order to design highly efficient converters for the EV’s power system, advanced DC/DC and DC/AC converters are required to adapt the output voltage and current levels with high power quality.

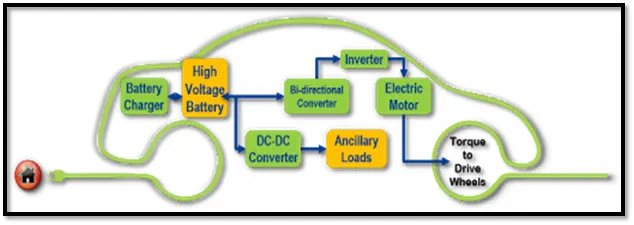

The 3 types of converters which are widely used in an Electric Vehicle are:

AC – DC Converter (On Board Charger): -

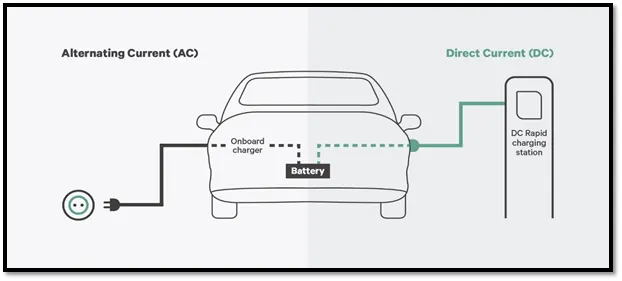

AC to DC converters are most commonly used in Plug-in Hybrid Electric Vehicles (PHEV) & Plug-in Electric Vehicles (PEV). These vehicles get their propulsion power from an external electricity source (charging stations) which is alternating current. The battery needs to be charged using a direct current source. For this purpose, AC to DC converter is employed in a PHEV & PEV.

DC – DC Converter: -

DC-DC converters can be used to interface the elements in the electric power train by boosting or chopping the voltage levels. By introducing DC/DC converters one can choose the voltage variation of the devices and the power of each device can be controlled. The power of the DC/DC converter depends on the characteristics of the vehicle such as top speed, acceleration time from 0 to 100 Km/h, weight, maximum torque, and power profile (peak power, continuous power).

DC – AC Converter (Inverter): -

The DC/AC converter is required to convert the dc power to a suitable ac power for the electrical machine. The power output from battery pack (DC current) is converted using inverter to be used in electric motor (AC current).

2. What is EV steady state speed if duty cycle is 70%?

Answer:

Given: -

The following input parameters are given: -

Battery pack voltage (V) = 72V

Rated armature current = 400 A

Armature Resistance (R_a) = 0.5Ω

Motor constant (K_Φ) = 0.7

Chopper Switching frequency= 400 Hz

Duty Cycle = 70%ω

Solution: -

Vehicle Output Voltage (V_v) is given by: -

V_v = Battery Voltage (V) * Duty Cycle

V_v = 72 * 0.70

Thus, Vehicle voltage = 50.4V

Now, Equation for Vehicle torque is given by: -

Tv=(Vv−ω.K∅)⋅K∅/Ra

Where;

Tv= Vehicle Torque (N-m)

Vv = Vehicle voltage (Volts)

ωω= steady state speed of vehicle (rps)

K∅= Motor constant

Ra= Armature Resistance

Substituting all these values in equation, we get:

Tv=(50.04−0.7⋅ω)⋅0.7/0.5

Tv=70.56−0.98⋅ω

Tv=24.7+0.0051⋅ω2

Solving these two equations,

70.56−0.98⋅ω=24.7+0.0051⋅ω2

We get a quadratic equation:

0.0051⋅ω2+0.98⋅ω−46.94=0

Since quadratic equation, we get two values of ;

ω= 38.85 rad/s and ω = -230.95 rad/s

We take the positive value;

Steady state speed of vehicle = = 38.85 rad/s

3. Develop a mathematical model of a DC Motor for the below equation using Simulink.

ω= V/Kϕ -Ra/Kϕ^2 .T

Answer:

Let V = 50.4 Volts

Kϕ= 0.7

Ra= 0.5Ω

and also let consider torque as a linearly increasing signal.

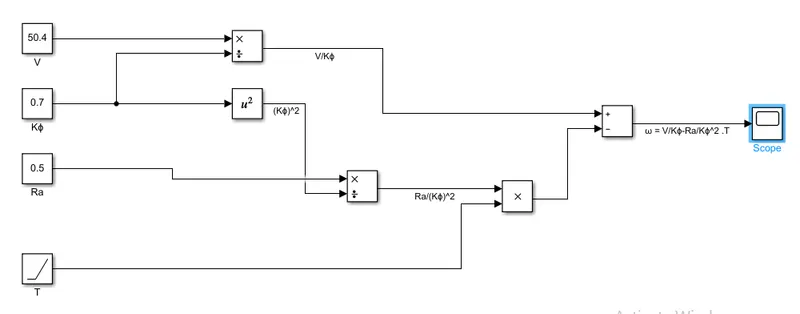

Model:-

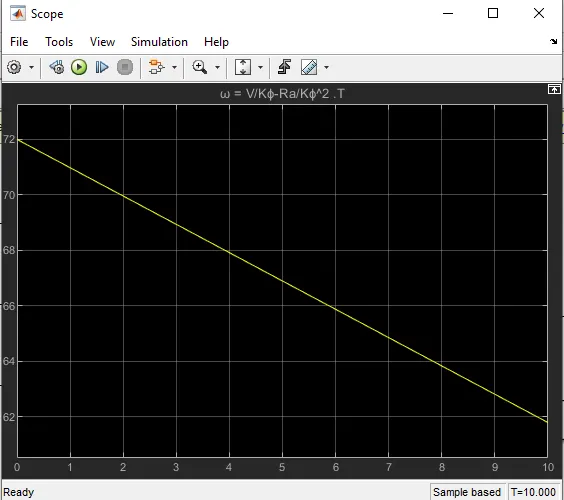

Result:-

4. Explain in brief about author’s perspective.

Answer:

DC Brushless Motor:

With brushless machines, the rotor includes two or more permanent magnets that generate a DC magnetic field (as seen from the vantage point of the rotor). In turn, this magnetic field enters the stator core (a core made up of thin, stacked laminations) and interacts with currents flowing within the windings to produce a torque interaction between the rotor and stator. As the rotor rotates, it is necessary that the magnitude and polarity of the stator currents be continuously varied – and in just the right way - such that the torque remains constant and the conversion of electrical to mechanical energy is optimally efficient. The device that provides this current control is called an inverter. Without it, brushless motors are useless motors.

The author also said that a brushless DC motor produces no starting torque when directly connected to fixed frequency utility power. They really need the aid of an inverter whose “phase” is maintained in step with the angular position of the rotor.

Advantage:-

The advantage of DC Brushless Motor is that there is low heat generation in the rotor and its cooling capacity is better as compared to Induction Motor. Also, peak point efficiency is generally higher for this drive. The DC brushless drive can also operate at unity power factor, whereas the best power factor for the induction drive is about 85%. This means that the peak point energy efficiency for a DC brushless drive will typically be a few percentage points higher than for an induction drive.

Disadvantage:-

As Machine size grows, the magnetic losses increase proportionately and part load efficiency drops. Permanent magnets are expensive and difficult to handle due to very large forces that come into play when anything ferromagnetic gets close to them.

Induction Motor:

The technology behind the induction motor is that it basically uses a 3-phase induction motor which was invented by Nikola Tesla sometime before 1889. Unlike the DC brushless rotor, the induction rotor has no magnets – just stacked steel laminations with buried peripheral conductors that form a “shorted structure.” Currents flowing in the stator windings produce a rotating magnetic field that enters the rotor. In an Induction motor current interacts with the Magnetic field generated by the stator to produce a force which is required for rotor torque.

When a 3-phase induction motor is connected to utility type 3-phase power, torque is produced at the outset. The fact that induction motors are directly compatible with conventional utility power is the main reason for their success.

Advantage:-

The induction motor does not have any magnets and in this the B field is adjustable. The motor has the ability to start under load and there is no need of an inverter. In an induction motor B field is proportionate to V/f (Voltage to frequency). This technology is used to reduce the magnetic losses and conduction losses, due to which efficiency will remain at maximum peak. This all leads to increasing the performance, induction motor is very useful and efficient for high performance.

Disadvantage:-

An induction motor cannot operate from DC Voltage it always requires an AC voltage supply. In an induction motor, the Shaft speed is proportionate to line frequency. Hence, when used with utility power they are constant speed machines. When operated from utility power, they have limited starting torque and somewhat limited running peak torque capabilities, when compared to DC-type machines.

Inference:-

In the end, the author couldn't choose which drive is better than the other but makes it clear that DC Brushless motor drives will likely continue to dominate in the Hybrid and upcoming Plug-in hybrid markets and induction motor drives will likely maintain dominance for the high-performance pure electric.
