Week-6 Challenge: EV Drivetrain

1. Which types of power converter circuits are employed in an electric and hybrid electric vehicle?

With the increasing interests in energy efficiency, energy cost, and environmental protection, the development of electric vehicles (EVs) technology has been obvious nowadays. Based on the air pollution regulations in the USA and Europe as well as a lot of countries in the world, the fossil-fueled vehicles have been targeted as the major source of emissions that create air pollution leading to the global warming crisis. The oil resources in the earth are limited and the new discoveries of it are at a slower pace than the increase in demand especially with the increase in the world population so that the need for alternatives is becoming crucial. The technologies involved in EVs are diversified and include electrical and electronics engineering, mechanical engineering, automotive engineering, and chemical engineering. EVs depend on which called electric propulsion, in which an electric motor is used to drive the vehicle instead of the internal combustion engine (ICE) and the energy sources are batteries, fuel cells, or capacitors instead of gasoline or diesel fuel in the conventional ICE vehicles. Thus, power electronics technology plays an important role in the electrical propulsion system in order to efficiently drive the electric motor of the vehicle and control the power converters and the associated electronic circuits. An overview of the current status of power electronic drives for EVs and recent research trends in EV motors, power converters, and energy storage systems will be discussed. Challenges associated with designing, controlling, and operating the power electronic converters used in EVs will be also discussed showing the latest achievements in this field. Challenges and problems associated with power electronic converters will be discussed also.
DC/DC Converters used for boosting the battery voltage:
Conventional ICE vehicles mostly employ 12-volt electrical power systems. Some conventional vehicles, such as buses, employ 12/24 volt systems. The 12- and 24-volt systems are unsuitable for the propulsion of electric vehicles. High power requirements for the propulsion of electric vehicles require high system voltages for
efficient operation. Also, high power DC/DC converters are needed for EVs since the vehicular power requirements are continuously increasing due to which the present-day 12-V/14-V electrical system will be replaced by 42-V/300-V architecture. DC/DC converters are well developed for low and medium power applications, whereas the development of highly efficient and cost-effective high power DC/DC converters for vehicular applications is in continuous progress. This is partly due to the stringent EMI standards and also due to temperature-related issues [10].
AC motors in EVs and HEVs are fed by inverters which in-turn is fed by a high voltage DC/DC converter. As an example, in Toyota Prius, the low voltage bus is at 201.3 V Nickel-Metal Hydride (Ni-MH) battery output, which is converted to 500 V by a simple boost converter to feed a 50KW (1200-1540 rpm) PMSM. This arrangement is shown in Fig.15.
Fig.15 "Role of DC/DC converter in voltage boosting"

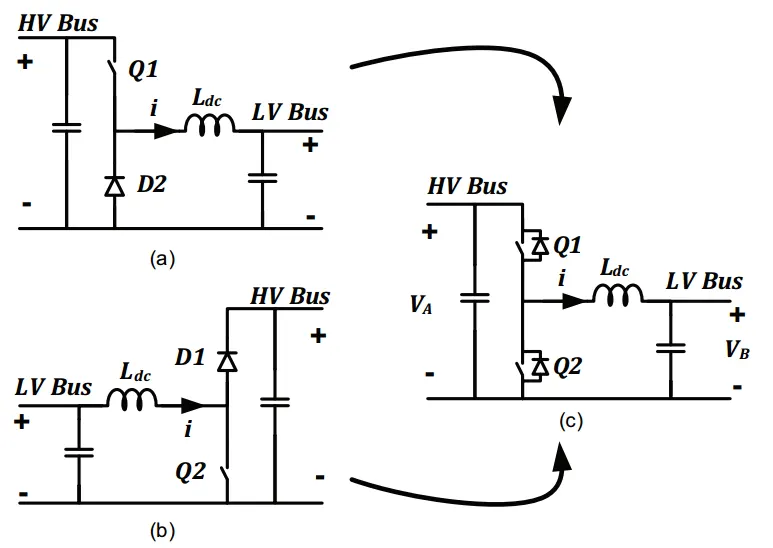

DC/DC converters in an EV may be classified into unidirectional and bidirectional converters. Unidirectional DC/DC converters cater to various onboard loads such as sensors, controls, entertainment, utility, and safety equipment. They are also used in DC motor drives electric traction. Bidirectional DC/DC converters find applications in places where battery charging, regenerative braking, and backup power are required. The power flow in a bidirectional converter is usually from a low voltage end such as a battery or a supercapacitor to a high voltage side and is referred to as boost operation. During regenerative braking, the power flows back to the low voltage bus to recharge the battery (buck mode). As a backup power system, the bidirectional DC/DC converter facilitates the safe operation of the vehicle when ICEs or electric drives fail to drive the motor. Due to the aforementioned reasons, high power bidirectional DC/DC converters have gained a lot of importance in the recent past [10].
Isolated Bidirectional Full Bridge DC/DC Converter (IBDC):
Galvanic isolation between multi-source systems is required by many standards. Personnel safety, noise reduction and correct operation of protection systems are the main reasons behind galvanic isolation.

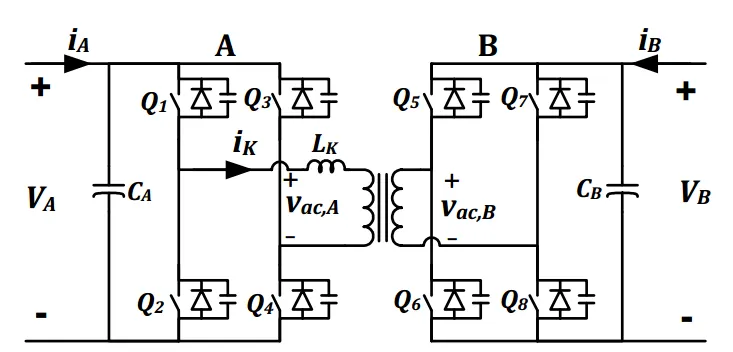

Fig. 18 shows a common IBDC topology which is sometimes called dual active (full) bridge (DAB). In this configuration, full-bridge voltage-fed converters are used at both sides of the isolation transformer and the control is performed based on soft-switched phase-shift strategy. In its basic form, the diagonal switching pairs in each converter are turned on simultaneously with 50% duty cycle (ignoring the small dead time) and with 1800 phase shift between two legs to provide a nearly square wave AC voltage across transformer terminals. The phase shift between two AC voltages, denoted by φ, is an important parameter which determines the direction and amount of power transfer between DC buses. By adjusting this phase shift, a fixed frequency operation with full control over the power transfer is possible.
Fig. 19 shows the ideal waveforms of A-to-B and B-to-A power transfer modes. To transfer power from Side A to Side B (A-to-B mode), vac,A should lead vac,B and φ is considered as positive. In B-to-A mode, vac,A should lag vac,B and φ is negative. This leading or lagging phase shift is simply implemented by proper timing control of converter switches [11].

2. An Electric Vehicle's powertrain with 72V battery pack in shown in the diagram below. The duty ratio for acceleration operation is 'd1' and for the braking operation the duty ratio is 'd2'.

The other parameters of the electric vehicle is given below,

Motor and Controller Parameters:

Rated Armature voltage= 72 V

Rated armature current= 400 A

Ra= 0.5Ω, KΦ= 0.7 Volt second

Chopper Switching frequency= 400 Hz

The vehicle speed-torque characteristics are given by the below equation

What is EV steady-state speed if the duty cycle is 70%?

Answer:- To caliculate the EV steady state speed for given parameters:

Rated Armature voltage= 72 V

Rated armature current= 400 A

Ra= 0.5Ω, KΦ= 0.7 Volt second

Chopper Switching frequency= 400 Hz

we have standard torque formula

T= V. Kφ/Ra – ώ. (Kφ)2/Ra

so in order to get the true V Value, we need to calculate that with the duty cycle as given.

There fore V= 72*70/100 V= 50.5

so by putting all these given and calculated value in the fundamental torque equation we get so

T= 50.4 (0.7/0.5) -w (0.7)2/0.5

T= 70.56 -0.98w

TTR = 24.7+0.0051w2

so now equating both the right hand sides, we get

70.56-0.98W =24.7+0.0051W2

further solveing we get tow values for w, so we must take W as positive which as iit is more practical to have a positive speed.

There fore , the required speed value = 38.85rad/sec

3. Refer to the blog on below topic:

Induction Versus DC brushless motors by Wally Rippel, Tesla

Explain in brief about author’s perspective.

Wally Rippel is a long-time proponent of electric vehicles. Prior to joining Tesla Motors, he was an engineer at AeroVironment, where he helped develop the EV1 for General Motors and was featured in the documentary movie, Who Killed the Electric Car? Wally has also worked for the Jet Propulsion Laboratory on electric vehicle battery research, among other projects. In 1968, as a Caltech undergraduate student, he built an electric car (a converted 1958 Volkswagen microbus) and won the Great Transcontinental Electric Car Race against MIT.

One Size Does Not Fit All
In that odious world of gas powered vehicles, engines are not all alike. There are flat-heads, Hemis, straight, opposed, and V configurations. And on and on. One would have thought that, years ago, someone would have figured out which was best. That would have ended all the choices and thereafter only the one best engine type would be in production. Not so. There is no one best engine type, rather there are different types of engines to suit personal requirements, such as price and performance. This is also true for electric vehicle drives.

Back when I had hair on my head and carried a slide rule, there were lead acid batteries, DC brush motors, and contactor controllers. Today, none of these remain (including my hair). Lead has been replaced by lithium and DC by either DC brushless or induction. Contactors, meanwhile, have given way to modulating inverters. So, will each of these elements also become obsolete in the near future or is it possible that some “stability” may be at hand? Without a good crystal ball, it is hard to predict the future. My guess, however, is that we will see both induction and brushless machines “duke it out” for many years to come. Each will have its loyal proponents and religious detractors.

A Closer Look
So what are these two technologies? How do they work? What differentiates them? And what do they have in common? Let’s start with DC brushless drives.

With brushless machines, the rotor includes two or more permanent magnets that generate a DC magnetic field (as seen from the vantage point of the rotor). In turn, this magnetic field enters the stator core (a core made up of thin, stacked laminations) and interacts with currents flowing within the windings to produce a torque interaction between the rotor and stator. As the rotor rotates, it is necessary that the magnitude and polarity of the stator currents be continuously varied – and in just the right way - such that the torque remains constant and the conversion of electrical to mechanical energy is optimally efficient. The device that provides this current control is called an inverter. Without it, brushless motors are useless motors.

Let’s move on to induction motor drives. A forerunner of the 3-phase induction motor was invented by Nikola Tesla sometime before 1889. Curiously, the stators for the 3-phase induction motor and the DC brushless motor are virtually identical. Both have three sets of “distributed windings” that are inserted within the stator core. The essential difference between the two machines is with the rotor.

Unlike the DC brushless rotor, the induction rotor has no magnets – just stacked steel laminations with buried peripheral conductors that form a “shorted structure.” Currents flowing in the stator windings produce a rotating magnetic field that enters the rotor. In turn, the frequency of this magnetic field as “seen” by the rotor is equal to the difference between the applied electrical frequency and the rotational “frequency” of the rotor itself. Accordingly, an induced voltage exists across the shorted structure that is proportionate to this speed difference between the rotor and electrical frequency. In response to this voltage, currents are produced within the rotor conductors that are approximately proportionate to the voltage, hence the speed difference. Finally, these currents interact with the original magnetic field to produce forces – a component of which is the desired rotor torque.

When a 3-phase induction motor is connected to utility type 3-phase power, torque is produced at the outset; the motor has the ability to start under load. No inverter is needed. (Were an inverter needed, Tesla’s invention would have been useless until sometime in the 1960s.) The fact that induction motors are directly compatible with conventional utility power is the main reason for their success. In contrast, a brushless DC motor produces no starting torque when directly connected to fixed frequency utility power. They really need the aid of an inverter whose “phase” is maintained in step with the angular position of the rotor.

While 3-phase induction motors have great utility, they also have some severe limitations. They cannot operate from DC; AC is a must. Shaft speed is proportionate to line frequency. Hence, when used with utility power, they are constant speed machines. Finally, when operated from utility power, they have limited starting torque and somewhat limited running peak torque capabilities, when compared to DC type machines.

Add an inverter (without any feedback control) and it becomes possible to power an induction machine from a battery or other DC source; variable speed also becomes possible simply by adjusting the inverter frequency. Still, torque performance is low compared with DC machines. Add some feedback loops such that the inverter produces the exact frequency that the motor “desires,” and the induction motor is now capable of competing with DC and DC brushless for vehicle applications.

Brushless or Induction?
Back in the 1990s all of the electric vehicles except one were powered by DC brushless drives. Today, all the hybrids are powered by DC brushless drives, with no exceptions. The only notable uses of induction drives have been the General Motors EV-1; the AC Propulsion vehicles, including the tzero; and the Tesla Roadster.

Both DC brushless and induction drives use motors having similar stators. Both drives use 3-phase modulating inverters. The only differences are the rotors and the inverter controls. And with digital controllers, the only control differences are with control code. (DC brushless drives require an absolute position sensor, while induction drives require only a speed sensor; these differences are relatively small.)

One of the main differences is that much less rotor heat is generated with the DC brushless drive. Rotor cooling is easier and peak point efficiency is generally higher for this drive. The DC brushless drive can also operate at unity power factor, whereas the best power factor for the induction drive is about 85 percent. This means that the peak point energy efficiency for a DC brushless drive will typically be a few percentage points higher than for an induction drive.

In an ideal brushless drive, the strength of the magnetic field produced by the permanent magnets would be adjustable. When maximum torque is required, especially at low speeds, the magnetic field strength (B) should be maximum – so that inverter and motor currents are maintained at their lowest possible values. This minimizes the I² R (current² resistance) losses and thereby optimizes efficiency. Likewise, when torque levels are low, the B field should be reduced such that eddy and hysteresis losses due to B are also reduced. Ideally, B should be adjusted such that the sum of the eddy, hysteresis, and I² losses is minimized. Unfortunately, there is no easy way of changing B with permanent magnets.

In contrast, induction machines have no magnets and B fields are “adjustable,” since B is proportionate to V/f (voltage to frequency). This means that at light loads the inverter can reduce voltage such that magnetic losses are reduced and efficiency is maximized. Thus, the induction machine when operated with a smart inverter has an advantage over a DC brushless machine – magnetic and conduction losses can be traded such that efficiency is optimized. This advantage becomes increasingly important as performance is increased. With DC brushless, as machine size grows, the magnetic losses increase proportionately and part load efficiency drops. With induction, as machine size grows, losses do not necessarily grow. Thus, induction drives may be the favored approach where high-performance is desired; peak efficiency will be a little less than with DC brushless, but average efficiency may actually be better.

Permanent magnets are expensive – something like $50 per kilogram. Permanent magnet (PM) rotors are also difficult to handle due to very large forces that come into play when anything ferromagnetic gets close to them. This means that induction motors will likely retain a cost advantage over PM machines. Also, due to the field weakening capabilities of induction machines, inverter ratings and costs appear to be lower, especially for high performance drives. Since spinning induction machines produce little or no voltage when de-excited, they are easier to protect.
I almost forgot: Induction machines are more difficult to control. The control laws are more complex and difficult to understand. Achieving stability over the entire torque-speed range and over temperature is more difficult with induction than with DC brushless. This means added development costs, but likely little or no recurring costs.

Still No Winner
My conclusion is that DC brushless drives will likely continue to dominate in the hybrid and coming plug-in hybrid markets, and that induction drives will likely maintain dominance for the high-performance pure electrics. The question is what will happen as hybrids become more electrically intensive and as their performance levels increase? The fact that so much of the hardware is common for both drives could mean that we will see induction and DC brushless live and work side by side during the coming golden era of hybrid and electric vehicles.
