CREATE MESH CAR HOOD

CREATE MESH CAR HOOD

OBJECTIVE:

Creating mesh for a given component in given dimension and satisfying quality criteria.

PROCEDURE:.

• Create a mid-surface for each component.
• Model cleanup is done by auto clean up and some edges manually toggled.

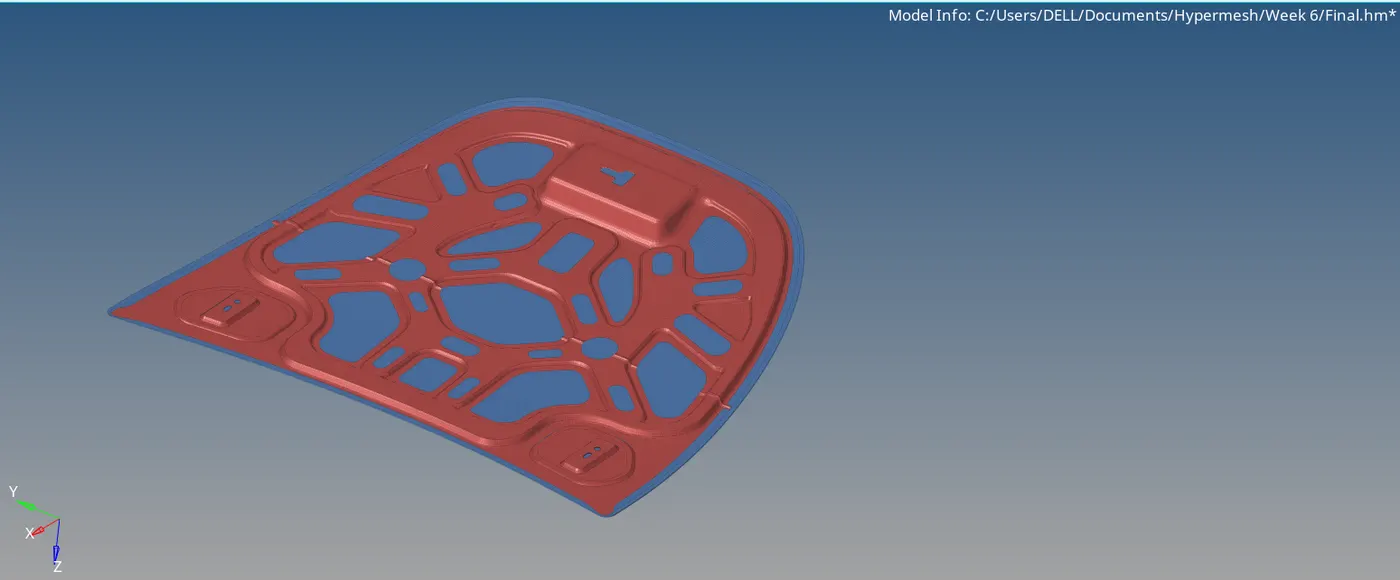

Pic 1:

• Create Auto-mesh for each surface so that mesh quality can be easily changed/modified.

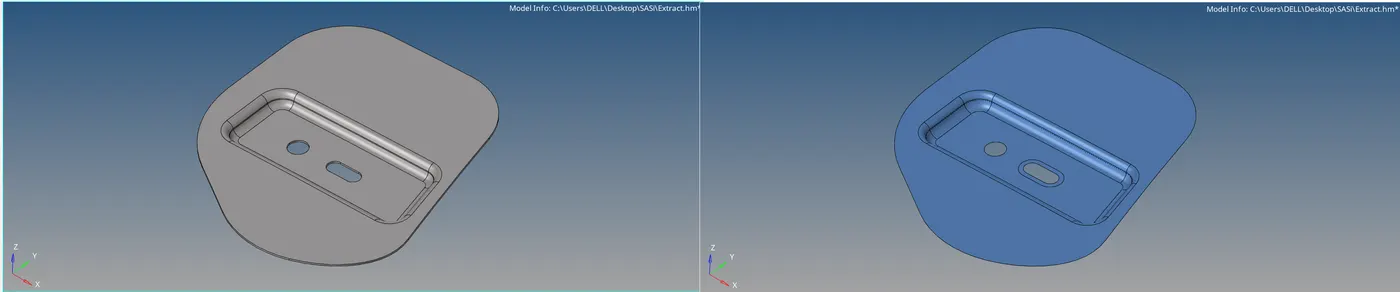

Pic 2:

• Check Quality criteria with given values.

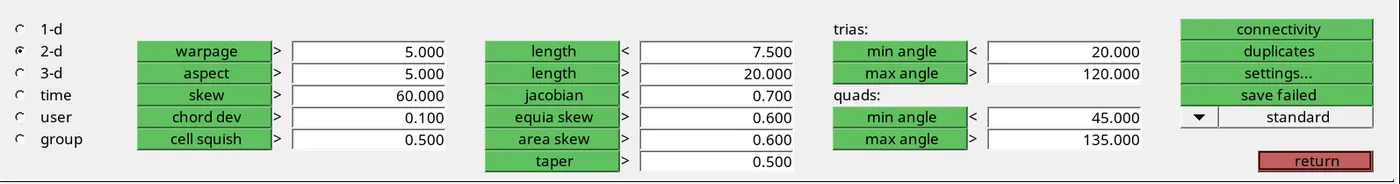

Pic 3:

• If the quality of the mesh is not under limits, then re-mesh and change parameters while its satisfied given quality. By using options as Element optimize, Place nodes, etc,.

QUALITY CRITERIA:

1. Warpage: It defines the perfect fit of a plane with respect to mesh.
2. Aspect ratio: Ratio between shortest length and longest length.
3. Skew: Angle formed by 2 lines drawn to the midpoint of the quadrilateral.
4. Length: It's maximum and minimum deviation of elements length.
5. Quad angle: deviation of Minimum and Maximum angle Quadrilateral elements.
6. Trias angle: Deviation between Minimum and Maximum angle for triangular elements.

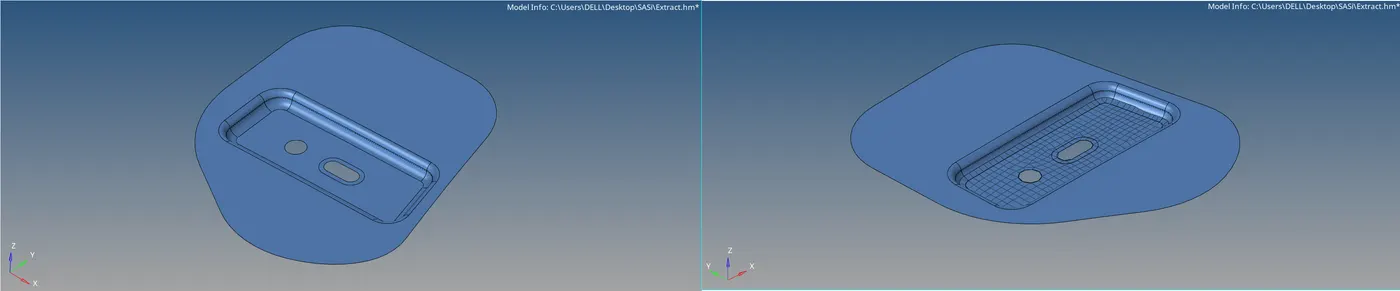

FINAL MESHED MODEL:

RESULT:

The final mesh has checked for quality on various aspects as discussed above and satisfied model saved and included with this document.
