Week 6-3D Tetra Meshing Challenge

Objective :

To create 3d mesh in the procedure of 2d to 3d converts and directs 3d elements create and check the quality criteria in 3d elements

Procedure :

• First to import the model
• next i check the minimum lenght of the surface
• find the minimum surface and delete
• because the minimum lenght surface are going to failure for minimum lenght of the elements
• next i create 2D mesh for model 1 and check the 2d quality criteria minimum and maximum lenght of the elements
• next i converts the elements 2d to 3d mesh and 3d elements
• next i import the another 2 and 3 models and directly create the 3d mesh of these components
• next i chech the quality criteria
• finally i check and solve the all failure elements of the components
• finally successfully passed all quality criteria.

Results :

I completed all the task of the given components and submit the models

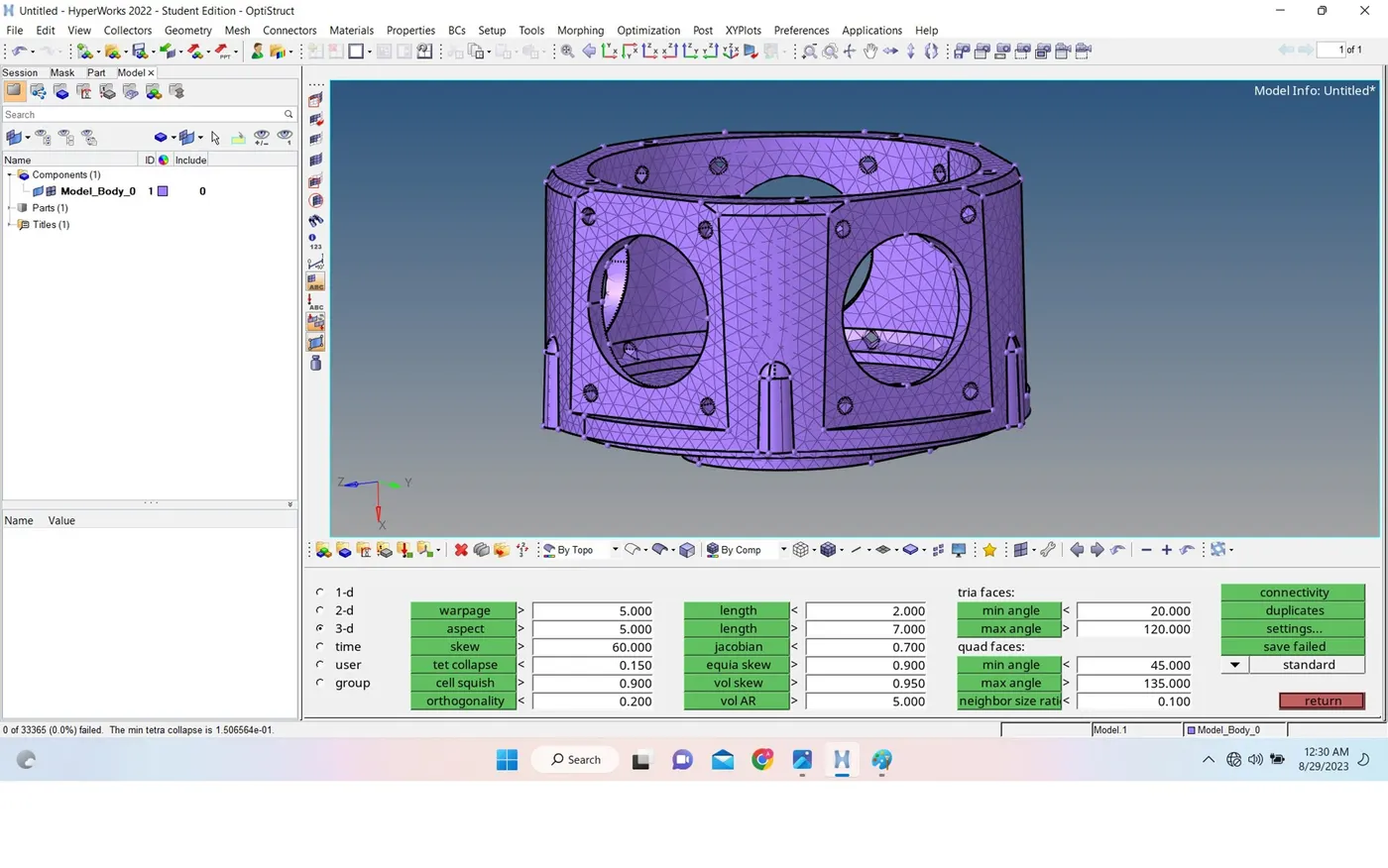

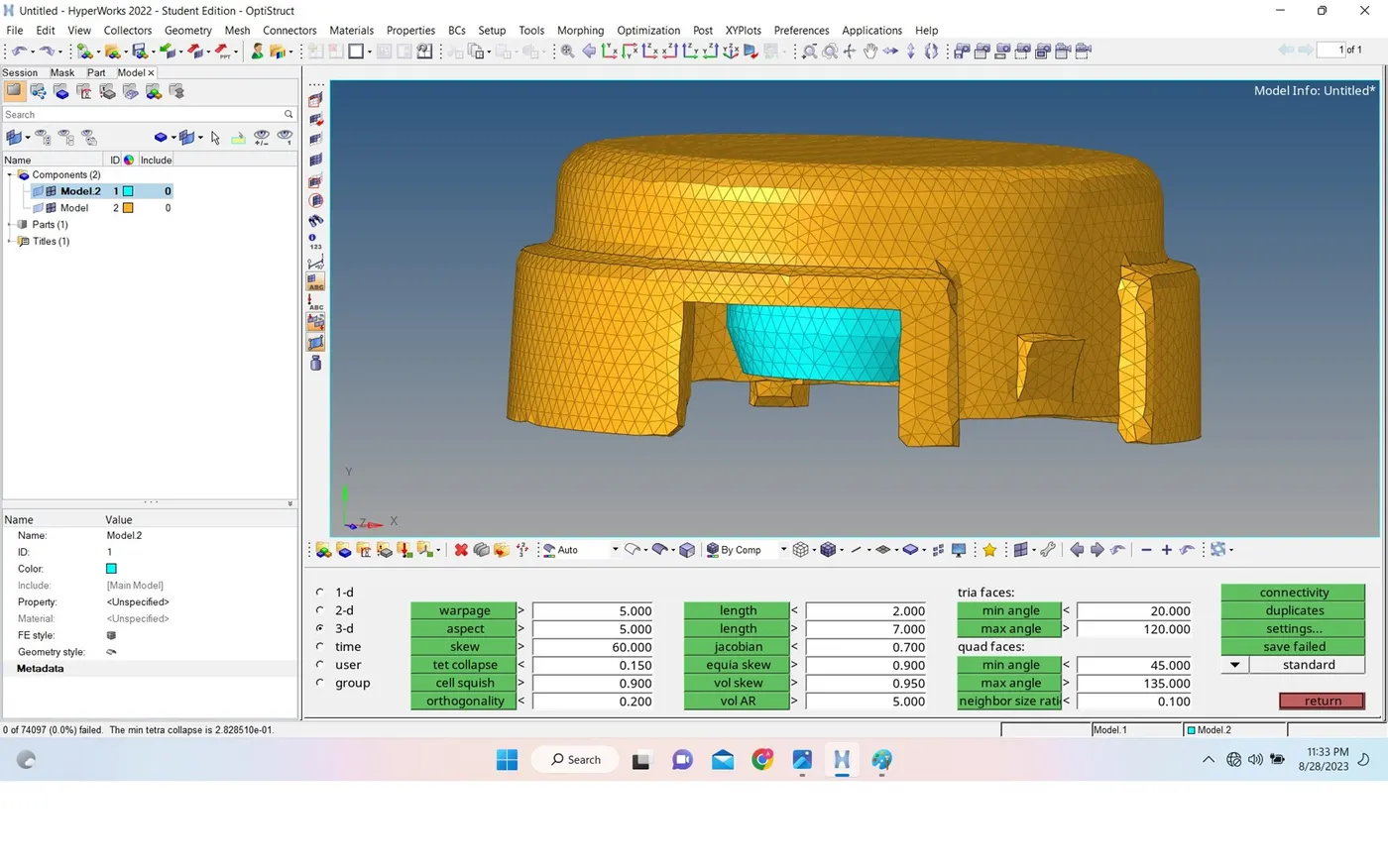

Final model images :
