Week 4-1D Element Creation Challenge

OBJECTIVE :

To find the geometry and mesh ,cross section in given model

PROCEDURE :

STEP 1

Open the given model

STEP 2

Create the mid surface

STEP 3

Using to mess the given model

STEP 4

Next create the material type and properties

STEP 5

Update properties and material in given model

STEP 6

Next create the rbe2 & rbe3 joints and links

STEP 7

Next create the rod,beam and bar

STEP 8

Next step using hyperbeam to create the cross section for the given properties

STEP 9

Next update the cross section in the rbe2 & rbe3 elements

STEP 10

Create the spring on the given model

STEP 11

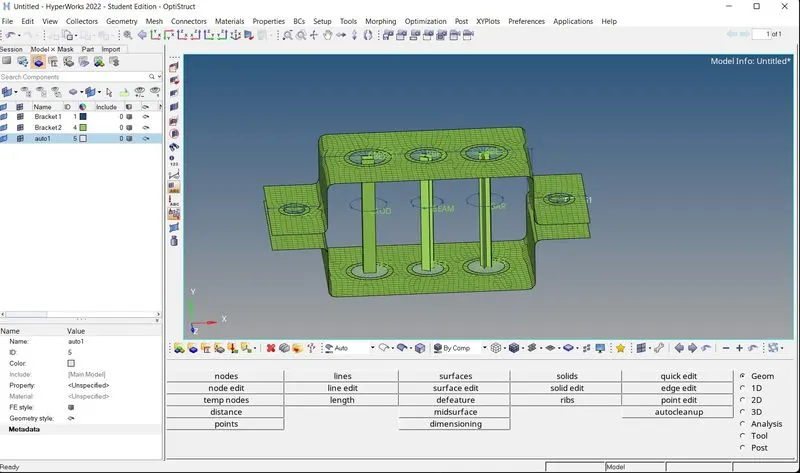

Finally i save the model and upload the given model

RESULT :

TO finish the given model
