Week 6.1 - Setting up a model (Electronic enclosure)

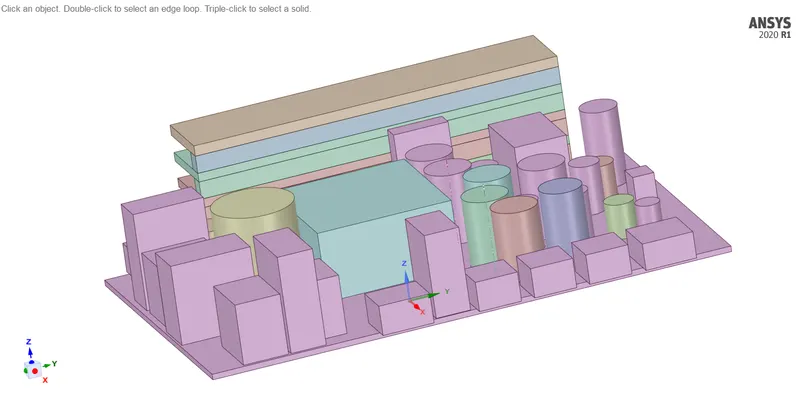

The complete geometrical conversion.

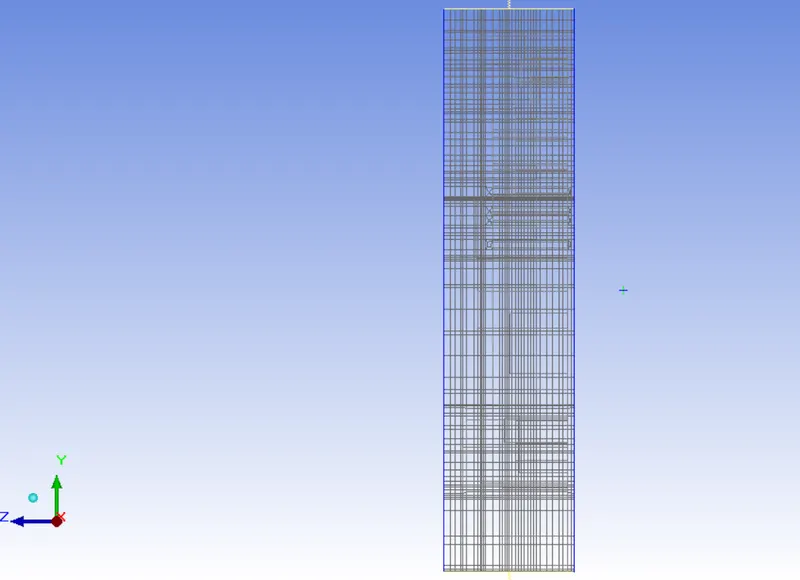

Meshing setup:

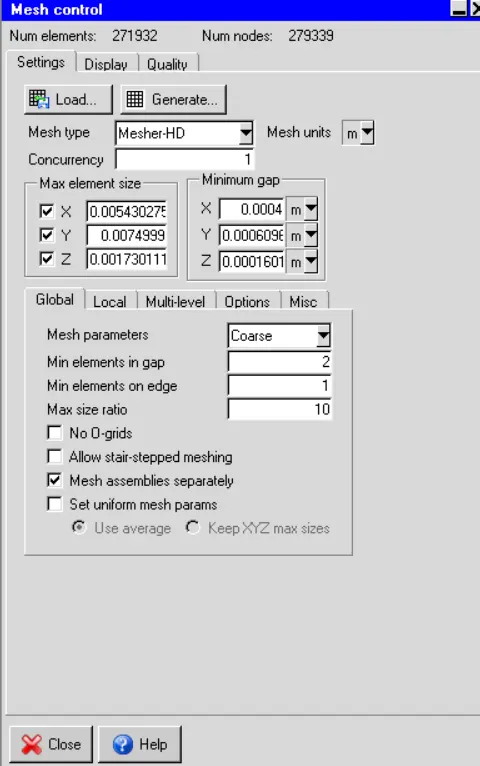

Global mesh settings

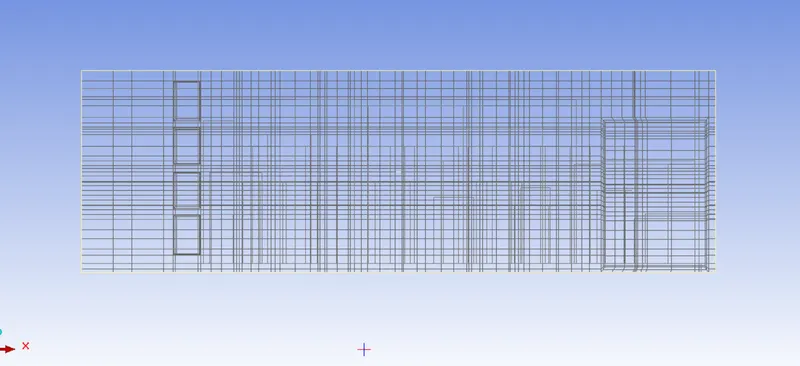

Mesh x:

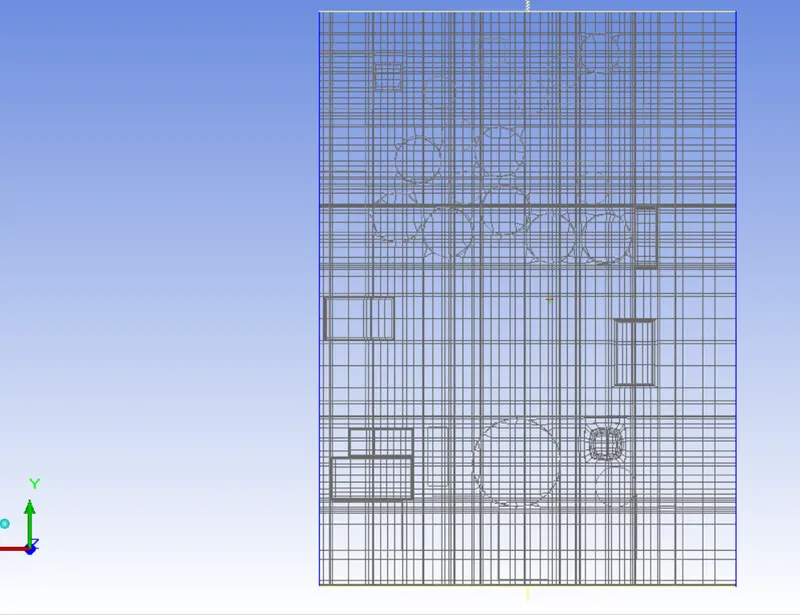

Mesh Y;

Mesh z:

Physics setup:

Solver: 3D navier stokes solver is used to study the computational domain.

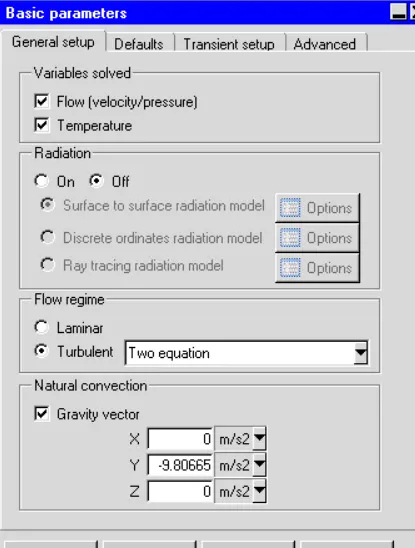

General set up:

Boundary conditions

Variables solved: flow and thermal

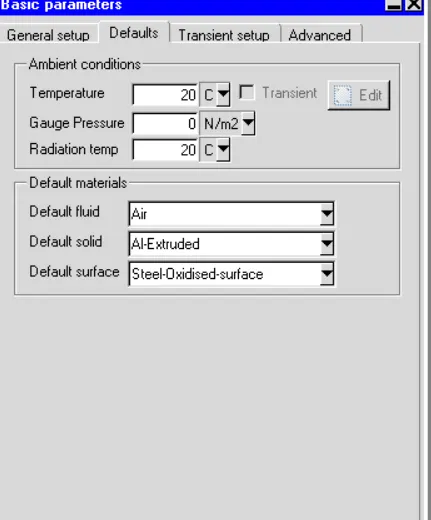

flow conditions

Radiation: off

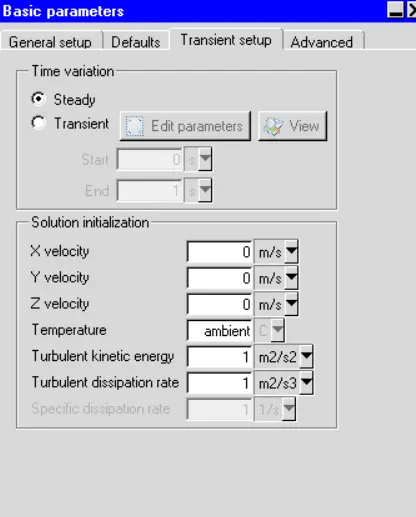

Transient setup: steady

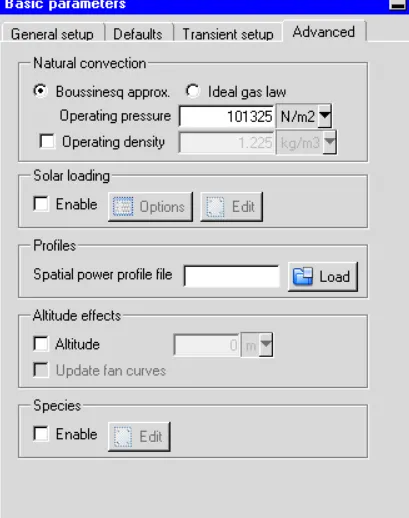

Natural convection bc

No of iterations: 1000

Parallel setup: 2 processors

Post processing plots

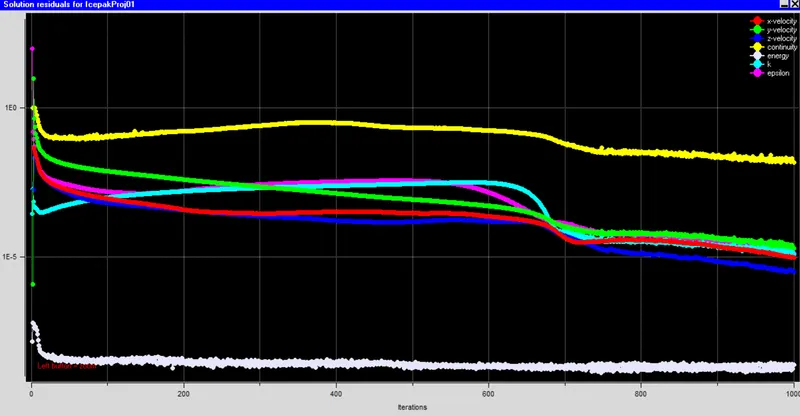

residue

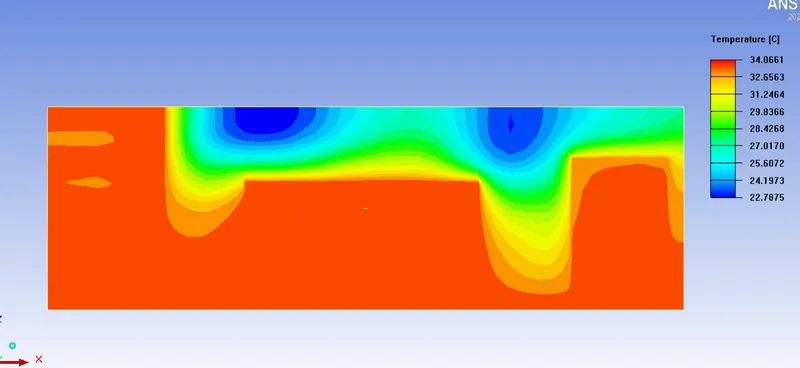

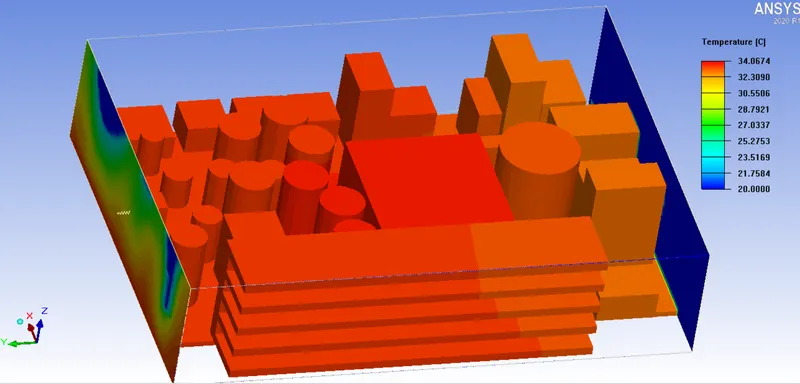

Temperature contour

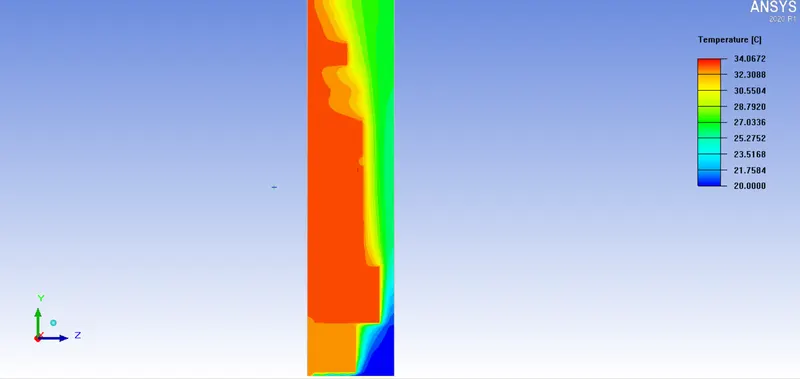

Temperature in X axis

Temperature in Y axis

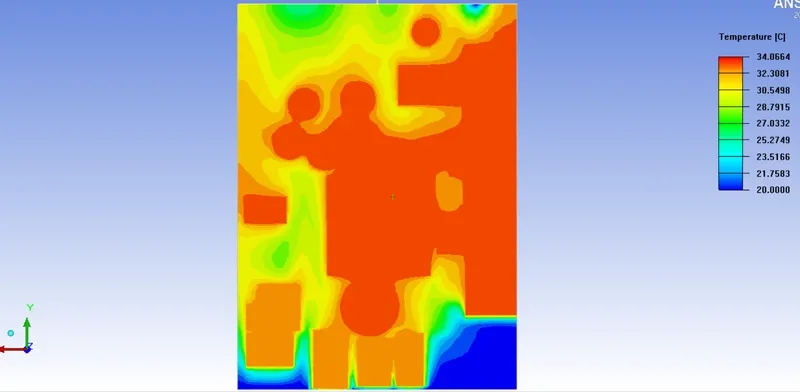

Temperature in Z axis

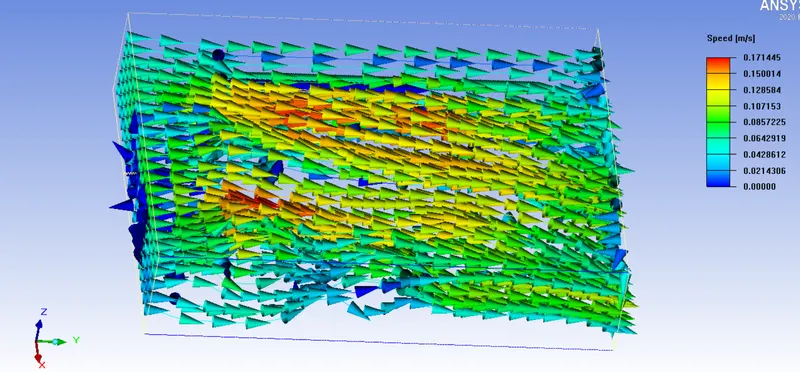

Velocity vector plot

Conclusion

The temperature contour has justified the natural convection based cooling. The velocity vector predicts the direction in which the heat is being carried out across the entire system.
