Week 5 Sphere pressing on a plate

Objective: To see the stresses forming on the plate and sphere, when sphere is inherted by 4mm

Case Setup: 4mm sphere is pressing and retracting from plate. cosidering it into 4 steps i.e. -2,-3,-4,0.

Results:

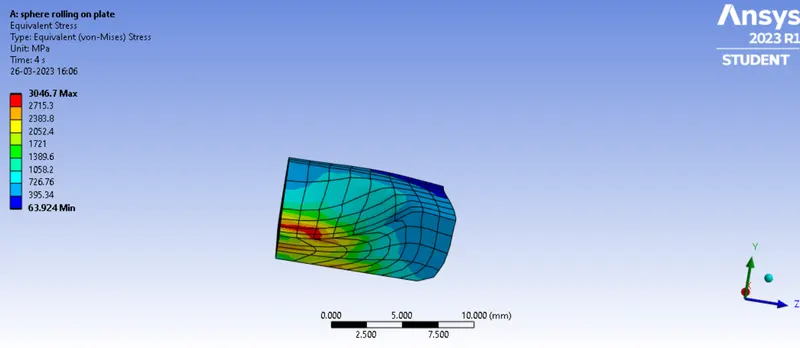

1. Plasric deformation on plate: When sphere is pressing on the SS NL material plate upto 4mm. Plate material is deformaing by the stresses forming on the surafe of plate by 3046.7 MPa
