Week 5 Sphere pressing on a plate

Sphere pressing on a plate

AIM

To carry out a static structural analysis on Wire bending challenge with given material.

PROCEDURE

To find the results of Equivalent stress, Total deformation, Equivalent elastic strain.

For this challenge, perform the analysis to simulate a sphere pressing on a plate.

Use Structural steel for both sphere and plate but the material of the plate must be Non Linear.

Press the sphere onto plate 4mm downwards and retract it. The plastic deformation must be captured by you. Attach appropriate images and make a detailed report.

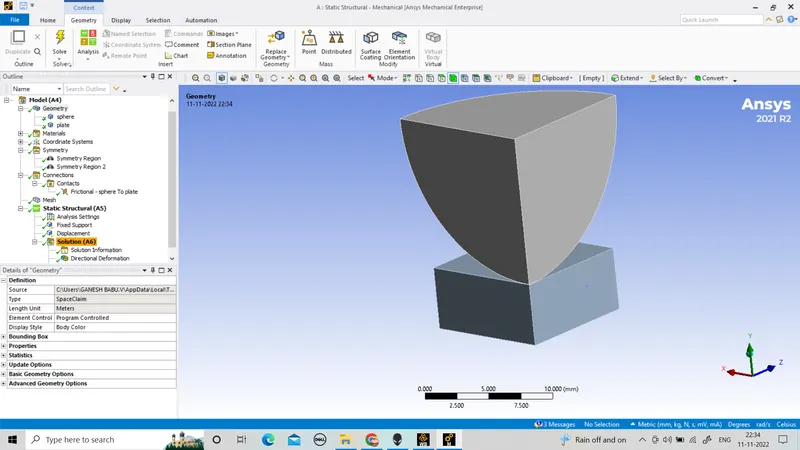

Import the geometry.

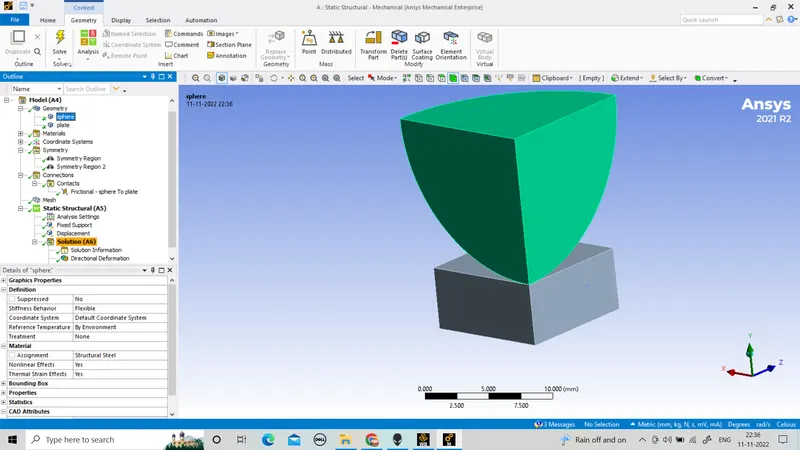

select the material.

strainless steel.

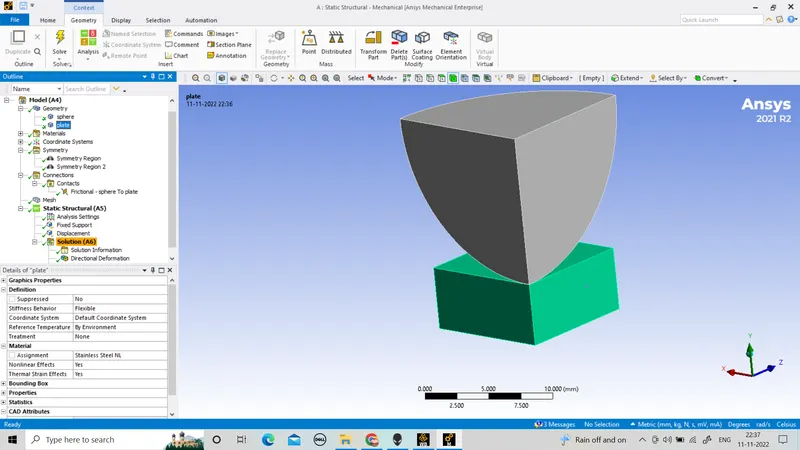

strainless steel non-linear.

And open the model panel.

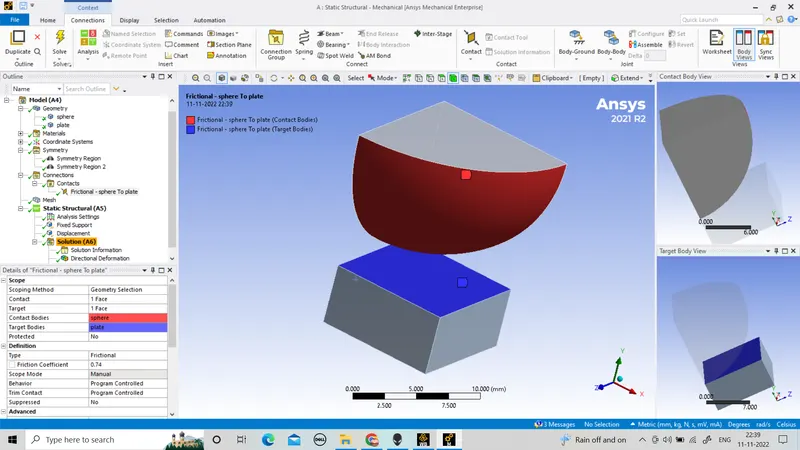

In connection panel connect the sphere and plate.

contact size = frictional.

frictional co-efficient = 0.74.

formulation = augmented tagrange.

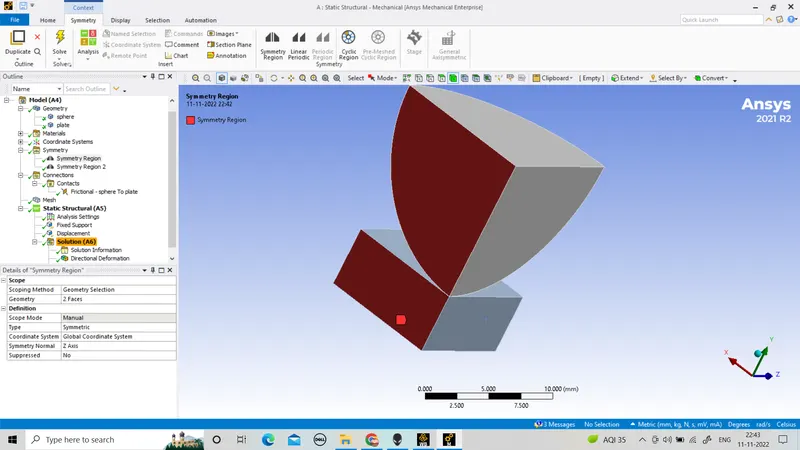

create the symmentry option.

symmentry region to z axis

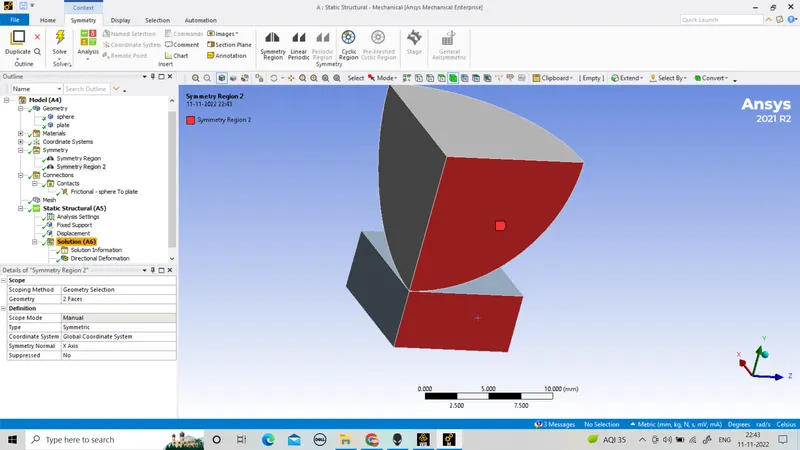

symmentry region to x-axis

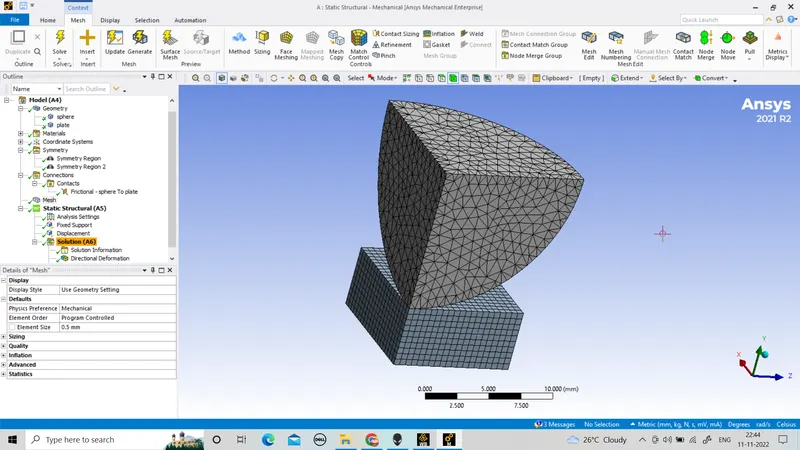

mesh the component.

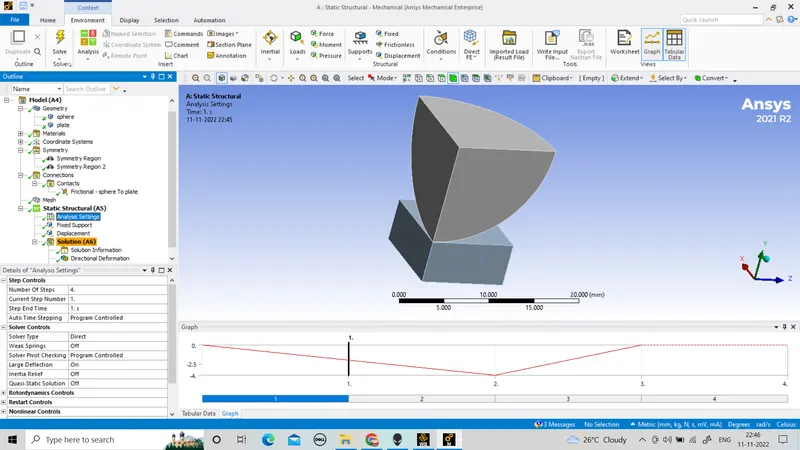

Analysis setting

step = 4.

solver type = direct.

large deformation = ON.

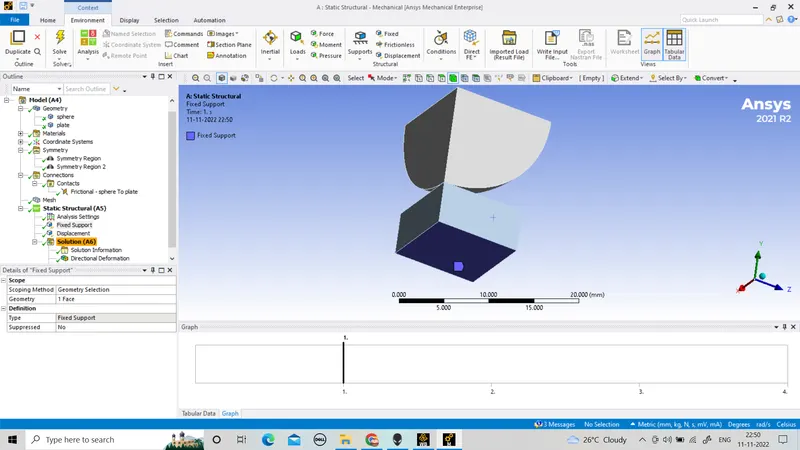

fixed support

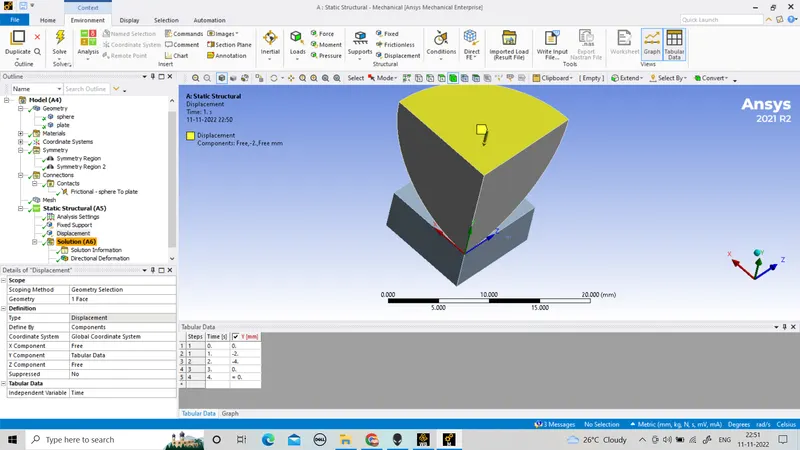

Displacement

displacement in y-direction

-2

-4

0

0

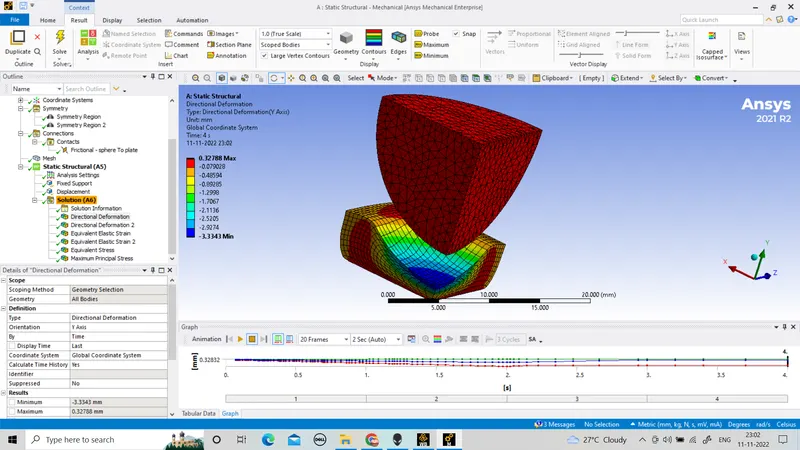

directional deformation

y-direction

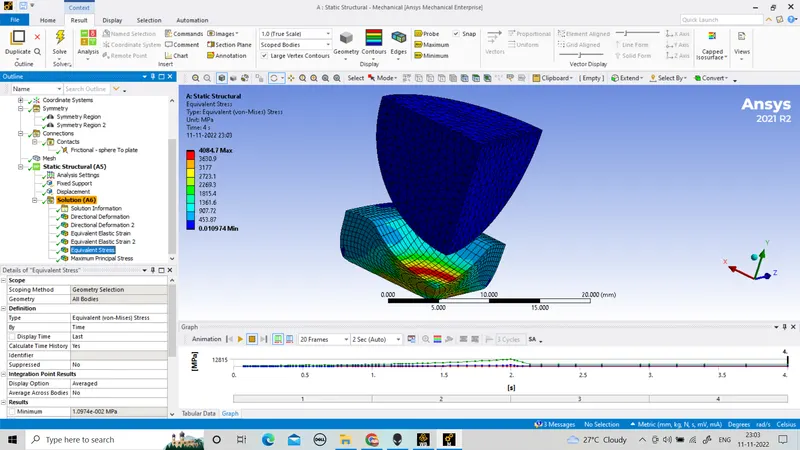

Equivalent stress.

Equivalent strain

RESULT

DIRECTIONAL DEFORMATION = 0.32788MAX

STRESS = 4084.7MAX

STRAIN = 0.021169MAX

The plastic deformation occurs.
