Week 5 Sphere pressing on a plate

Modal

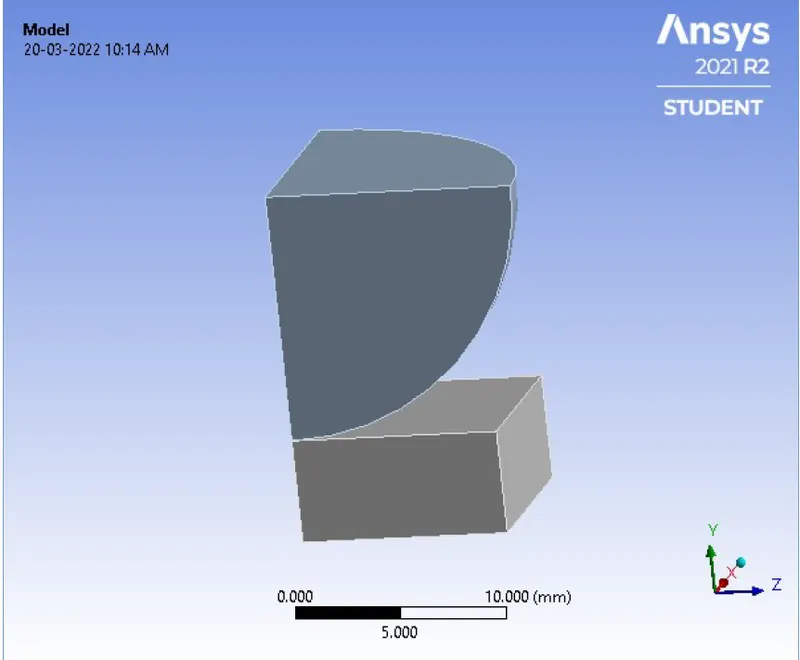

1. Sphere

2. plate

Mtarial

1. Structural Steel for Sphere

2. Structural Steel NL for plate

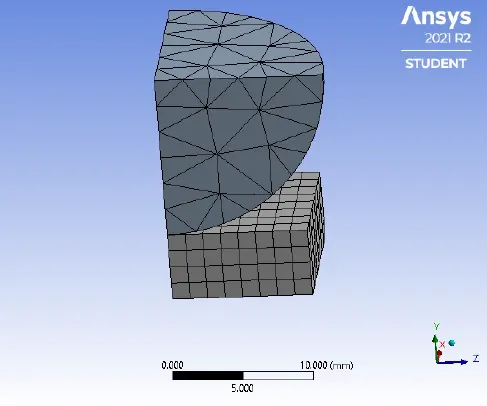

Mesh- Defalt

Nodes: 1955

Elements: 487

Resluts

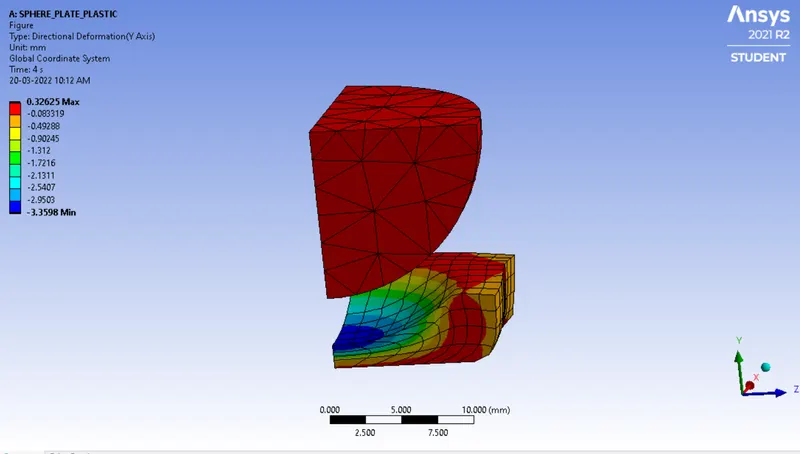

1. Directional Deformation

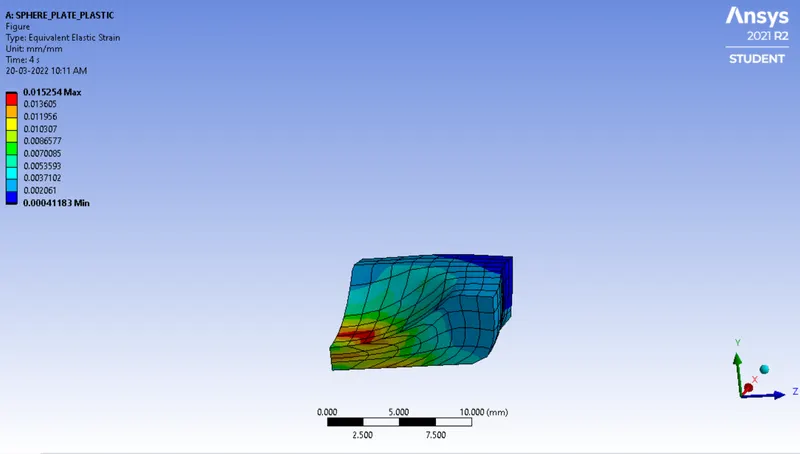

2. Equivalent Elastic Strain_plate

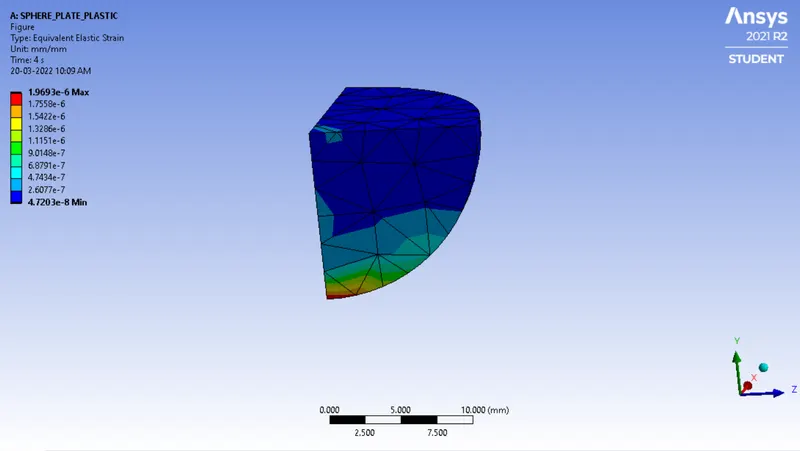

3. Equivalent Elastic Strain_Sphere

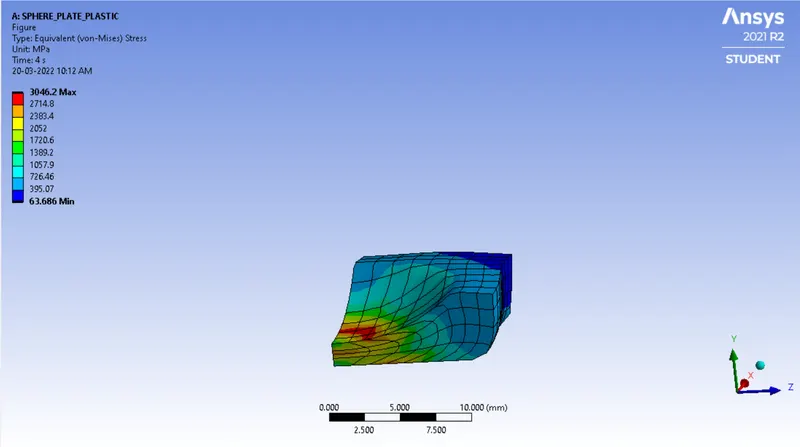

4. Equivalent Stress_plate
