Week- 5 - Solid meshing
Live Batch Student
AIM: To tetramesh or solid mesh the given rearview mirror.
Steps:
- First import the file into ANSA
- Perform TOPO.
- Perform Geometry Checks
- Assign quality parameters for shell as well as solid.
- Create shell mesh by using BEST MESH option and reconstruct if there are any errors.
- Now, in volume mesh define a volume.
- Use tetrarapid or tetrafem for the volume mesh.
- Check for tetcollapse.
- If there are kinks in the geometery use origin to map them with parent geometery.
- At last, release the solid mesh from shell mesh by using release option.
Conclusion:

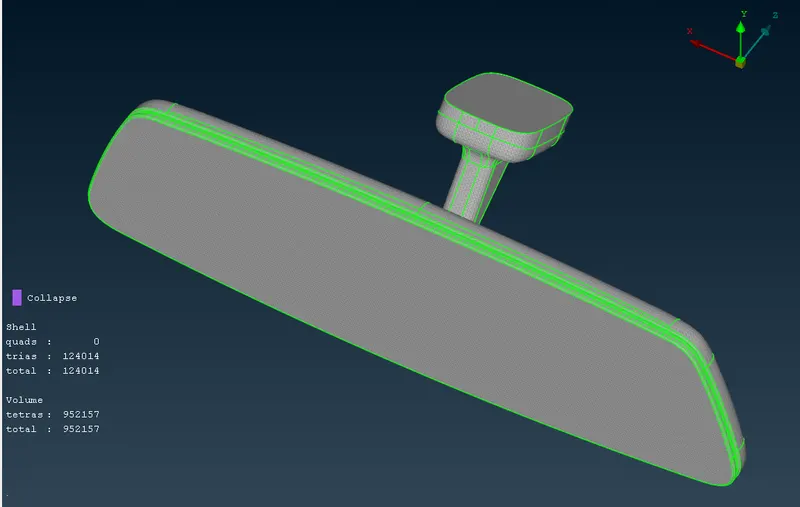

Tetrameshing was performed on the rearview mirror and the off elements for tet collapse were also found to be 0.
