Week- 5 - Solid meshing
Objective:
To mesh the given rearview mirror component in both 2L, and SD, after checking the model for geometrical errors and fixing them. Also, to ensure the generated mesh follows the given quality criteria.
QUALITY CRITERIA:
Shell Elements
| S.No | Quality Criteria | Value |
| 1 | Target / Average length | 1 |
| 2 | Minimum Length | 0.5 |
| 3 | Maximum Length | 2 |
Solid Elements
Only one requirement: Tat Collapse should be a maximum of 0.2for oll solid elements.

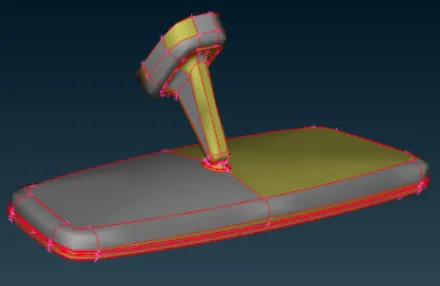

CAD MODEL IMAGE
PROCEDURE:

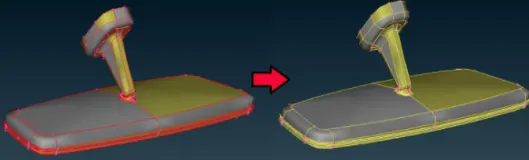

1. Firstly, we need to use the topo tool to take care of all the single cons and to ensure there are no free edges. It can be accessed via Faces >Topo in the topo module. All the cons are selected and the algorithm takes care of all the single cons.

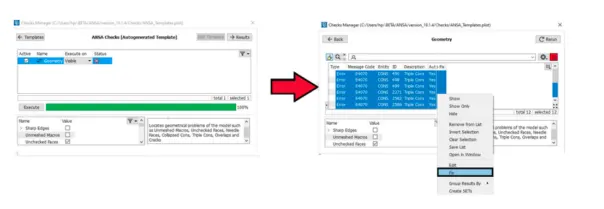

2. After that as is the norm with meshing in ANSA and before we carry out any other actions, we need to carry out a geometry check and fix all abnormalities. That is done via Cheeks → Geometry where we can execute checks of certain defects that can be selected from the menu and the algorithm looks for said defects. After detection, we can select all the defects and right-click → fix to fix them.

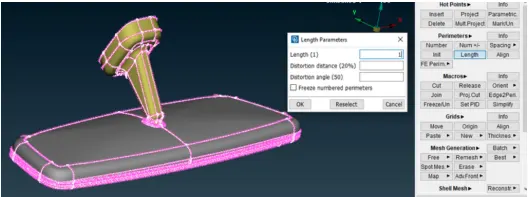

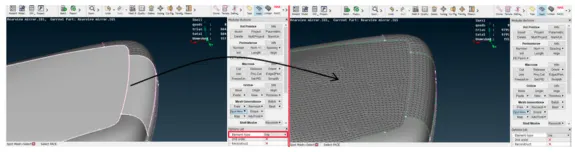

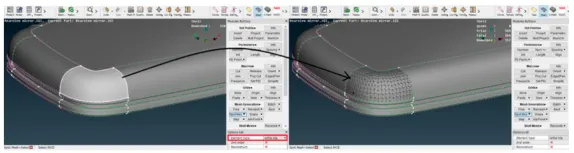

3. After orienting the model, using the Faces → Orient tool, we can go ahead and work on meshing the surface of the model. As part of this, we need to assign the mesh properties and quality parameters. We need to assign the target length. To do this, we can go to the mesh module and Perimeter → Length. This lets us adjust the target length and effectively, the resolution of the cons to be finer. As is required, the length would be 1mm.

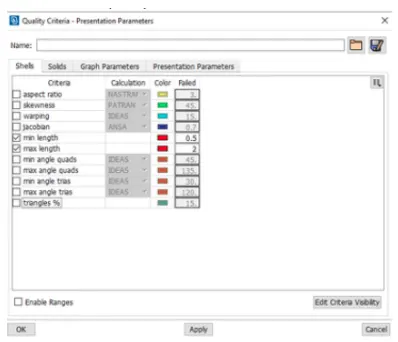

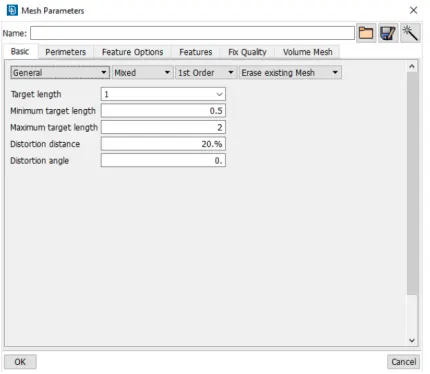

After that we can assign the parameter. This is done by accessing mesh parameters and quality criteria from the top toolbar and then we can input the given values as shown in the following screenshots.

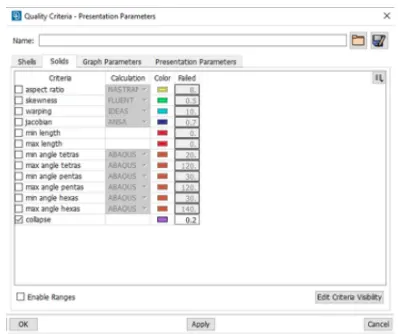

In the case quality criteria, we will need to access the solid stabas well to input the tet collapse criteria.

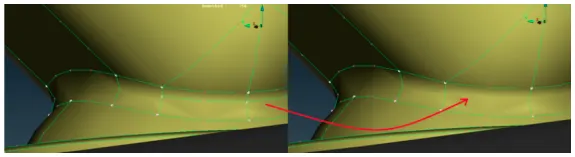

4. Since some regions might fail for minimum tool, they can be modified by taking care of the boundaries (cons). The cut tool can be used to suppress some of these cons and in other regions, we can create cuts. All this to ensure the mesh generated would be favorable and does not fail for any of the criteria. This is otherwise known as defeaturing.
5. Now we can go ahead and mesh the component. The spot mesh tool is used (Mesh Generation → Spot Mesh). For regions that are flat and not as complicated, the trio mesh can be used. The option to switch to trio is in the bottom lett options section after selecting the spot mesh tool.
In the more complex regions (such as fillets and hemmings), we can make use of the ortho tria tool, which is another mesh type available from the same set of options.

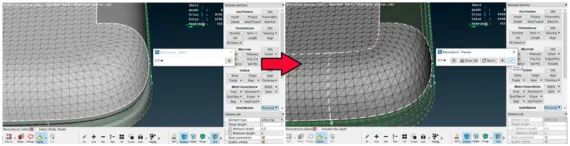

6. After each mesh iteration, we will need to reconstruct the mesh using Shell Mesh → Reconstruction. For this to be effective, the neighbouring mesh is selected as well. This ensures the reconstructed mesh is at good quality and flow. The mesh type will need to be changed for this tool as well from the set of options that appear in the same region as the spot mesh tool (when the reconstruct tool is activated).

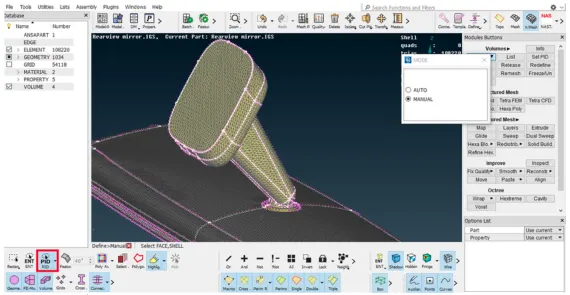

7. After meshing all regions (and ensuring there are no off elements - should be taken care of already through reconstruction), we can proceed to the next step of assigning volumes manually to each set of closed-shell elements. This is done by using Volumes → Define → Manual and then selecting the regions that comprise a particular volume. In this case, the MD selection tool from the bottom left toolbar would be useful in selecting the entire volume since the property ID has already been assigned for certain regions.
After selecting, it's just a matter of middle-clicking for the software to recognize the volume. All the volumes are identified this way.

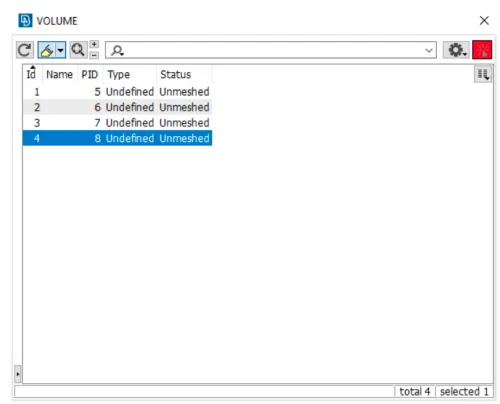

There should be 4 volumes as shown.

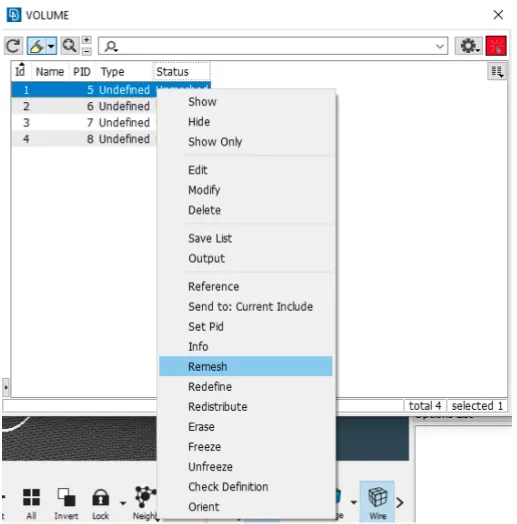

8. After that, we can rt. click each volume and remesh them using either one of the tetra rapid or tetra FFM algorithms. Doing so generates the solid mesh elements within each volume.

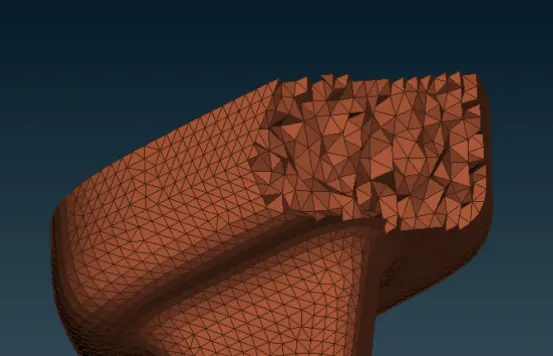

An example of the generated 3D elements.
9. Next we need to check the solid elements to see if any fail for the tet collapse criteria by switching to hidden mode. There are two ways to fix tet collapse failures. One is by using the Fix Quality tool from the volume mesh module (Improve → Fix Quality). This is an algorithm that works on failing elements. But it may result in protrusions or depressions on an otherwise flat surface.

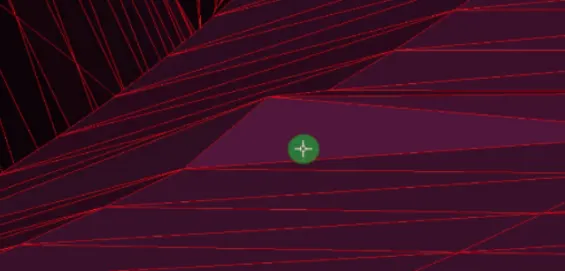

An example of a protrusion:
To avoid this, the MV free tool can be used (Grids → MV free) which is available in the mesh module. This lets us manually drag particular nodes of the failing element such that the height of the tetra element can be increased. This helps pass the tet collapse criteria. Understandably, to avoid the same problem as in the Fix Quality tool, care should be taken to not move nodes that are on the surface of the component but the ones that are below the surface.

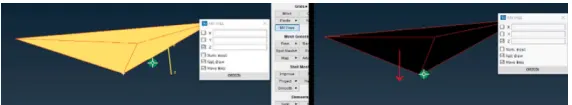

Dragging a node under the surface to to tet collapse:

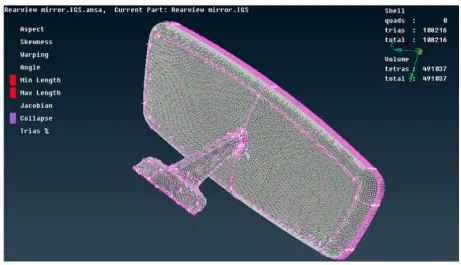

FINAL MODEL IMAGES

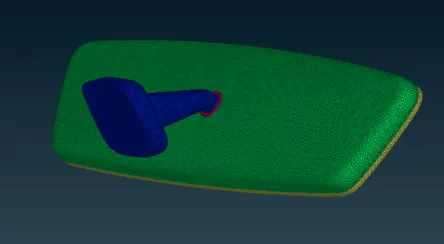

With geometry turned off:
With shadow mode activated:
No off elements
RESULT
The given component was geometrically fixed and meshed as per the given requirements and criteria and the generated Shell mesh was used to create the solid mesh. Quality and flow were achieved and care was taken to ensure there were nc deformations of any kind on the surface.
