Week - 5 - Modelling Spotwelds

AIM: To perform crash analysis of crash box, in which spotwelds are used.

1^st case, by using beam as spotweld and

2^nd case, by using hexa element as spotweld.

Then comparing their both cases results.

Procedure: Load the given model to LSPREPOST GUI

1^st case, by using beam as spotweld

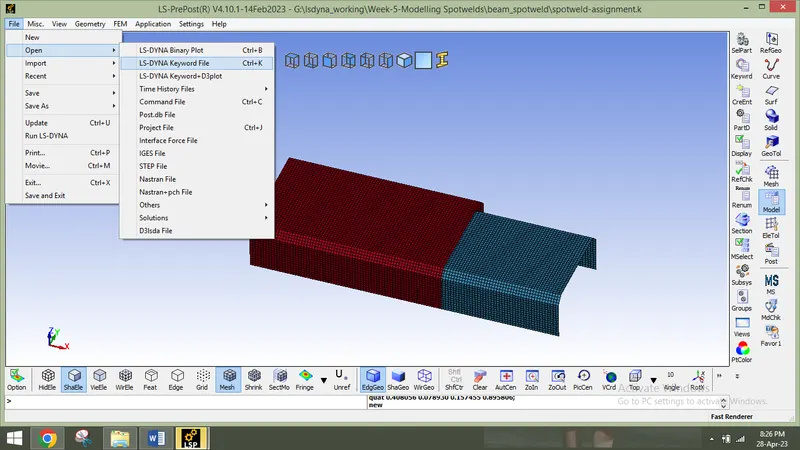

File > open > lsdyna keyword file

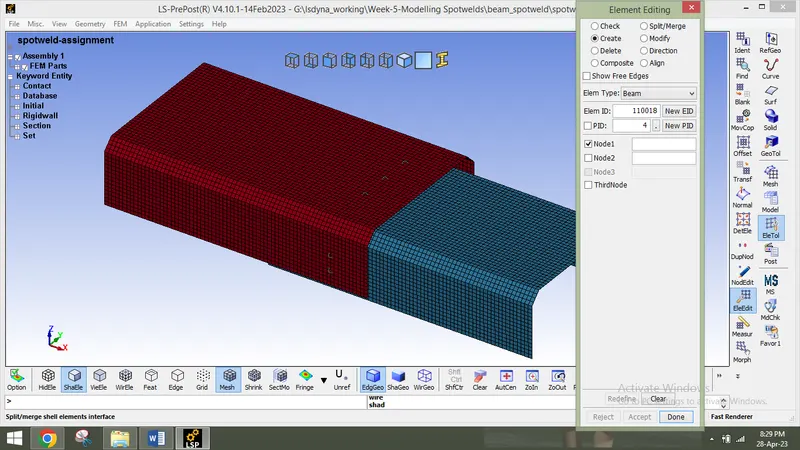

Now create spotwelds between the plates by using beam element as shown below

ELEMENT TOOLS > ELEMENT EDITING > CREATE > BEAM > BY NODE OPTION

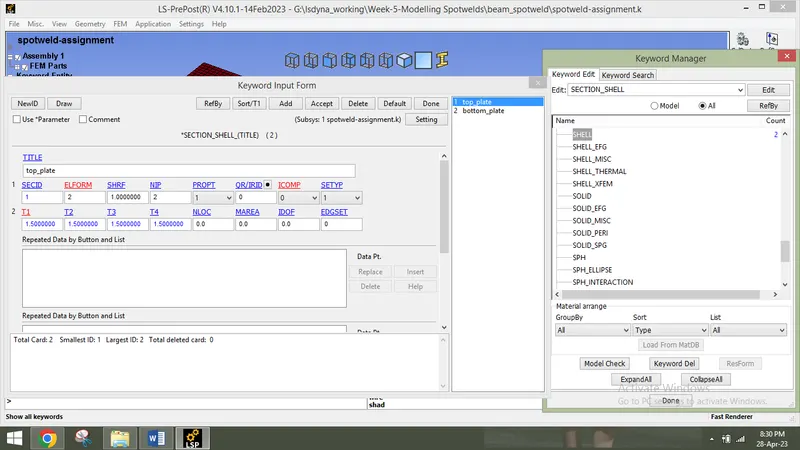

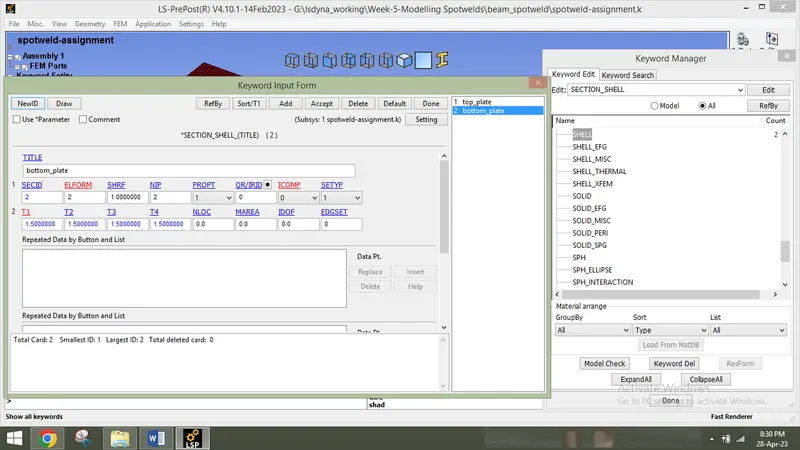

Assign sections for plates and spotwelds

KEYWORD MANAGER > SECTION> SHELL

KEYWORD MANAGER > SECTION> SHELL

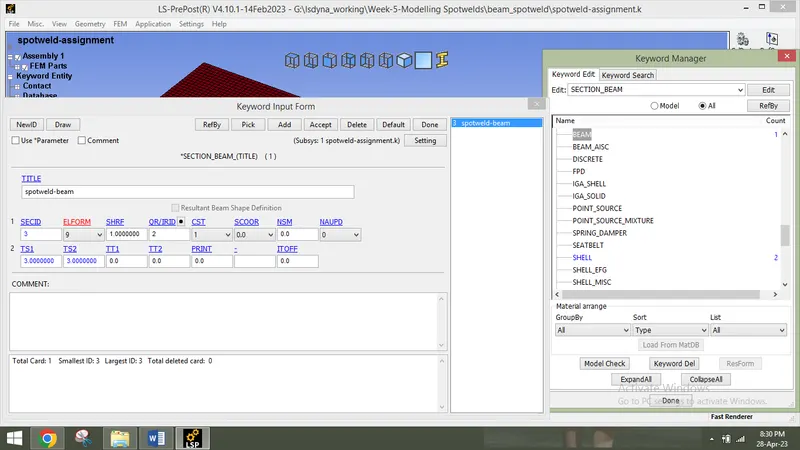

KEYWORD MANAGER > SECTION> BEAM

Now we create material for plates and spotwelds

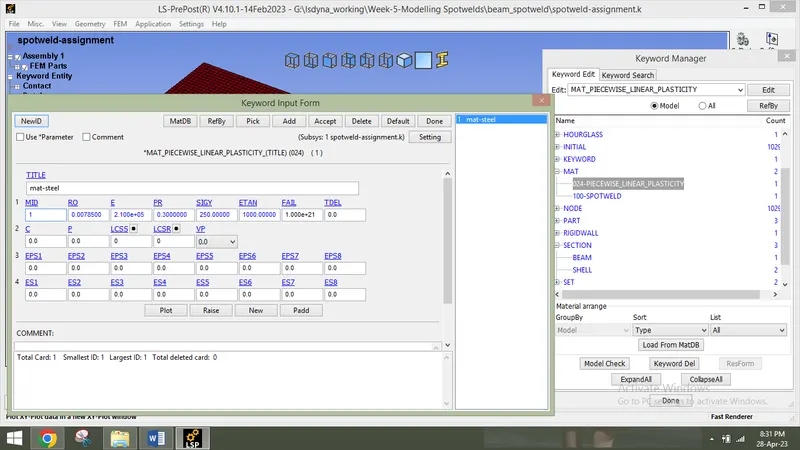

KEYWORD MANAGER > MAT > 024 PIECEWISE LINEAR PLASTICITY

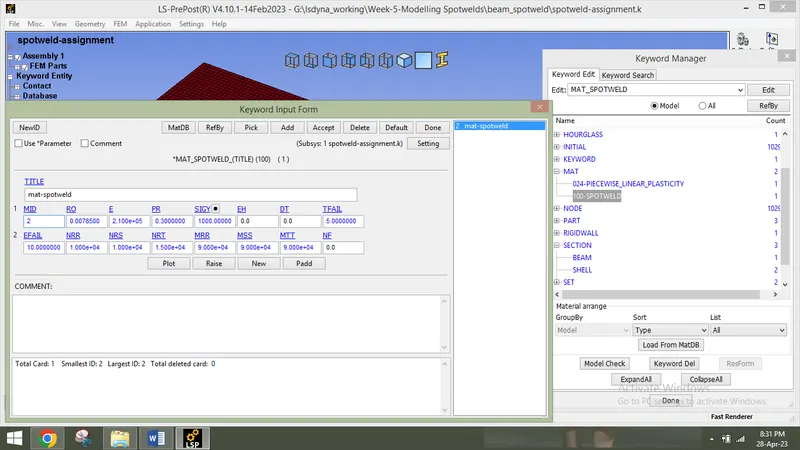

KEYWORD > MAT > 100 SPOTWELD

TFAIL =5, here we want spotweld to fail at half of the termination time.

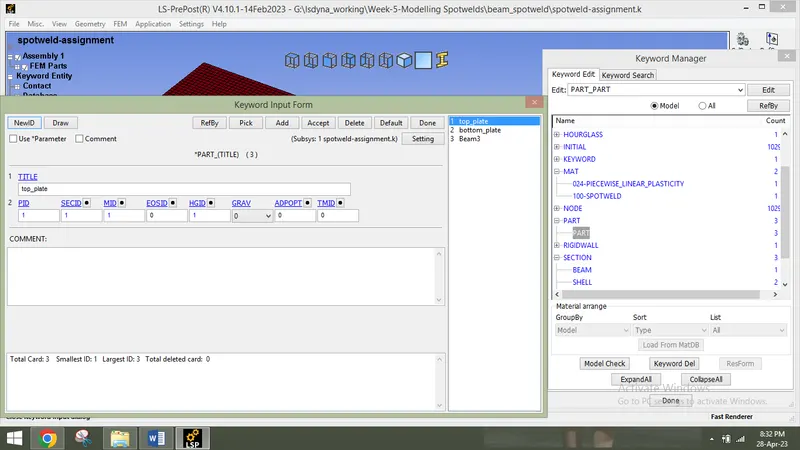

Assign mat and sec to parts

KEYWORD MANAGER > PARTS

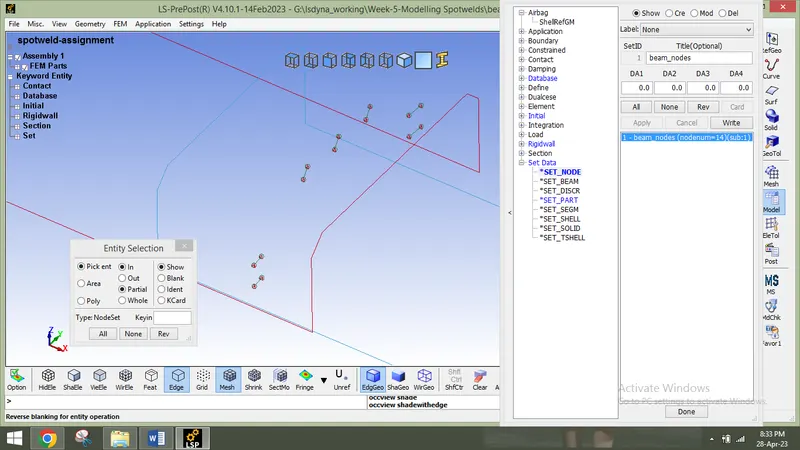

Select the nodes of beam and make nodes set

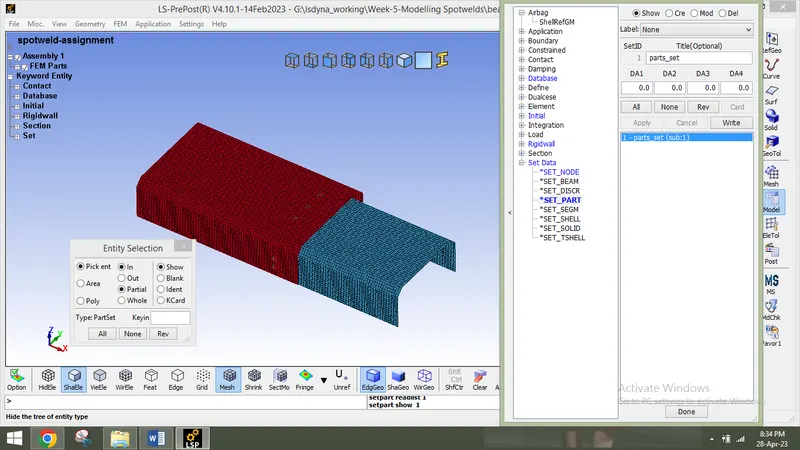

Select the parts and make part set these set are used in creating contacts

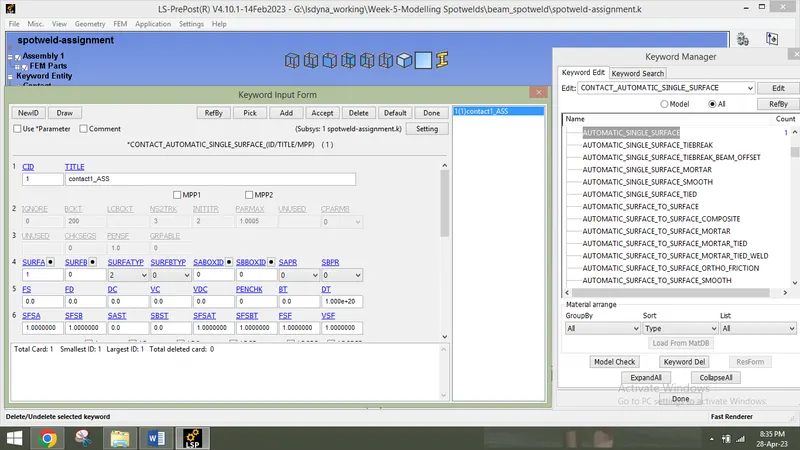

KEYWORD MANAGER > CONTACT > AUTOMATIC SINGLE SURFACE

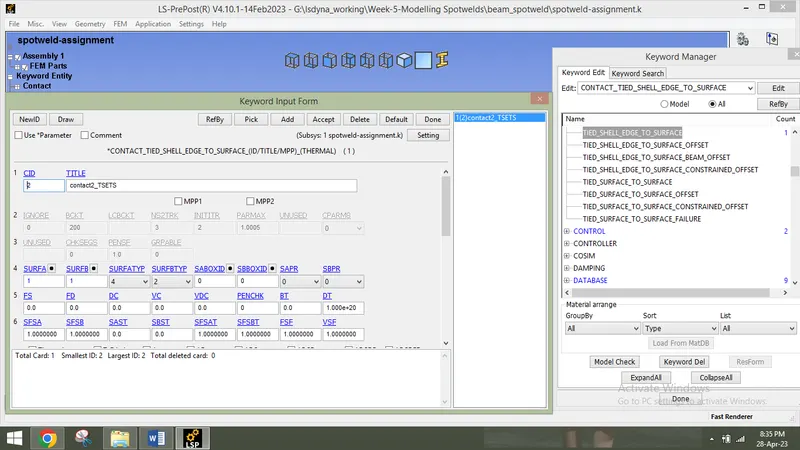

KEYWORD MANAGER > CONTACT > TIED SHELL EDGE TO SURFACE

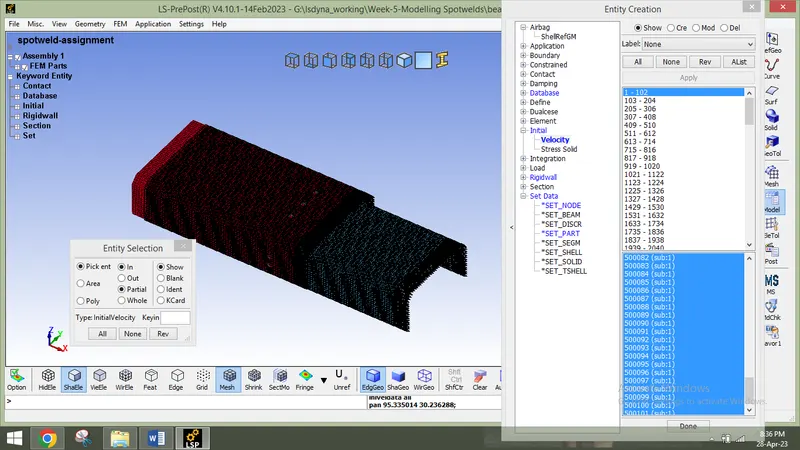

Apply boundary condition, assign velocity of 13.89 mm/ms for crash box

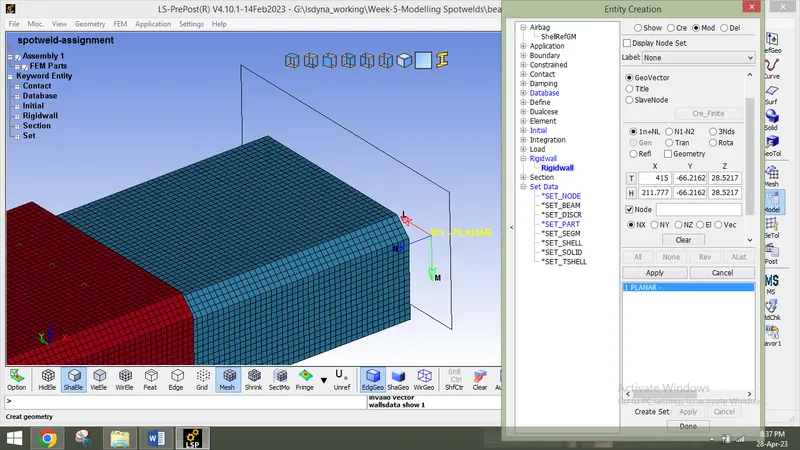

Create rigidwall as shown below

CREATE ENTITY > RIGIDWALL > RIGIDWALL

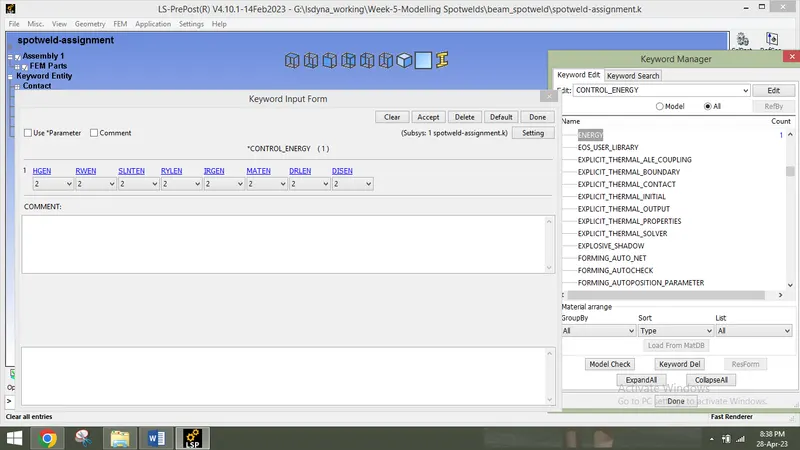

Define control energy

Setup termination time = 10ms

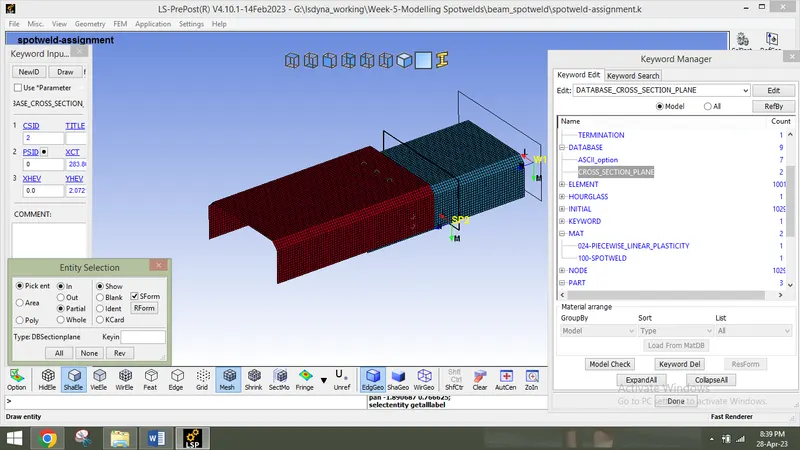

Create two cross-sectional planes for crash box as shown below.

CREATE ENTITY > DATABASE > CROSS SECTION

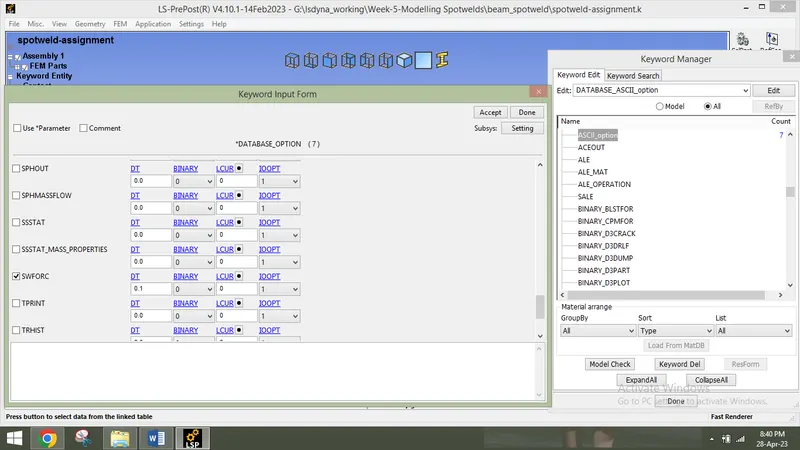

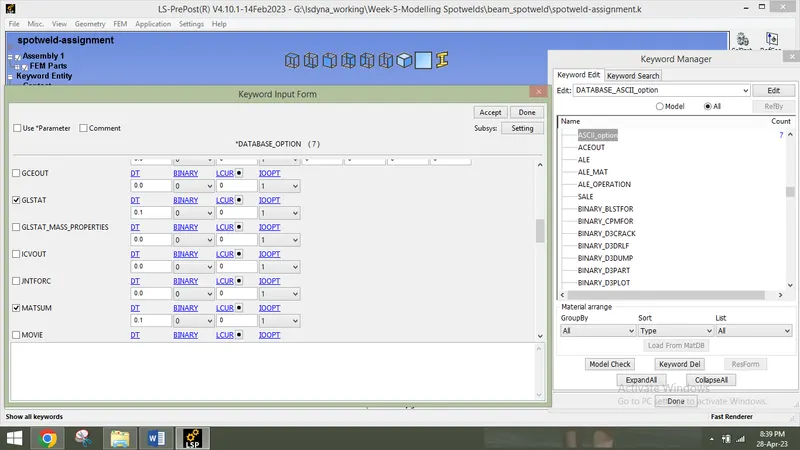

Now request for outputs as shown below.

Save the model and run the model checker, if no error found (ignore warnings) then submit for run.

Check for normal termination

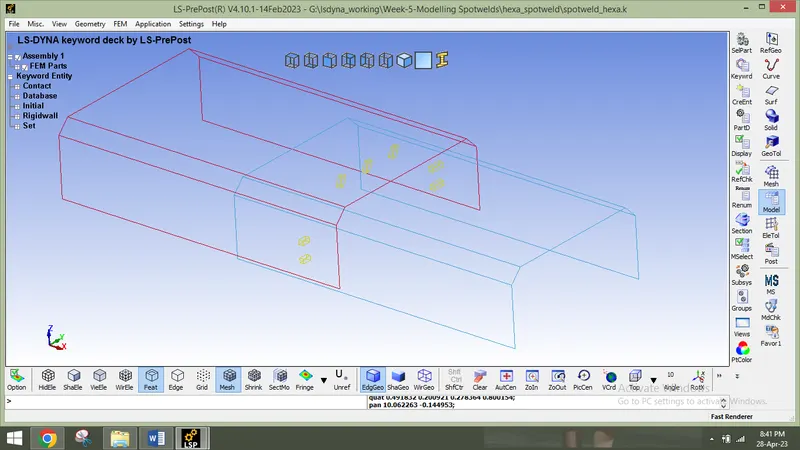

2^nd case by using hexa element as spotweld.

Now we replace beam elements by hexa elements. Update the model with section solid and contact.

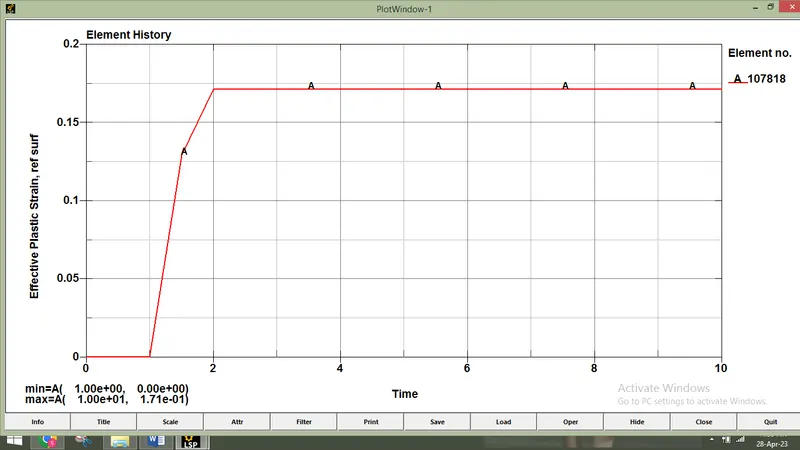

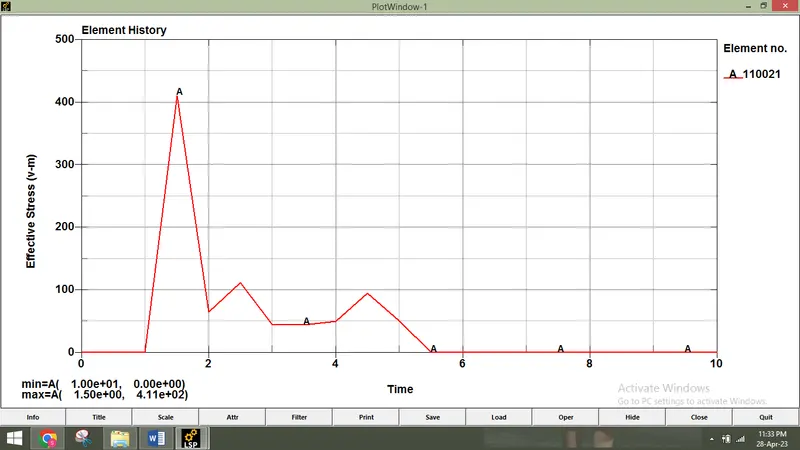

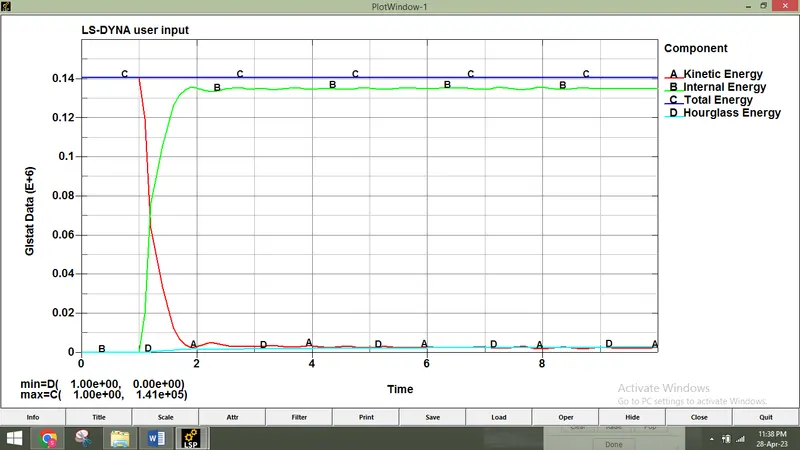

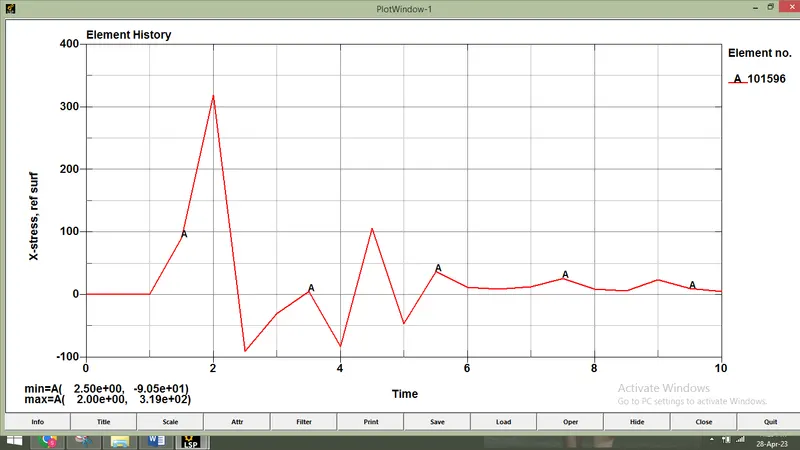

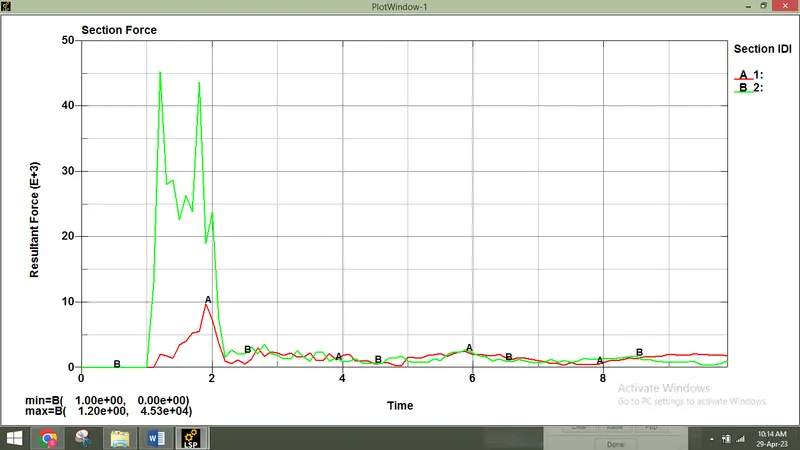

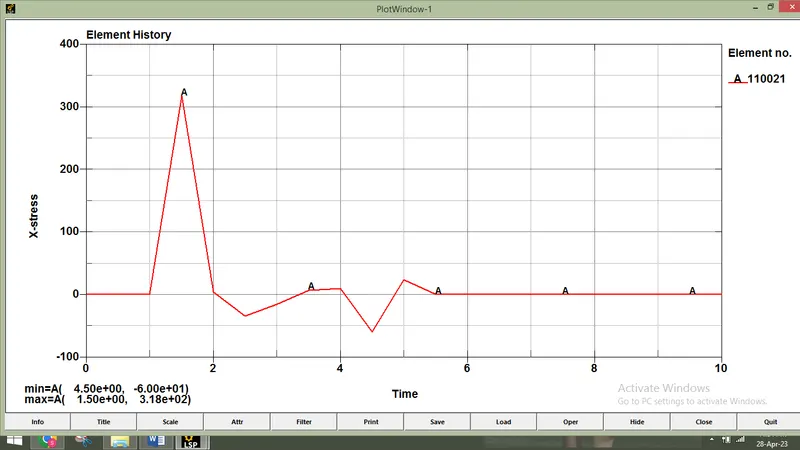

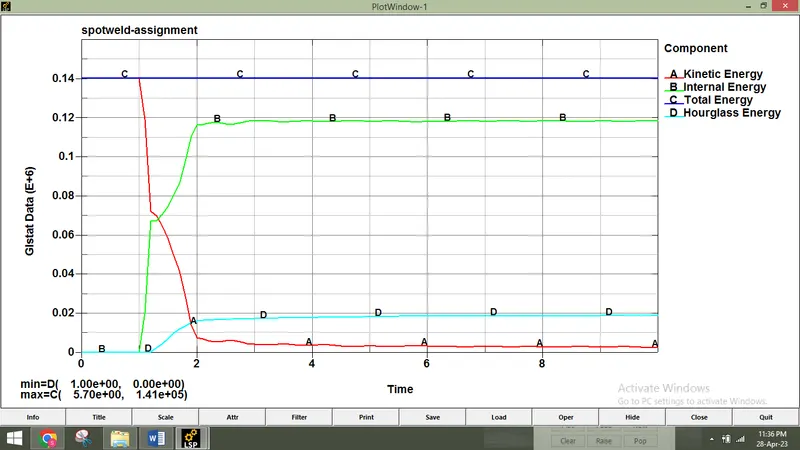

Results

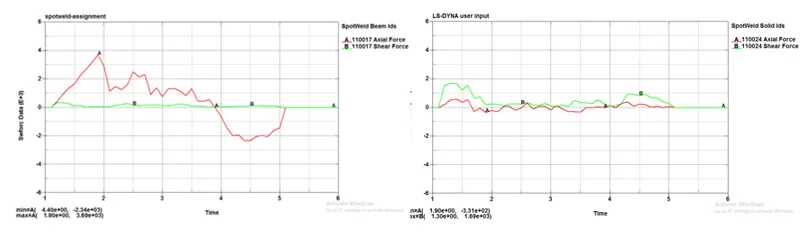

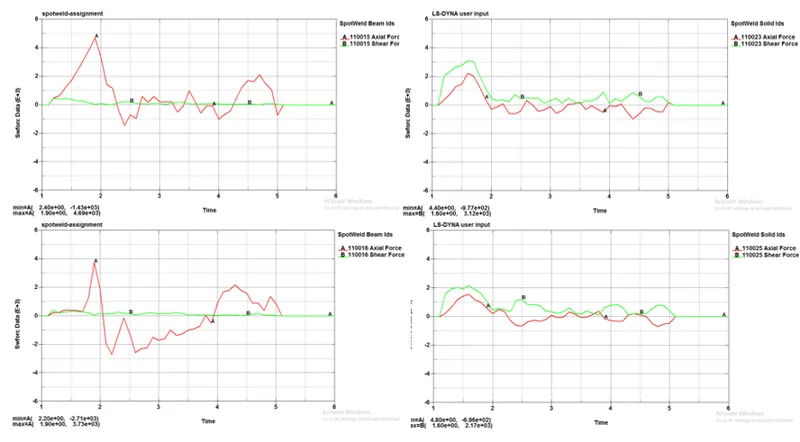

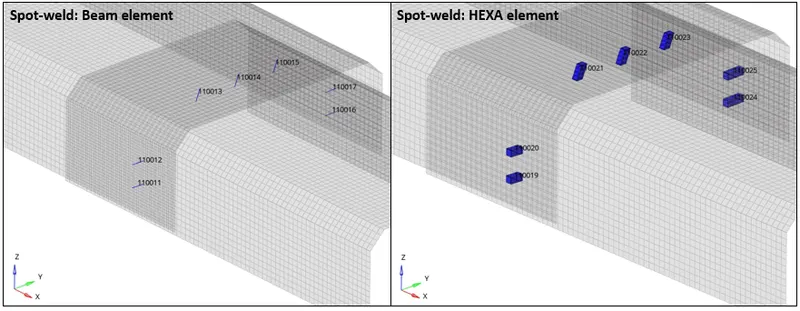

1^st case, by using beam as spotweld 2^nd case by using hexa element as spotweld

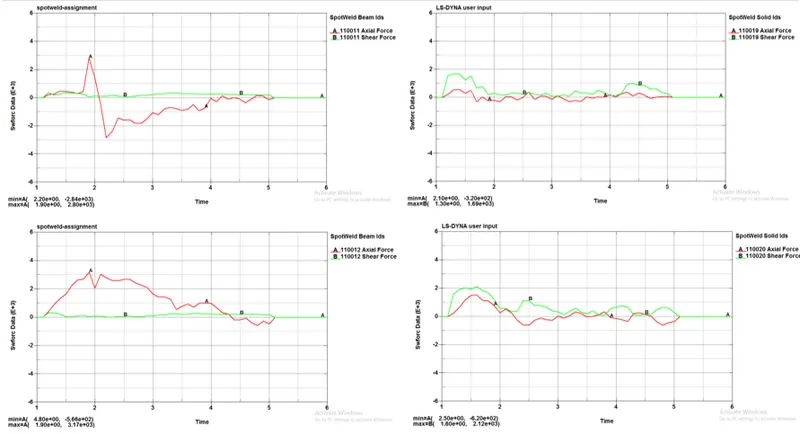

1^st case, by using beam as spotweld 2^nd case by using hexa element as spotweld

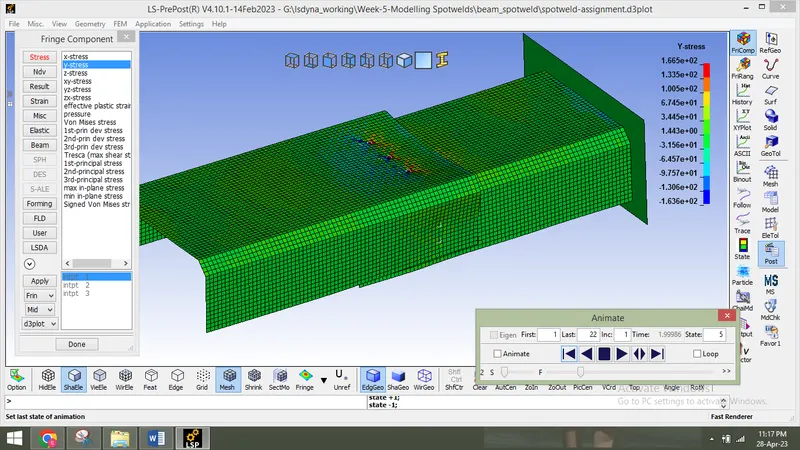

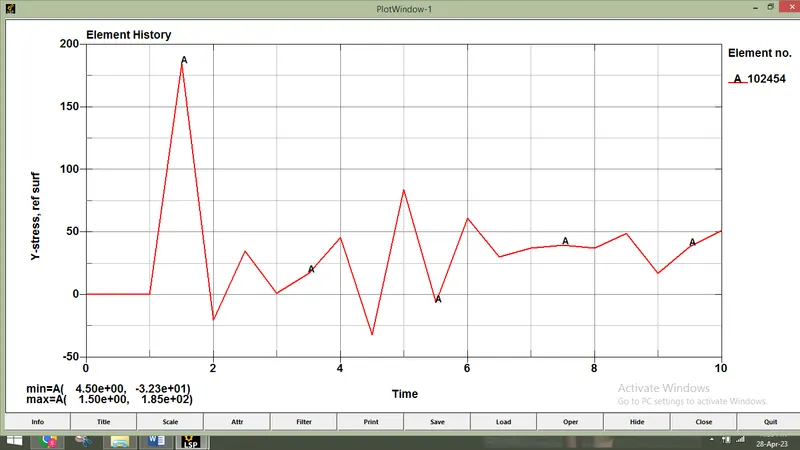

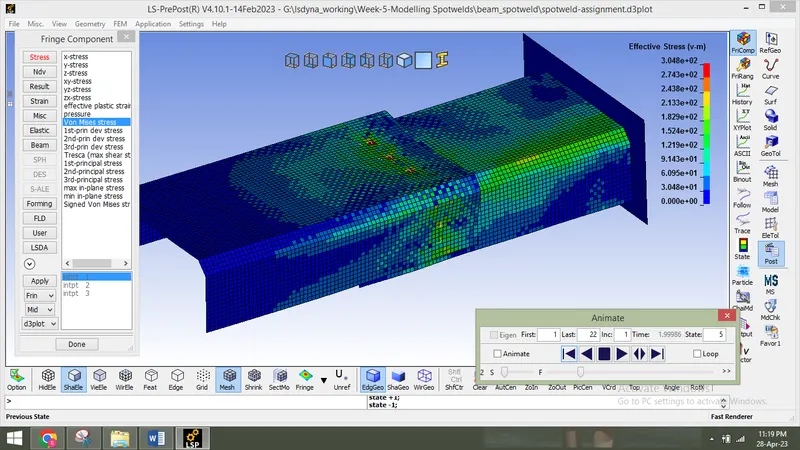

1^st case, by using beam as spotweld

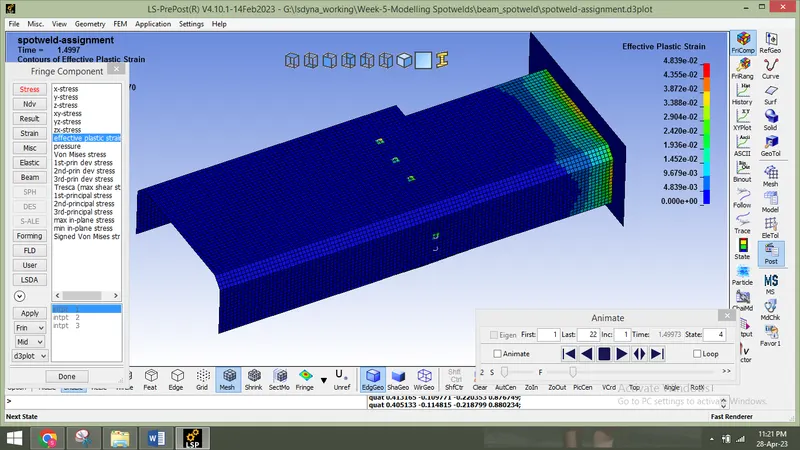

1^st case, by using beam as spotweld

1^st case, by using beam as spotweld

1^st case, by using beam as spotweld

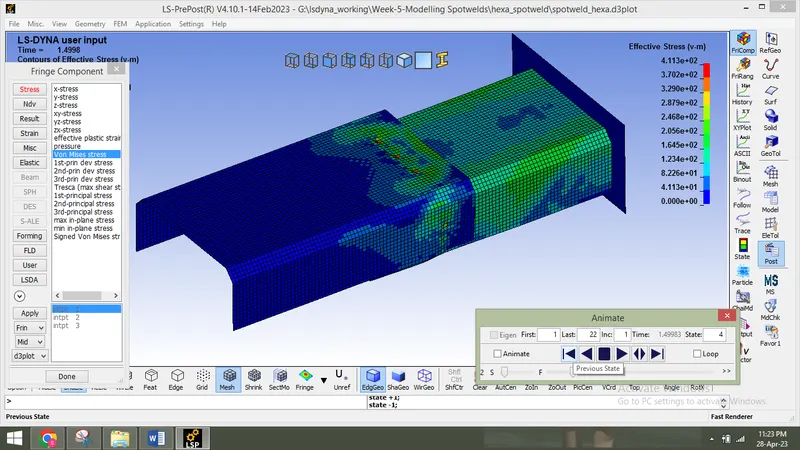

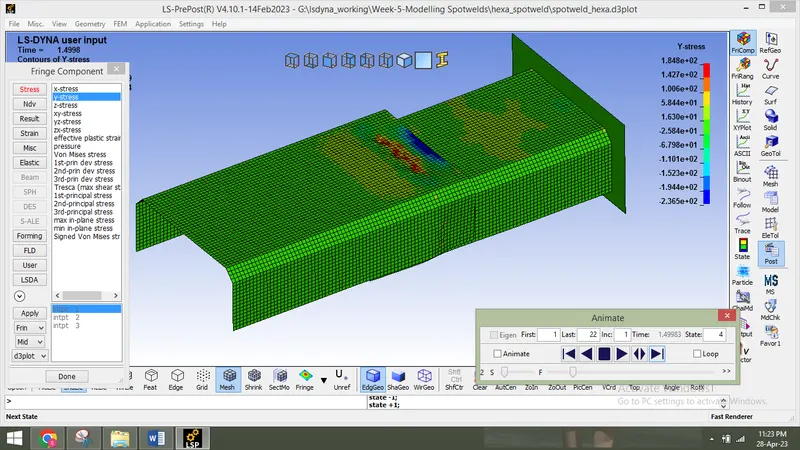

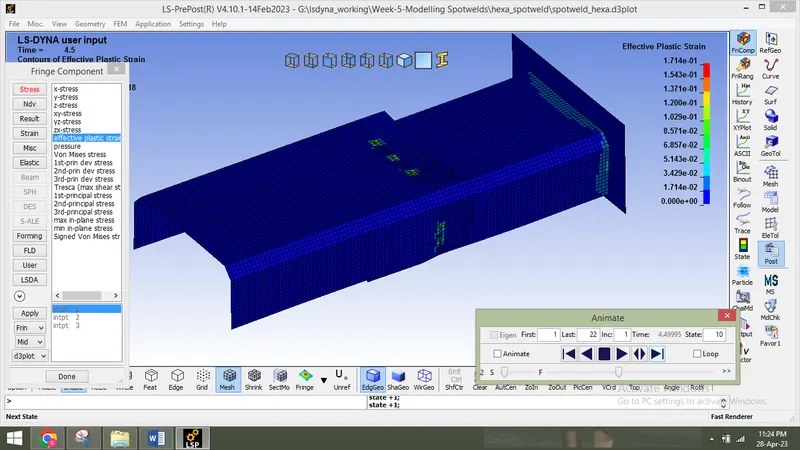

2^nd case by using hexa element as spotweld

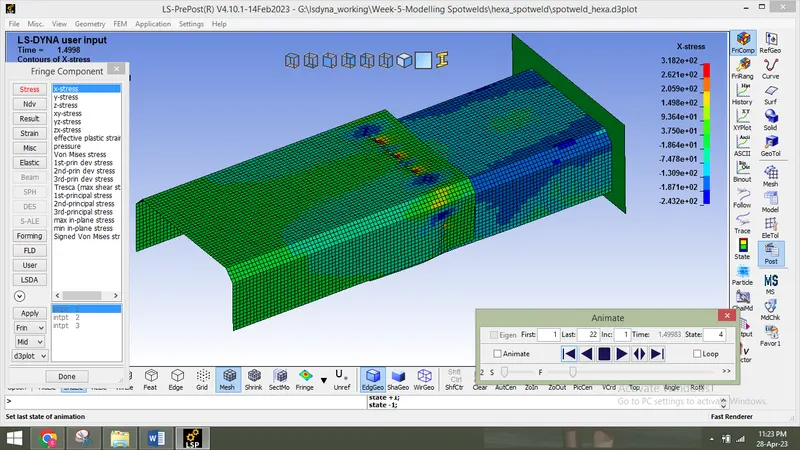

2^nd case by using hexa element as spotweld

2^nd case by using hexa element as spotweld

2^nd case by using hexa element as spotweld

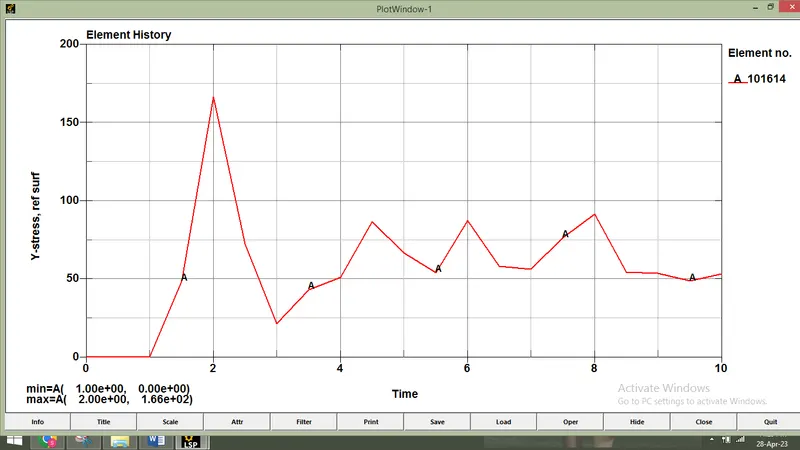

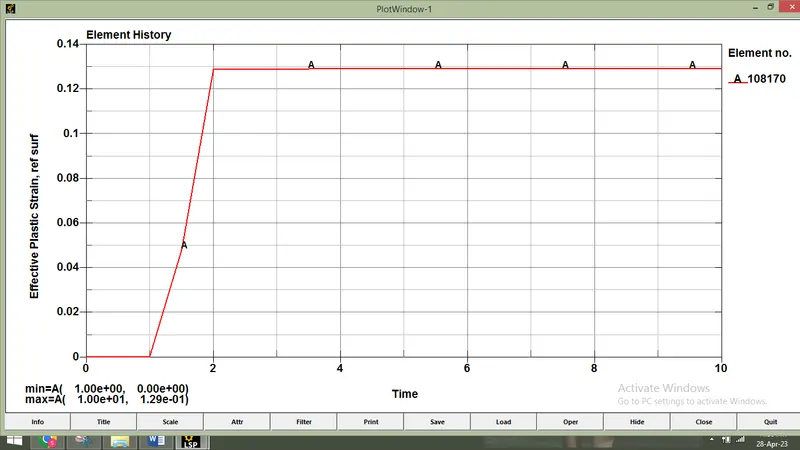

1^st case, by using beam as spotweld

1^st case, by using beam as spotweld

1^st case, by using beam as spotweld

1^st case, by using beam as spotweld

2^nd case by using hexa element as spotweld

2^nd case by using hexa element as spotweld

2^nd case by using hexa element as spotweld

2^nd case by using hexa element as spotweld

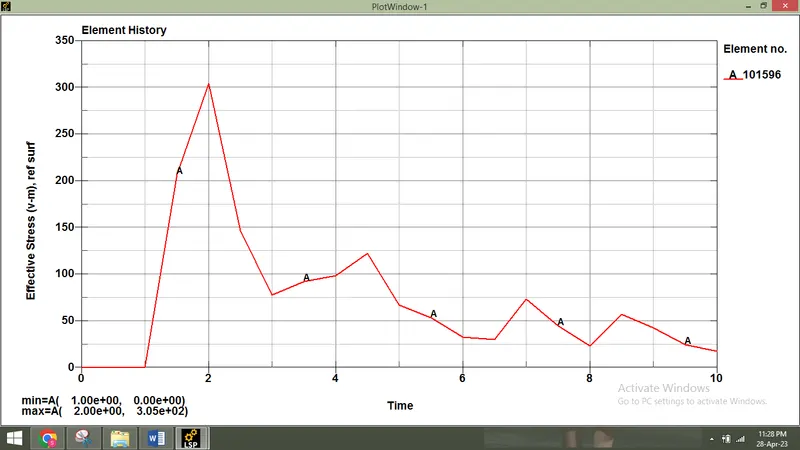

1^st case, by using beam as spotweld

2^nd case by using hexa element as spotweld

1^st case, by using beam as spotweld

2^nd case by using hexa element as spotweld
