Week 5 Challenge : Surface wrap on Automotive Assembly

Aim: For Given  models, check for the geometrical errors and delete surfaces which are unwanted for Surface wrap.

Steps:

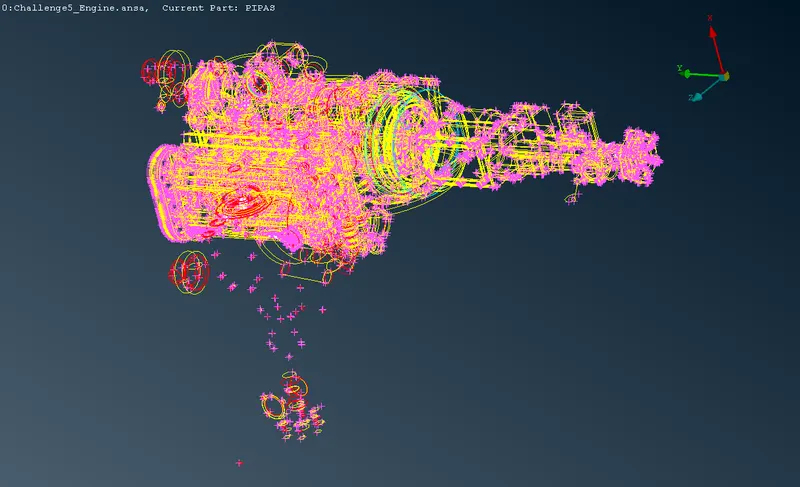

• Open the model from the directory

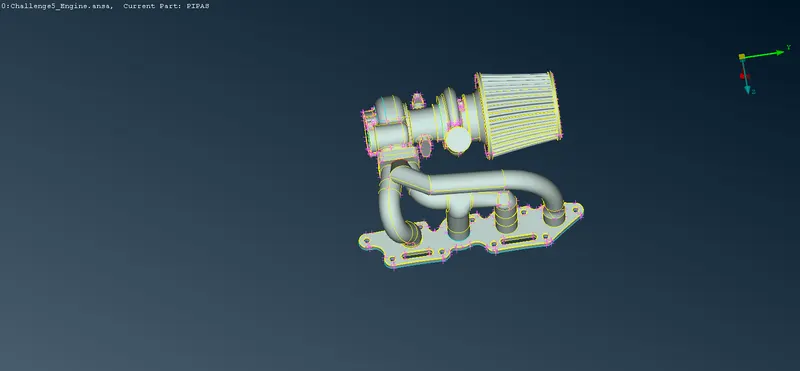

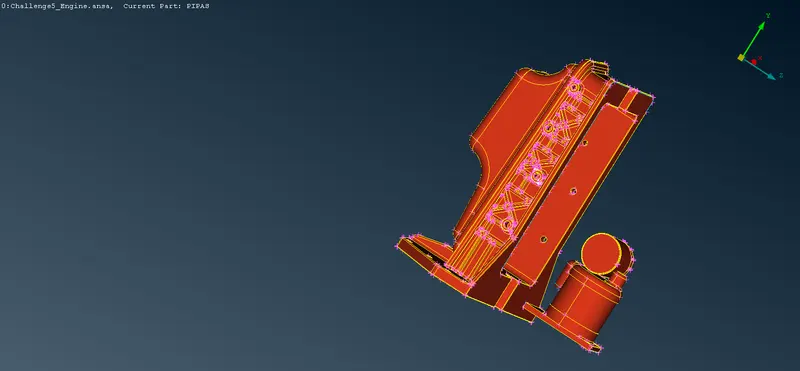

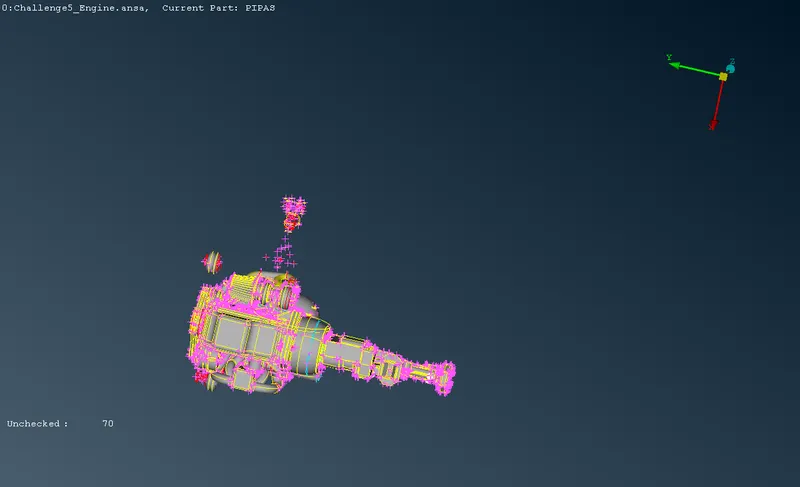

Geometry cleanup & PIDs

Topo

• Hot points__ insert,project,parametrical,delete,release.
• Cons_paste,release, fill hole, project.
• Faces_new,cut,delete,set PID,Topo,Projectcut, Extend,
• Curves_create,delete,Undelete,
• points_create, delete,Relative,
• Auxiliaries_Fine,and More..,

Mesh:

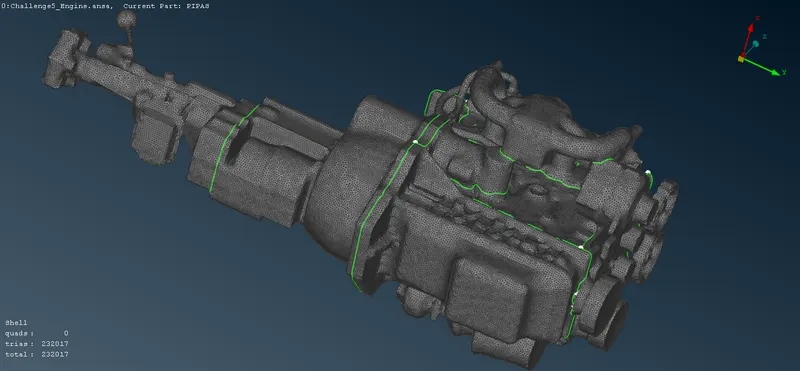

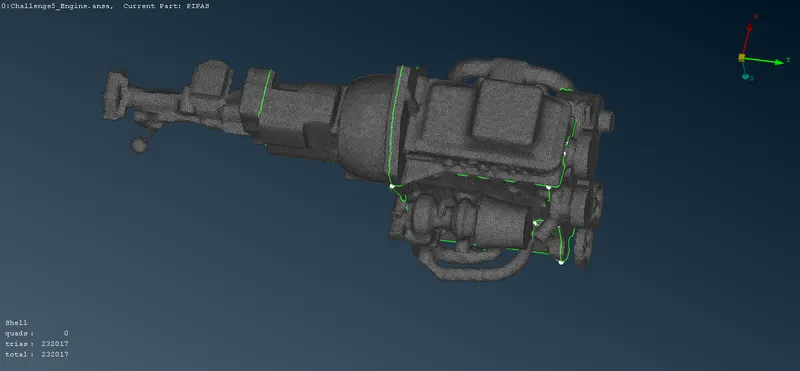

• Mesh_elements_wrap

https://drive.google.com/file/d/1JHOSjRSXNteGHylT7_8kO6-8hewB4arZ/view?usp=sharing
