Week 5 Challenge : Surface wrap on Automotive Assembly

Aim / Objective: - To perform Topo Cleanup of the Automotive assembly which includes the Engine, Gearbox, and the Transmission; and thereafter perform successful Surface wrap on the assembly.

Procedure: -

Step 1 - To Import the Engine CAD file in ANSA

• For importing the CAD Geometry go to file and click open.
• go to the directory where the cad file is present.
• select the geometry file with the .ansa extension and click open.

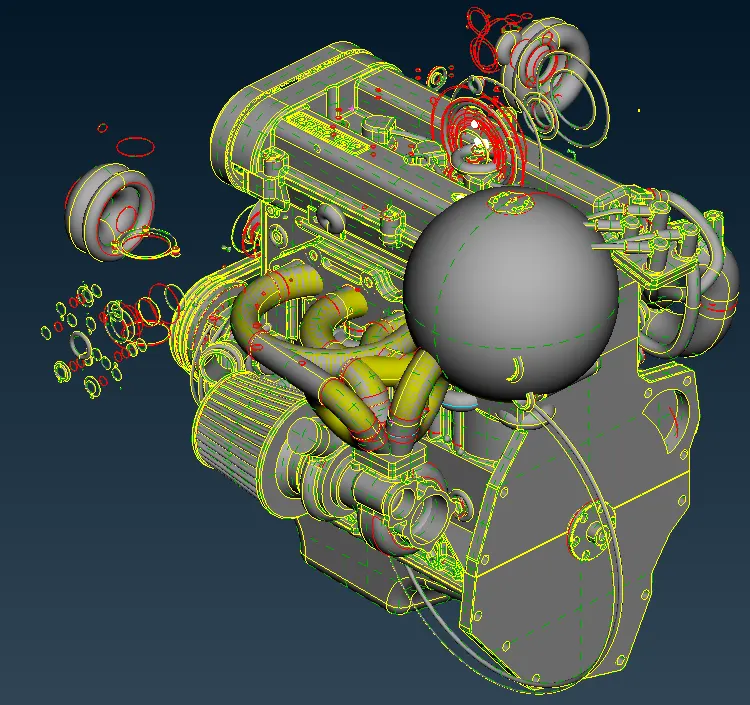

Step 2 - Topo Cleanup of the Engine model.

• In the surface wrap we are not interested in the errors which are inside the geometry but we are only concerned with the errors on the outer side.
• since, surface wrap is created only on the outer structure i.e it captures the outer shape of the geometry; we have to perform the topo clean up.
• we will delete all the extra geometries such as the rings/donuts, overlapped surfaces, belts, and also fix any single cons or triple cons as well as missing surfaces.

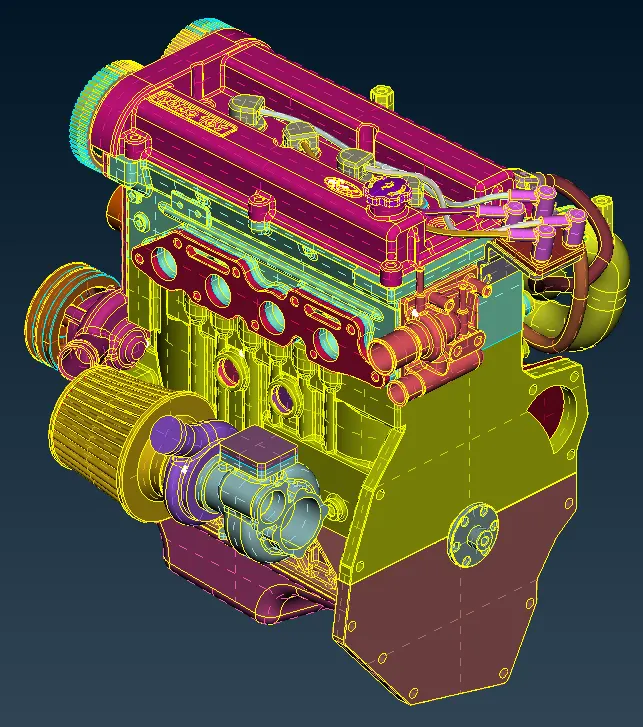

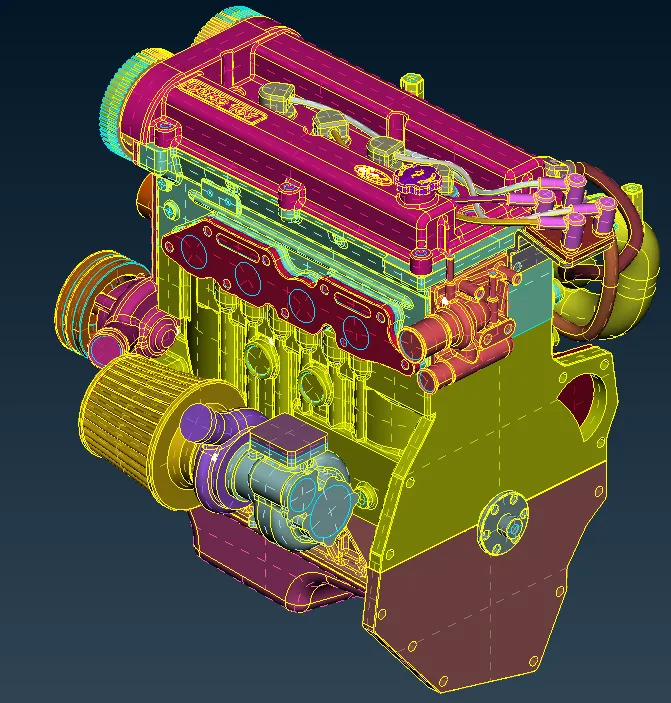

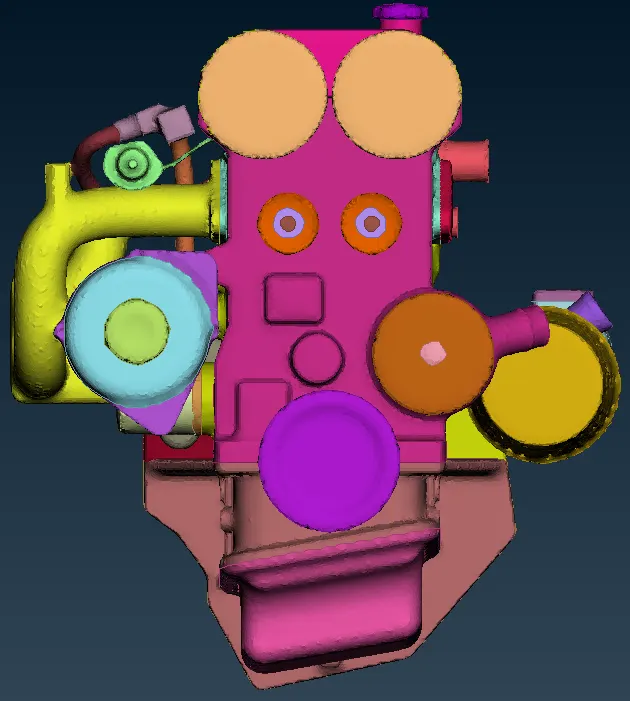

• We have deleted most of the extra geometry from the outer surface.

• we have switched to PID viewing mode since it helps to segregate elements.
• now we will close the holes in this geometry, as the surface wrap captures the outer elements we don't want it to capture the inner elements too.

• using the fitted option we have closed most of the holes.

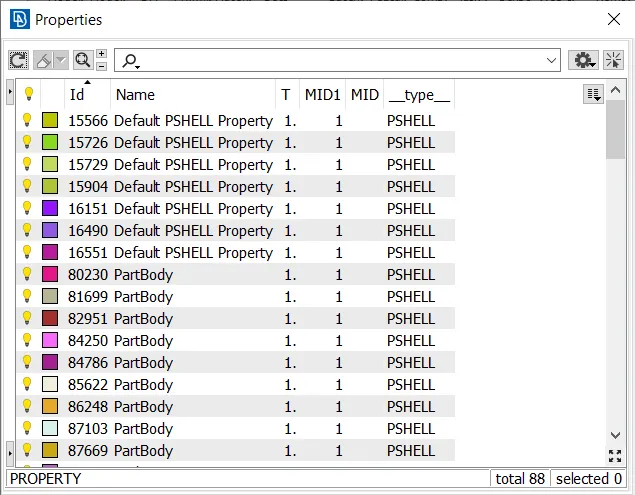

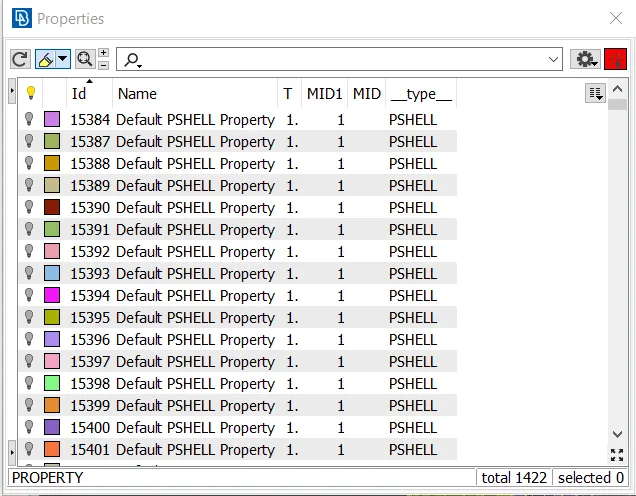

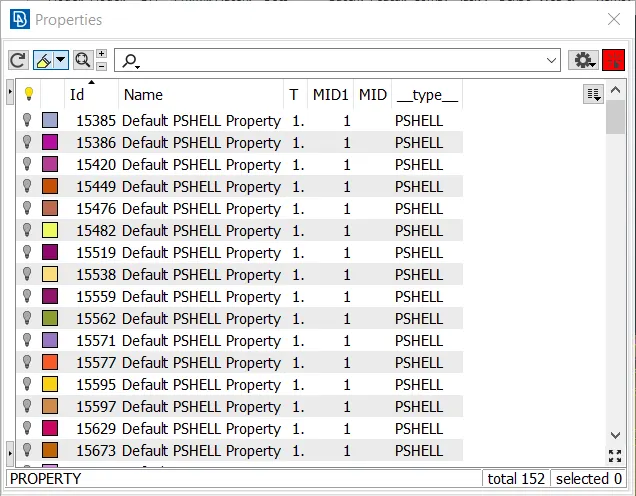

• now if we go to PID manager, we will see that there are lots of PID which have been deleted but are still visible in the PID manager.

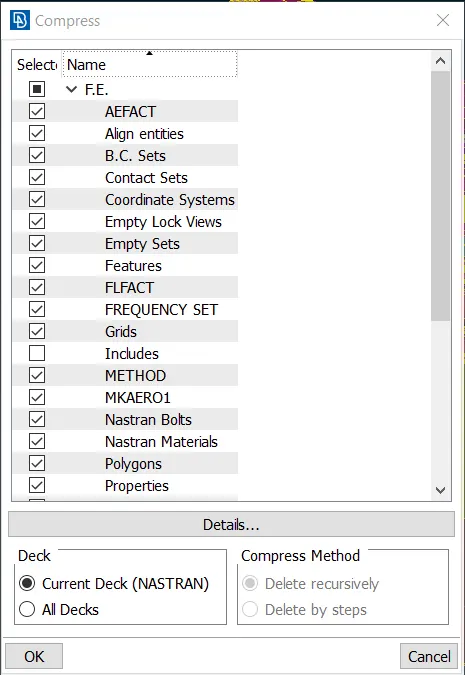

• we will delete this using the compress option.

• After clicking on OK, all the unwanted PIDs will be deleted.

• Now we will save and close this geometry.

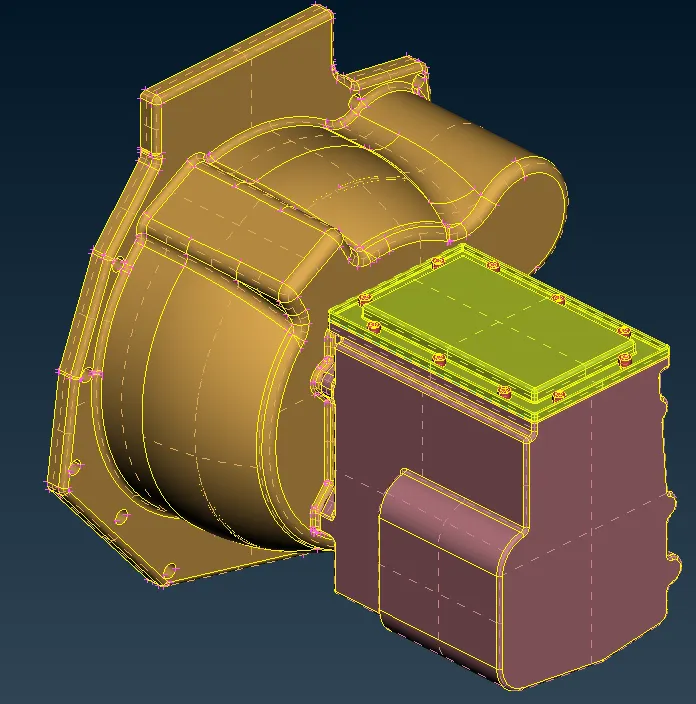

Step 3 - To Import the GearBox CAD file in ANSA

• For importing the CAD Geometry go to file and click open.
• go to the directory where the cad file is present.
• select the geometry file with the .ansa extension and click open.

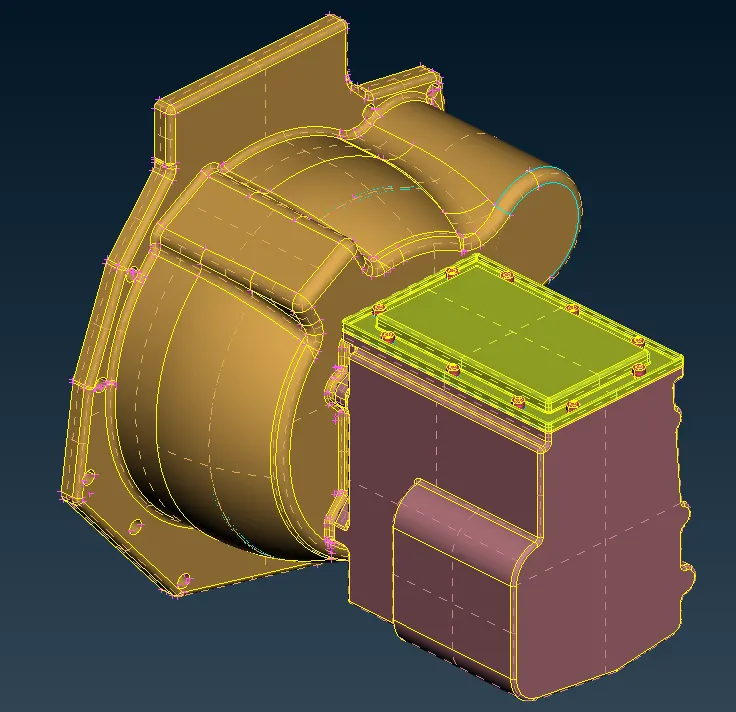

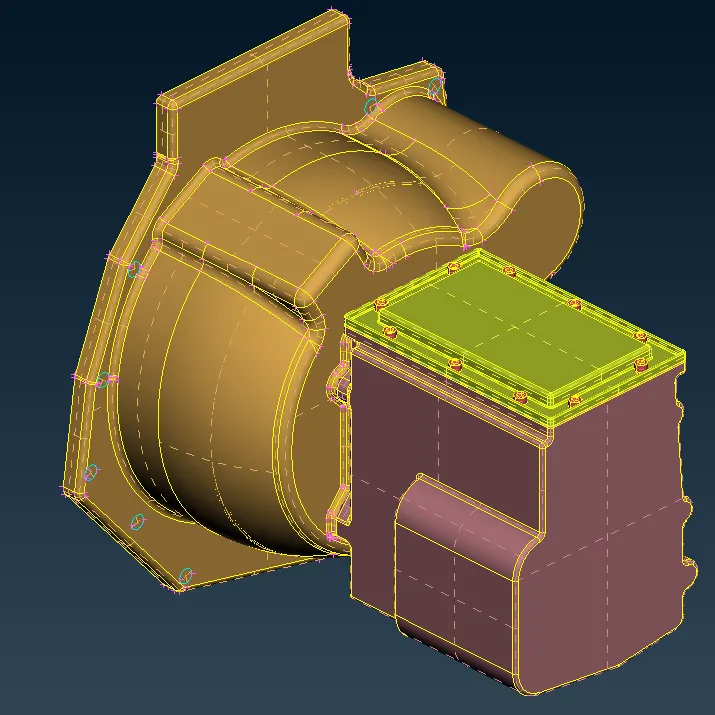

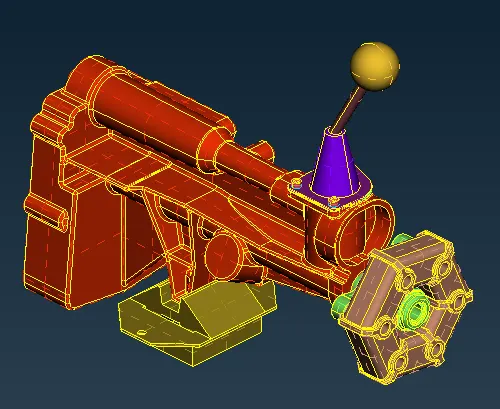

Step 4 - Topo Cleanup of the Engine model.

• We will delete any unwanted features or surfaces from this model.
• There are not many errors in this geometry.

• Now we will patch all the holes using the fitted option.

• we have patch the holes for this geometry.
• now we will save and close this geometry.

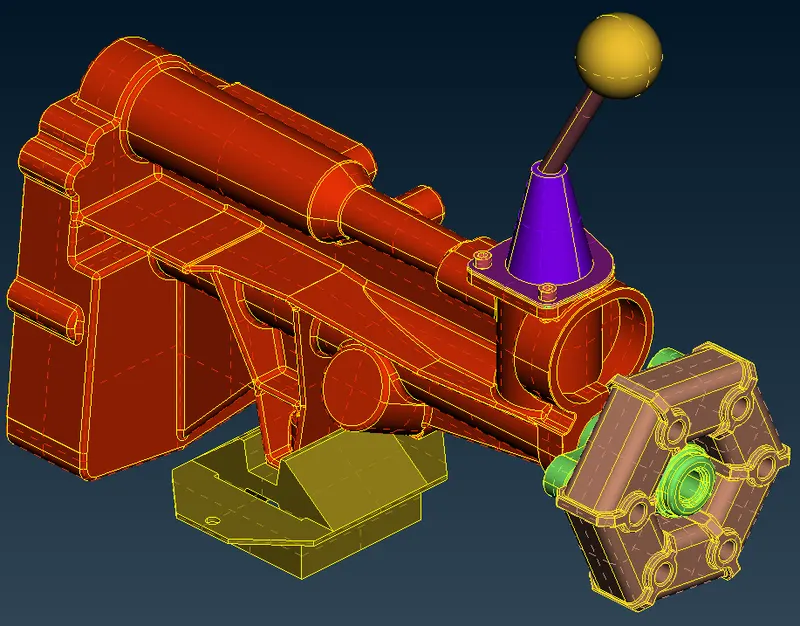

Step 5 - To Import the Transmission CAD file in ANSA.

• For importing the CAD Geometry go to file and click open.
• go to the directory where the cad file is present.
• select the geometry file with the .ansa extension and click open.

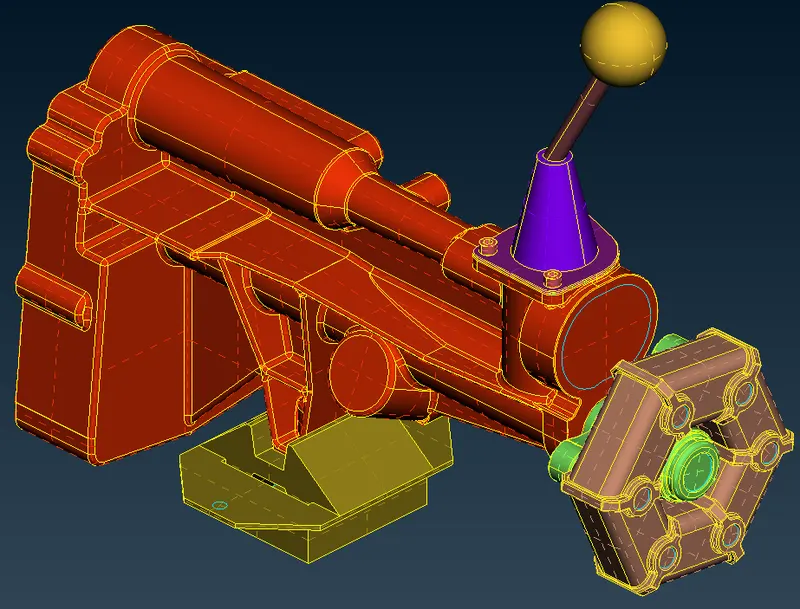

Step 6 - Topo Cleanup of the Transmission model.

• We will solve all the errors in these geometries.
• There were light errors which are solved now.

• We will patch all the holes in this geometry so that while the surface wrap captures only the outer surfaces.

• we have patched all the necessary holes.

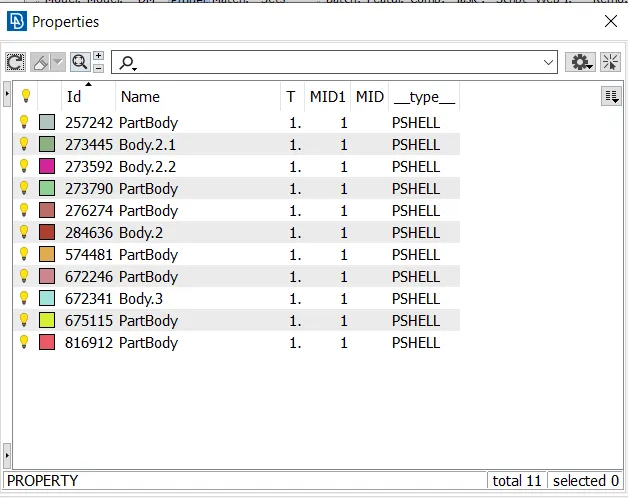

• now open the PID manager.

• we can see that there are still the PIDs of the deleted elements present.

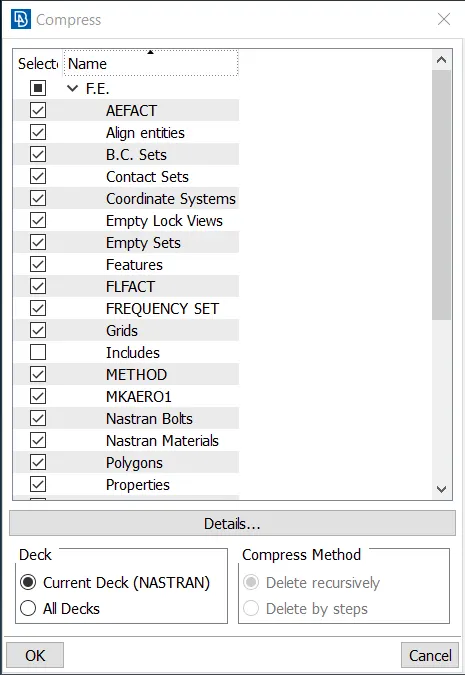

• to delete this we will use the compress option.

• click on okay to execute the command.

• now all the unwanted PIDs are deleted.

Step 7 - Merge all the models.

• We have to perform surface wrap on the whole assembly of the engine, gearbox, and transmission.
• So, we have to add the remaining components i.e. the engine and gearbox to the current geometry.
• To do so we will use the merge option.
• click on the file menu and select the merge option.

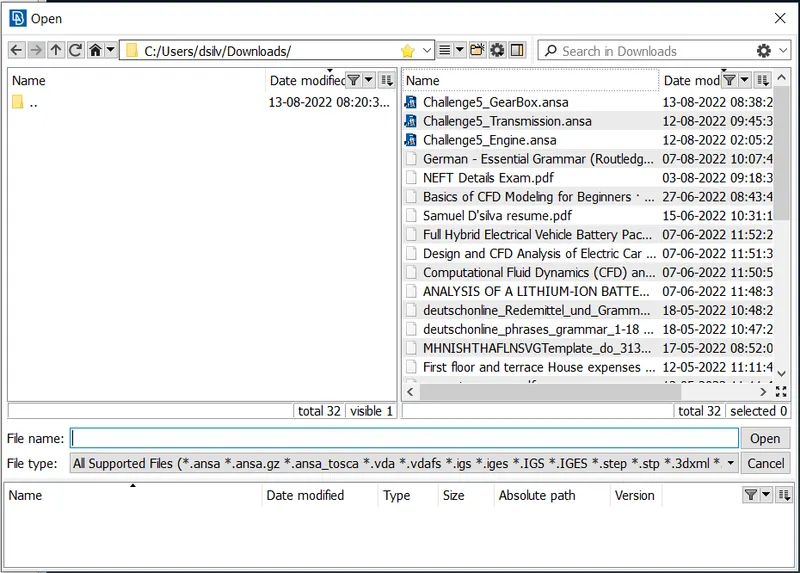

• a window pop out, in that select the remaining two geometries that are engine and the gearbox

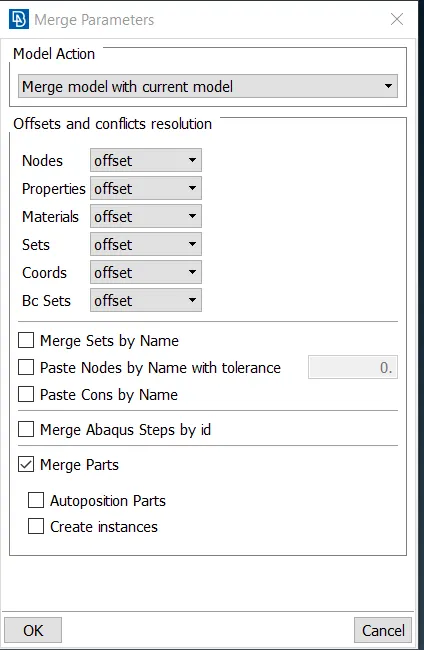

• After clicking on open a window will pop up,

• select the model action as "Merge model with the current model" and also enable merge Parts.
• After clicking on OK, the software loads the components.

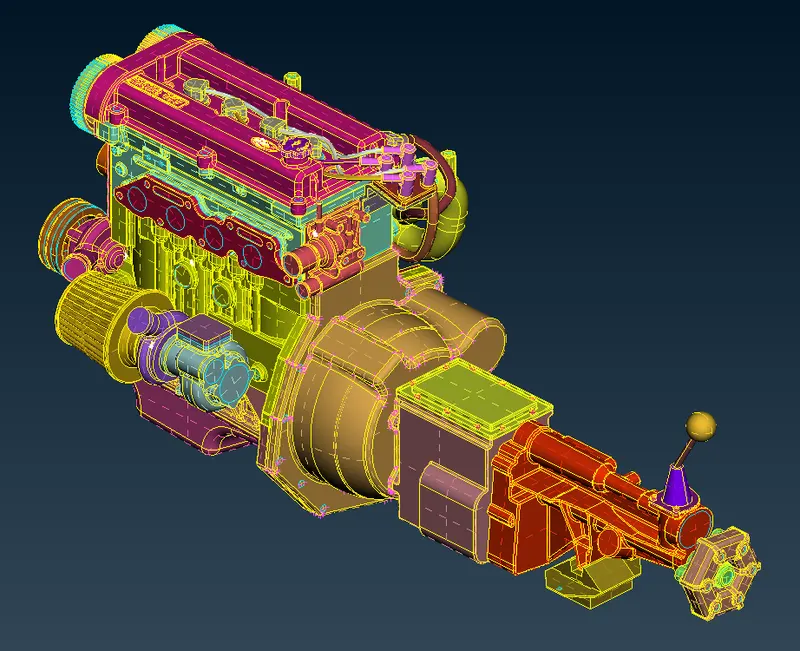

• Now we are done with the merging operation.

Step 7 - Creating the Surface wrap

• Now that we have done all the prerequisite for the surface warp, we will start with surface warp.
• We will switch to the mesh deck from the topo deck.

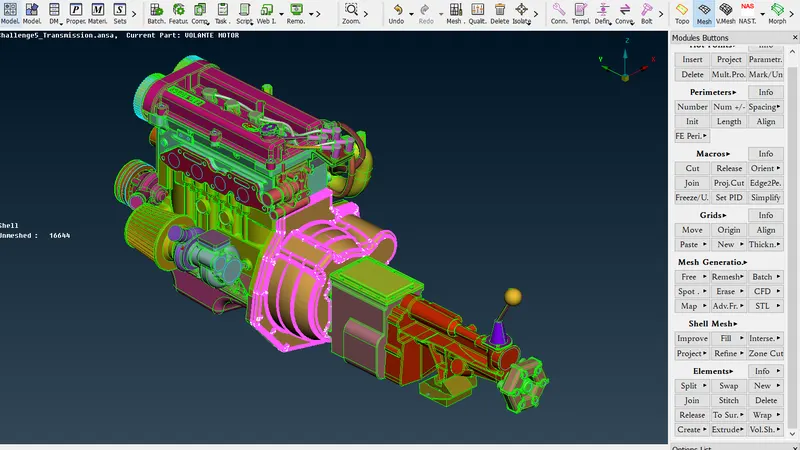

• In the Elements section select the wrap command. the wrap command creates a water-tight surface mesh around an assembly

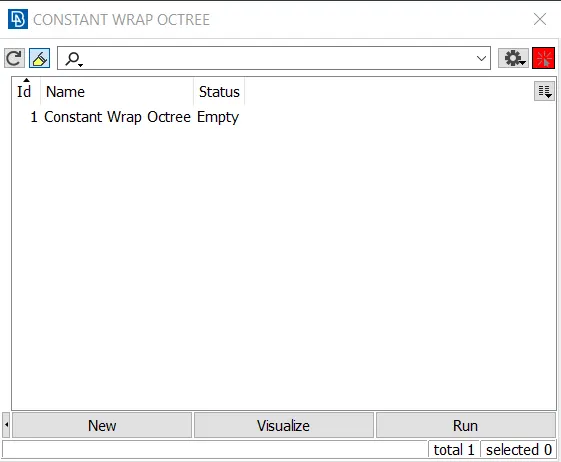

• in the wrap command select the constant length option.

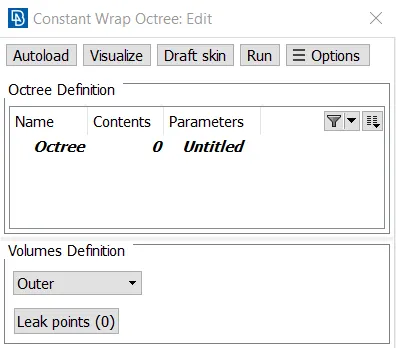

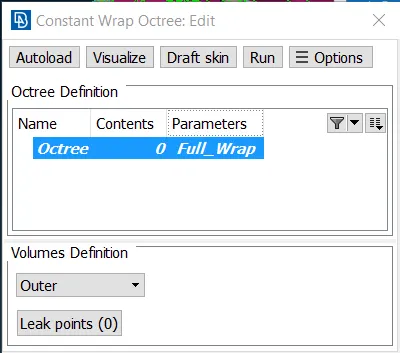

• a window pops up,

• Now if we double click on the status Empty, a new window will pop up.

• we can see that the parameters are not defined / Untitled here, so to define the parameters double click on Parameters Untitled

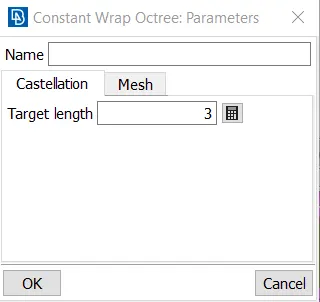

• a window will pop, in the castellation section enter the Target length as 3mm.

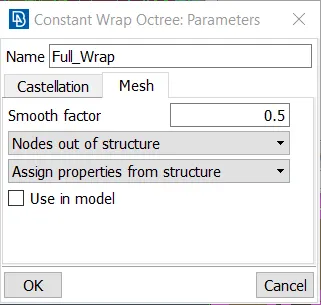

• In the Mesh section, enter the smooth factor as 0.5.
• also set the Name as Full_Wrap and click on OK.

• Now the parameters are defined.

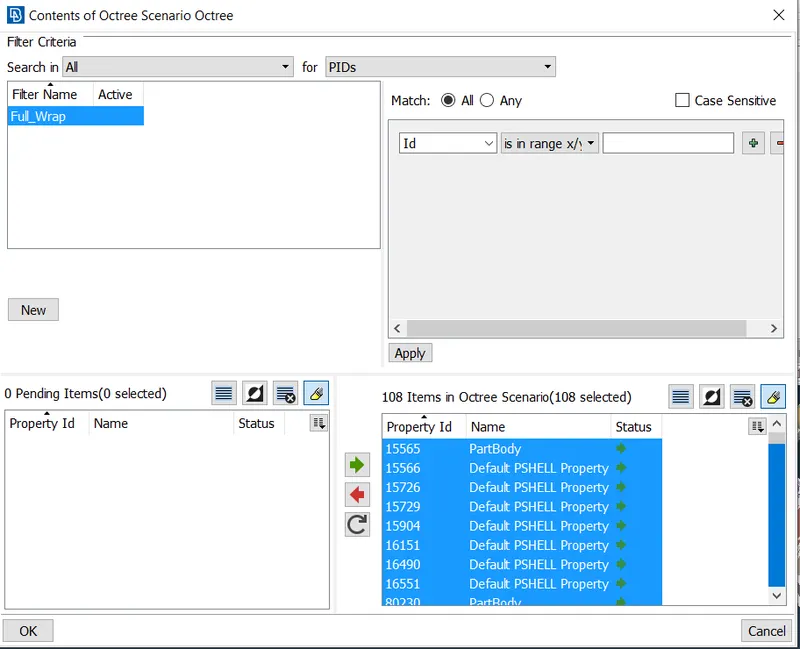

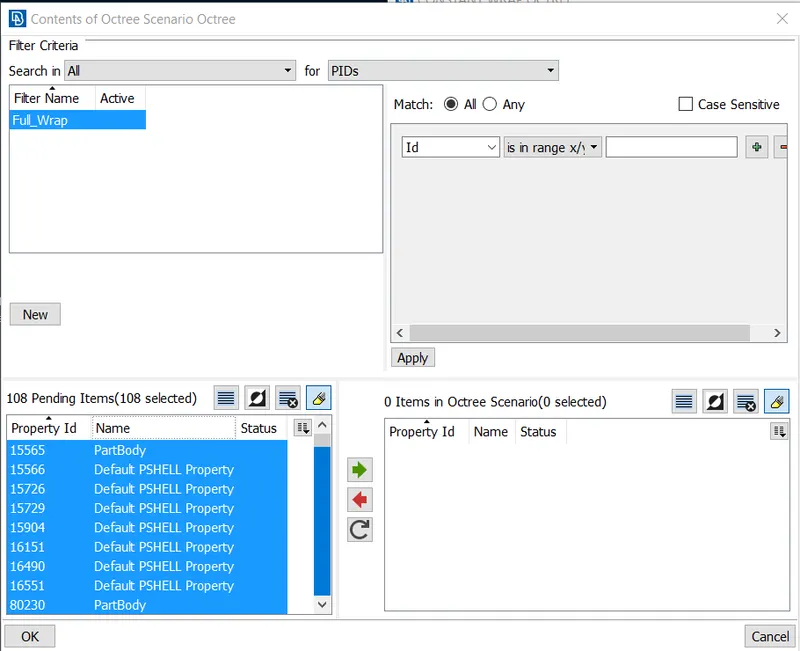

• Now we have to add the Contents, to do so double click on the contents 0, and a window will pop out.

• Enter the Name as File_Wrap, and select all the PIDs, there are around 108 PIDs.
• after selecting the PIDs click on the green arrow to move them to Octree Scenario.

• Now click on OK.

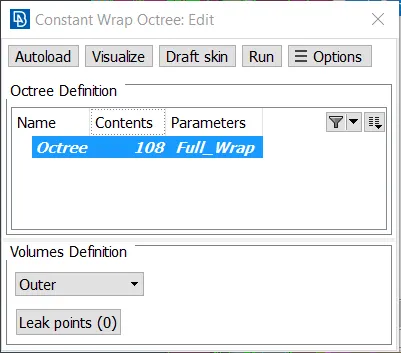

• Now that we have defined everything, we will click on the run command to start the surface wrap.

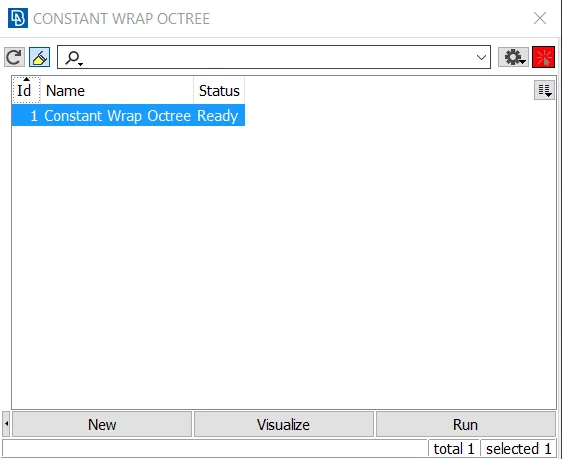

• we can see in the window that the status is ready which means the surface wrap is completed, now we will close this window.

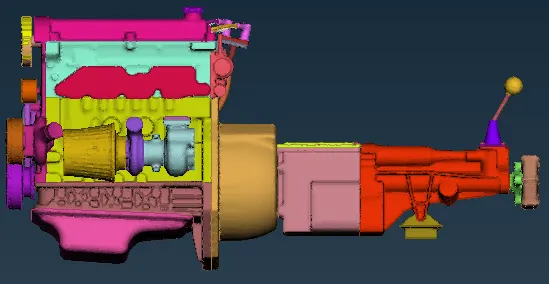

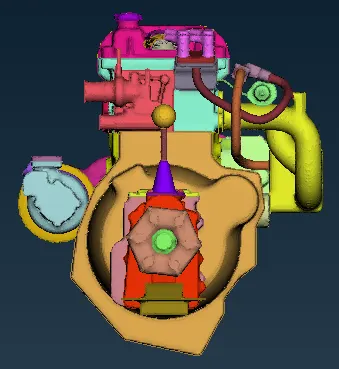

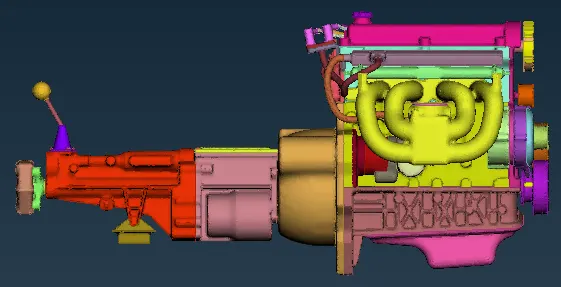

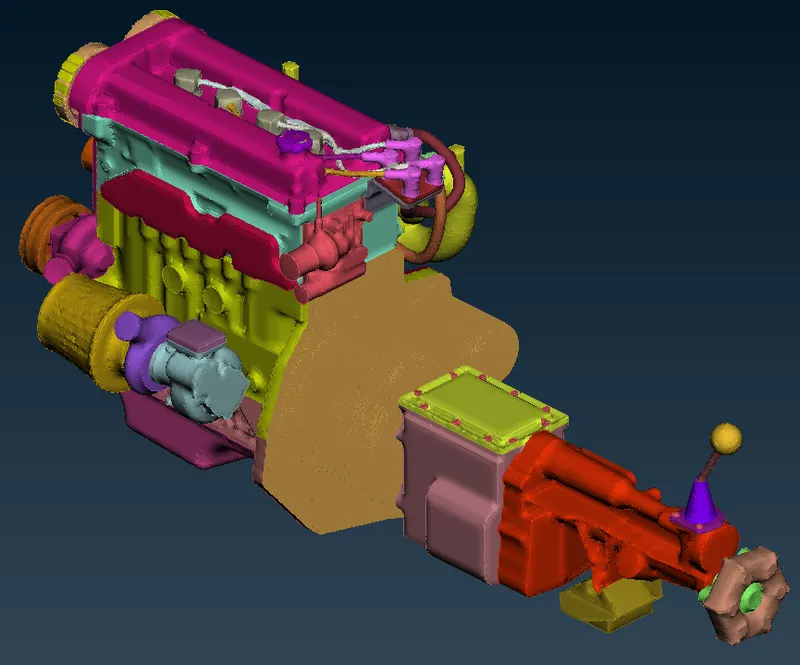

• we can see that the surface wrap is successfully generated.
• We will visually inspect the mesh to see if there are any errors in the mesh.
• We can turn off the cross hatches, perims points, triple cons, single cons, double cons a,nd the macros to efficiently inspect the model.

• We were not able to find any errors in the mesh.
• With this, we have successfully carried out the surface wrap of the automotive assembly.

Learning Outcome: -

• Learned to perform topo cleanup for surface wrap.
• Learned to merge different components/ models together.
• learned to perform the surface wrap.

Result: -

• Successfully Completed the Surface wrap on the automotive assembly.

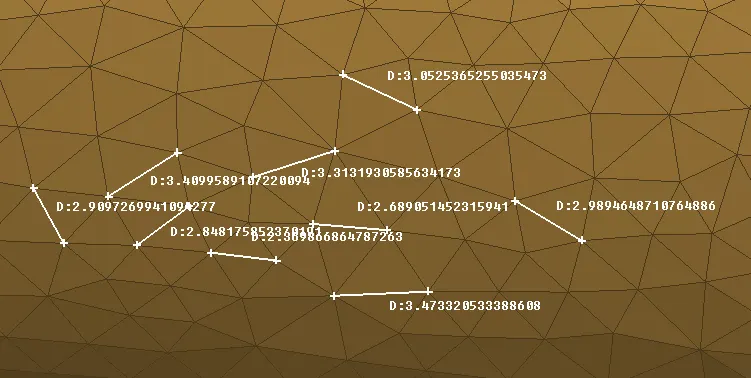

• Element length is approximately equal to 3mm

• After the surface wrap, there are around 751924 Tria elements.

Conclusion: -

• the surface wrap was successfully carried out.
• during the process, various commands such as compress, delete, and NOT, were extremely used.
• only the outer surfaces need to be cleaned since the surface wrap covers only the outer surfaces/ faces.
• We have to patch all the holes so that the surface wrap doesn't capture the inner geometry, and also to efficiently capture the outer surface.
• even after deleting all the unwanted elements, their PIDs will be present in the PID manager which we have to delete using the Compress option.
• After performing the Surface wrap, we get 751924 Tria elements.
• The target length of the surface wrap is 3mm, which captures the geometry effectively.
• If the target length is more it won't be able to capture the geometry properly and may fail whereas if it is less it will capture it more effectively.
