Week 5 Challenge : Surface wrap on Automotive Assembly

Aim : To surface mesh the given model with target length 3mm

Procedure :

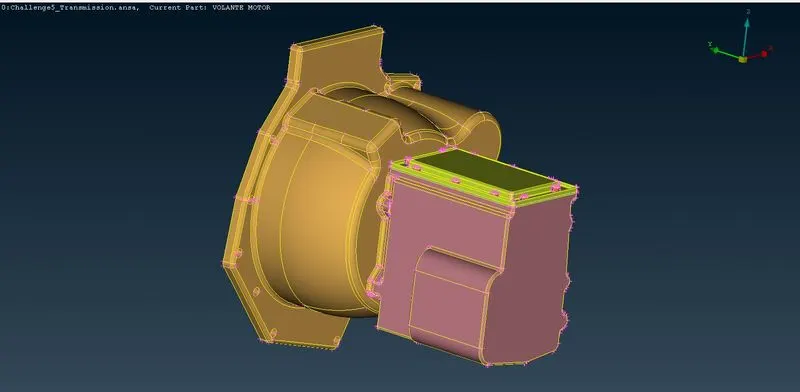

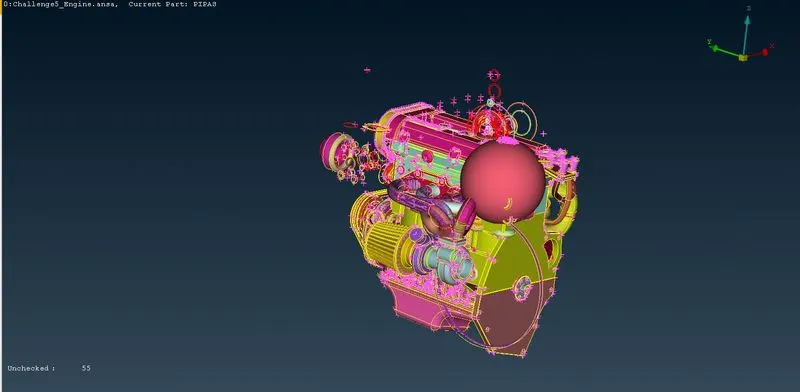

1) Open the given model and clean the geometry by removing unnecessary parts and triple cons on exterior surface

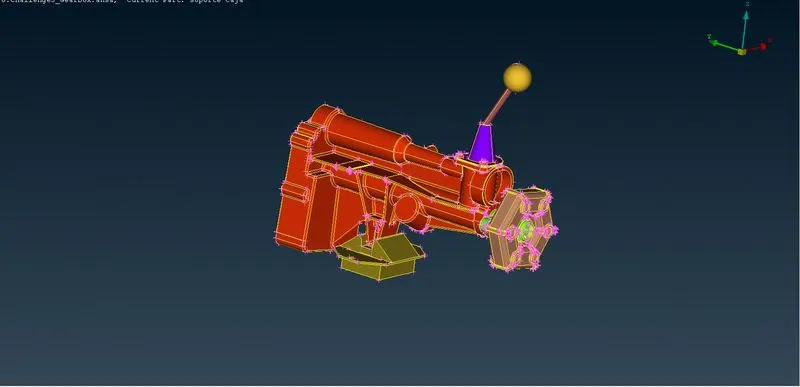

2) Same to be done with other geometries

3) Remove all the Single cons by applying TOPO or deleting them.

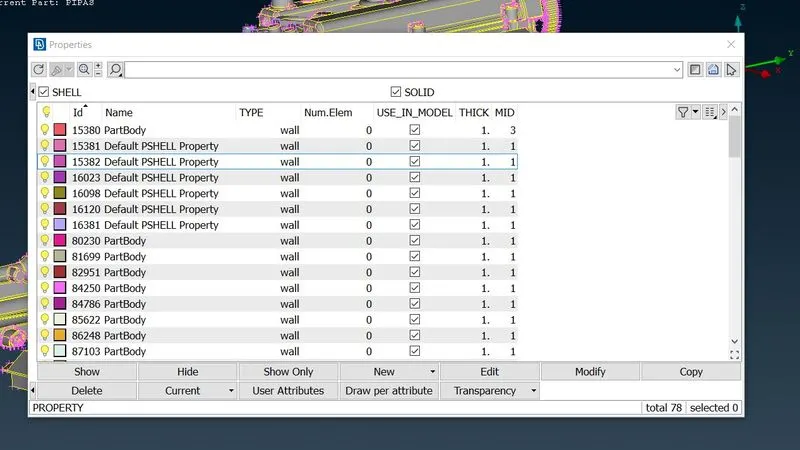

4) Assemble the models by merging the components with each other, Then compress the PIDs so that suitable no. of PIDs are there with you.

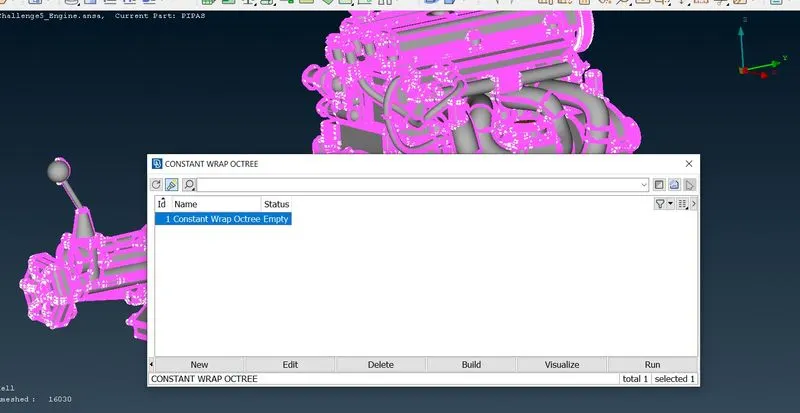

5) Apply surface wrap by giving target length 3 mm and then running the process

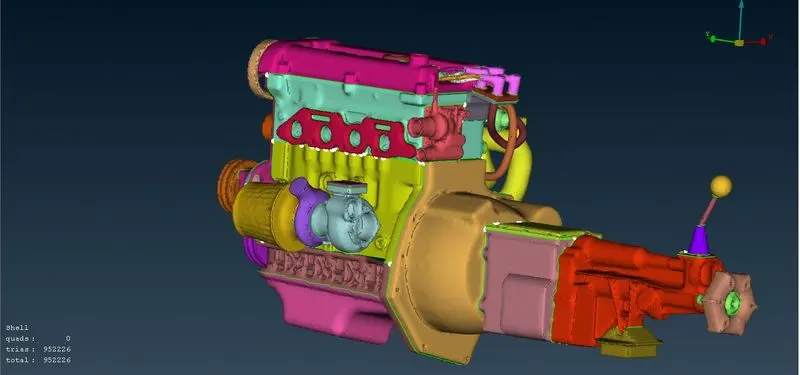

6) Surface mesh is applied to the given model.

Google drive link for downloading the model :

https://drive.google.com/file/d/1JFmrOpPXQ4HU8yP_lU1KROpVWLNq1_yW/view?usp=share_link
