Week 5 Bending of iPhone

Aim : The main aim of this week challenge is to perform a bending simulation of iphone for two different cases . For both the cases compare the results of the stress , strain , life and factor plots and give a detailed explation for the plots .

Procedure :

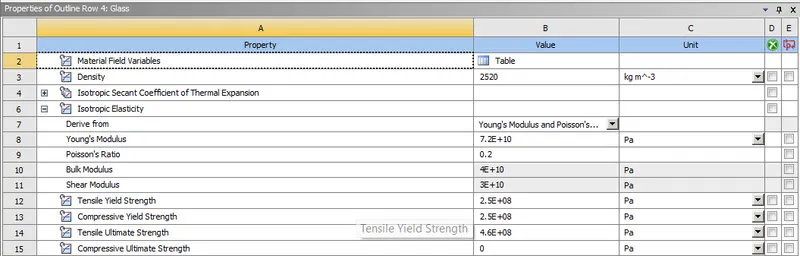

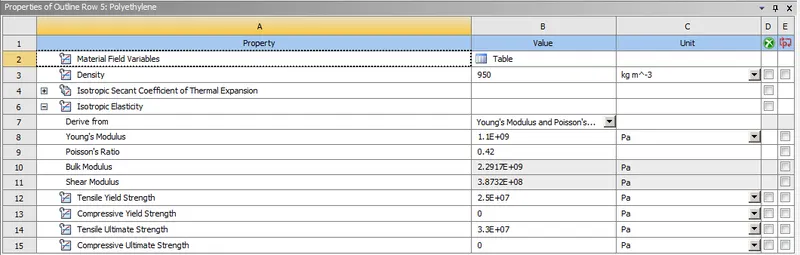

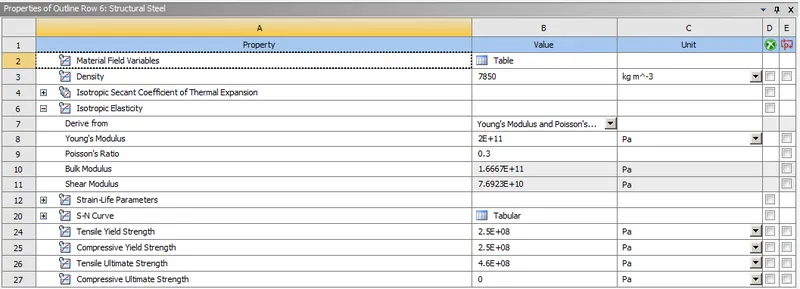

Materials :

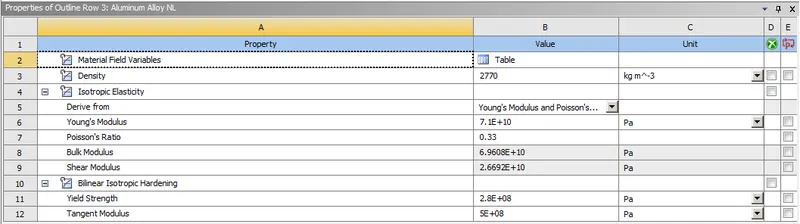

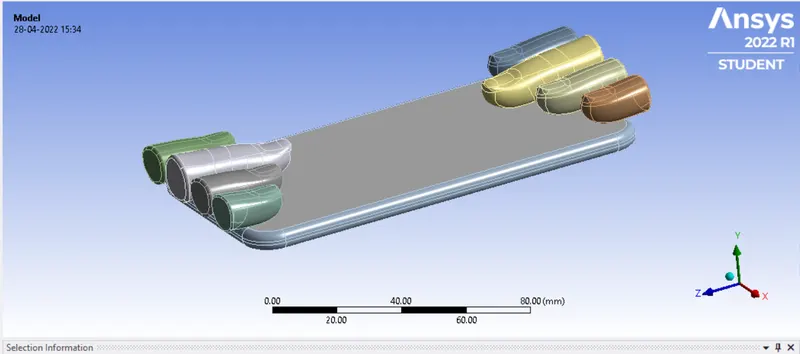

Import the geometry

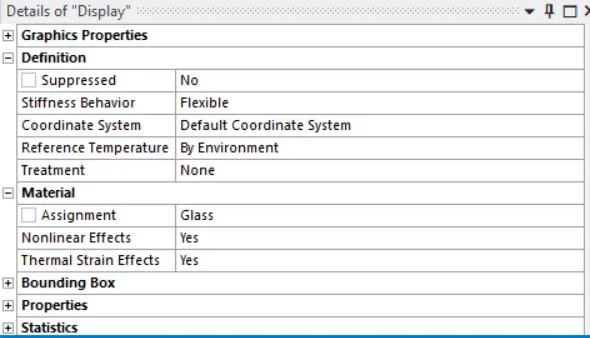

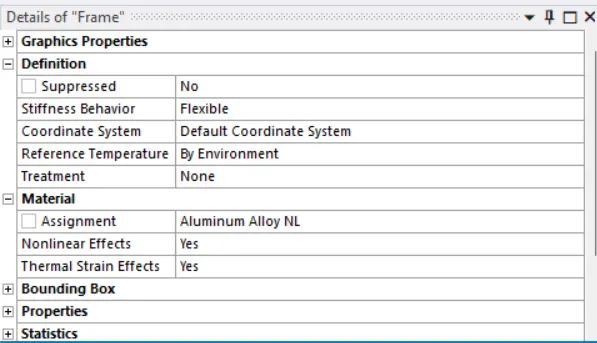

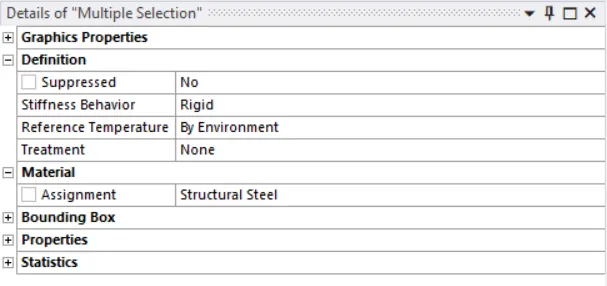

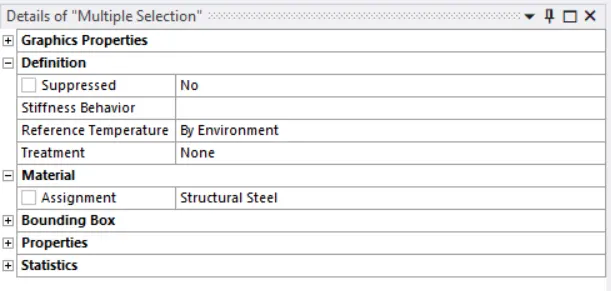

Now assign the materials

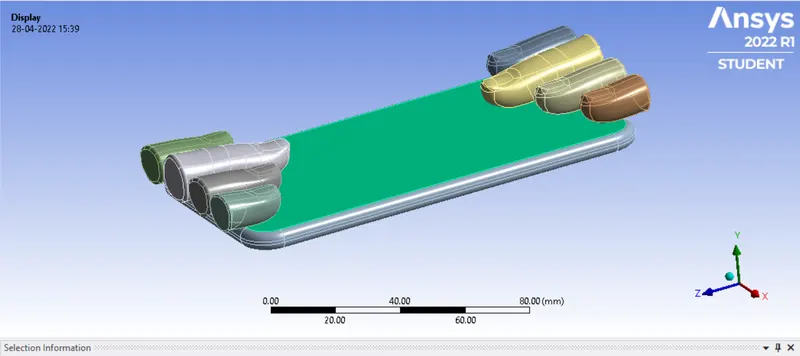

Display

Frame

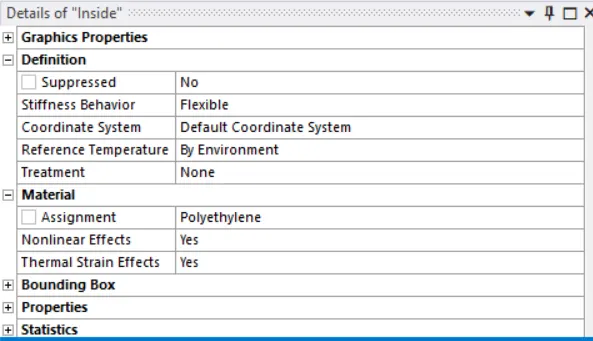

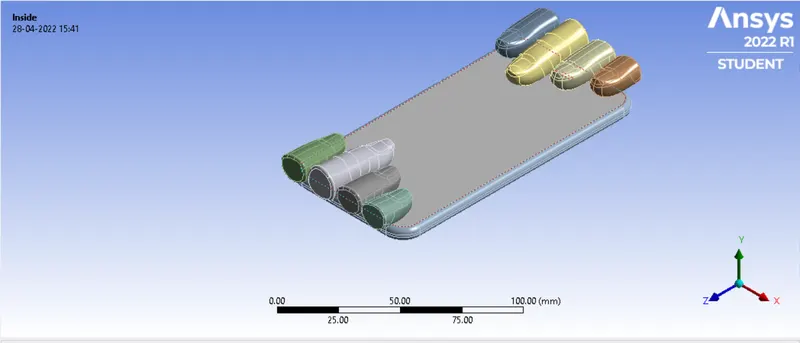

Inside

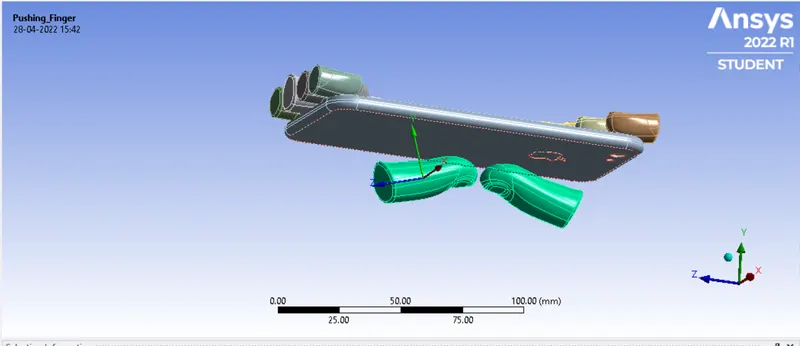

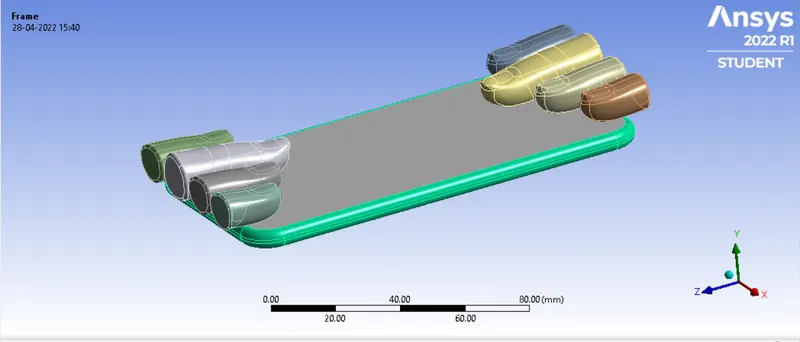

Pushing Fingers

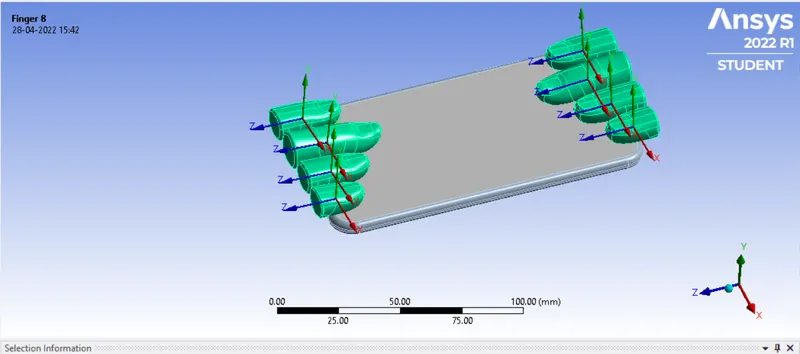

Fingers

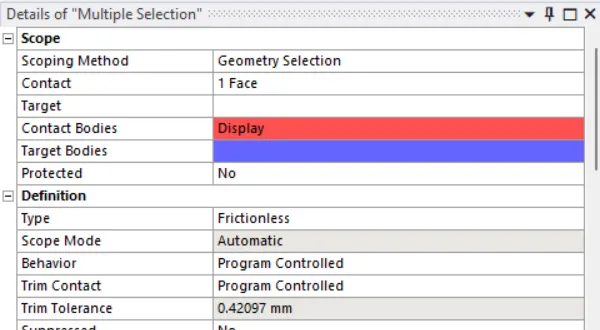

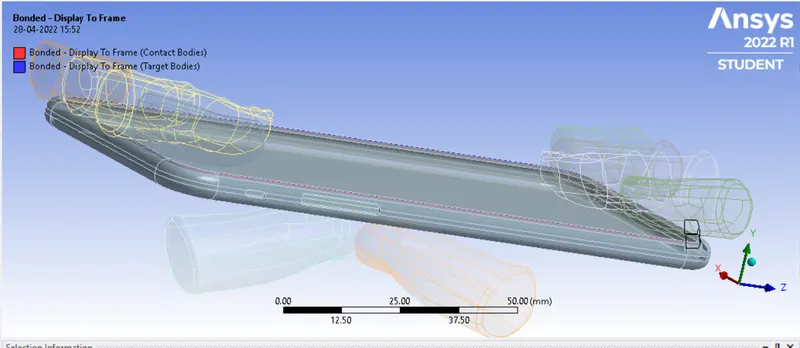

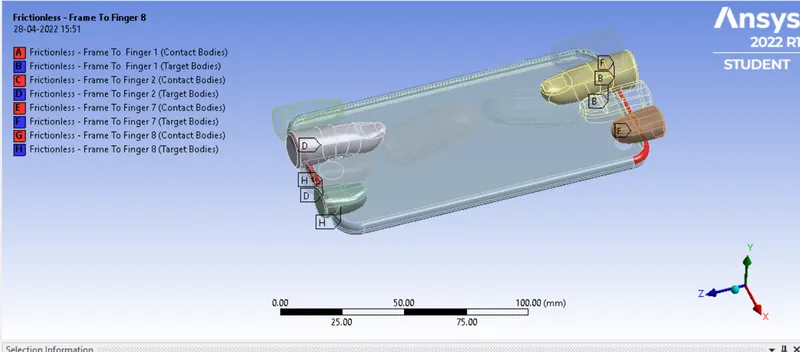

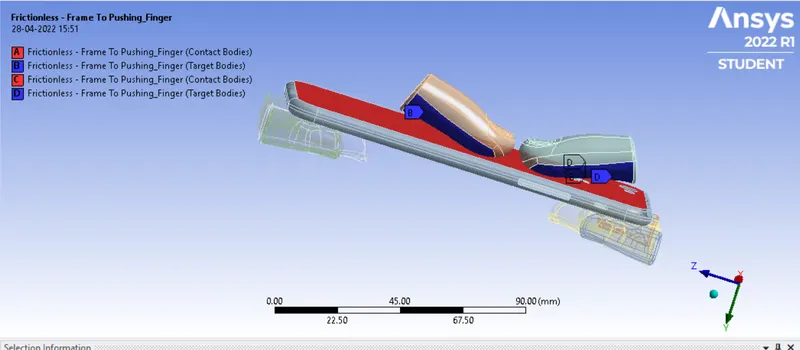

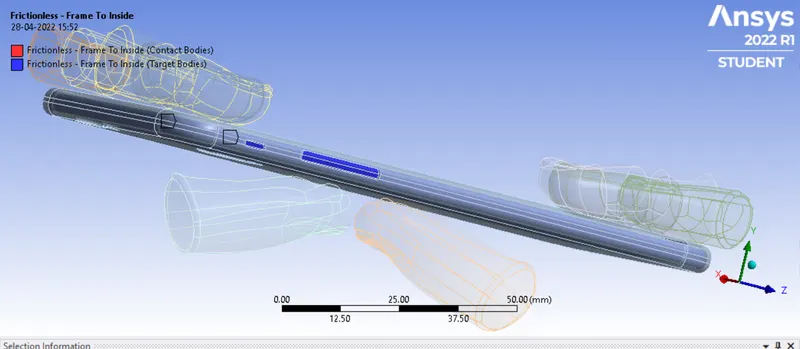

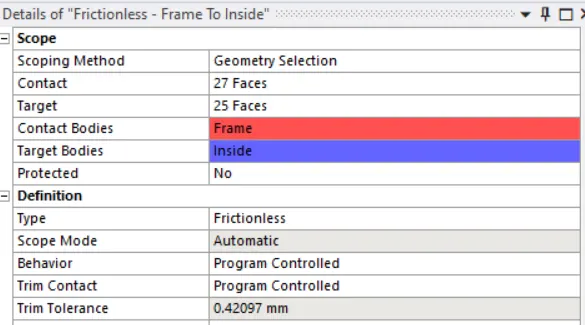

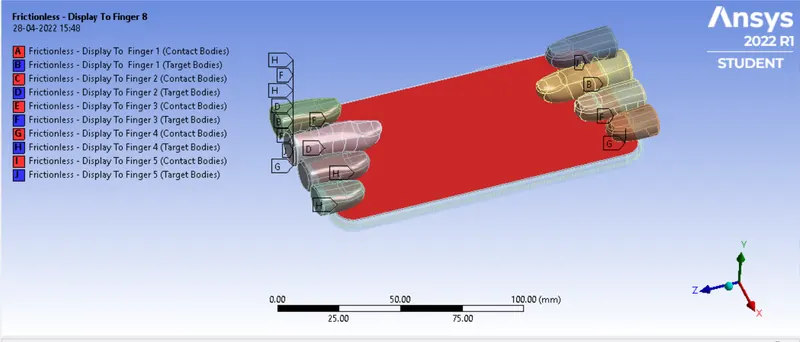

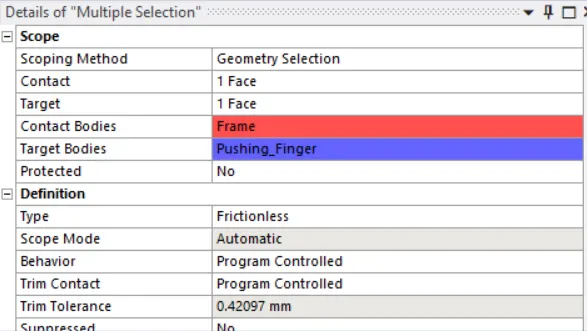

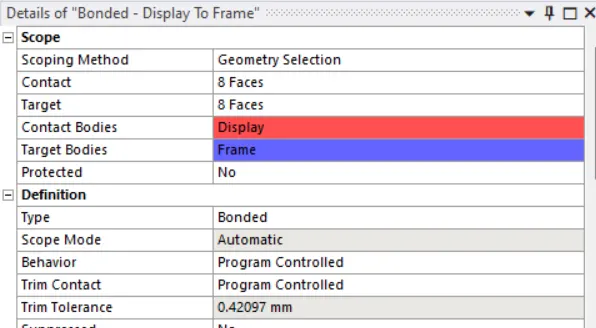

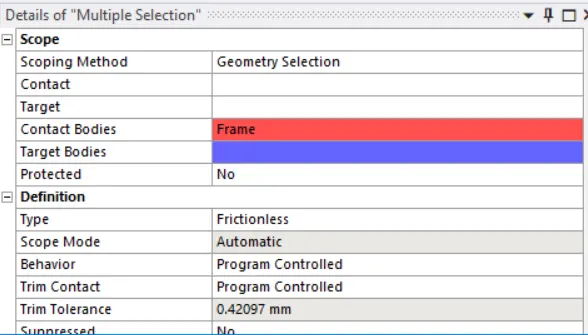

Contacts :

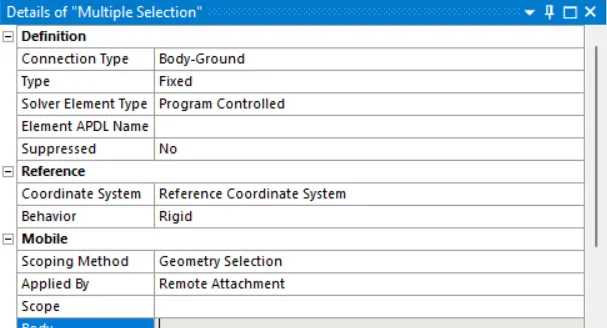

Joint :

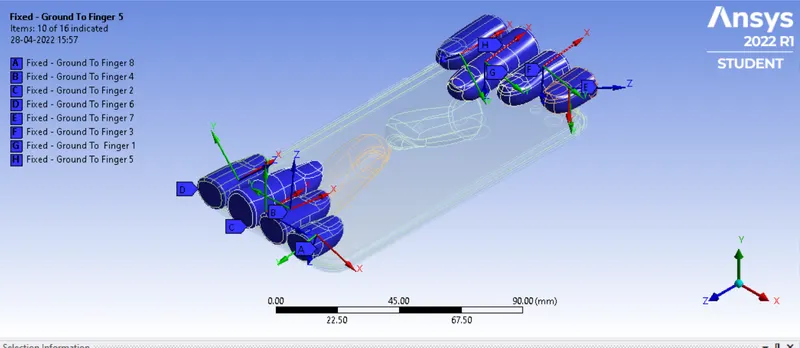

Fixed

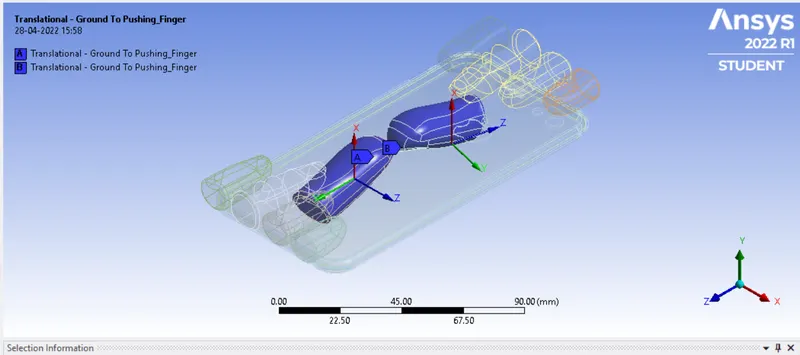

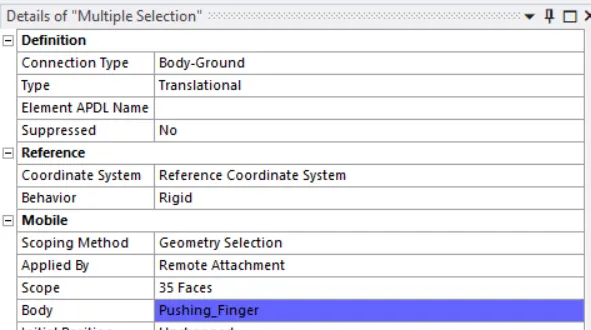

Translational

Meshing :

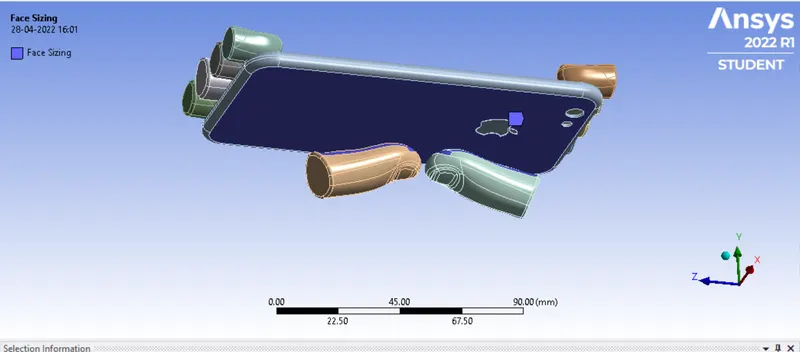

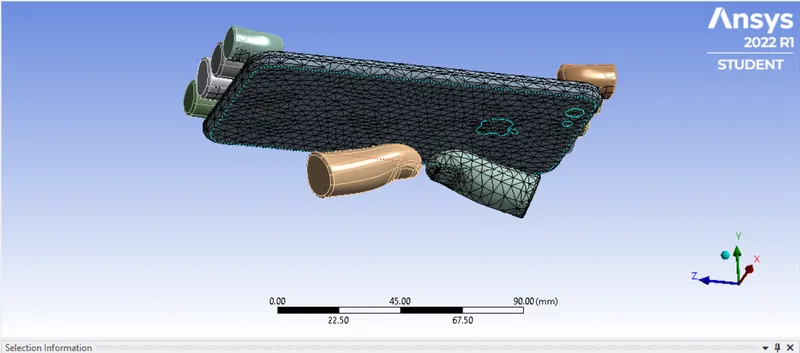

Face sizing

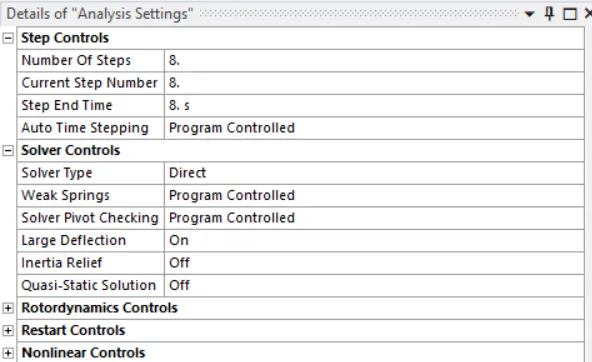

Analysis Setting :

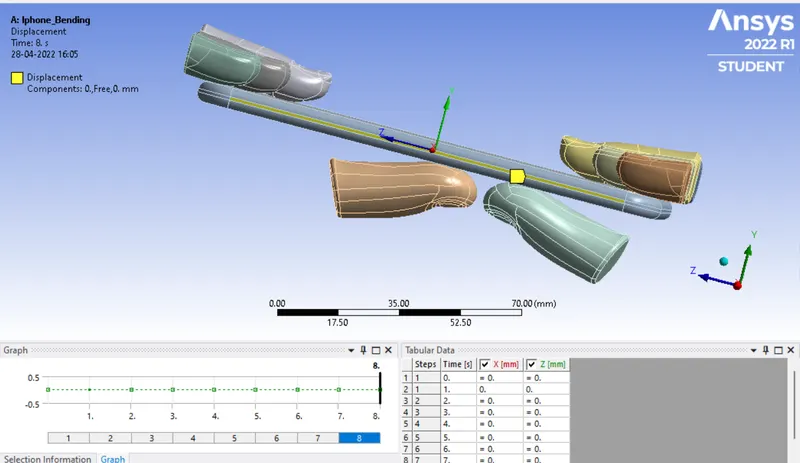

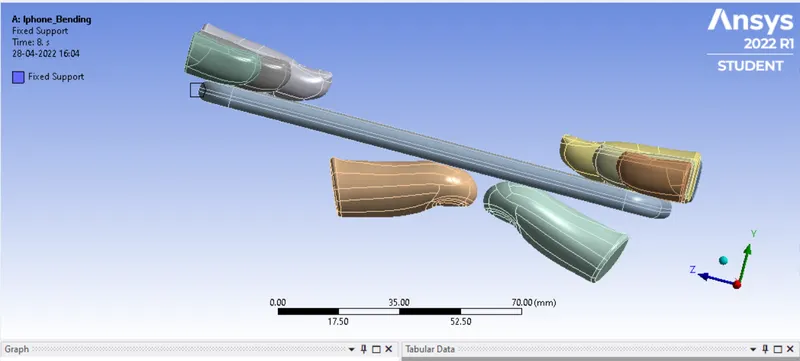

Fixed support

Dispacement

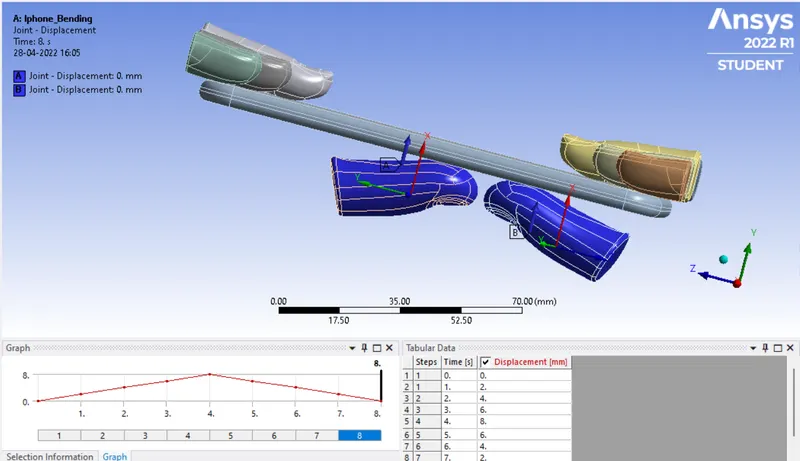

Joint Displacement

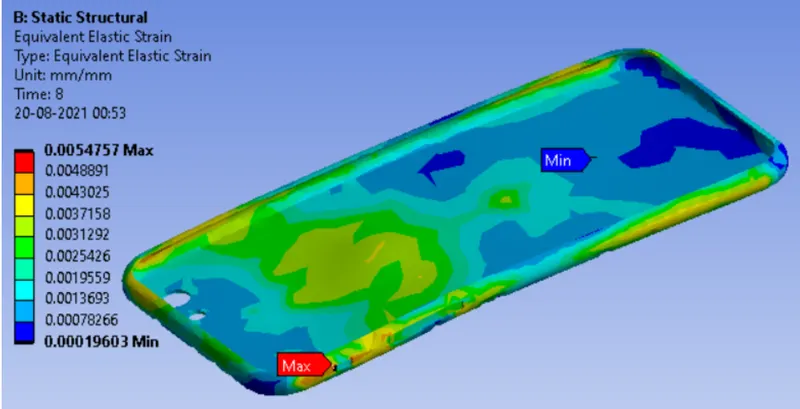

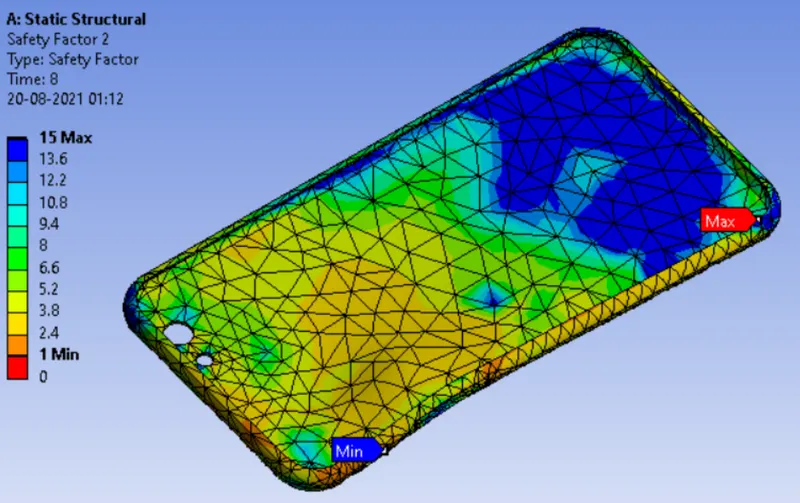

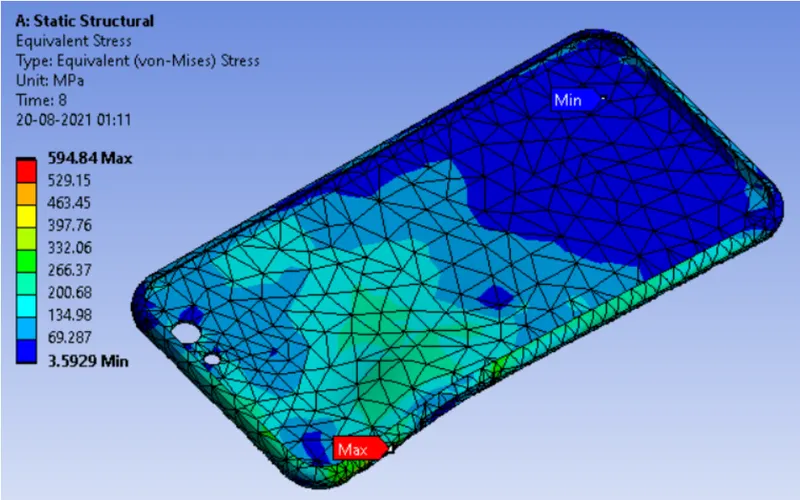

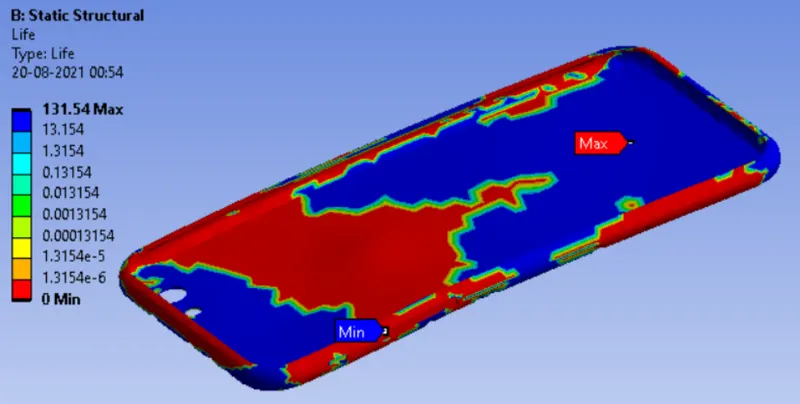

Output :

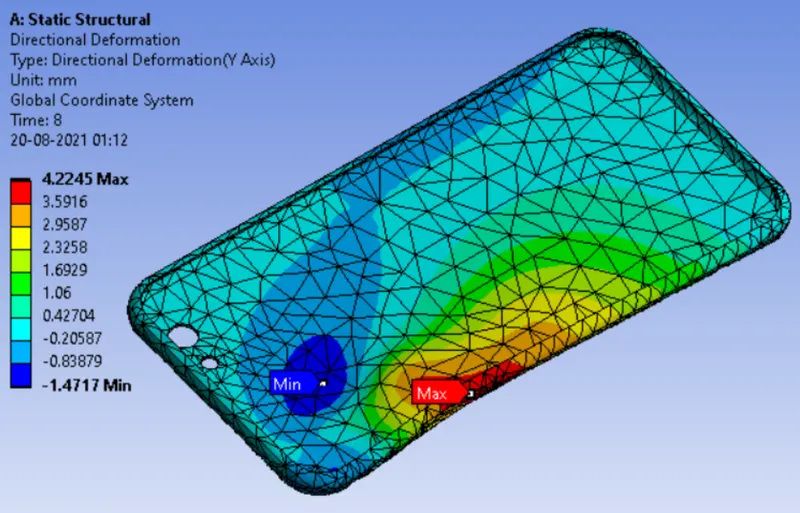

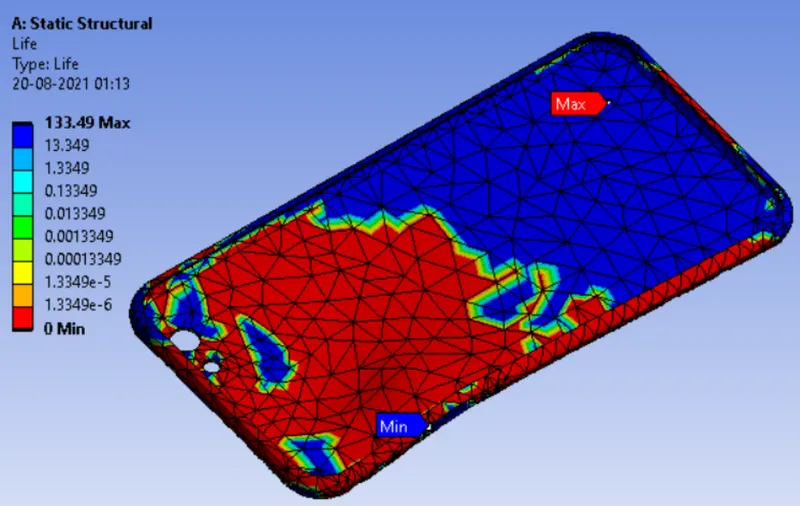

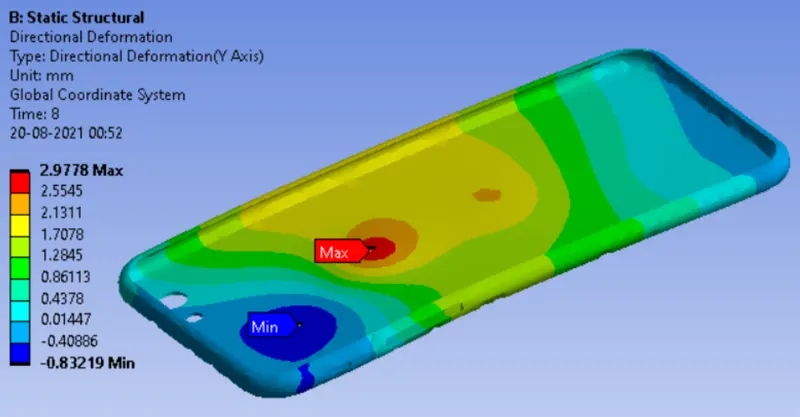

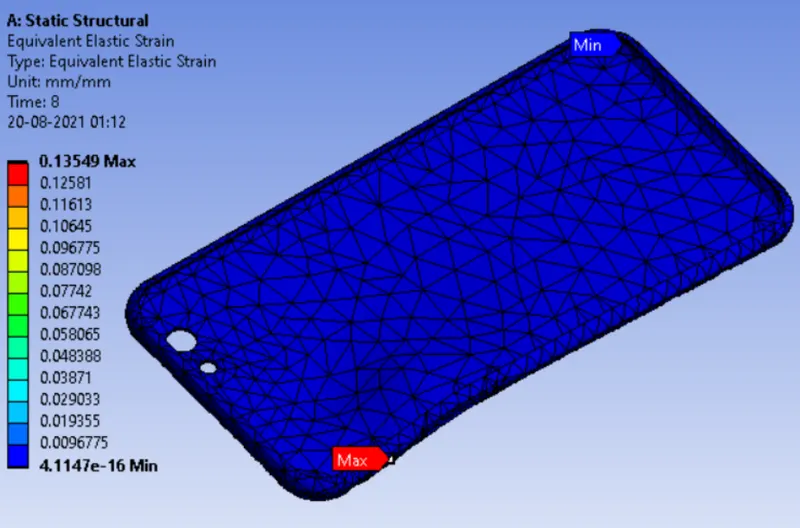

CAse 1:

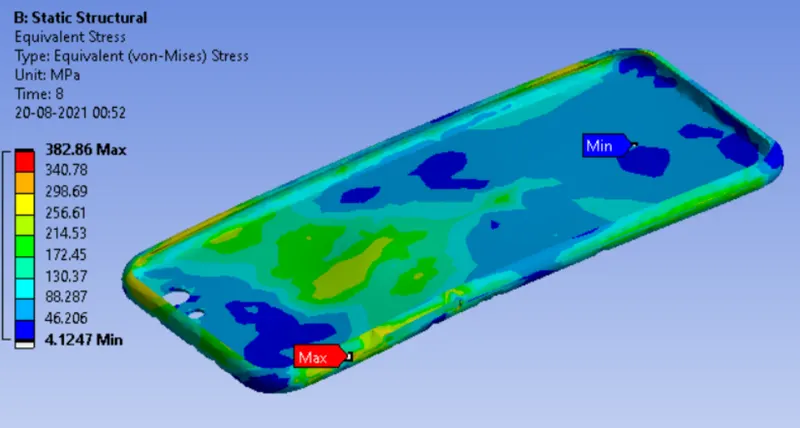

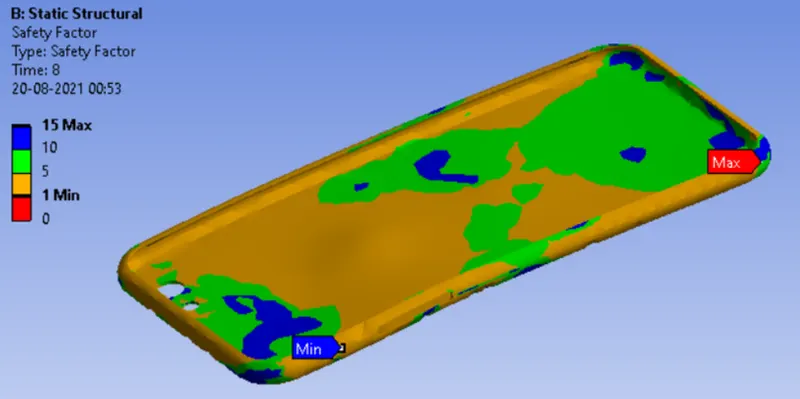

Case 2 :
