Week - 5 - 2D meshing for Plastic components

Aim:To perform 2D mesh for plastic components.

procedure:1)Extract the Geomentry from skill lync.

                2)then perform geomentric clean up

                 3)extract the midsurface of parent geomentry

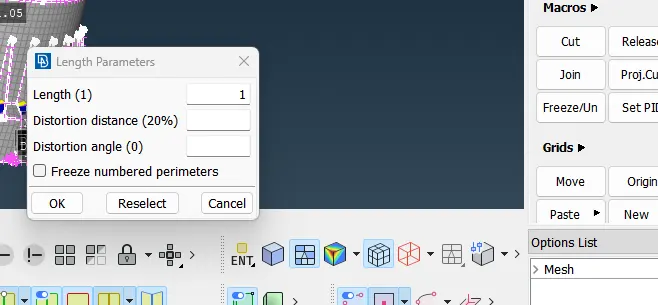

give  target lengeth 1

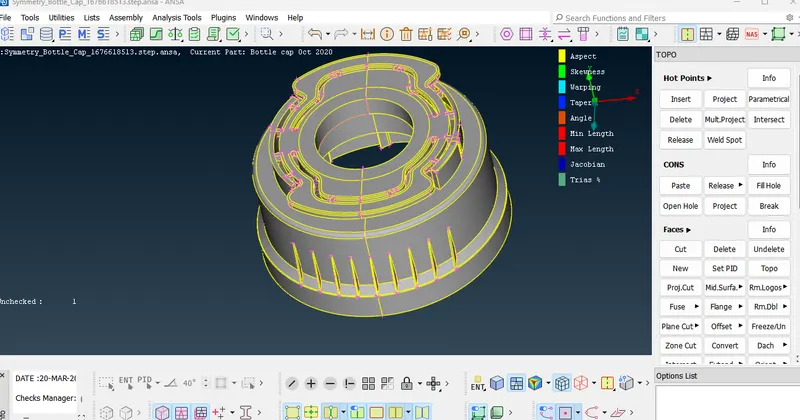

4) from the above parent geomentry extract midsurface by offset,middle methods prasent in faces bar and mostly new for joing the faces.

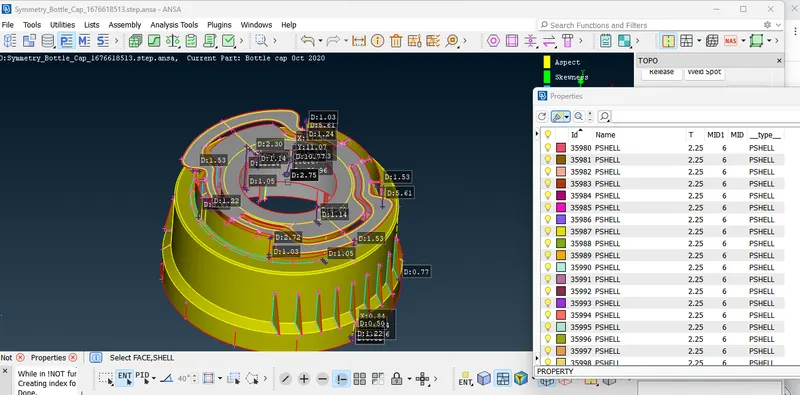

5) after extracting mid surface SET PID

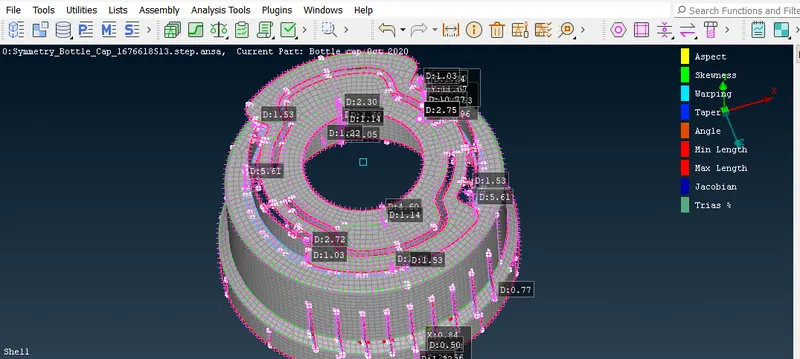

click on classic mesh to generate mesh
