Week 5.2 - Multi Level Meshing

Aim: Aim of this challenge is to show the importace and advantages of multi level meshing. and reduce the cell count from 700k to 200k with better quality elements. and also explain the procedure of multilevel meshing.

Setup:

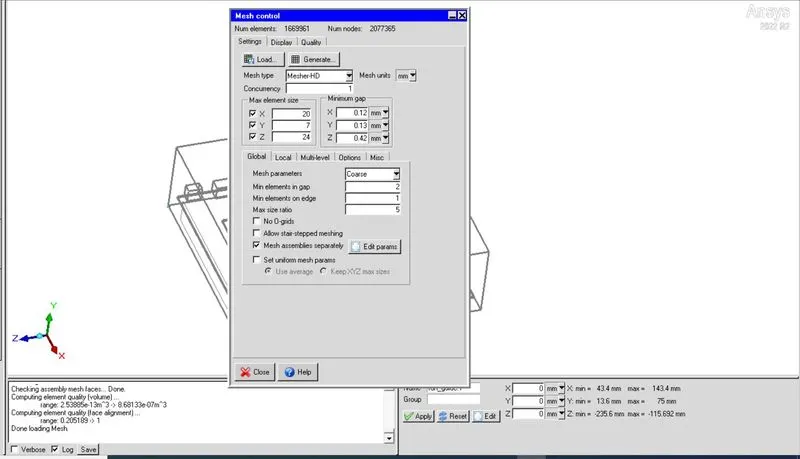

1. Generate the mesh by keeping the default elements.
2. You will observe that 700k + elements were created.
3.

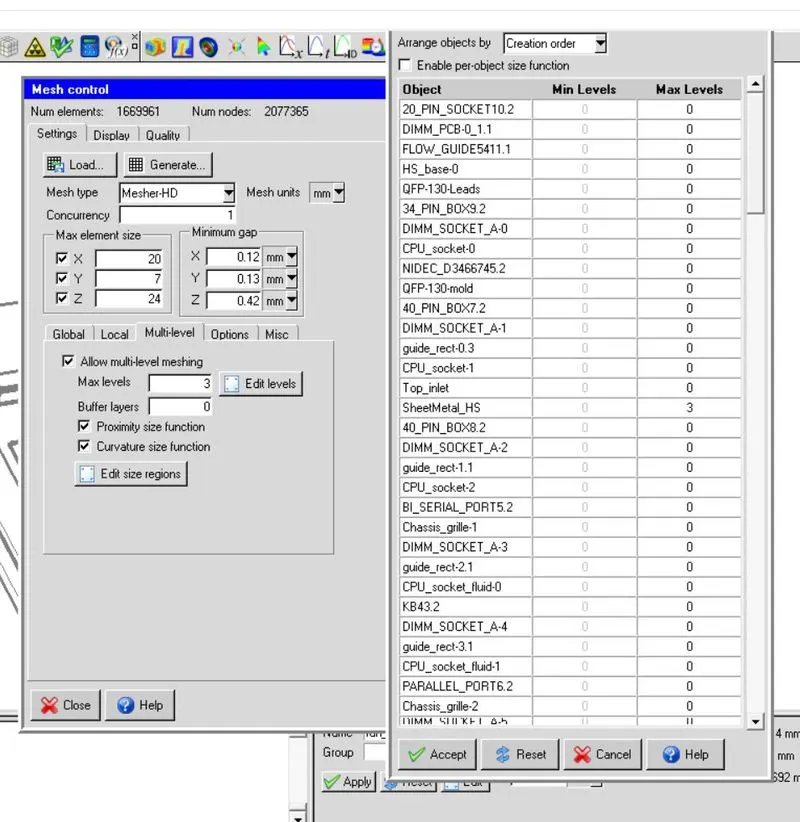

4. Use multilevel meshing for sheet metal and Fan guide curve.
5.

and similarly set Level 3 setup for sheet metal

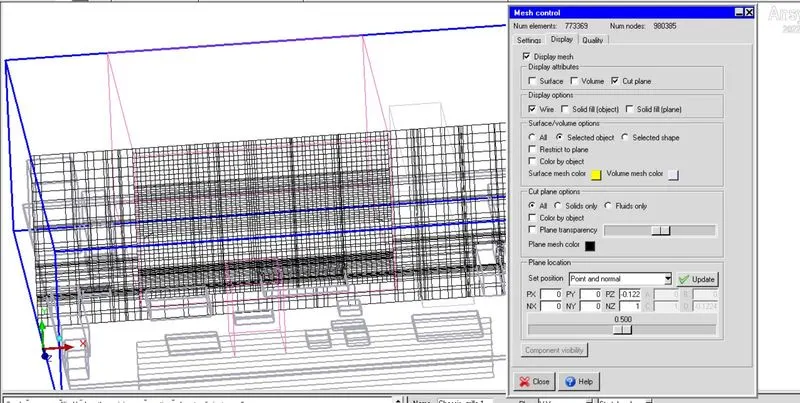

Result: You can see that there is considerable drop in cell count with improved quality.
