Week 5.1 - Non-Conformal Meshing and Solving a Cold plate model

AIM: Create geometry and assign all the operating conditons acoording to the specification given above and generate NC Meshing for the generated CAD. Set up the model and solve the same and explain the plots. also create temperature contours and Vector plots to illustrate the results.

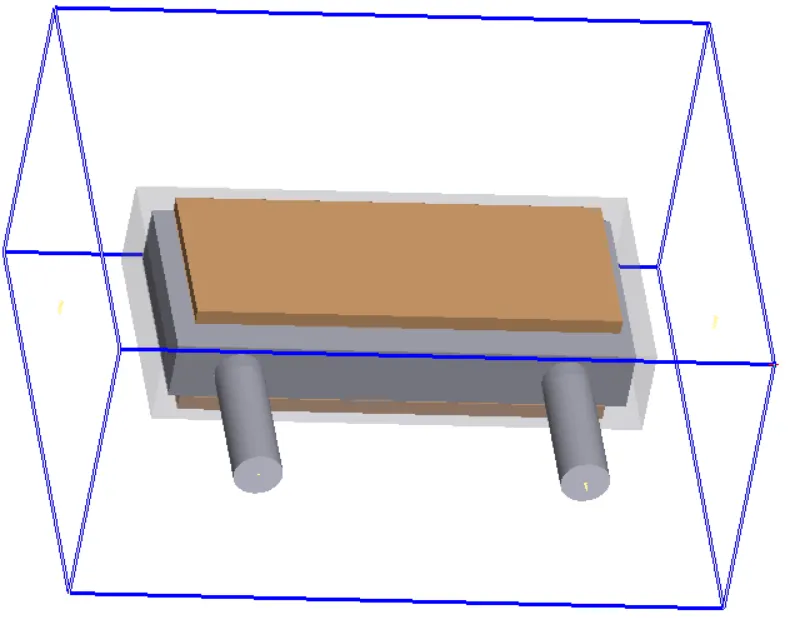

CAD Creation:

• Created geometry according to the dimensions given.
• Used many options such as Copy, Translate to cut down the time.
•

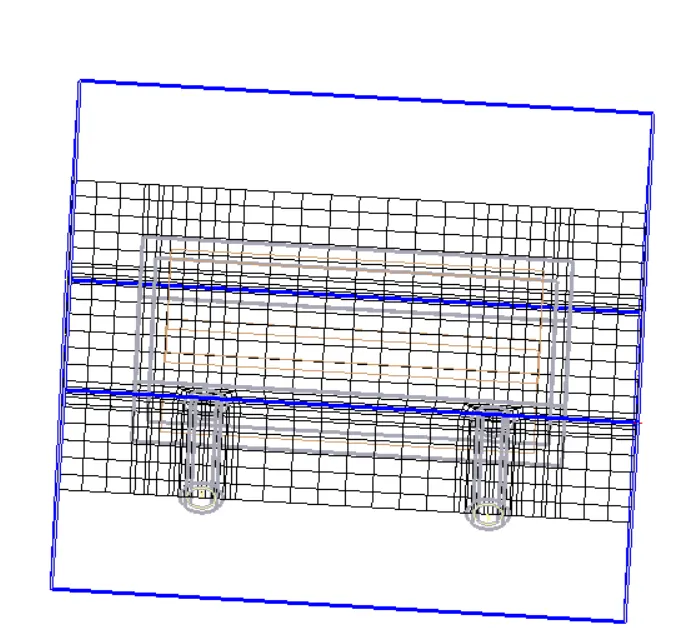

Meshing:NC Meshing

• Generated NC Meshing with appropriate size

Setup

• With the help of Problem setup wizard the set the problem.
• solved for 600 iterations
•

Post Processing:

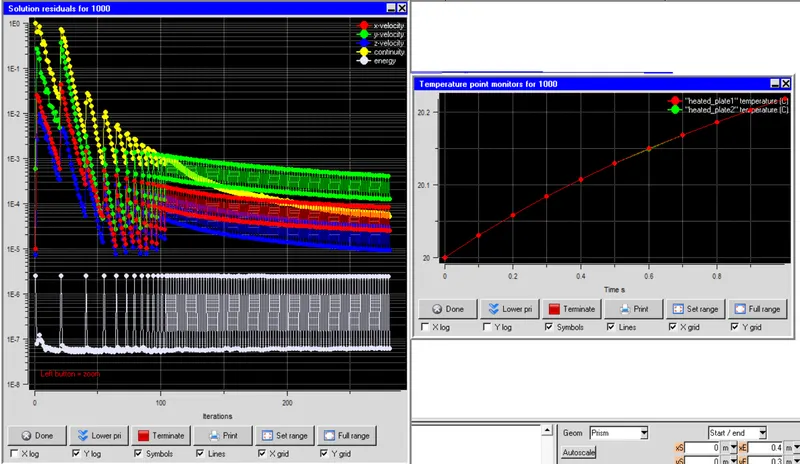

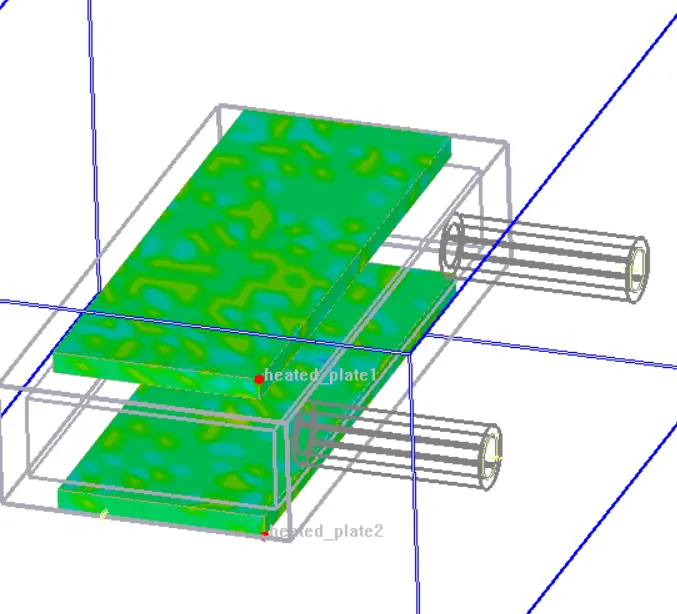

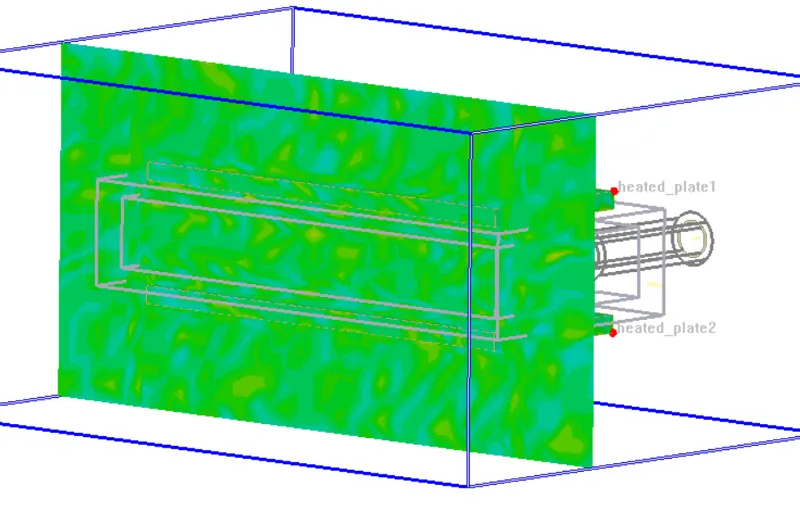

• Temperature monitoring plots and contours are attached below
•

NOTE: Solved file is attached below
