Week 5.2 - Multi Level Meshing

Aim --> Multi-Level Meshing

1. Problem Description:

The Icepak model is given for this assignment. Open and unpack the given hanging_node.tzr model.

Without any modifications, the model results in about 700,000 elements. Note that this mesh count results from using the non-conformal meshing technique, which reduces mesh bleeding and mesh count. However, this mesh does not fully resolve the fine-level geometric features of the CAD objects. Using the multi-level meshing technique, you can reduce the mesh count and improve the mesh resolution on and around the CAD objects. This procedure starts with a coarse background mesh and resolves fine-level features through a series of successive mesh refinements. By using multi-level meshing and the uniform mesh parameters feature, you can reduce the mesh count to approximately 500,000 elements and improve mesh resolution.

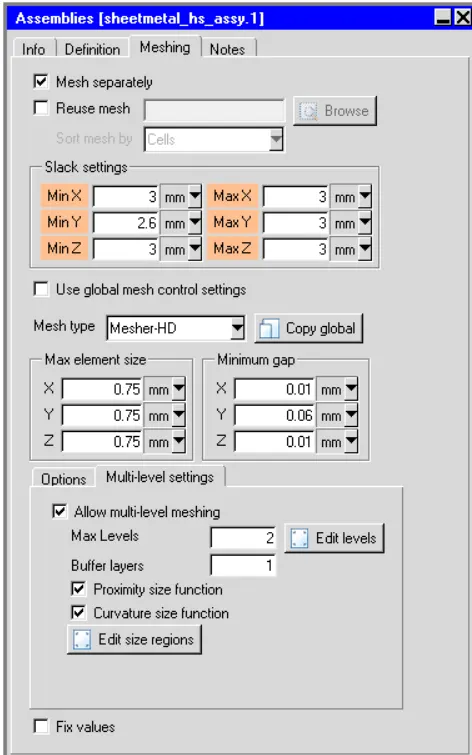

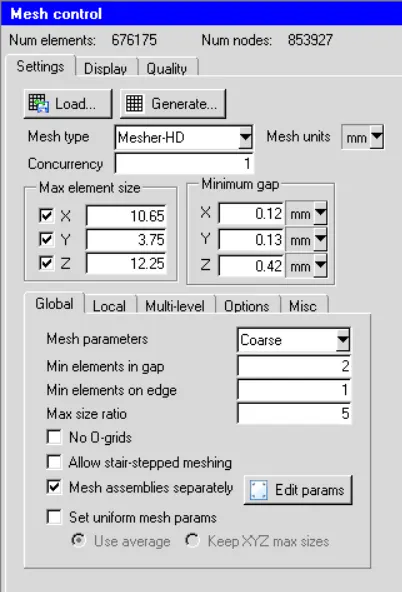

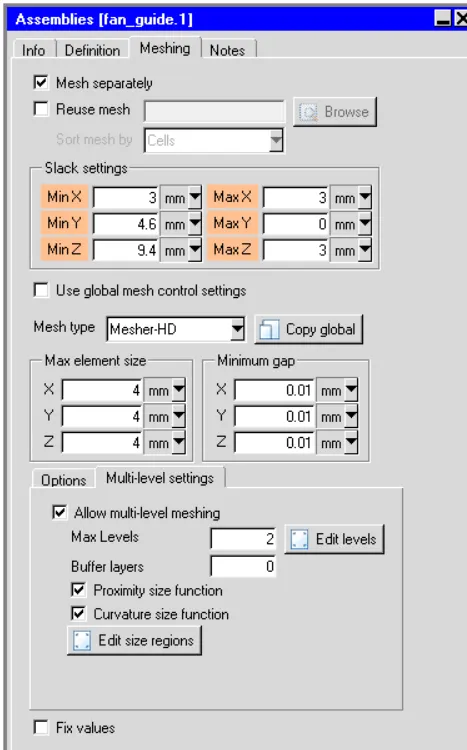

Setup of the mesh

Mesh (elements 675000)

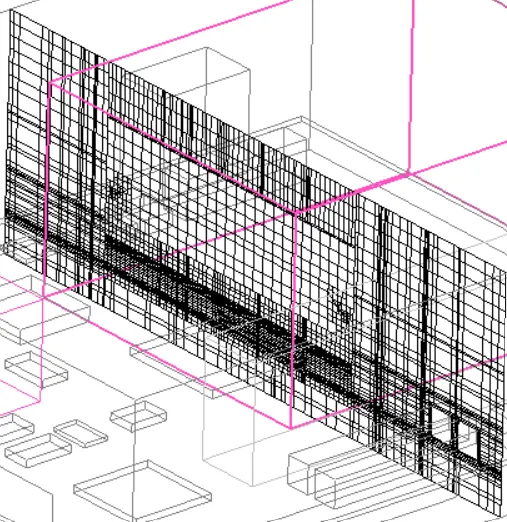

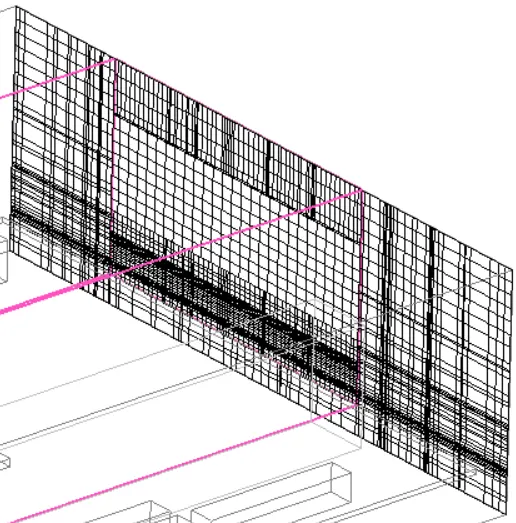

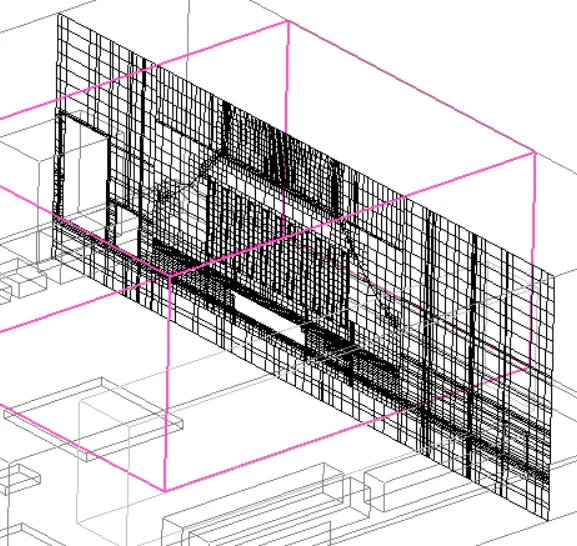

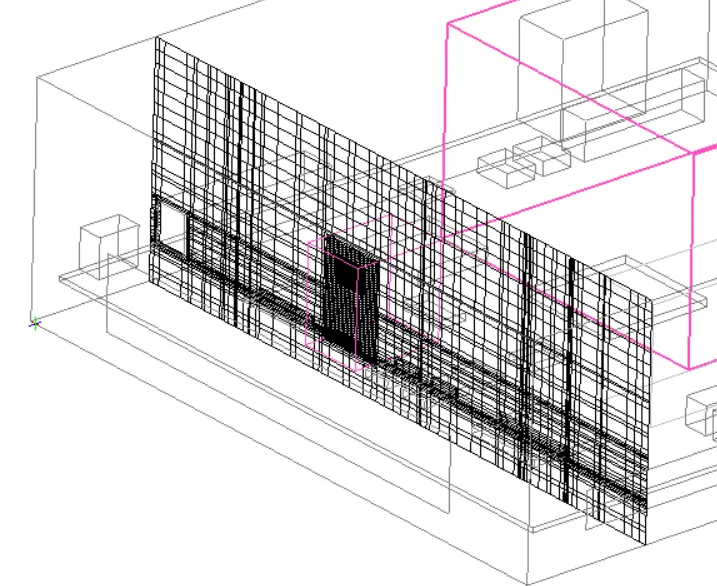

(cut plane mesh)

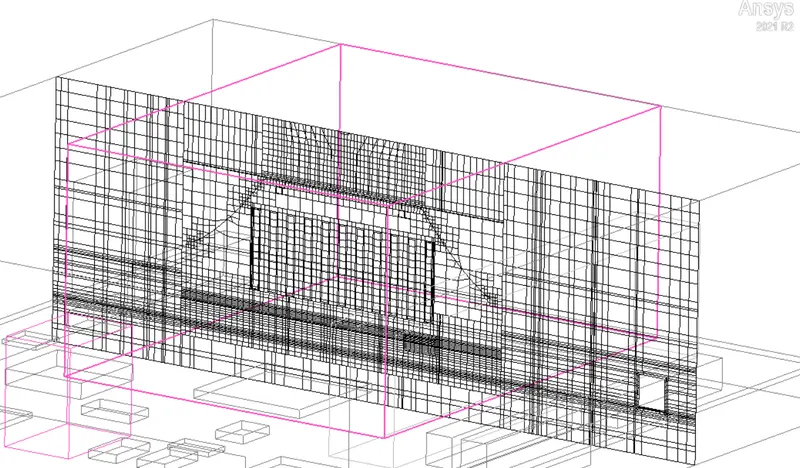

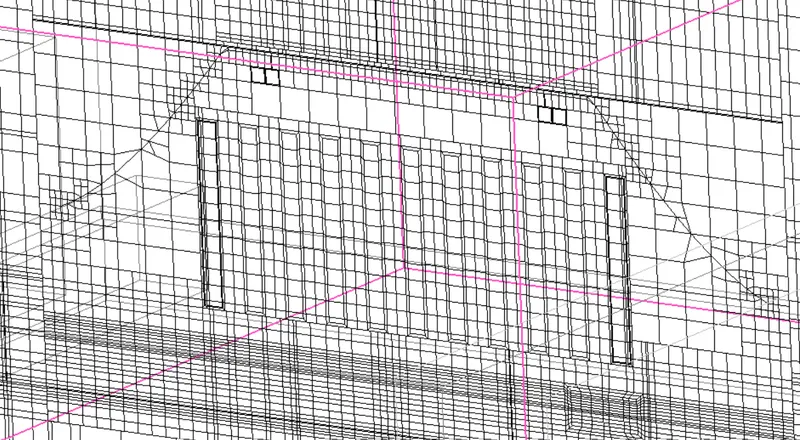

close-up of Multi-level meshing (levels of mesh refinement) (2 levels used)

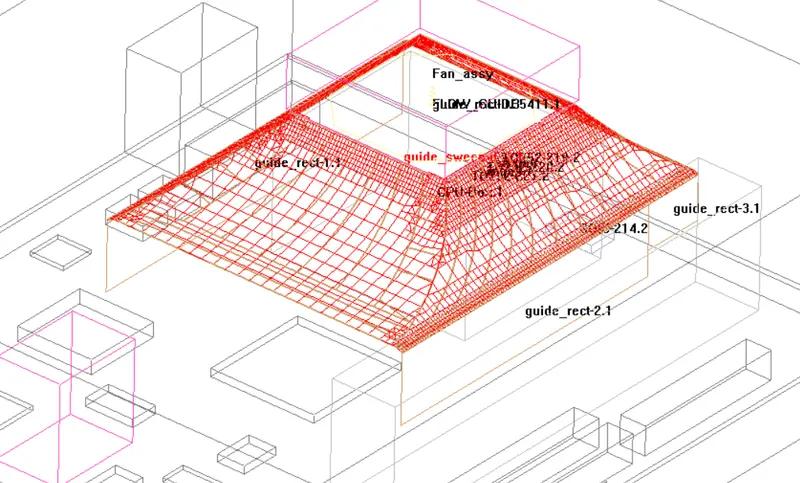

Surface mesh (fan guide)

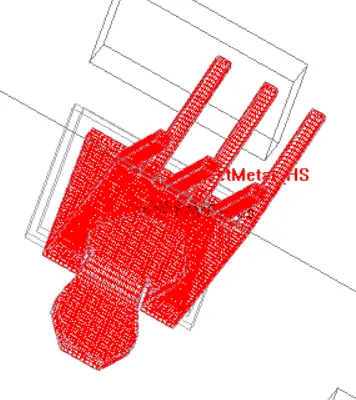

Surface mesh (sheet-metal)
