Week 5.1 - Non-Conformal Meshing and Solving a Cold plate model

Aim --> Non-Conformal Meshing and Solving a Cold plate model.

In this challenge, 2 heated plates are getting cooled by water circulating inside the cold plate cavity and also by air externally by natural convection.

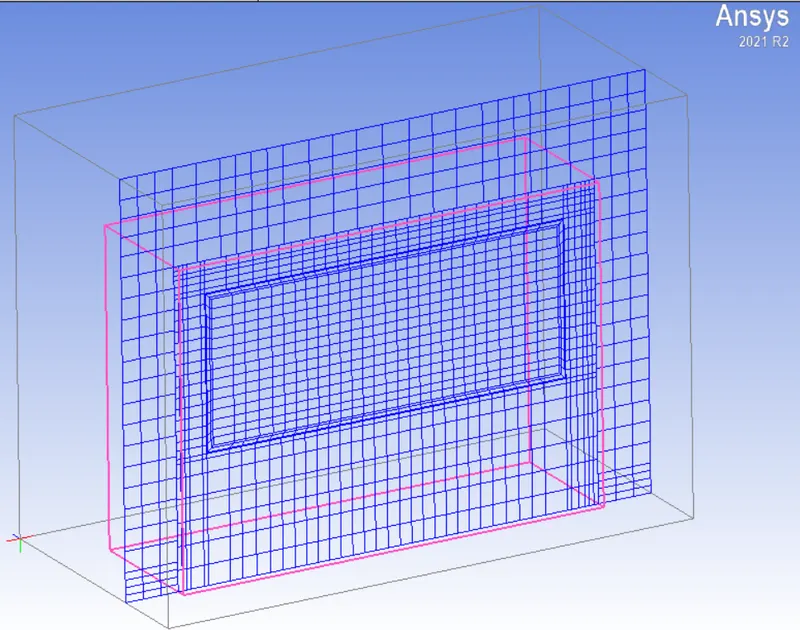

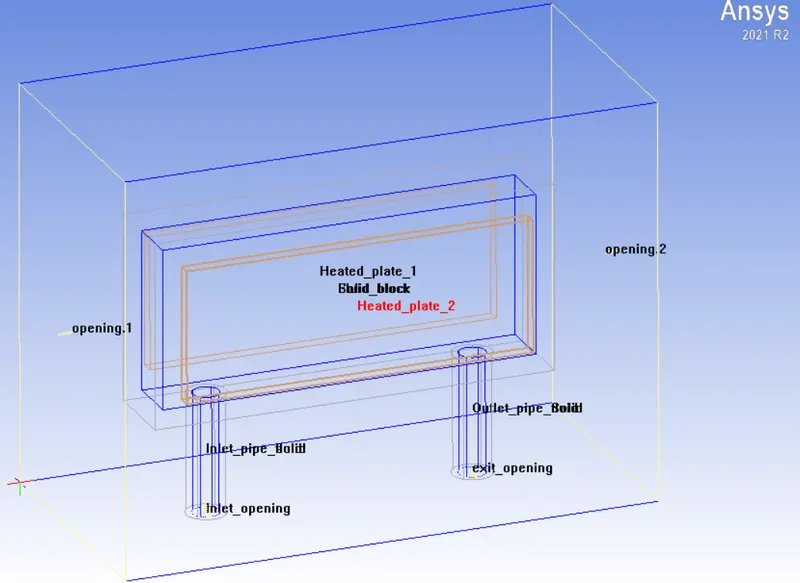

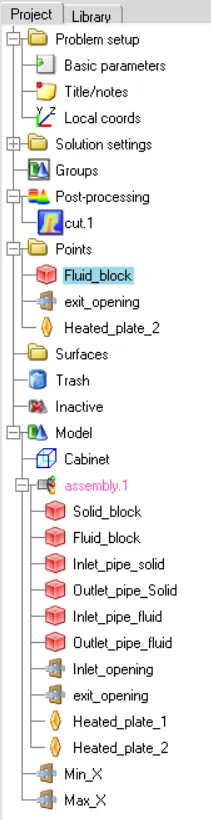

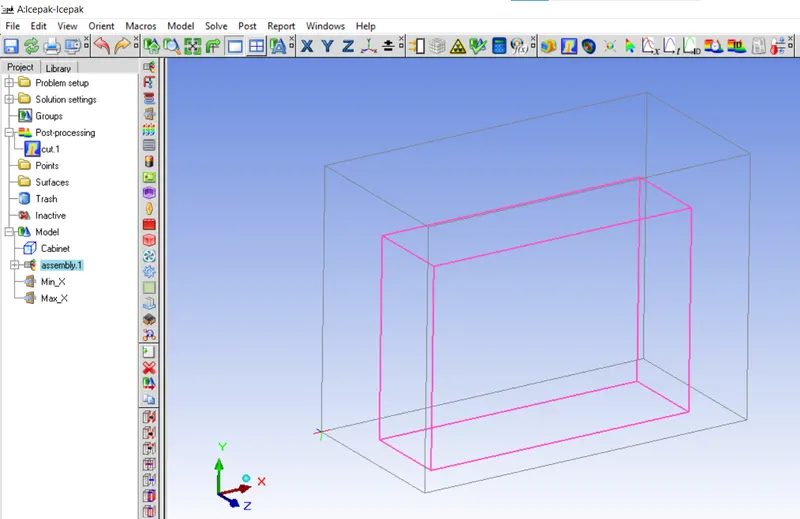

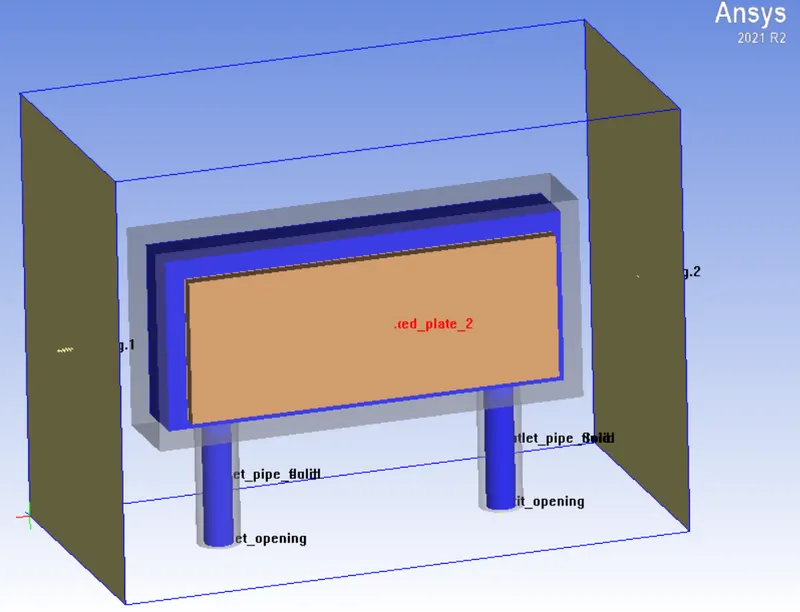

Creating Assembly

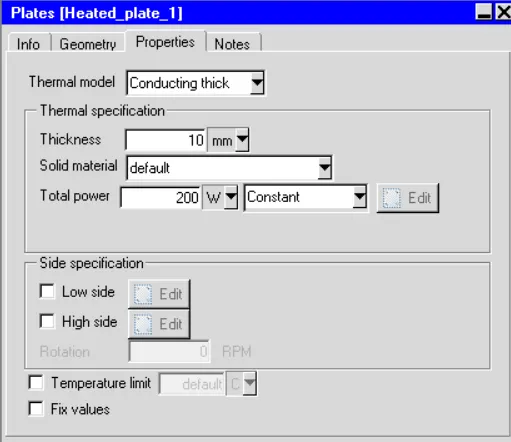

• plates

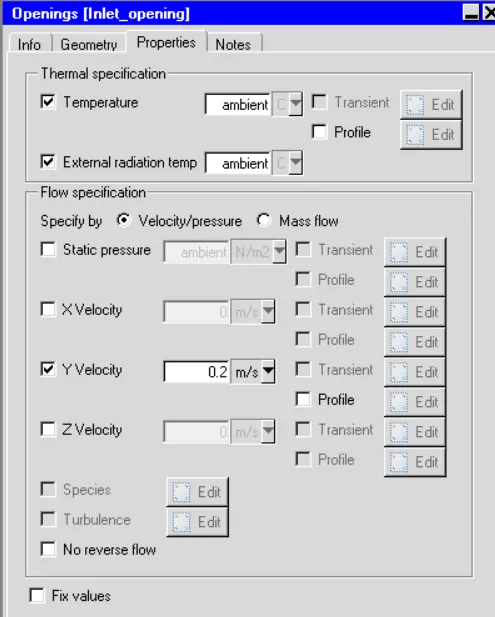

• Openings

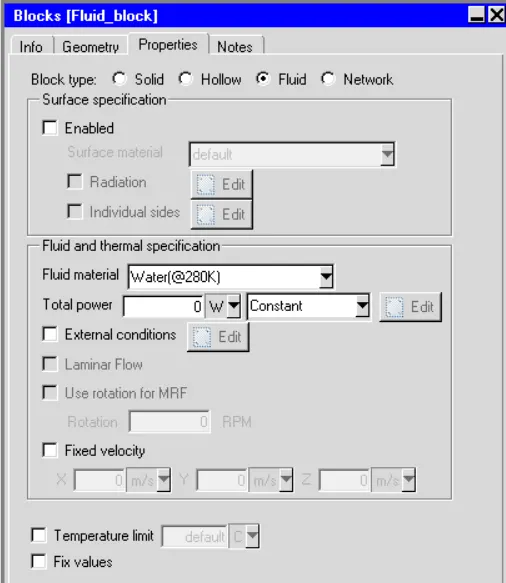

• Fluid block

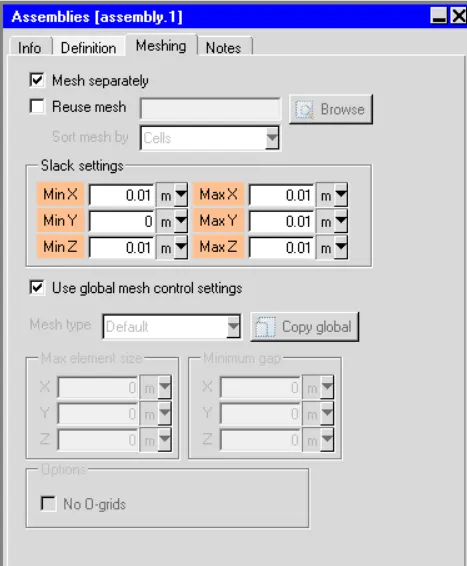

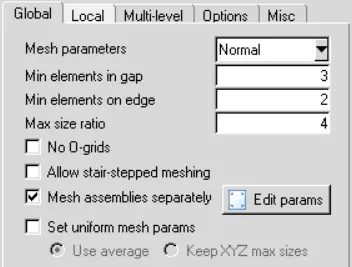

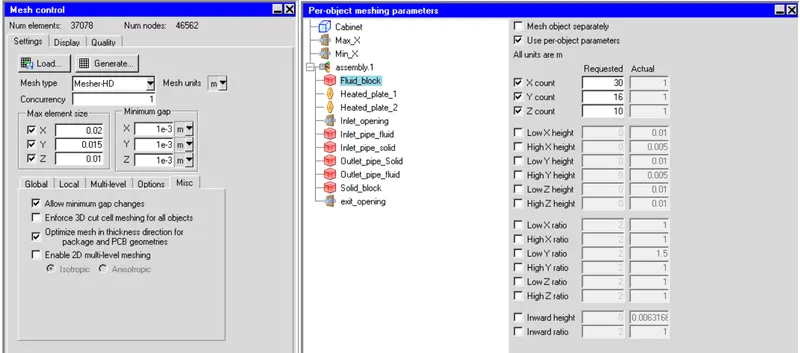

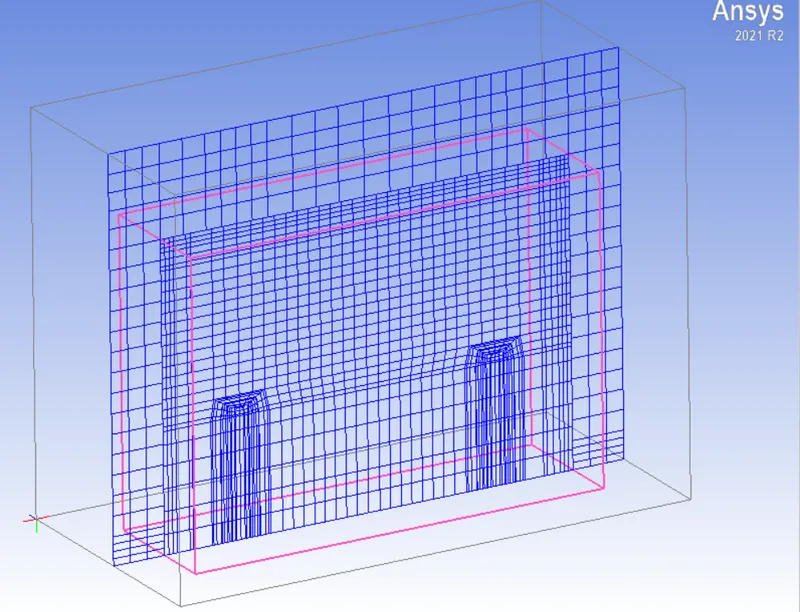

• Mesh settings

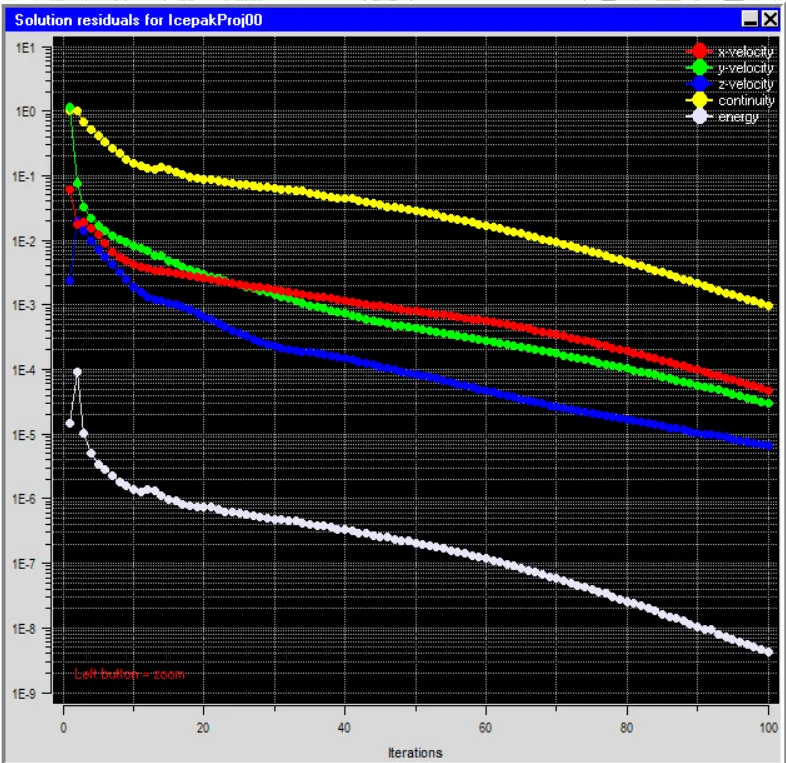

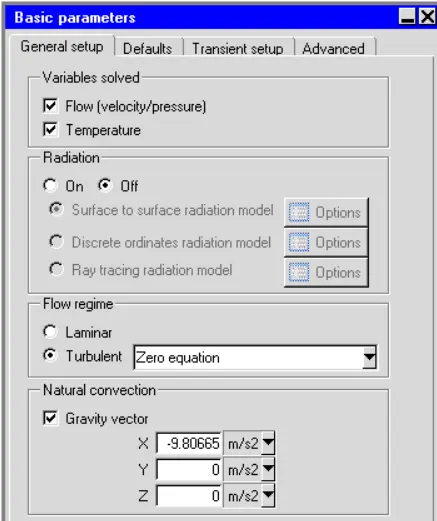

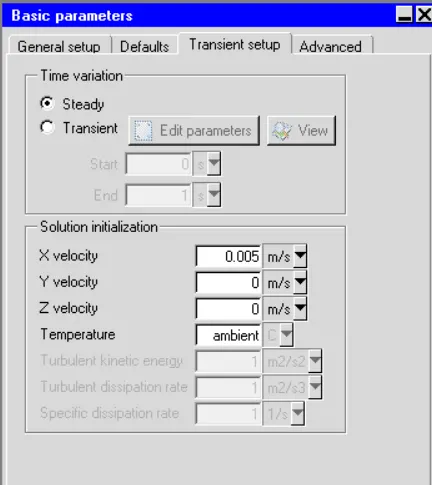

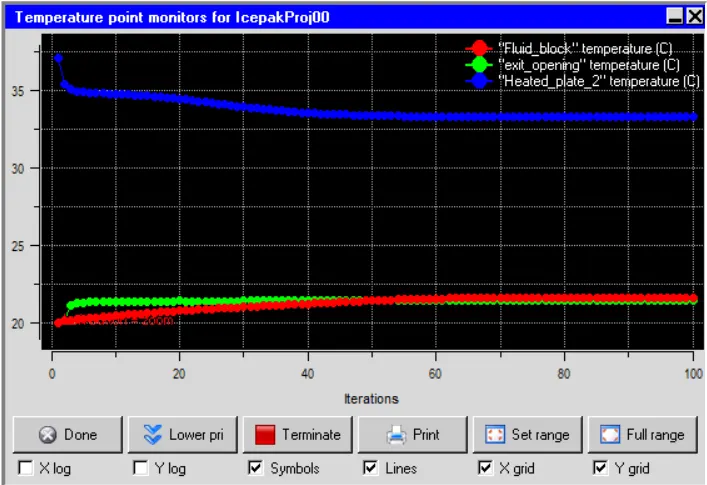

• Solver parameters (Basic and advanced parameters)

• Post-processing

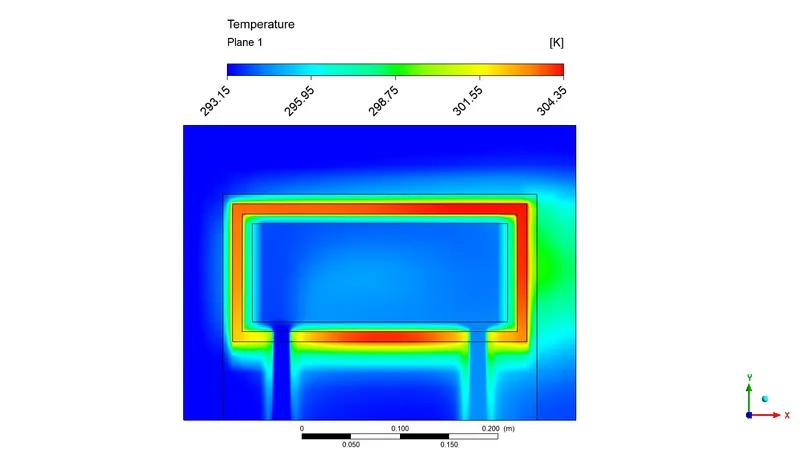

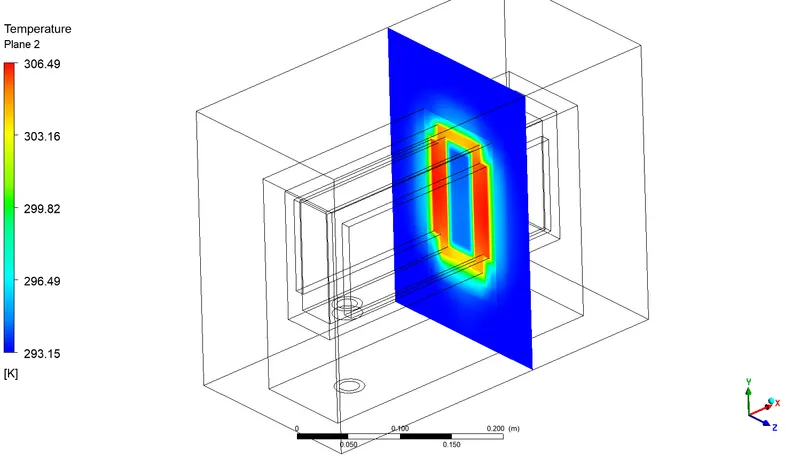

Temperature Contour

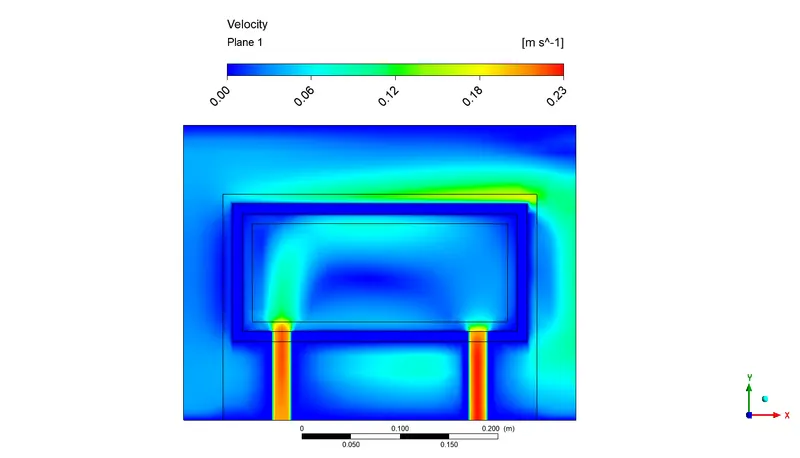

Velocity Contour
