Week-4 Challenge WOT Condition Part-2

1. I a take reference application projects assembled from blocks and subsystems. hybrid vechicle system

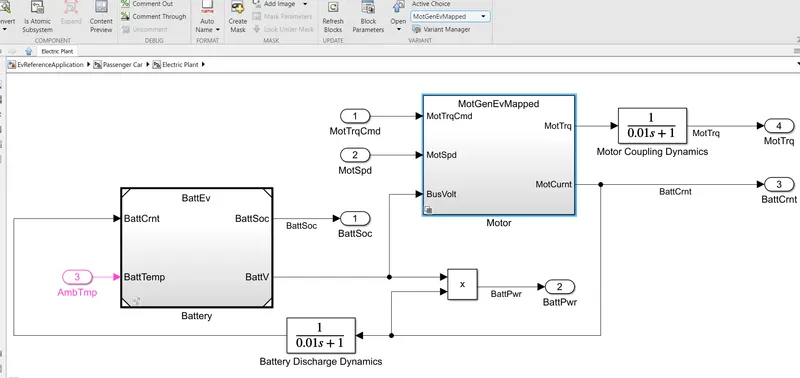

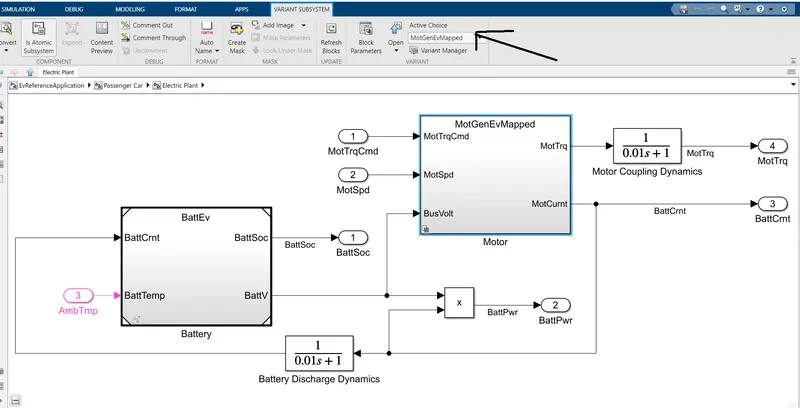

i go to the passser car blockset click then came on the electical panel and just click it varant system the came action choices then chanage the modle type

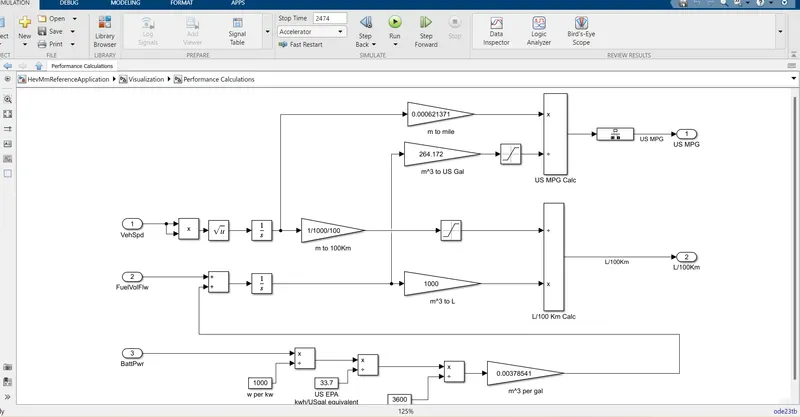

2) Model calculation mile per

battery pwr add produced 1000kw divded get the produced the value US EPA 3.37 divide the produced value 3600

the gain M^3 per gal go to fulevolflue add electrical value ingrated the go the M^2 us gal

3 .

3)

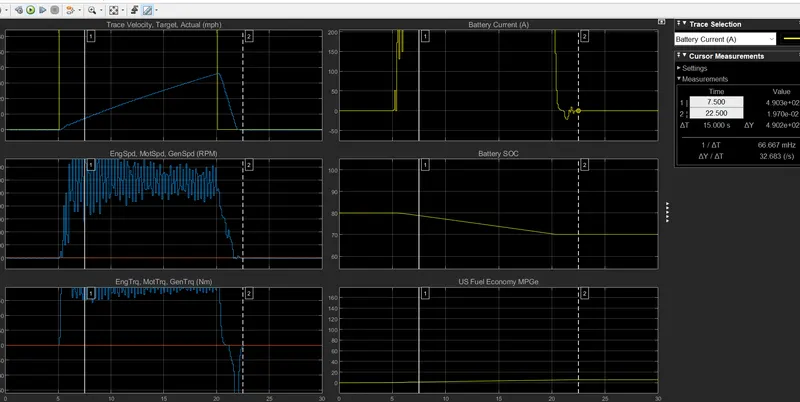

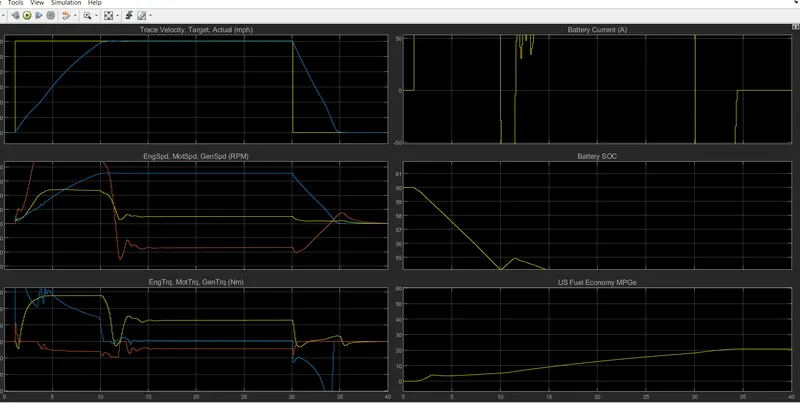

3) HEV Rerences application with WOT drive cycle change the grade and the velocity in the environment

envoirnment Blockset click it

grade changed 0 to 3 and 0 to 60

wind speed increase velocity decrease and motor RPM increase battery Amps rated also increase

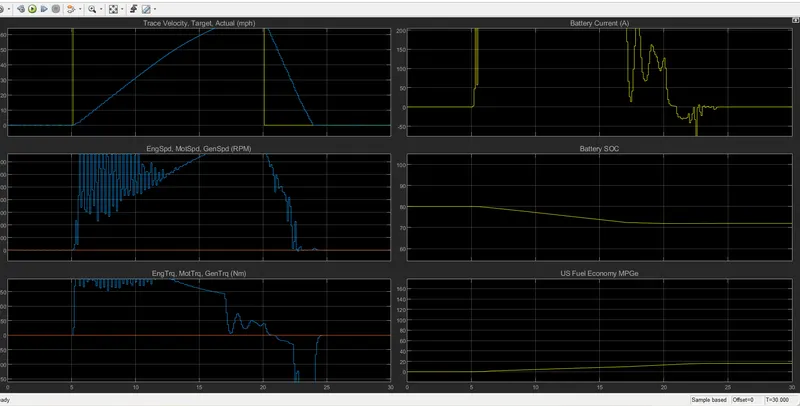

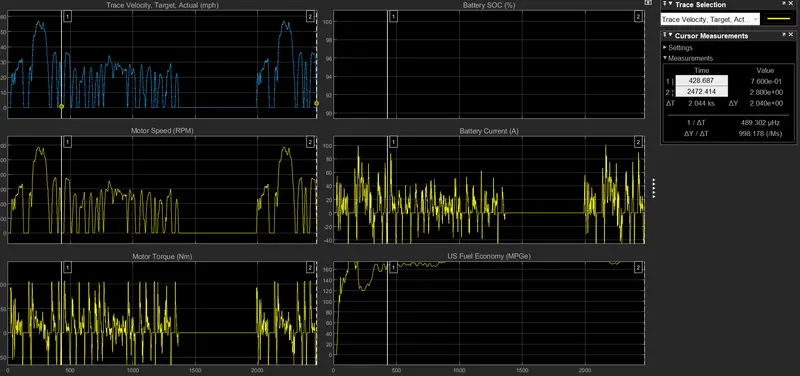

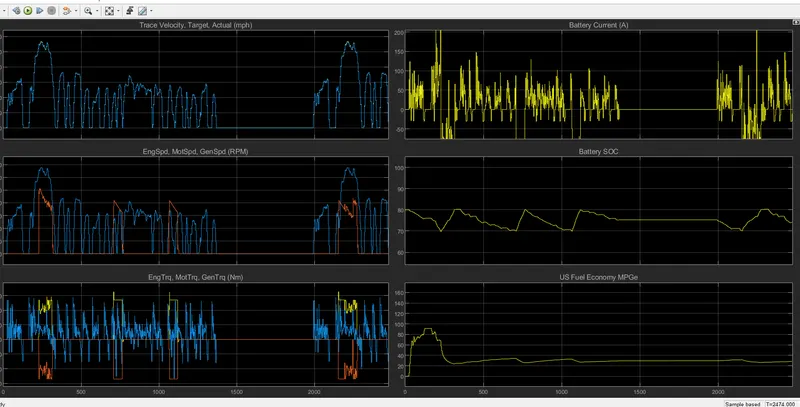

4) simulation Result for hybrid the pure power tarin
