Week 4 Challenge

Tooling direction- The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

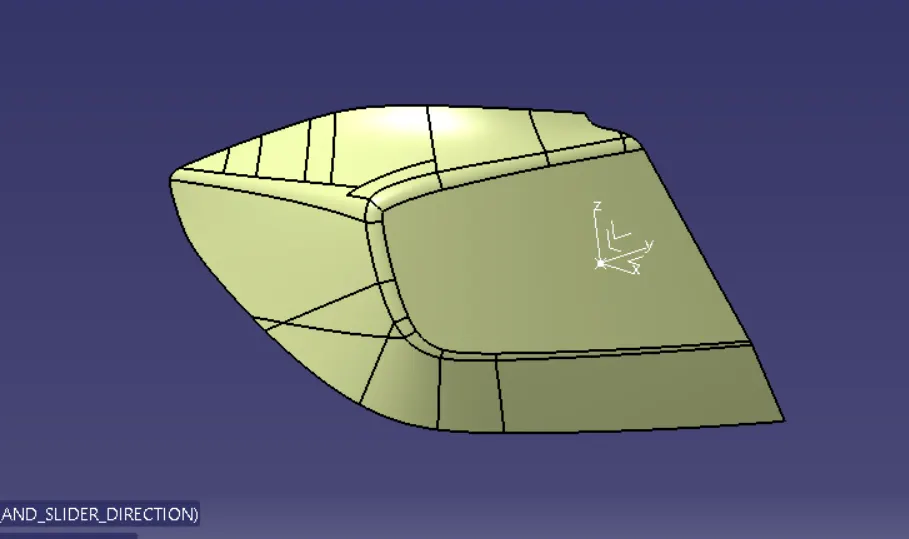

Approach to Create Tooling Axis - Take a Point on the surface

Create an Axis System

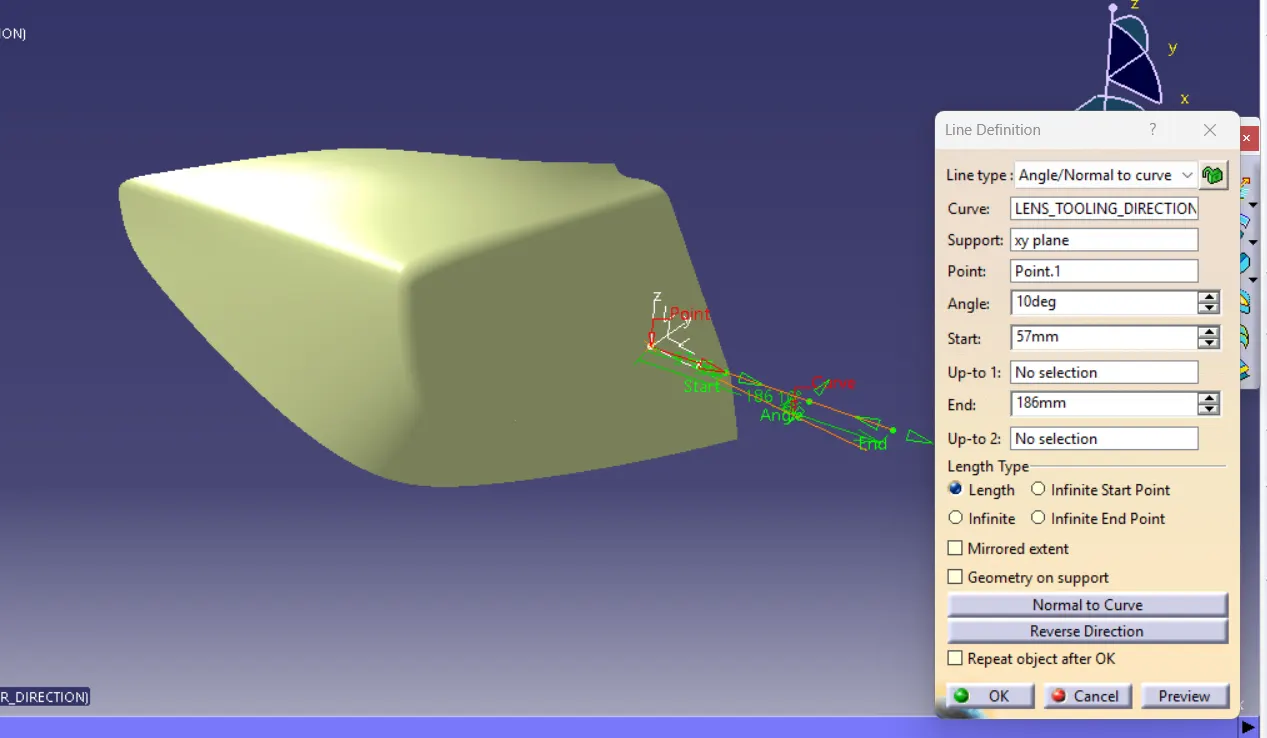

Create a Line using Point and Direction method.

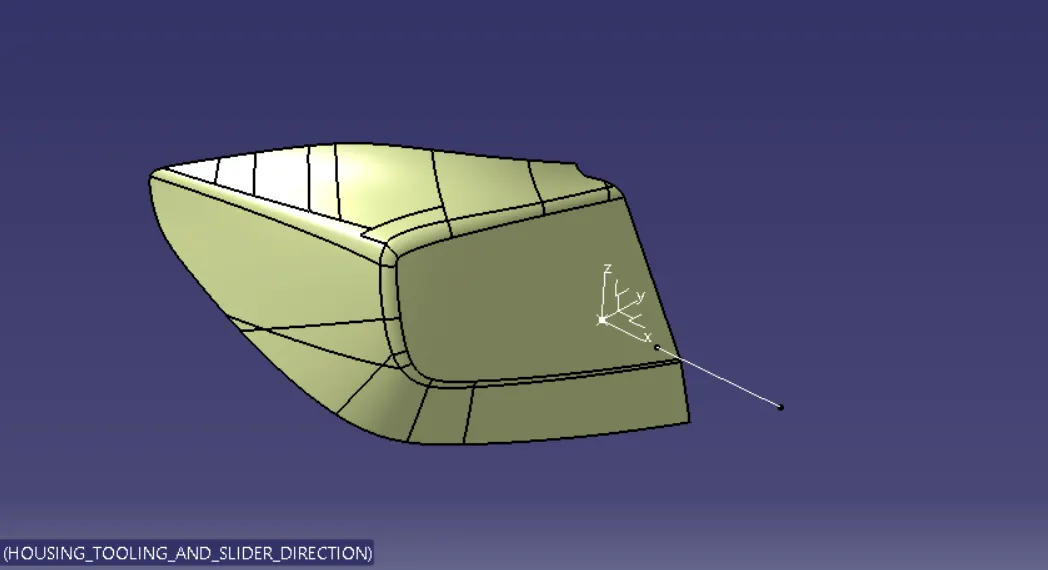

Tooling direction for Class A with 10 deg draft

Approach to Create B surface

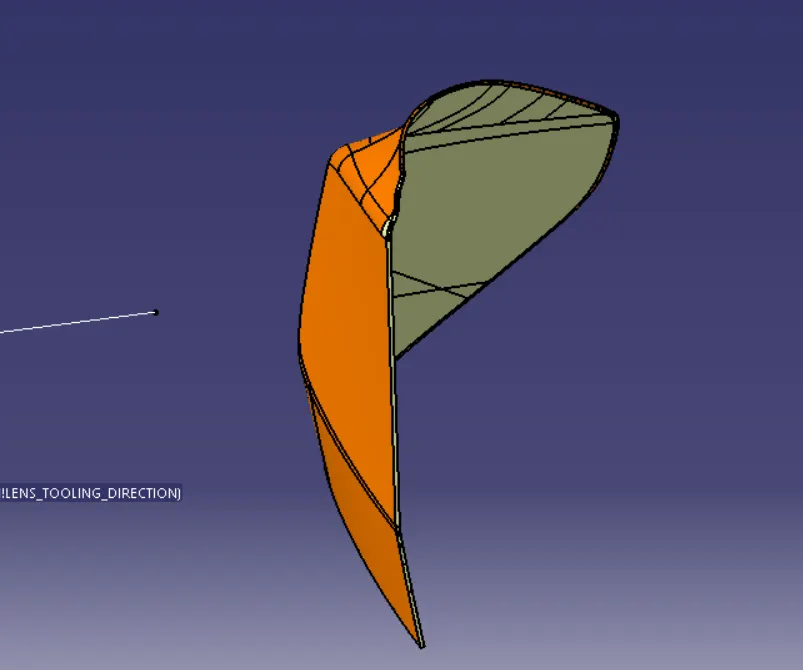

Take an offset of B-surface with 4mm offset value.

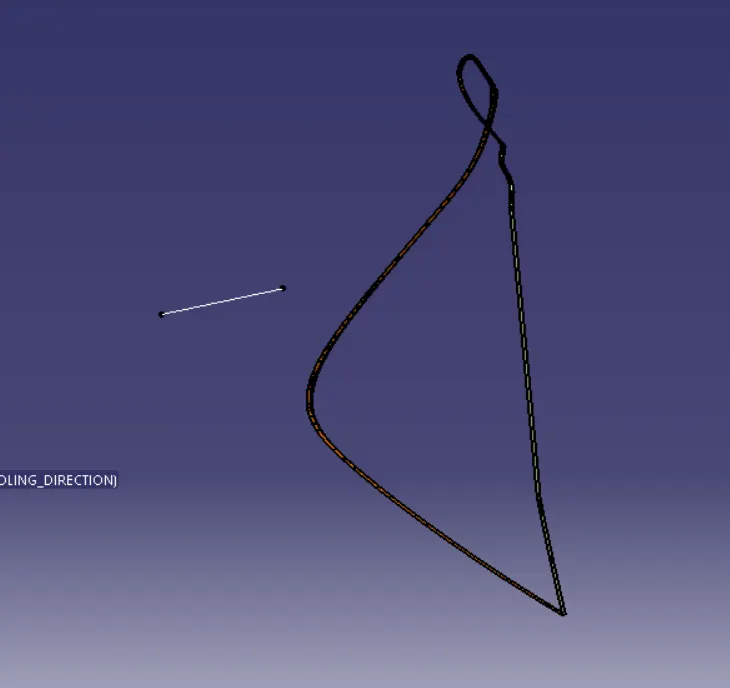

B surface Join

Approach to Create C Surface

• Sweep the boundry of Class A surface to create Class C surface
