Week - 4

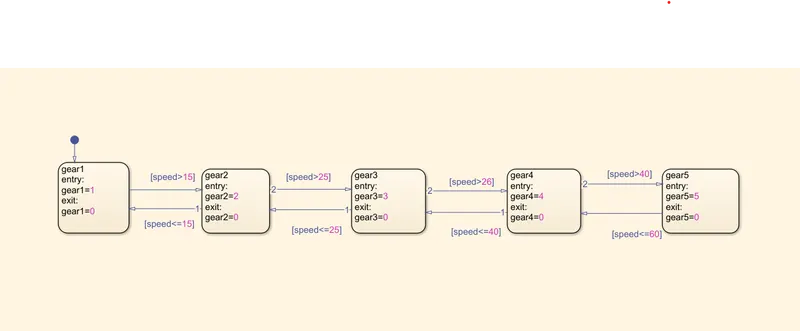

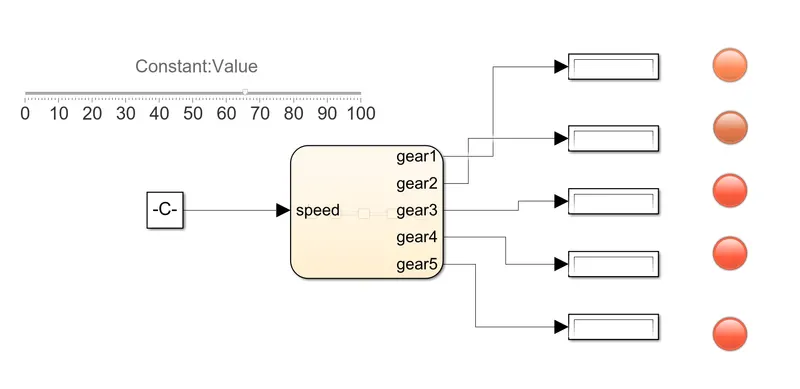

gear-01
the gear the speed limit of 0-15 the speed range from 0km to 15km the driving gear will be the first gear.

gear-02
the gear the speed limit of 16-25 the speed range from 16km to 25km the driving gear will be the second gear. when the speed is reduced below 16km it will automatically change from gear 02 to gear 01.

gear-03
the gear the speed limit of 25-40 the speed range from 25km to 40km the driving gear will be the third gear. when the speed is reduced below 25km it will automatically change from gear 03 to gear 02.

gear-04
the gear the speed limit of the speed range from 40km to 60km the driving gear will be the fourth gear. when the speed is reduced below 40km it will automatically change from gear 04 to gear 03.

gear-05
the gear the speed limit of the speed range goes above 60km,the driving gear will be the fourth gear. when the speed is reduced below 60km it will automatically change from gear 05 to gear 04.

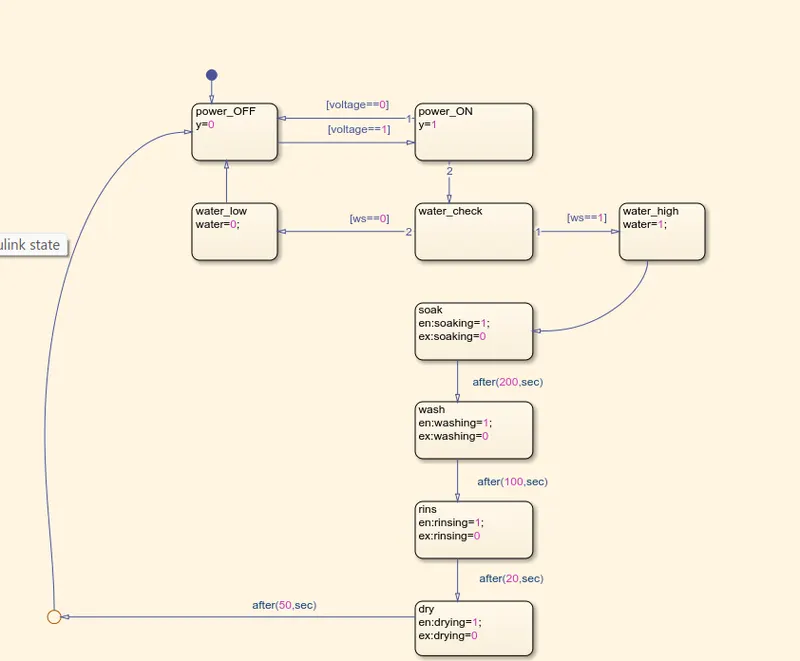

washing machine
when the washing machine is switched ON the current will started to flow. the water level sensor started checking the water level. if the level is low the process wont start and if the flow is normal the supply will reach the motor.

the soaking process has a time limit of 200sec, the water will flow untill the water will reach the required limit.washing process will after the soaking. the washing process happen for next 100sec. after the 100sec the rinsing process will start. that will take the time of 20sec.

and the final process is drying. the process it takes upto 50sec, after the 50sec the power will be automatically OFF

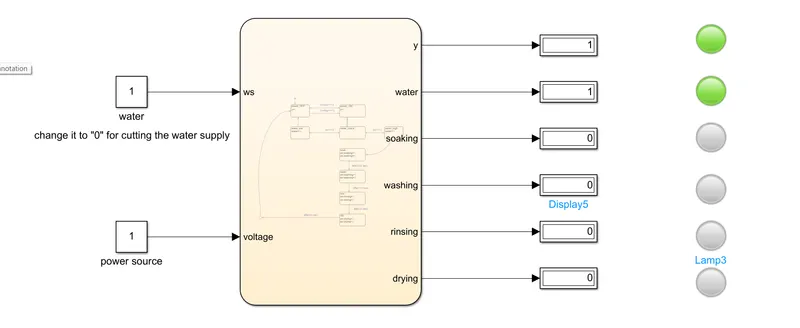

if the water supply is OFF turned to 0 the red indicator will be turned ON to show that water level is low
