Week - 4

Explanation for washing machine,

• If the power supply is available, the system gets activated
• If the Water supply is not available, stop the process & indicate through LED
• Soaking time should be 200s followed by Washing time of 100s.
• Then rinsing happens for next 20s & dryer runs for 50s
•

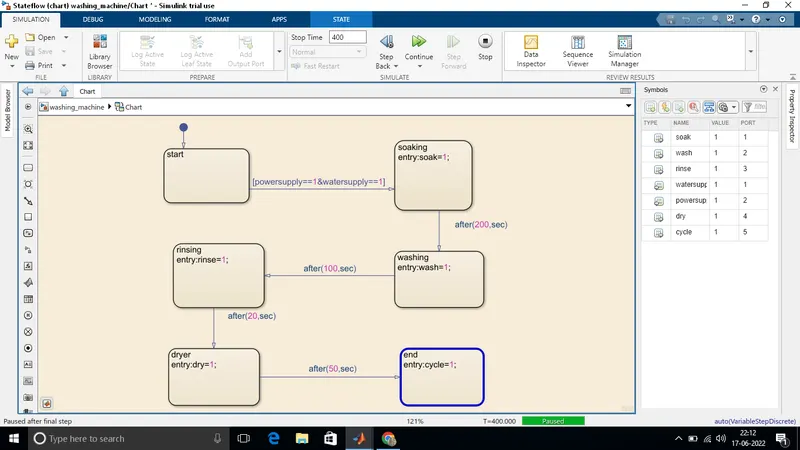

• the above mentain conditions are give to design the block for washing machine,first we create a chart box to code a given conditions,after design it then using symbol pane for connecting the input and output after connecting connecting the input and output give some lamp connection for indication purpose

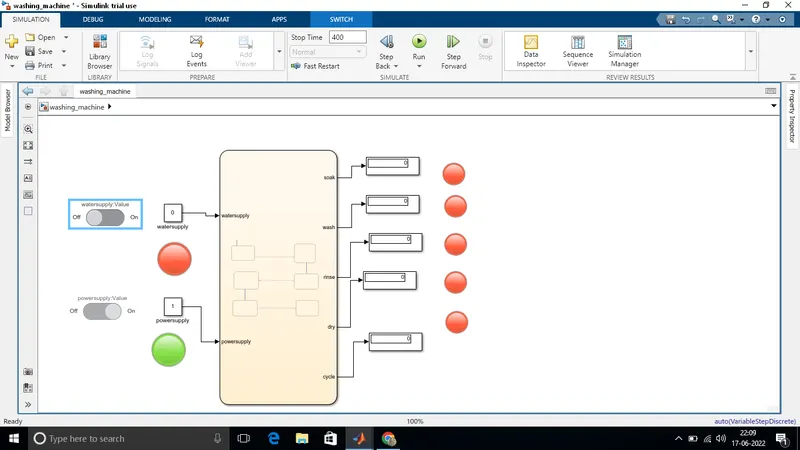

• first we turnoff the water supply and then try to run,its not running besause without water supply any one can't running.
•

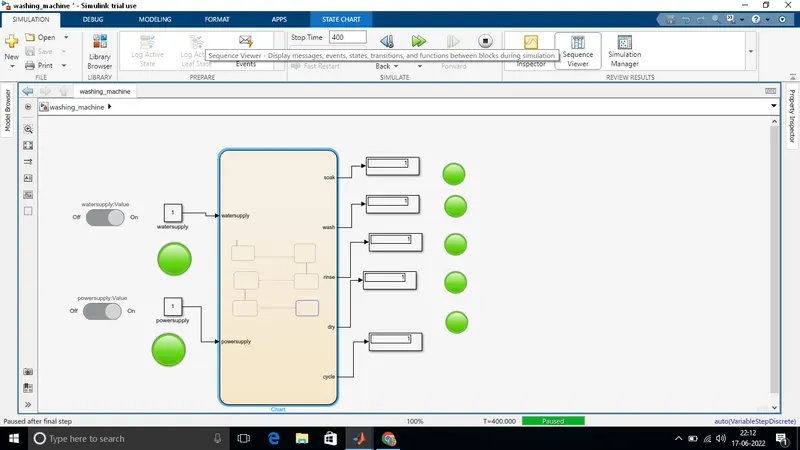

• after we turn on both water supply and power it will be run the washing machine step by step start,soaking,rinsing,washing,dryer and complete the operation.and stop time is 400 because its take more time to wash.

•

Explation for “Gear shift”,

Speed Range(kmph) Gear

0 to 15 1

16 to 25 2

26 to 40 3

41 to 60 4

Above 61 5

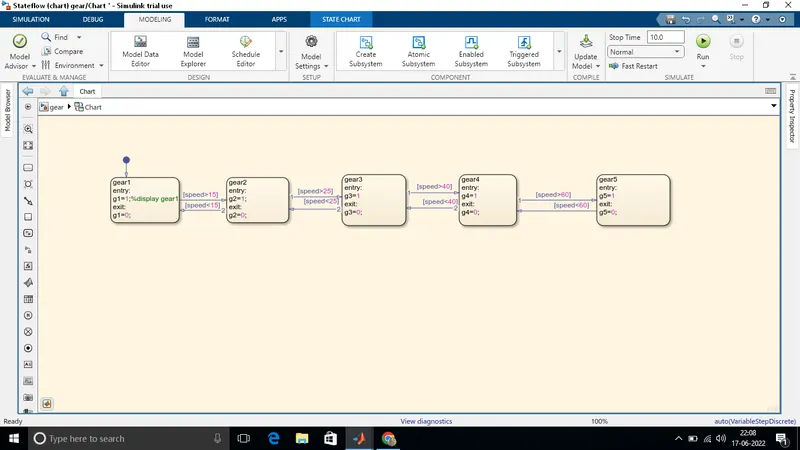

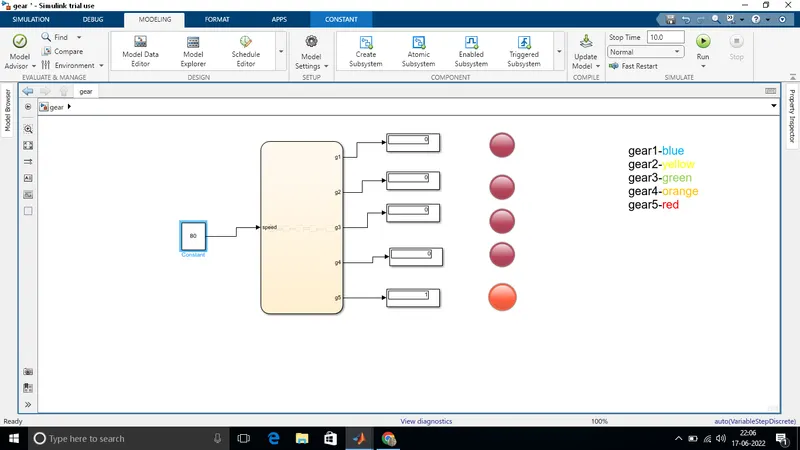

the speed range and gear are given by question,first we creat a seperate chart for different speed ranges and gears.

after create a chart box set a input and output links to run and display the outputs,use constant block ot give the different speed rangs and its connected to 5 displays and also indicated by different lamps,

give some colours for different gears

gerar1-blue

gerar2-yellow

gerar3-green

gerar4-orange

gerar5-red

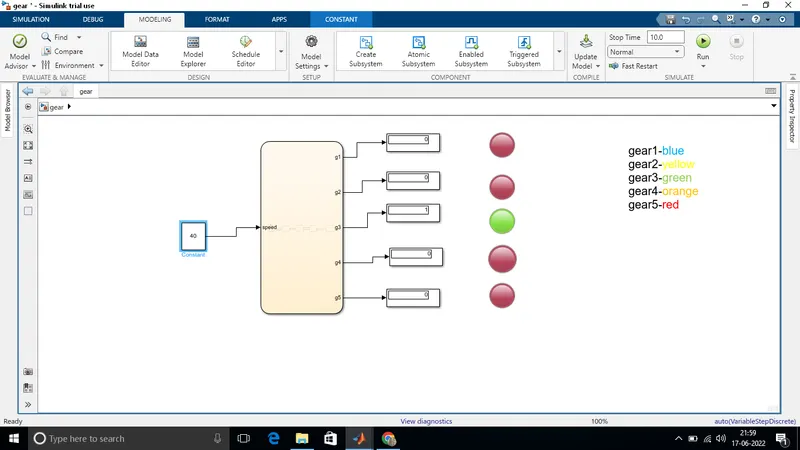

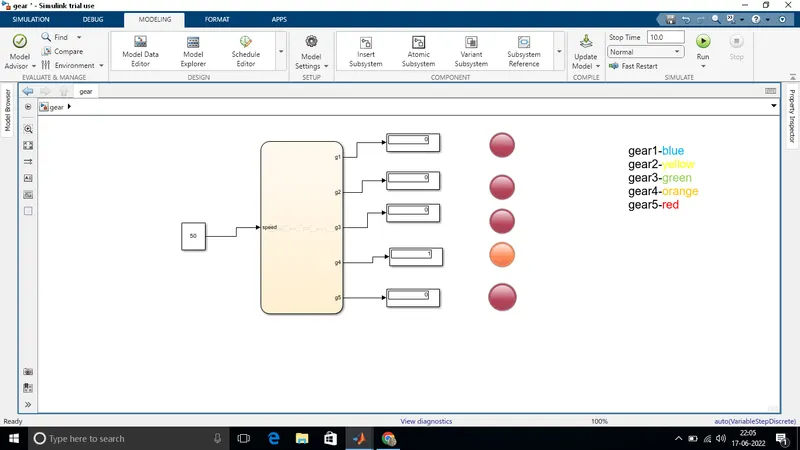

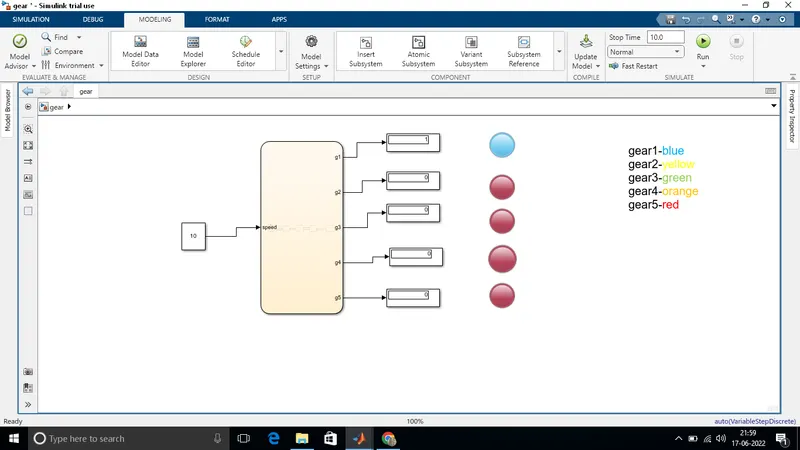

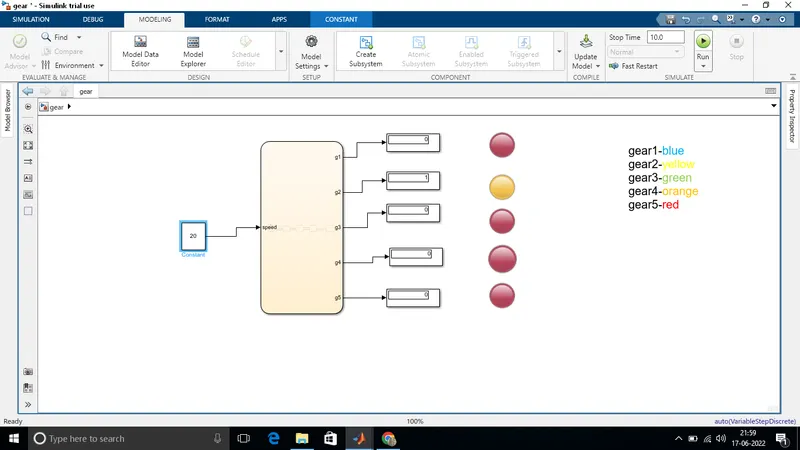

then give different speed range in input block its shows different gear out puts.
