1. Pictorial Representation Of Block Diagram:

PARAMETERS:

1. When Value is '1' means there is Input.
2. When Value is '0' means there is No Input.

CONDITIONS:

1. When the LAMP shows "GREEN",the task is in "PROGRESS".
2. When the LAMP shows "RED",the task "END".

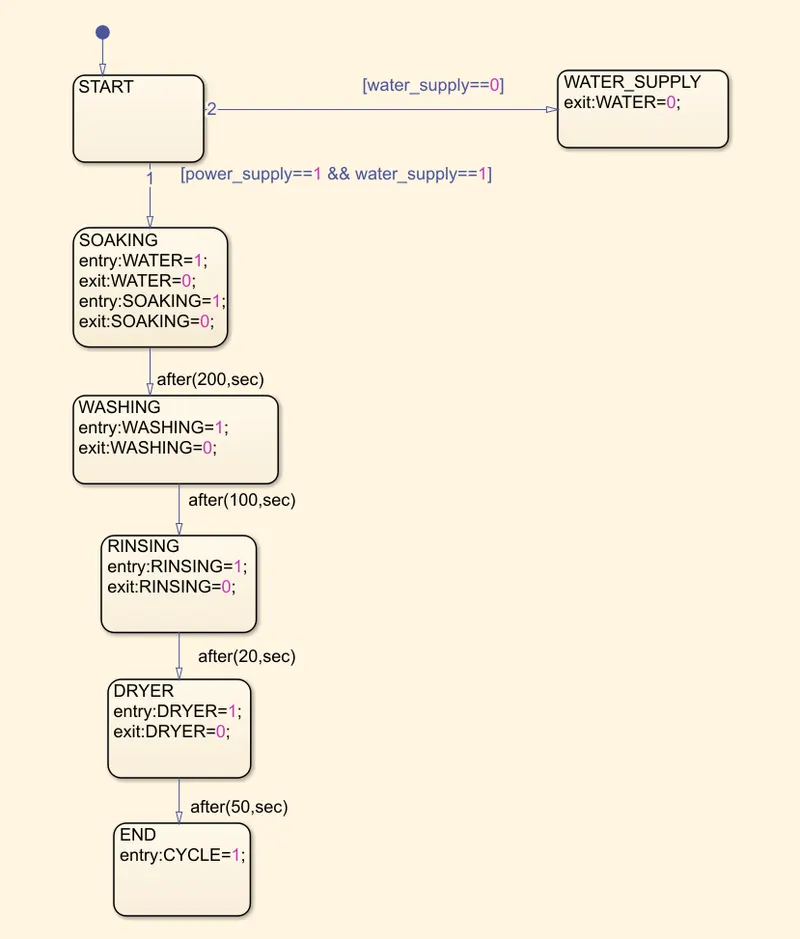

CHART DIAGRAM:

PARAMETERS:

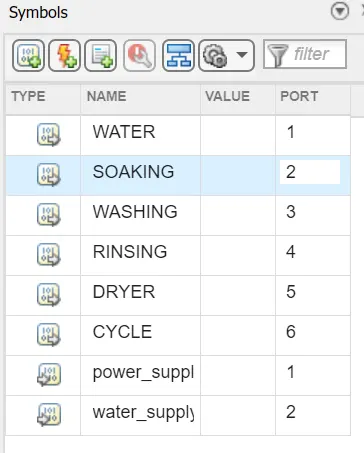

HERE, WE TOOK POWER SUPPLY & WATER SUPPLY AS AN INPUT & WATER,SOAKING,WASHING,RINSING,DRYER,CYCLE AS AN OUTPUT.

# HERE, I PROVIDE "450 sec AS SIMULATION TIME" TO COVER THE WHOLE CYCLE & SUFFICIENT TIME TO SOLVE THE PARAMETERS & STORE THE VALUE.

OUTPUT:

CONDITION 1: WHEN WATER SUPPLY IS AVAILABLE.

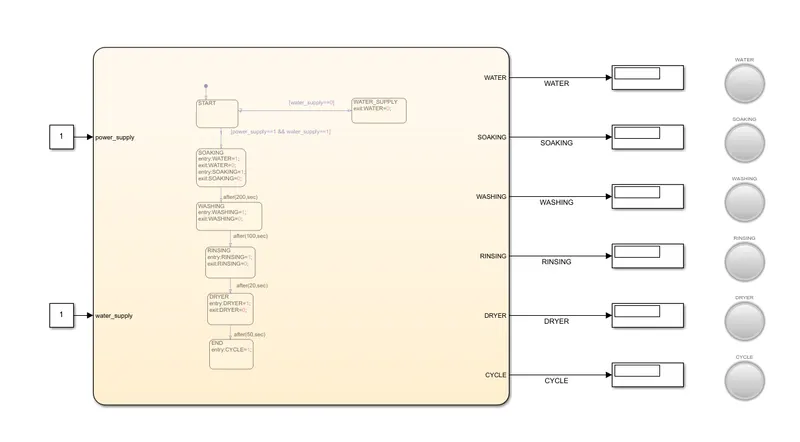

SO, WE PROVIDING THE WATER SUPPLY & CHECK THE OUTPUT.

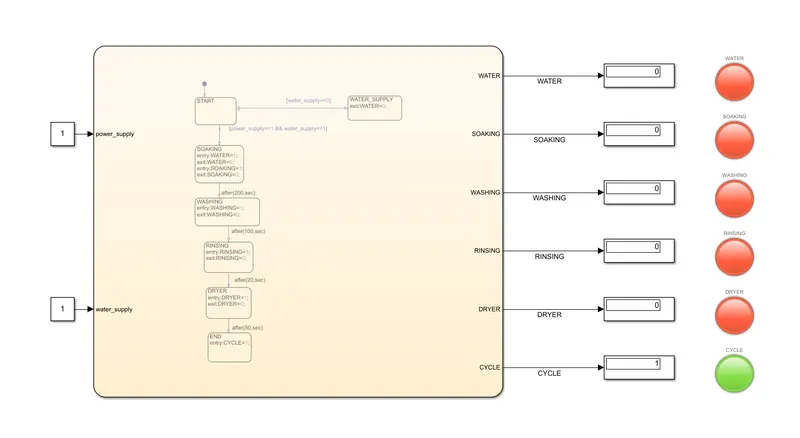

So, from the above figure we can see that the "WATER SUPPLY" is "PRESENT" & ALL STAGES ARE EXECUTED & indicating the "PROCESS COMPLETION" indicator NAMED AS "CYCLE SHOWING GREEN".

CONDITION 2: WHEN THE WATER SUPPLY IS OFF.

SO, WE RE NOT PROVIDING THE WATER SUPPLY & CHECK THE OUTPUT.

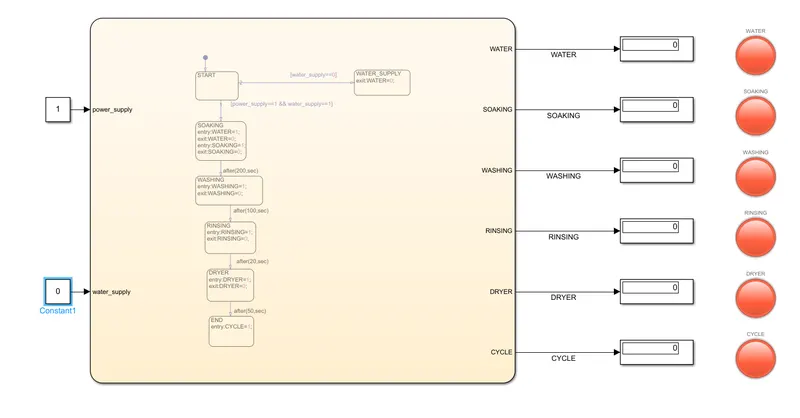

So, from the above figure we can see that the "WATER SUPPLY" is "NOT PRESENT",the indicator of WATER is RED. When there is "NO WATER SUPPLY" the process got "TERMINATED & the RED INDICATOR used to indicate it".

# PLEASE FIND THE FILE "washing…hine.slx" AS THE OUTPUT OF THE QUESTION.

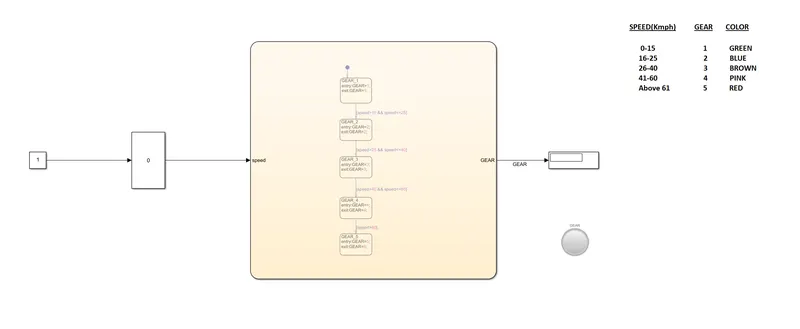

2. BLOCK DIAGRAM OF THE MODEL:

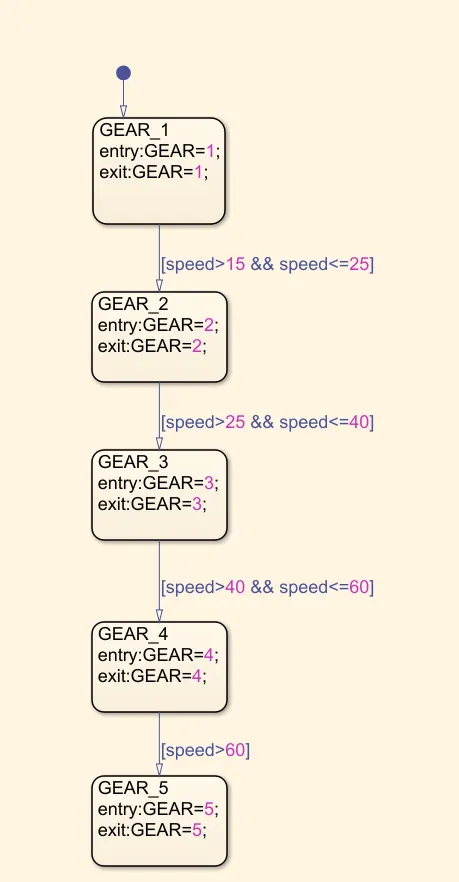

CHART DIAGRAM:

PARAMETERS:

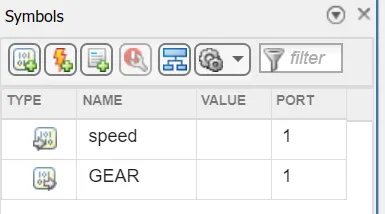

Here, We take "SPEED as an INPUT" & "GEAR as an OUTPUT".

Simulation Time Parameters: Here we gave "Inf" for our simulation.

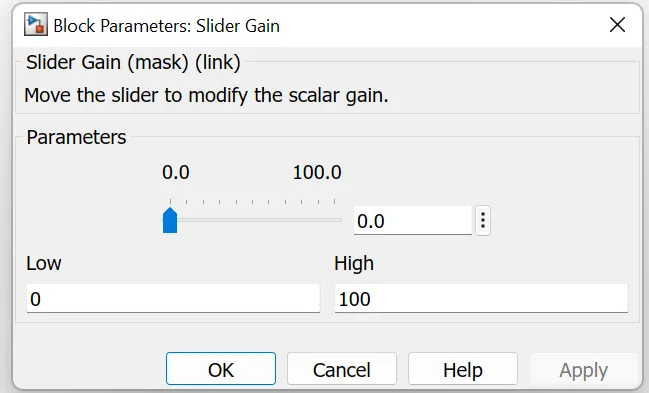

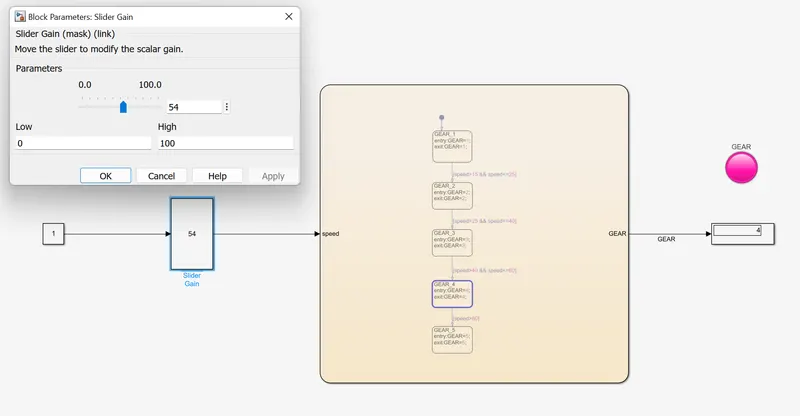

INPUT: We provide a slider Gain to provide the Input.

OUTPUT:

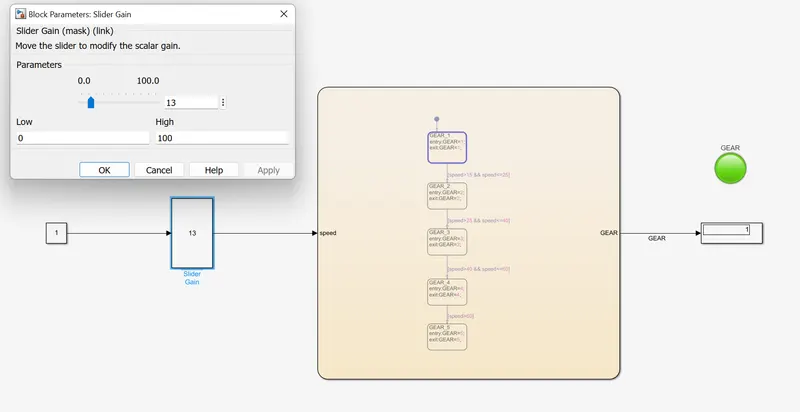

GEAR 1:

Speed Range: 0-15 Kmph

Input Speed: 13 Kmph

Colour: GREEN

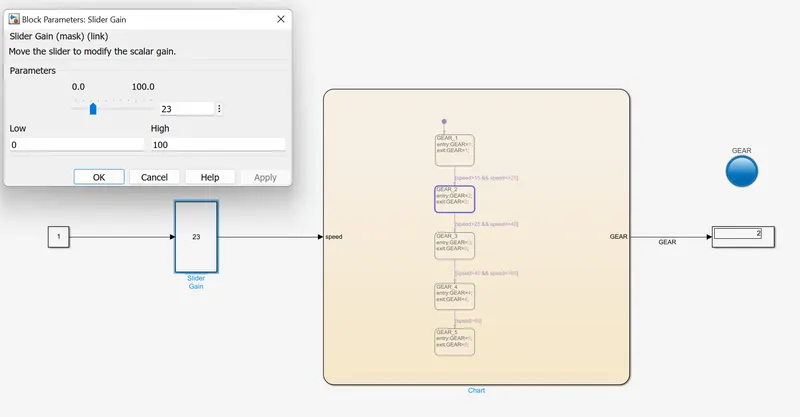

GEAR 2:

Speed Range: 16-25 Kmph

Input Speed: 23 Kmph

Colour: BLUE

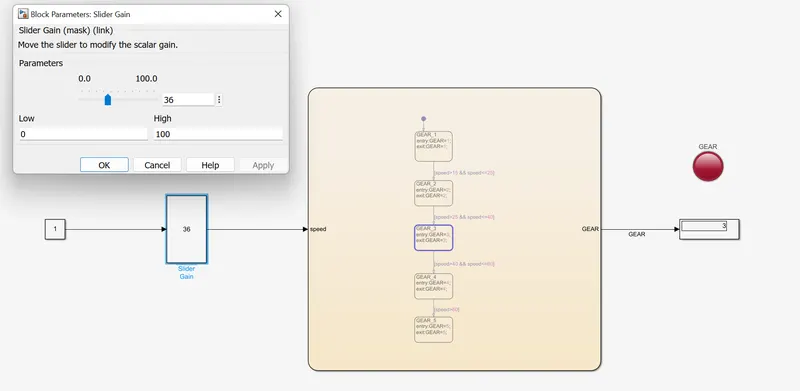

GEAR 3:

Speed Range: 26-40 Kmph

Input Speed: 36 Kmph

Colour: BROWN

GEAR 4:

Speed Range: 41-60 Kmph

Input Speed: 54Kmph

Colour: PINK

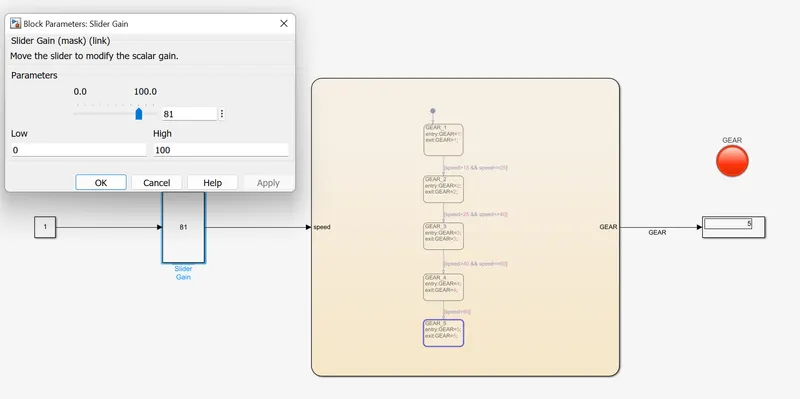

GEAR 5:

Speed Range: Above 60Kmph

Input Speed: 81Kmph

Colour: RED

# PLEASE FIND THE FILE "GEAR.slx" AS THE OUTPUT OF THE QUESTION.
