Week - 4

Answer 1

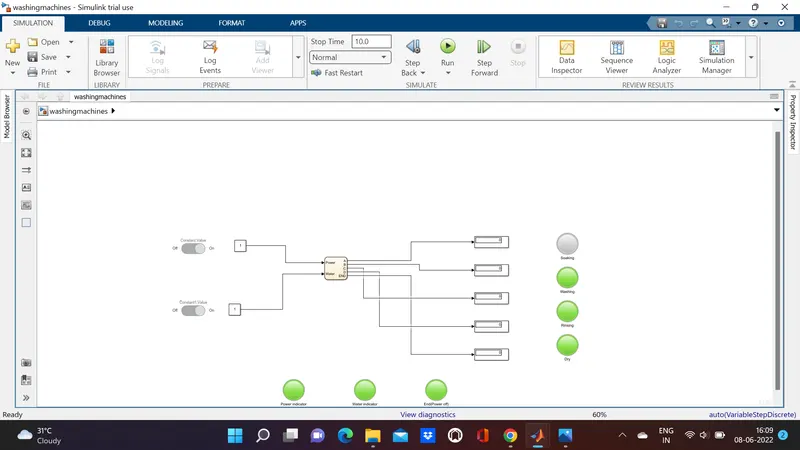

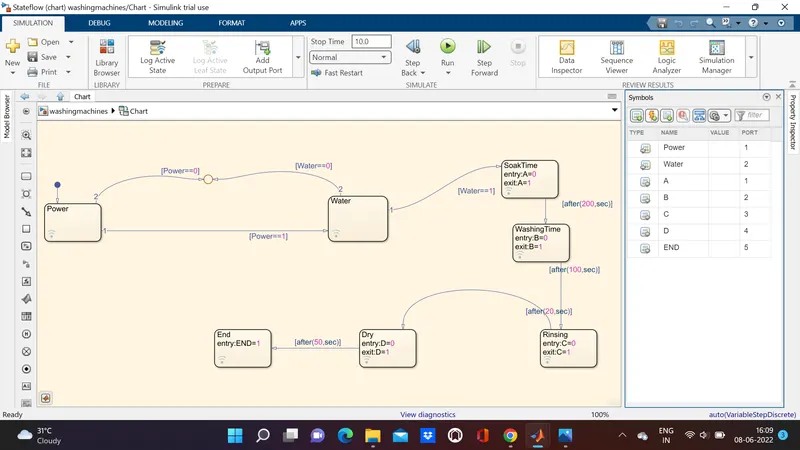

The chart and the symbols have been defined accordingly. The inputs taken as water and power and the output are the processes defined within those specific time frames.

The final output is obtained with the help of LEDs.

Answer 2

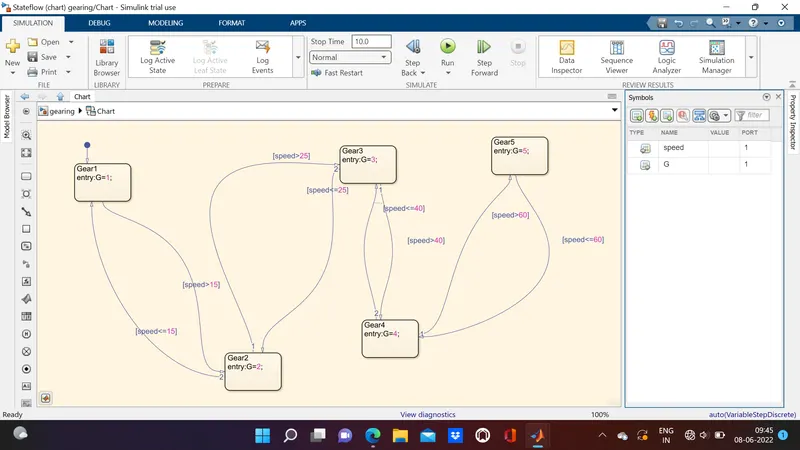

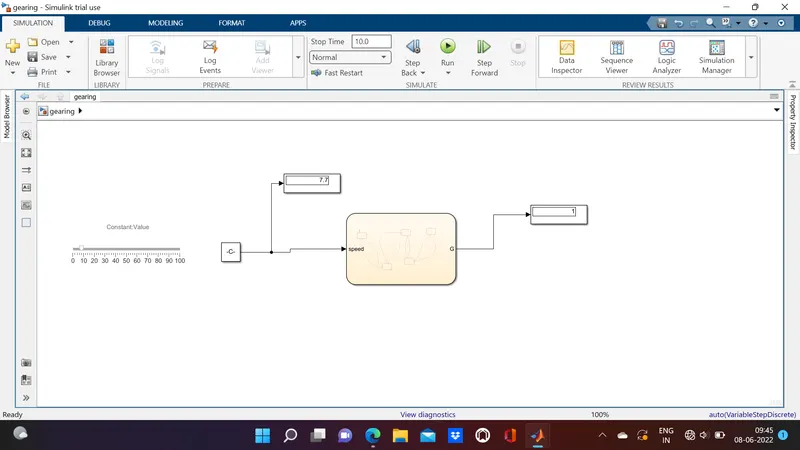

The gearshift logic has been implemented with the help of an ideal transmission system which adjusts the gear according to varying speeds. The speed limits for each gear has been expedited in the chart and also symbols have been mentioned as input and output.
